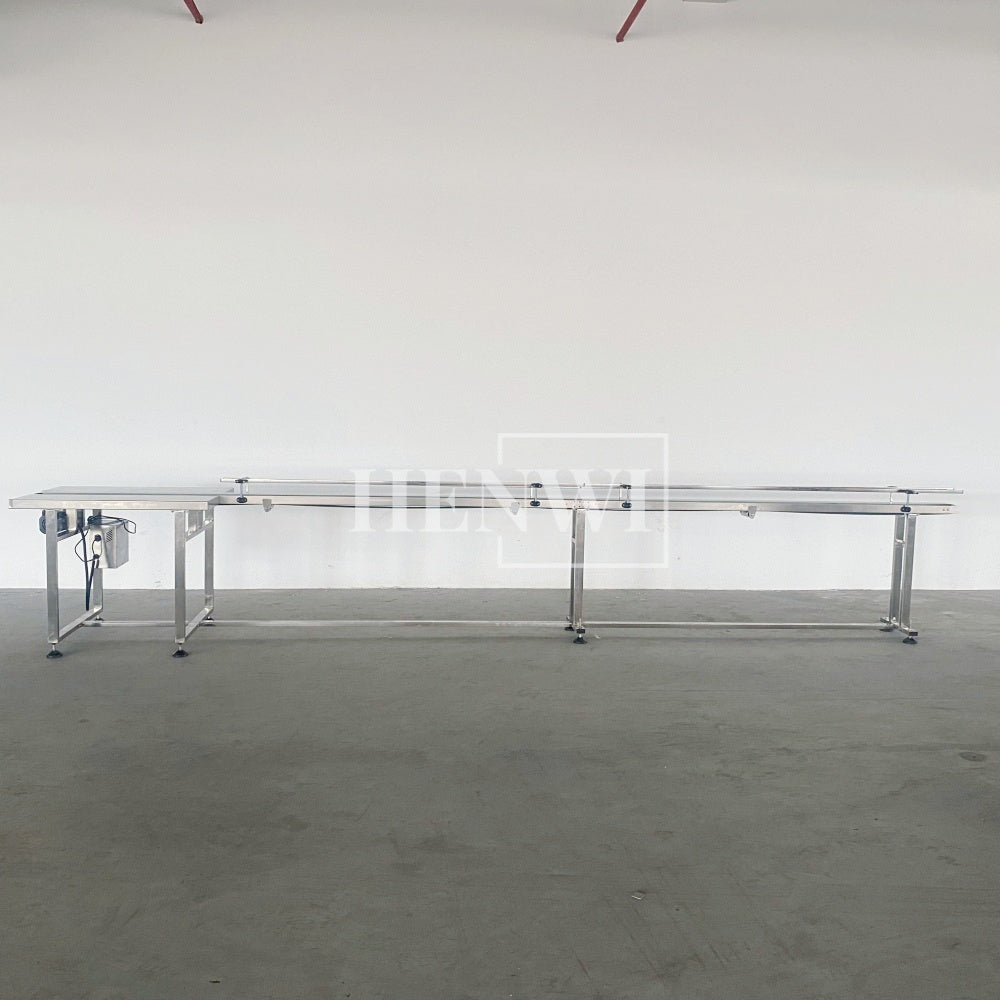

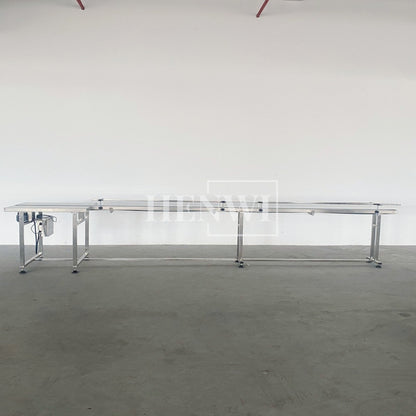

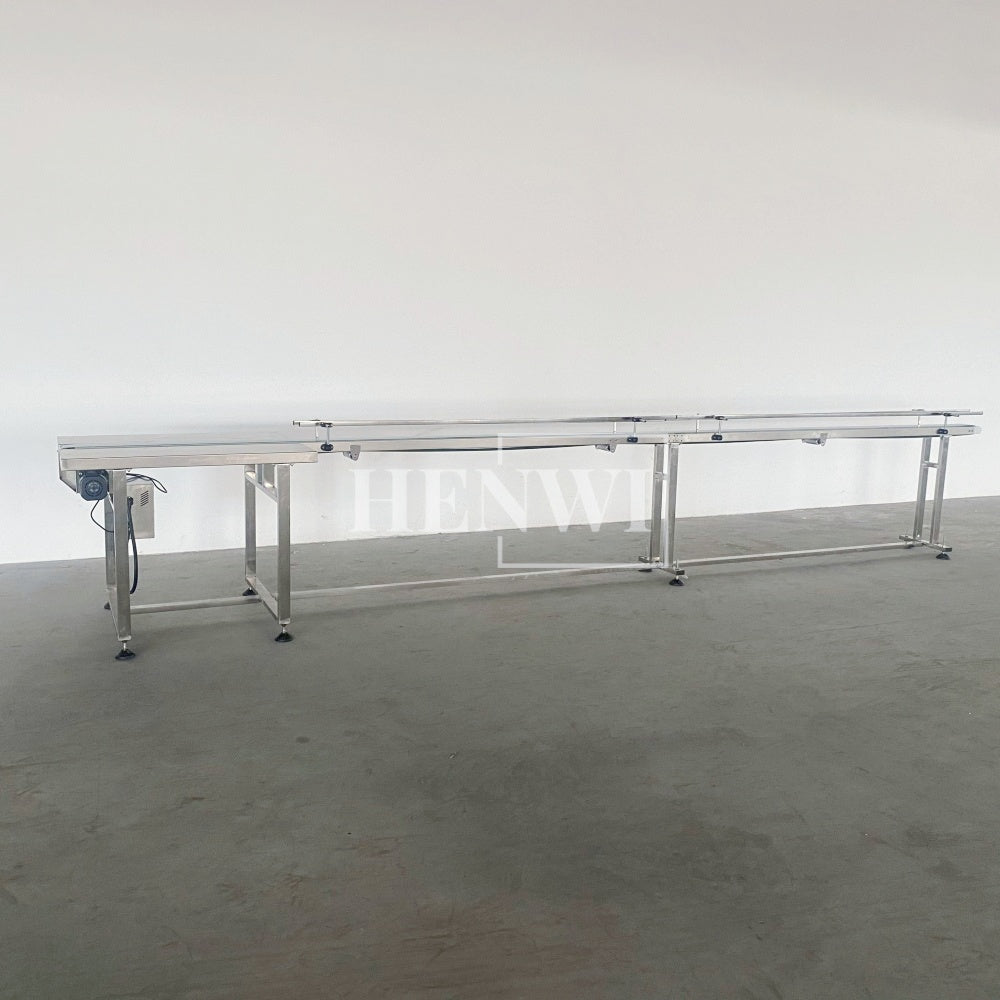

Henwi HWAM-5 Meters PVC Belt Conveyor Collecting Table Conveying Belt Transferring Equipment With SUS Operating Collecting Platform Table

Henwi HWAM-5 Meters PVC Belt Conveyor Collecting Table Conveying Belt Transferring Equipment With SUS Operating Collecting Platform Table

$1,380.00 USD
$1,380.00 USD
Sale Sold out
Shipping calculated at checkout.

1. Introduction

This belt conveyor can work with full-auto or semi-autoc machine as a production line, like filling machine, capping machine, labeling machine, cartoning machine, film packing machine, etc.
Scope of application: perfume, facial cream, shampoo, liquid soap, laundry detergent, salad sauce, mayonnaise, ketchup, jam, cosmetics, daily chemical, juice, beverage, wine, water, cola, wax, vaseline, lipstick, toilet soap, box, case, etc.

2. Specification

1
Machine name

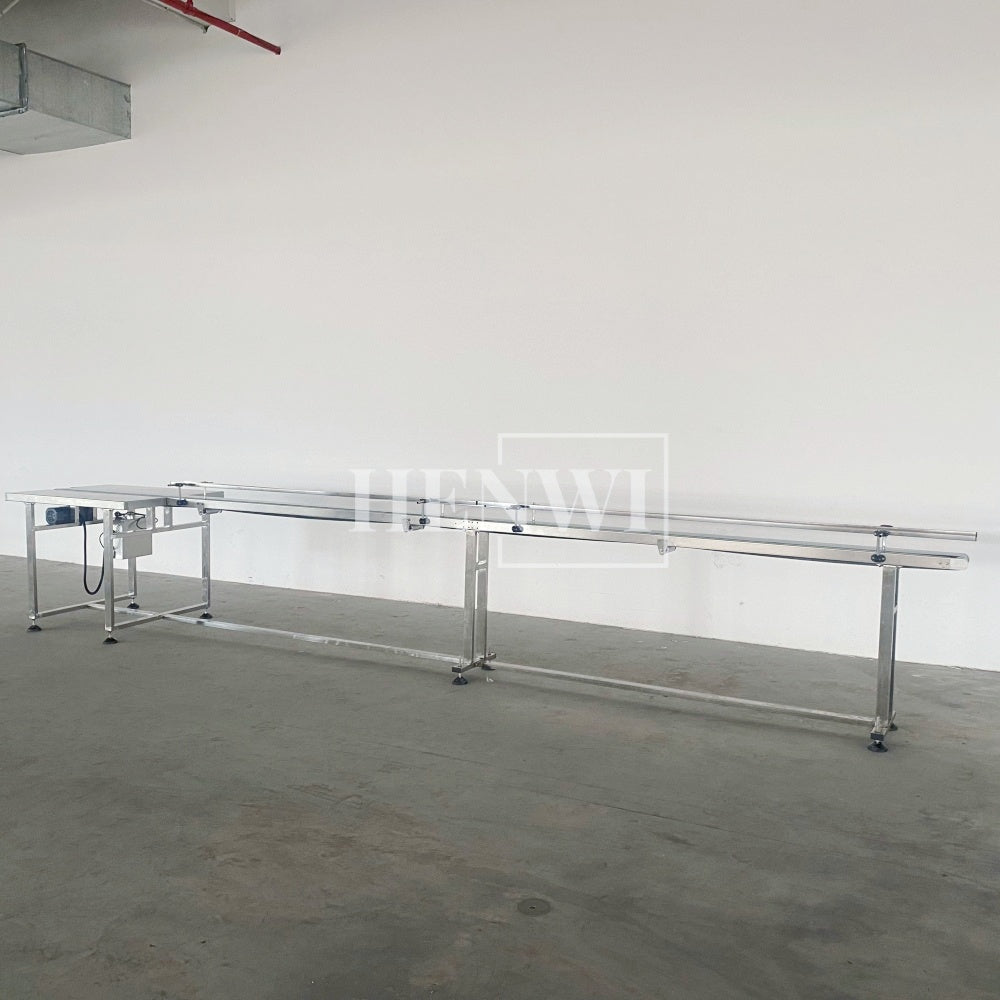

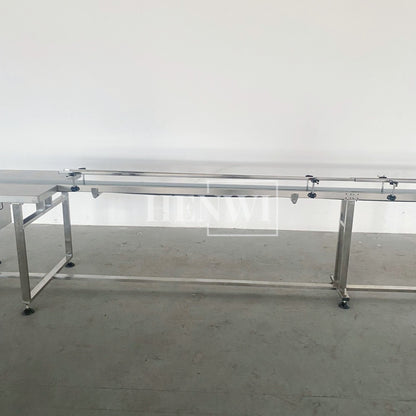

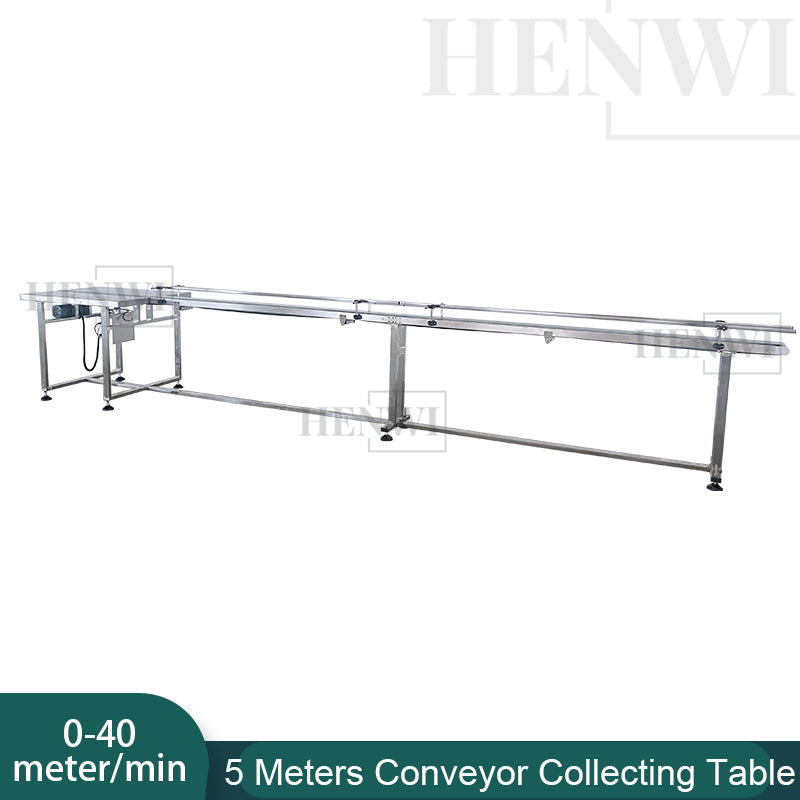

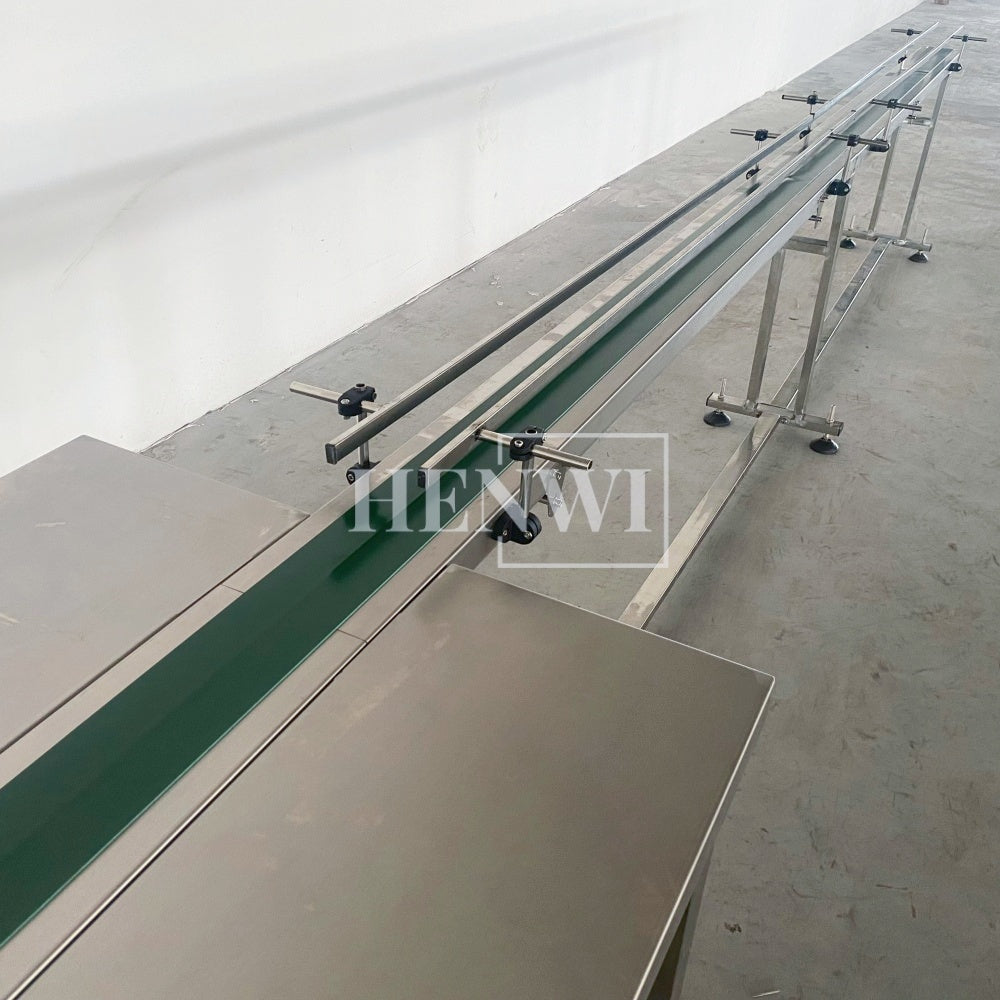

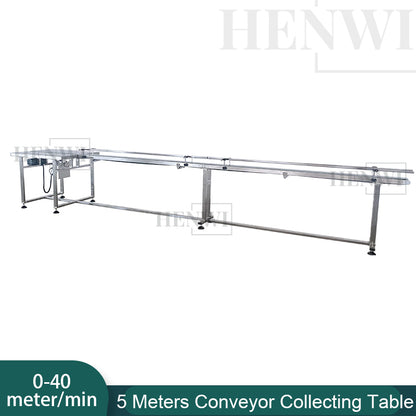

5 Meters PVC Belt Conveyor Collecting Table
2
Regular size
5000*800*800mm(L*W*H)
3
Regular weight
80KG
4
PVC belt width
100mm
5

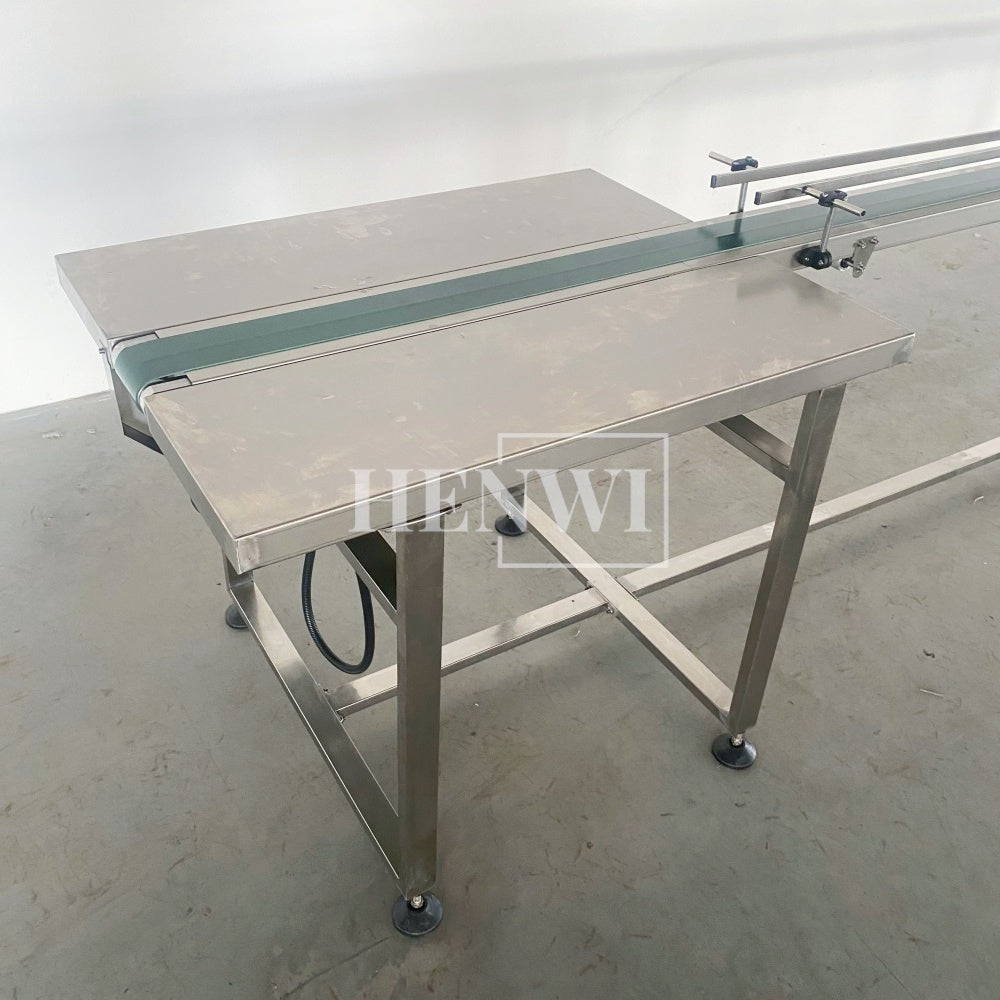

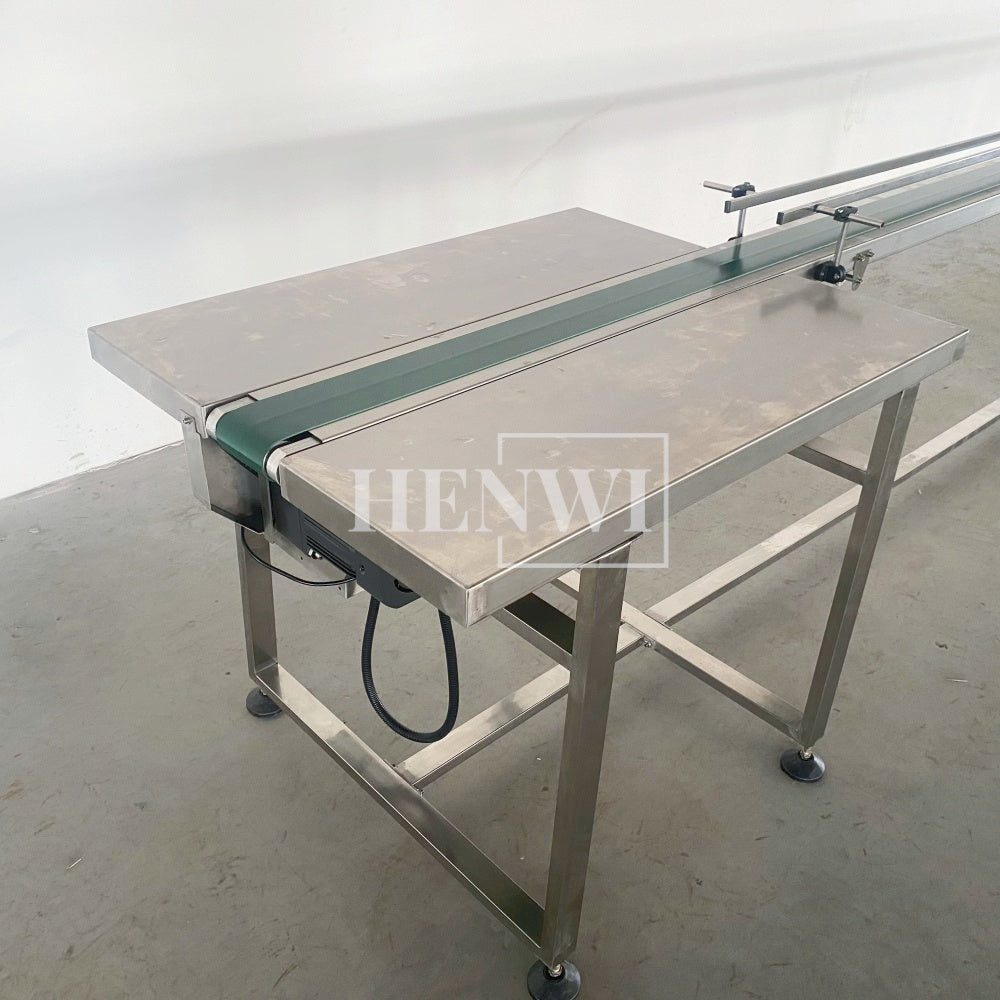

Working platform size
1000*800mm(L*W)
6
Main material
SUS304
7

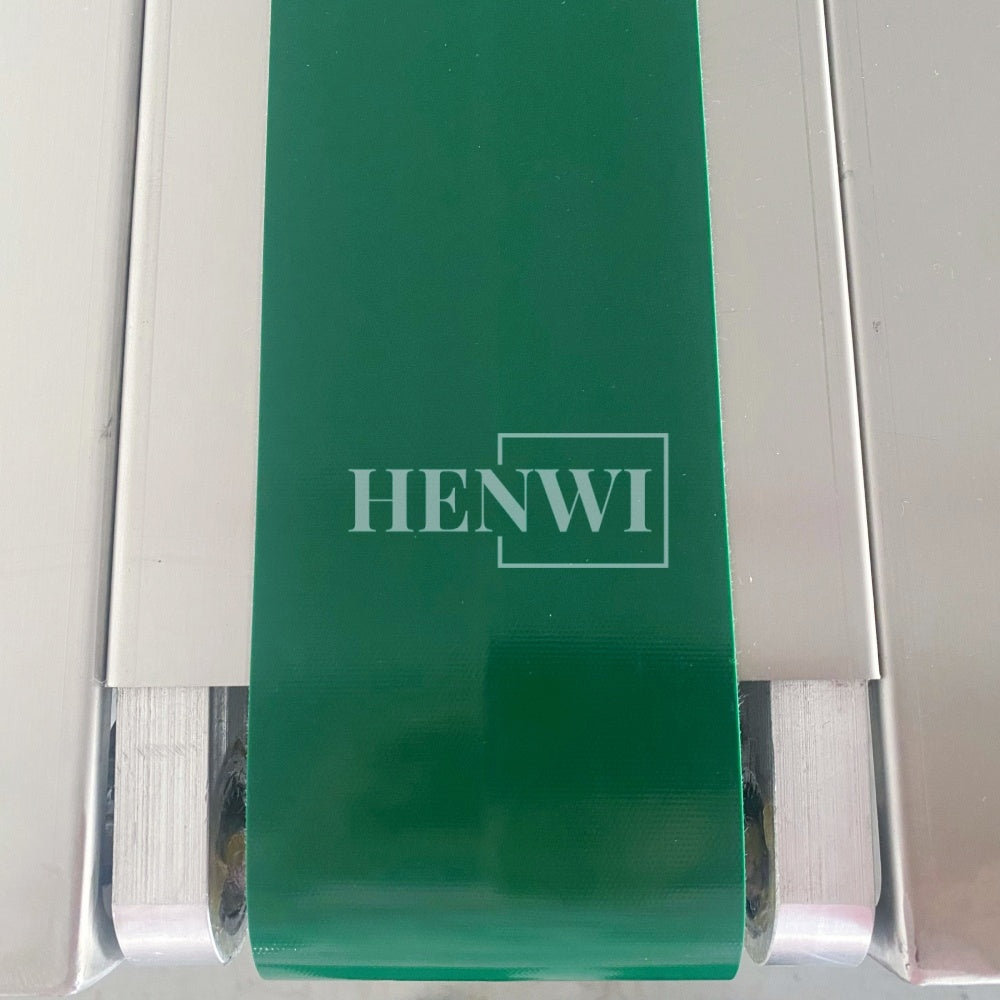

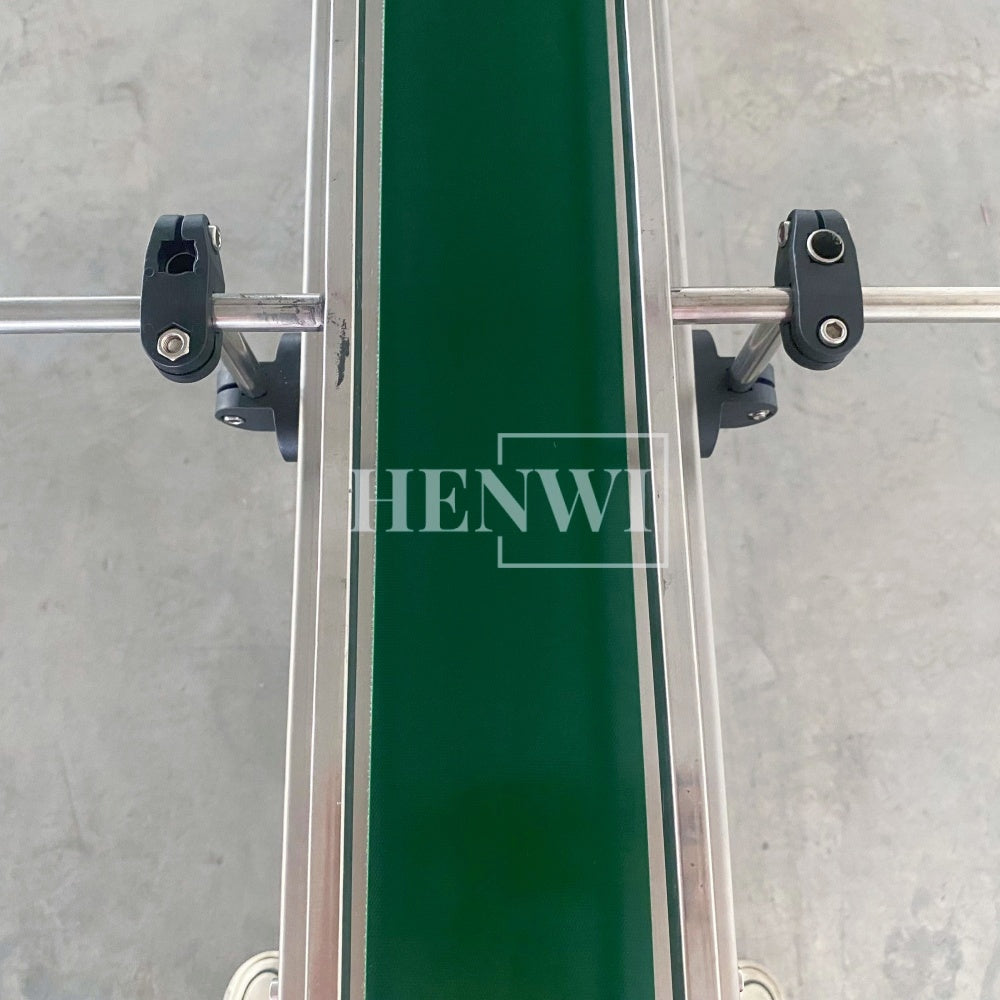

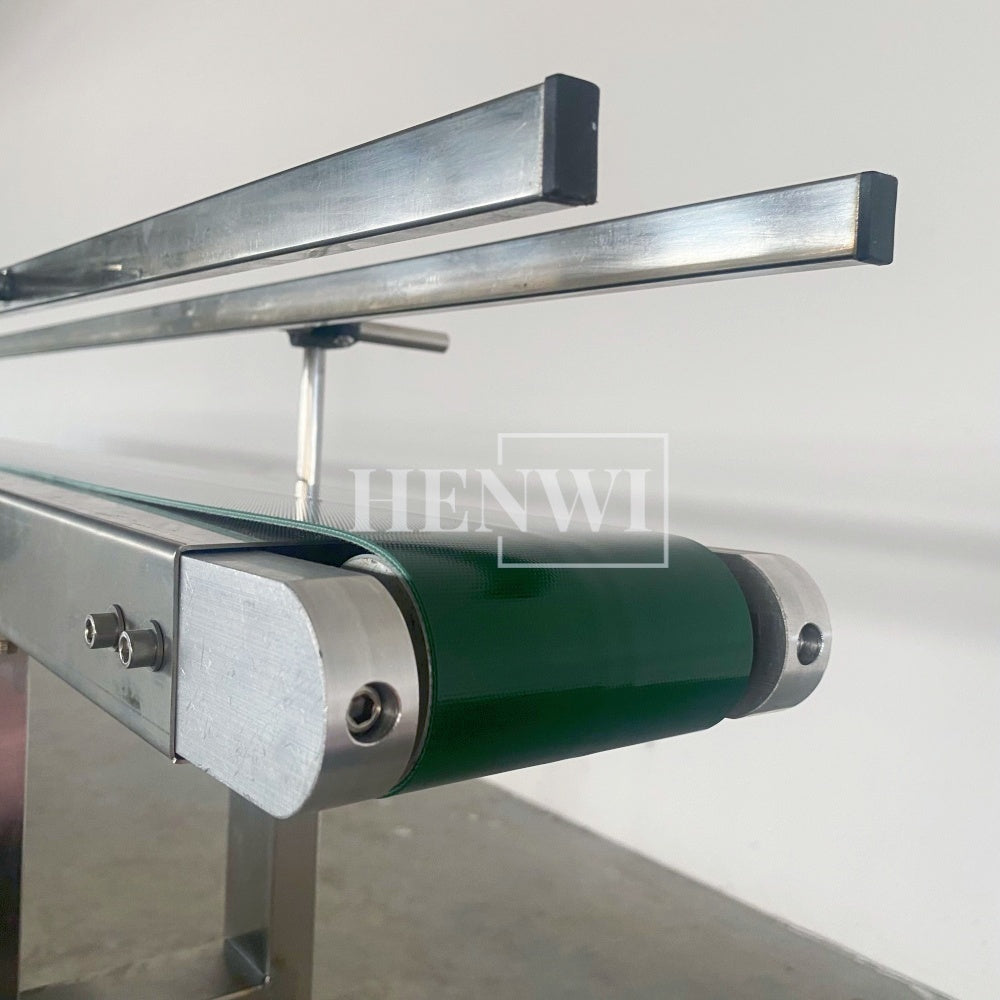

Belt material
PVC
8
Belt speed
0-50 Meter/Minute (adjustable)
9
Belt type
PVC One-Piece Belt
10
Motor power
0.18KW
11
Power supply
AC 220V/50Hz/1phase
12
Scope of application
Cosmetics, food, daily chemical, medicals, bottles, jars, box, case, sachet, etc.
13

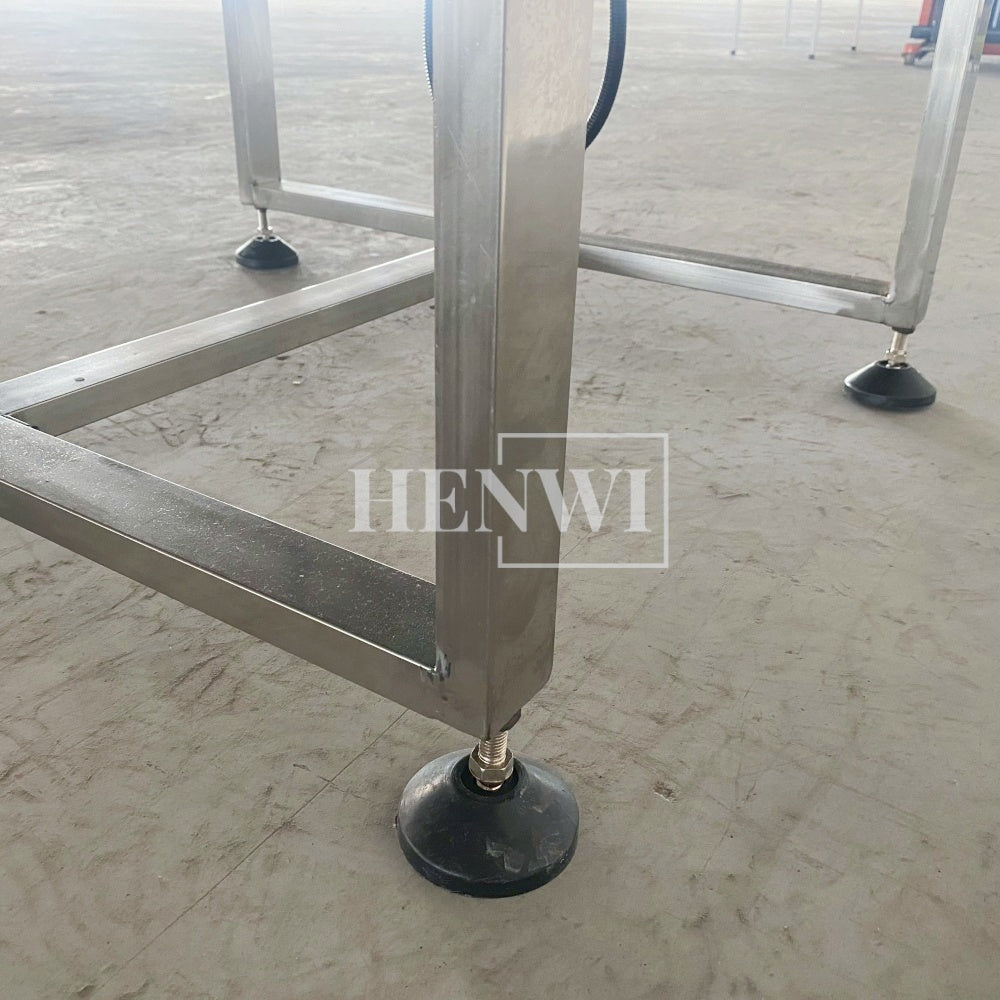

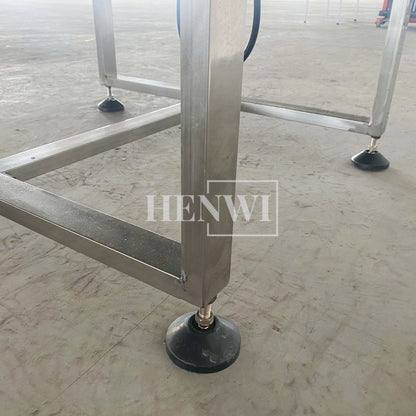

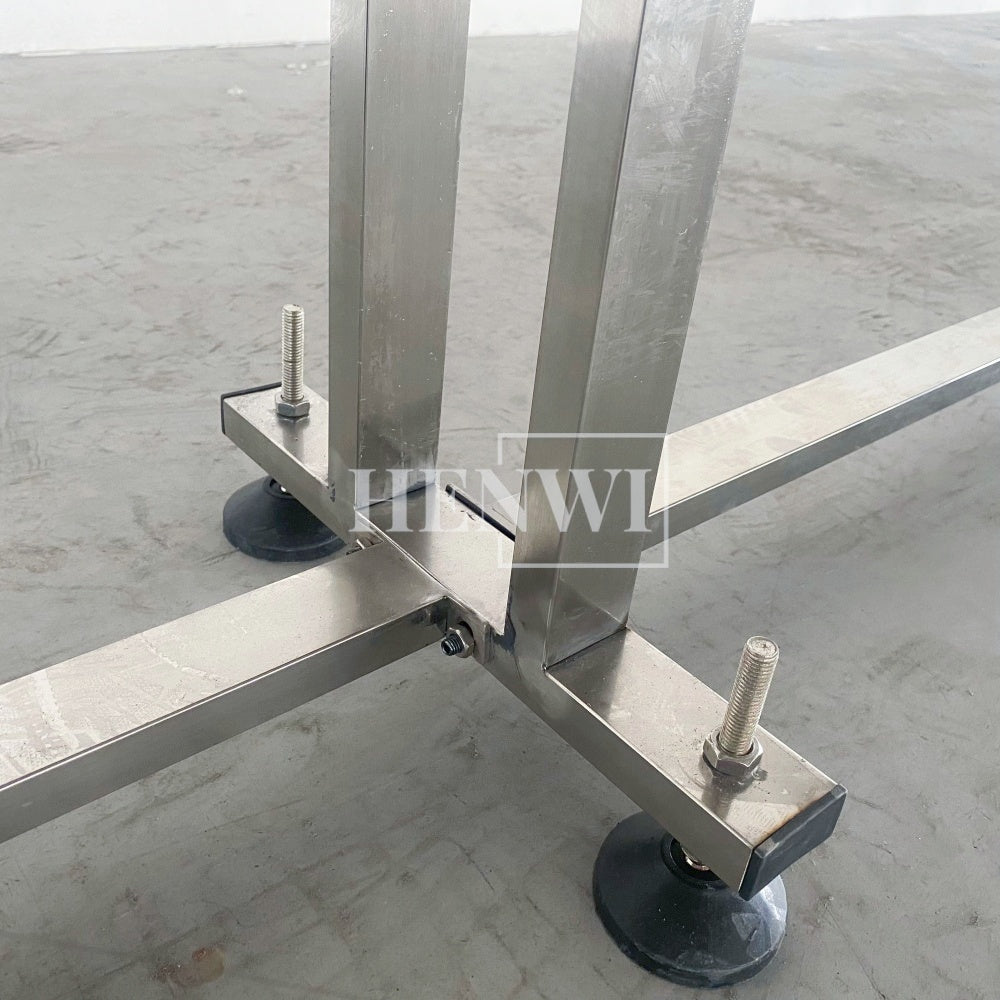

Leveling foot
±100mm (Adjustable)
14
Customized total length
2-10 meter (Customization)
15

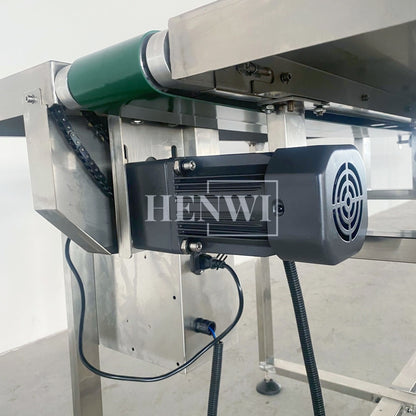

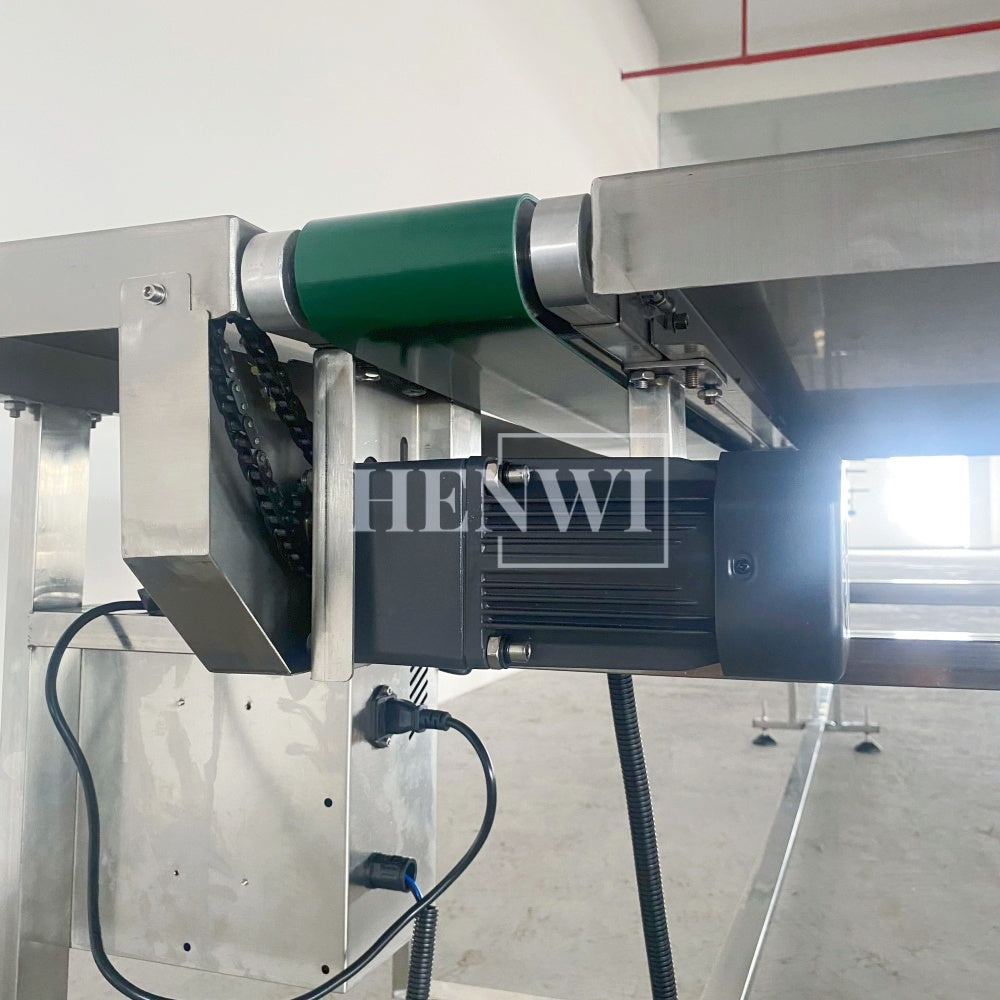

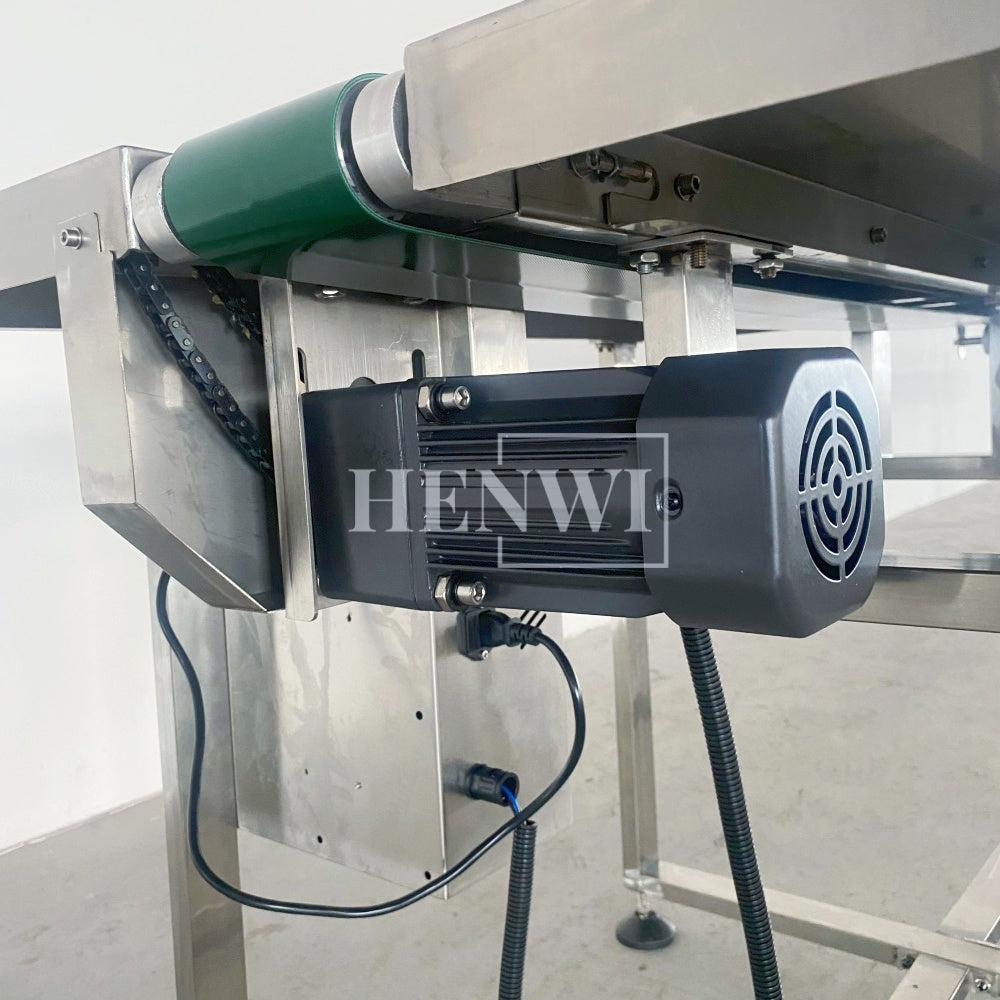

Motor
Stepping motor
16
Motor brand
GPG
17

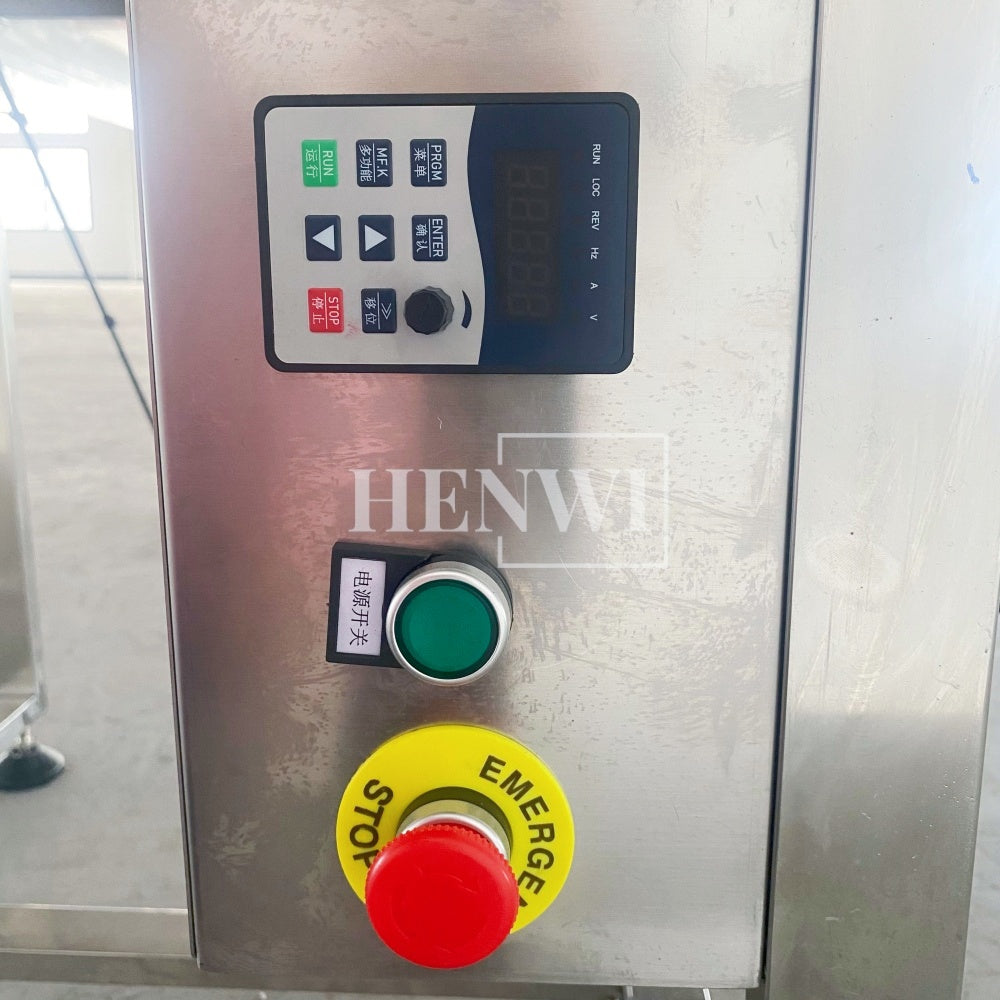

Inverter brand
Coreken
View full details
