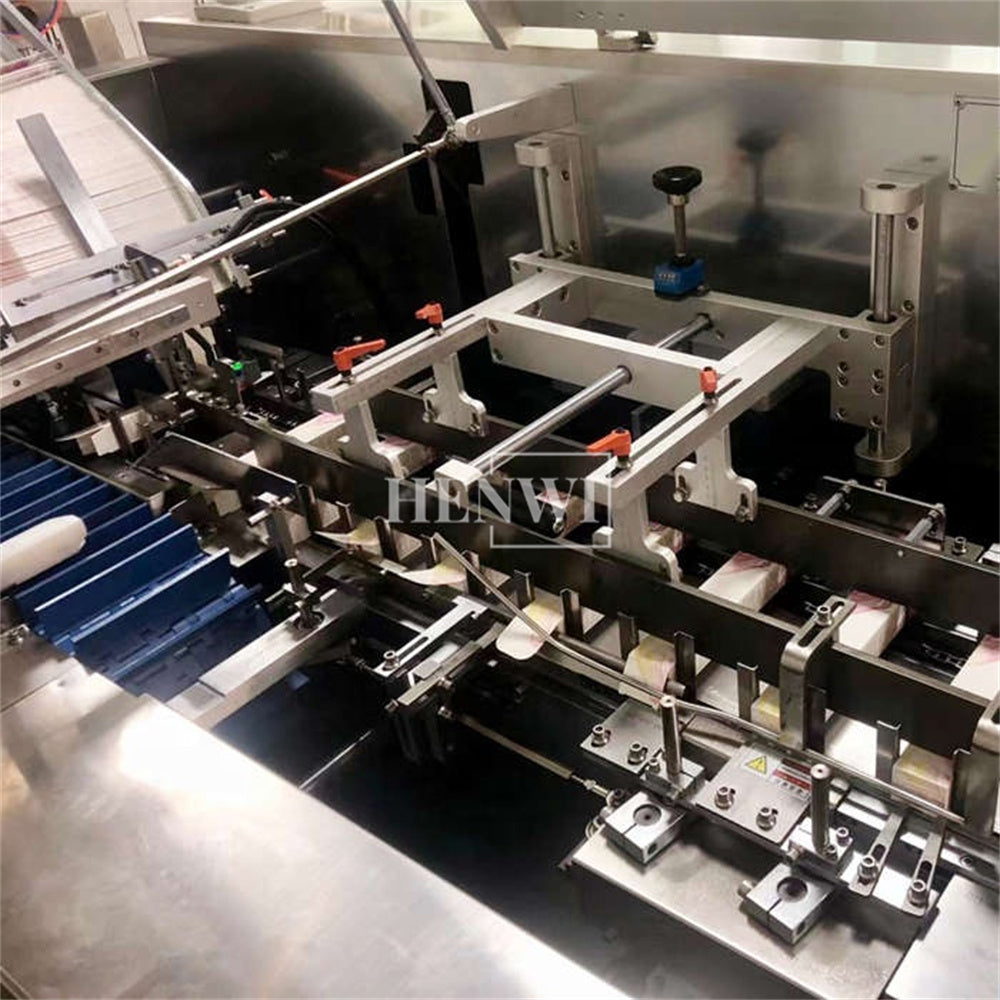

Automatic box cartoning machine is suitable for pharmaceuticals, food, cosmetics, commodities etc. Like bottle, tube, jar, sachet, lipstick, etc.
It can open box, fill products into box, then close box with tuck-in or hot-melt glue sealing.
The machine is equipped with a series of sensors and automatic protective devices to assure the machine runs safely and effectively.
It can connect with the Tube Filling Sealing Machine, Blister Machine, Pillow Type Packaging Machine, Shrink-Wrapper, etc., to form a Packaging Line. It is the best choice for mass production.
2. Specification
1
Encasing speed
30-120 boxes/min
2
Box
Quality requirement
250-350g/m2
3
Dimension range (L*W*H)
(70-180)mm*(35-85)mm*(14-50)mm
4
Quality requirement
60-70g/m2
5
Leaflet
Unfolded leaflet specification (L*W)
(80-250)mm*(90-170)mm
6
Fold range
(1-4) fold
7
Compressed air
Working pressure
≥0.6mpa
8
Air consumption
120-160L/min
9
Power
220V/380V
10
Motor power
0.75kw
11
Machine dimension(L*W*H)
3100mm*1100mm*1550mm
12
Machine weight
1500kg
13
Outline dimension
1300*900*1650mm
14
Protective device
Outage alarm on shortage of liquid in the reservoirtank.
