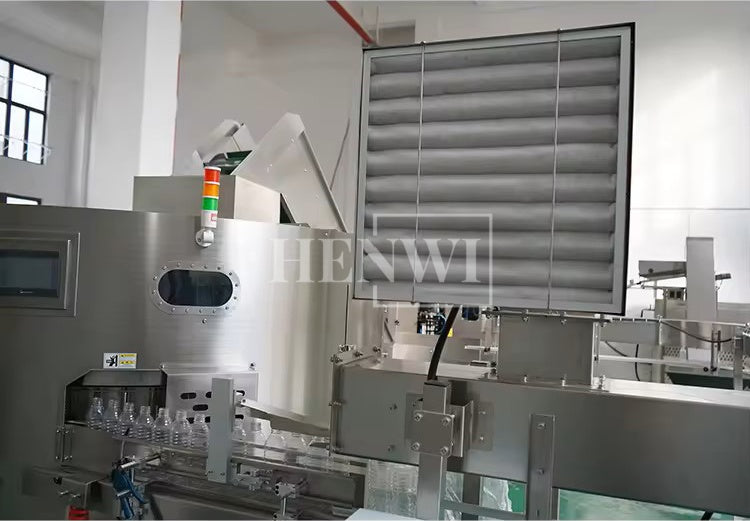

Henwi HWAM-High Speed Bottle Unscrambler Plastic Bottle Aluminum Can Metal Tin Sorting Arranging Loading Feeding Feeder Machine
Henwi HWAM-High Speed Bottle Unscrambler Plastic Bottle Aluminum Can Metal Tin Sorting Arranging Loading Feeding Feeder Machine
Regular price
$24,500.00 USD
Regular price
Sale price
$24,500.00 USD
Unit price
/
per
1. Introduction
This bottle unscrambler machine series is mainly used for automatically sorting, scrambling and conveying the glass or plastic bottles, including round and square bottles, connecting and delivering into next process machine.
The unscrambling machine can be connected with the labeling machine, filling machine and capping machine by conveyor, realizing a full production line for bottle packaging.
It can perform as buffer platform, locating at the joint of production line, to shorten the length of conveyor. The unscrambler can also be applied in assembly line, automatically unscrambling and sorting the bottles, and automatically blocking bottles in cases.
2. Specification
1 |
Applicable bottle shape
|
Round, flat, square, irregular, etc.
|
2 |
Applicable bottle material
|
Plastic, PET, aluminum, wood, paper, etc.
|
3 |
Feeding speed
|
100-300 bottles/min
|
4 |
Applicable bottle diameter
|
30~120mm
|
5 |
Applicable bottle height
|
70~300mm
|
6 |
Power supply
|
220V/380V 50/60Hz
|
7 |
Rated power
|
3000W
|
8 |
Air pressure
|
0.5-0.7Mpa
|
9 |
Weight
|
1500KG
|
10 |
Dimension
|
Bottle elevator: 3000x1200x2500mm
Main body: 2200*2200*2000mm
|
