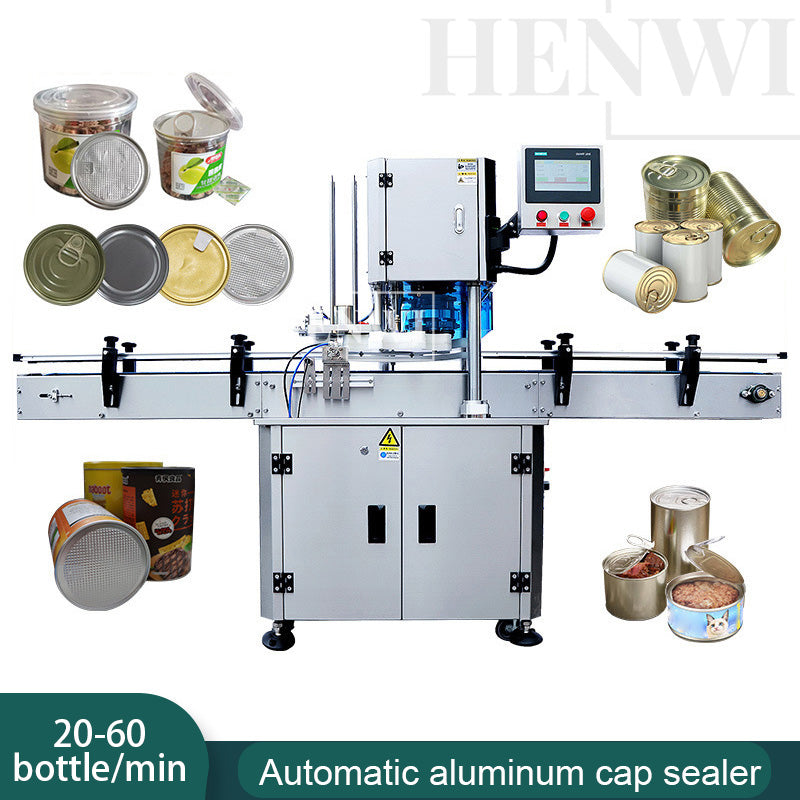

1. Introduction

This machine series is suitable for sealing/capping/pressing/screwing the cover on the bottle or jar or can or other containers,

And it can work with filling machine and labeling machine as a production line to pack  powder/liquid cosmetics & food & pharmaceutical & chemical products.

Applicable containers material: plastic, glass, aluminum, PET, PP, PE, tin, iron, etc.

Applicable containers shape: round, square, flat, irregular, etc.

Applicable cover type: screw cap, anti-theft cap, flip cap, aluminum cap, penicillin cap, pointed cap, press pump cap, long nasal cap, spray cap, etc.

2. Specification

1
Number of sealing head
1
2

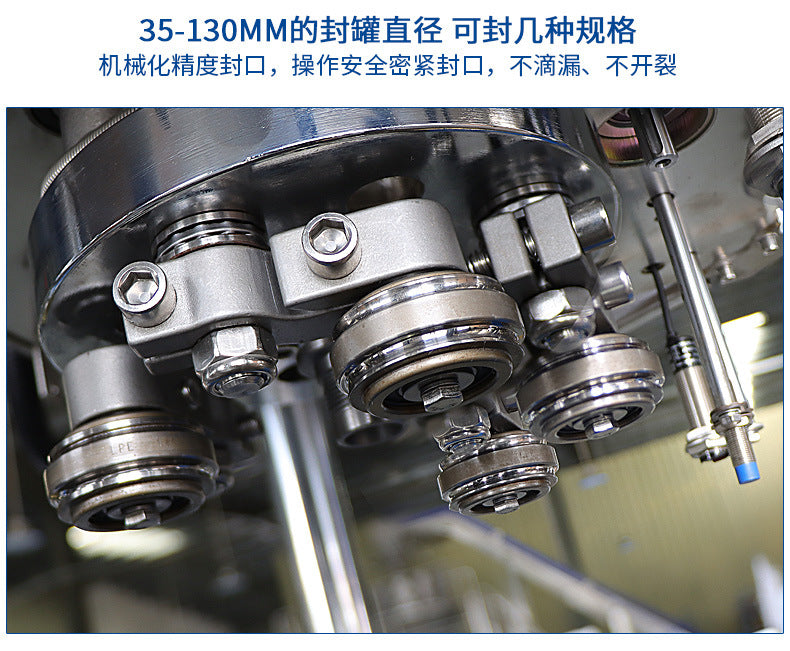

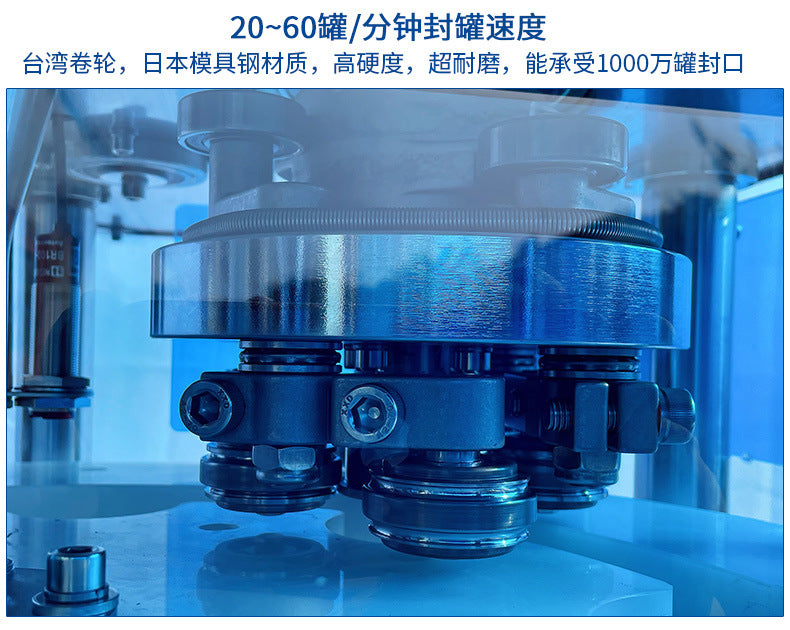

Number of sealing rollers
4 (2 first operation sealing rollers, 2 second operation sealing rollers)
3
Can sealing speed
20-50 cans/minute (adjustable, related to the material, size and content of the can)
4

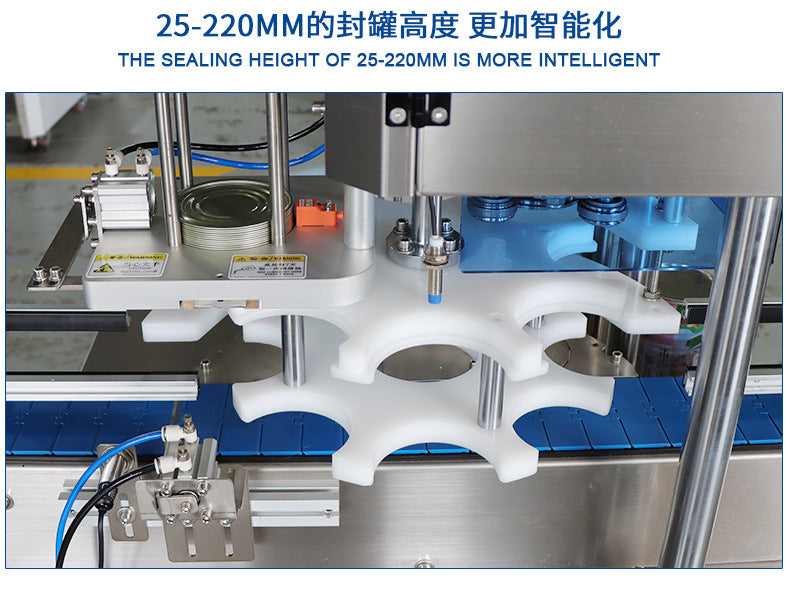

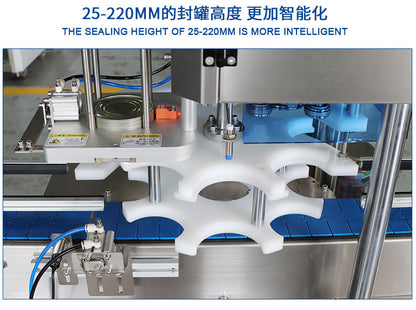

Can sealing height
25-220mm (large height span requires additional molds)
5
Can sealing diameter
30-110MM (8 stations), 60-160MM (6 stations)
6
Air consumption
150L/min
7
Working air pressure
≥0.6MPa
8
Total power
1.7KW
9
Net weight
330KG (approx.)
10
Gross weight
400KG (approx.)
11
Conveyor belt height
850mm
12
Main material of equipment
SUS304
13

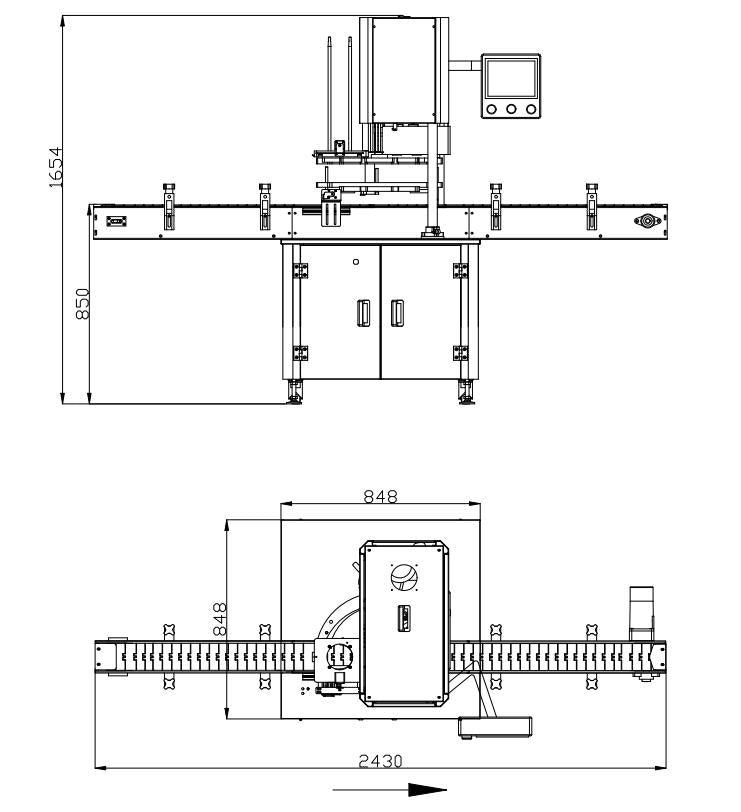

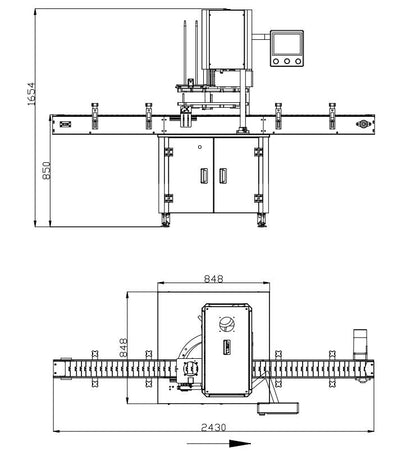

Machine size
L 2400*W 850*H 165mm (approx.)
14
Electrical components
Delixi/CHNT/Schneider
15
Inverter
Delta
16
Servo motor
INOVANCE
17

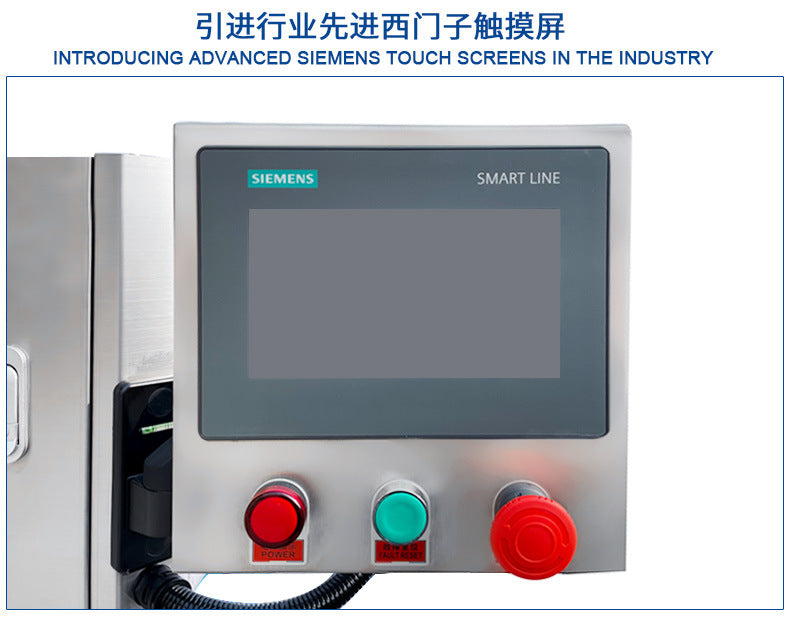

Touch screen+PLC
Siemens
18
Photoelectric sensor
SICK/AUTONIX
19
Power supply
220V/50/60Hz
