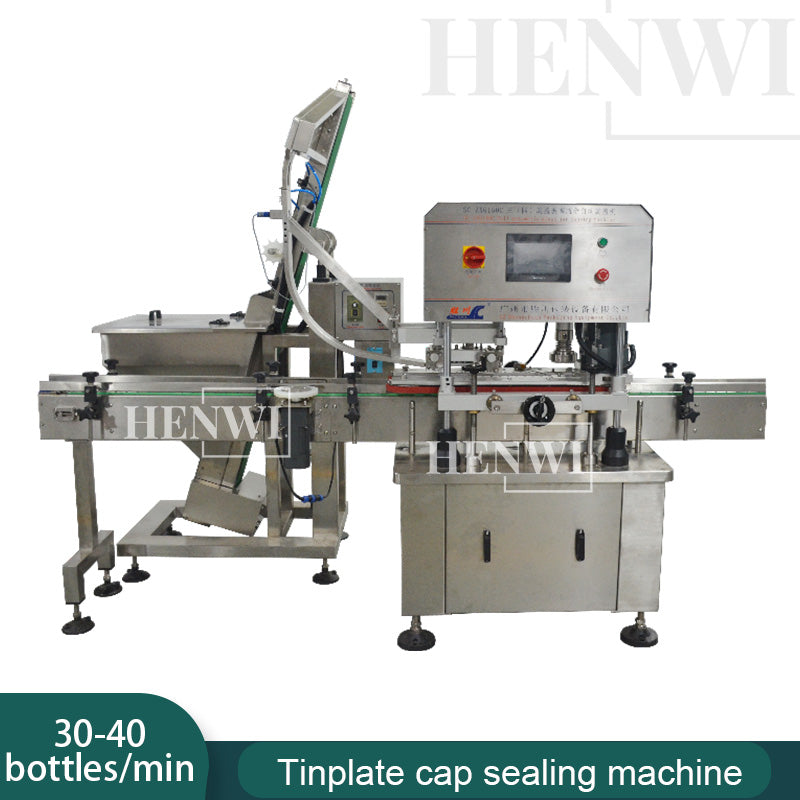

Henwi HWCM-GTC Glass Bottle Tinplate Cap Sealing Machine Bottle Screwing Capping Sealing Machine Cover Sealer

1. Introduction

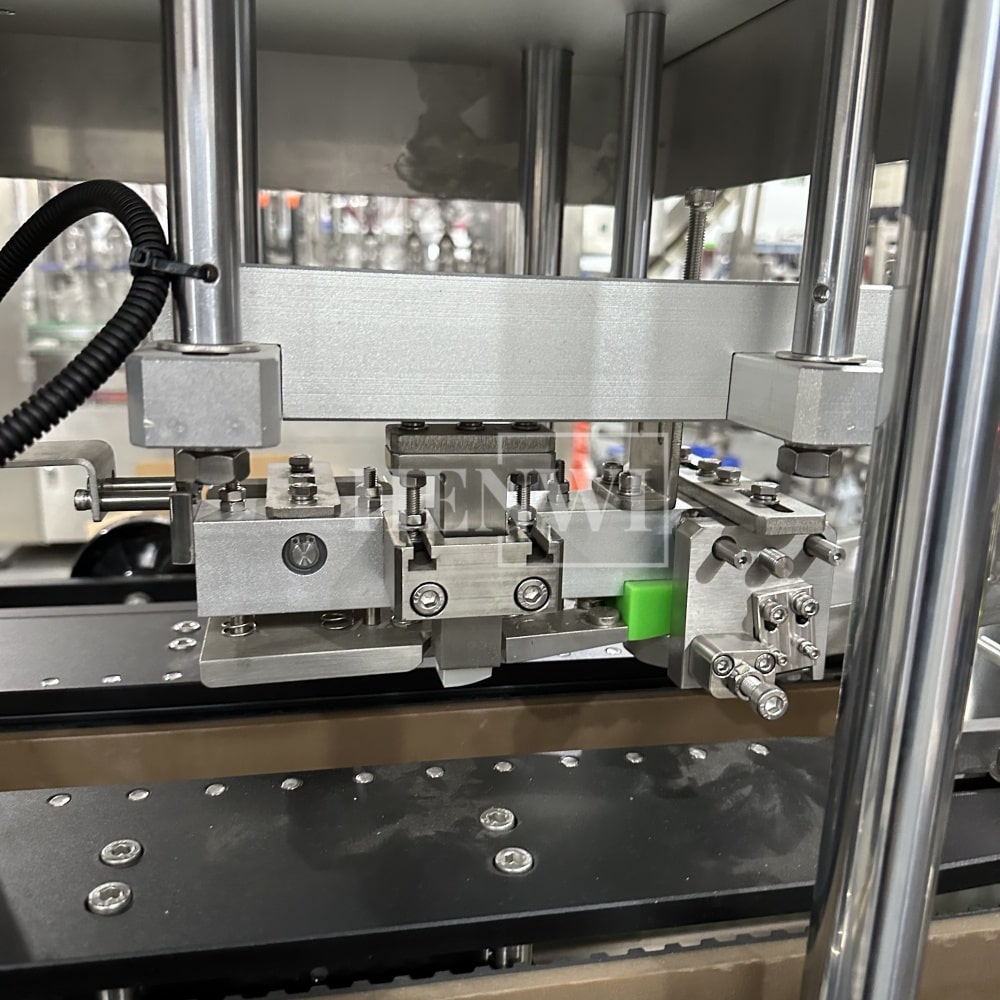

The machine is mainly composed of bottle conveying mechanism, capping mechanism, bottle clamping conveying mechanism, servo capping mechanism, electronic control system, etc.
The frame and shell of this machine are mainly made of 304# stainless steel.

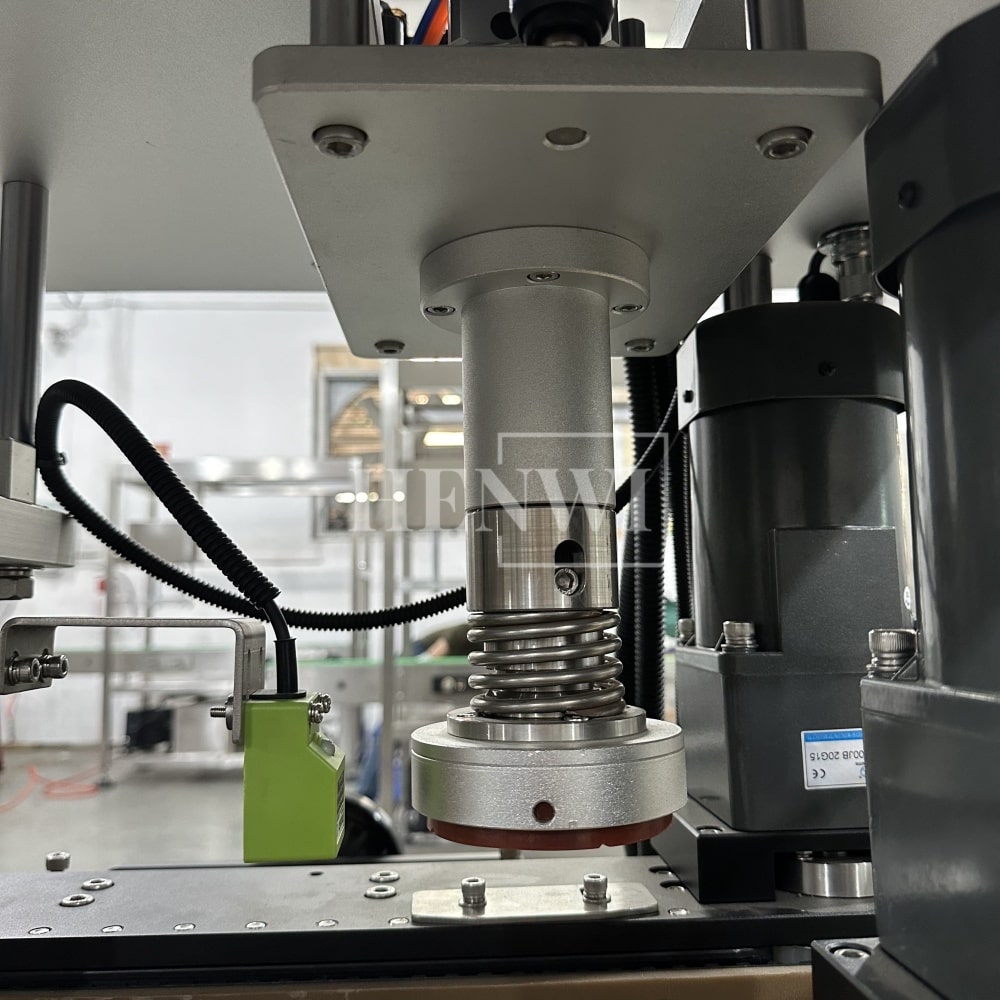

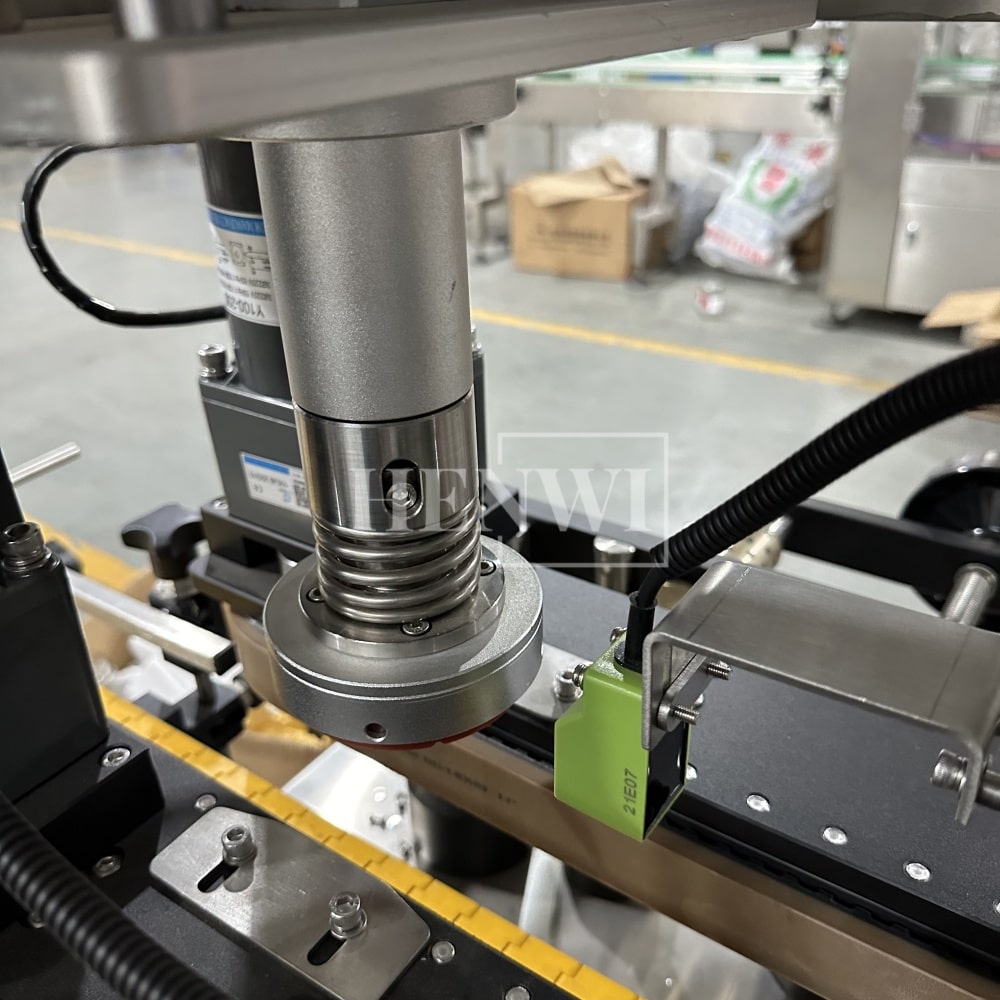

The capping head uses composite rubber as the friction body, which is wear-resistant and does not damage the cap. The capping head is controlled by a servo motor, and the performance is stable and reliable. Bottles of different specifications can be replaced, and the adjustment is simple and convenient

Suitable for glass bottle and metal lid. Like jam, sauce, seasoning, ketchup, chili sauce, etc.

2. Specification

1	Qty of capping wheels	1 wheel
2	Applicable bottle height	80-150mm (or customized)
3	Applicable bottle diameter	45-90mm (or customized)
4	Applicable cap diameter	38-85mm (or customized)
5	Capping speed	1800-2500 bottles/hour
6	Material	304 stainless steel
7	Conveyor speed	5-15 meter/min adjustable
8	Program controller	Touch panel screen & PLC control
9	Air pressure	0.5 -0.7mpa
10	Air comsuption	0.2m³/min
11	Power	1.5kw
12	Electrical components	Delixi/CHNT
13	PLC	Siemens
14	Touch screen	Weinview
15	Inverter	Schneider
16	Intermediate relay	Schneider
17	Proximity switch	Omron
18	DC24V	Meanwell
19	Motors	Maihua
20	Pneumatic components	AirTAC
21	Servo system	Ruineng
22	Machine size	2500x1300x2000 (mm)
23	Weight	500 (KG)
24	Power supply	220V/50Hz

3. Production Line

(1) Bottle Unscrambler

(2) SUS Storage Tank

(3) Automatic Bottling Filling Machine

(4) Automatic Bottle Capping Machine

(5) Automatic Cap Feeding Machine

(6) Automatic Bottle Clamping Conveyor

(7) Automatic Bottle Labeling Machine

(8) Finished Bottle Collecting Table

(9) Other Accessory Machine
