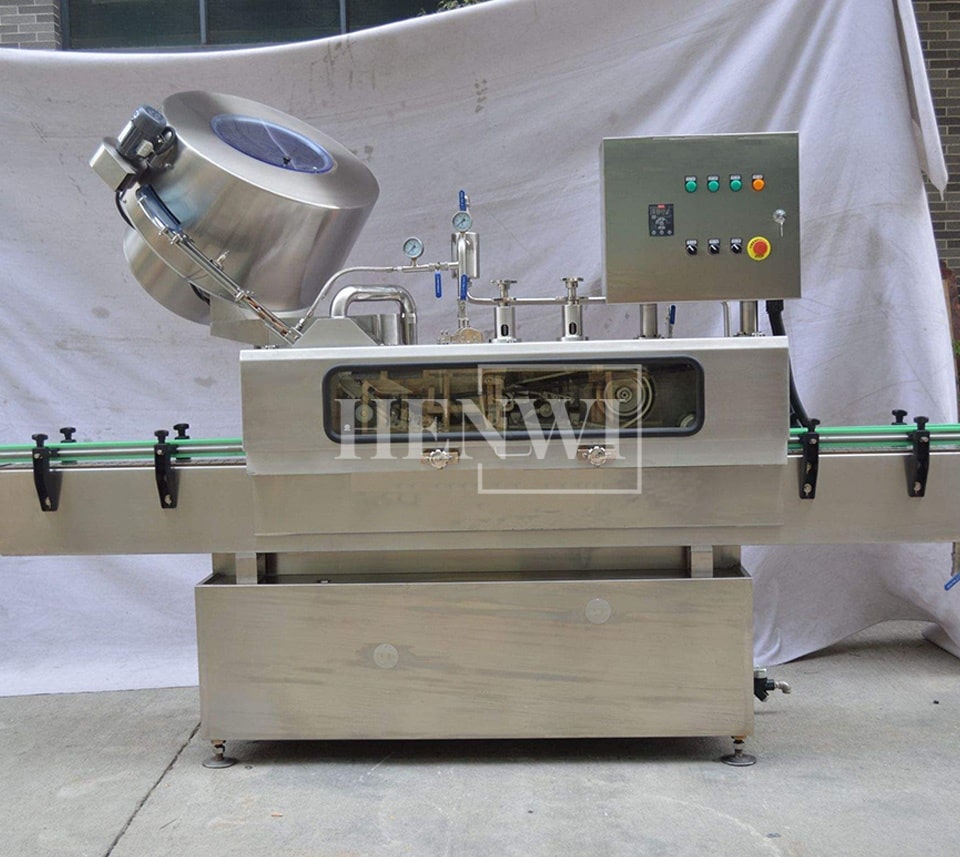

Henwi HWCM-VSC Vacuum Steam Cap Glass Bottle Tinplate Lid Capping Sealing Machine Metal Lid Capper Sealer Machine
Henwi HWCM-VSC Vacuum Steam Cap Glass Bottle Tinplate Lid Capping Sealing Machine Metal Lid Capper Sealer Machine
Regular price
$25,000.00 USD
Regular price
Sale price
$25,000.00 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
1. Introduction

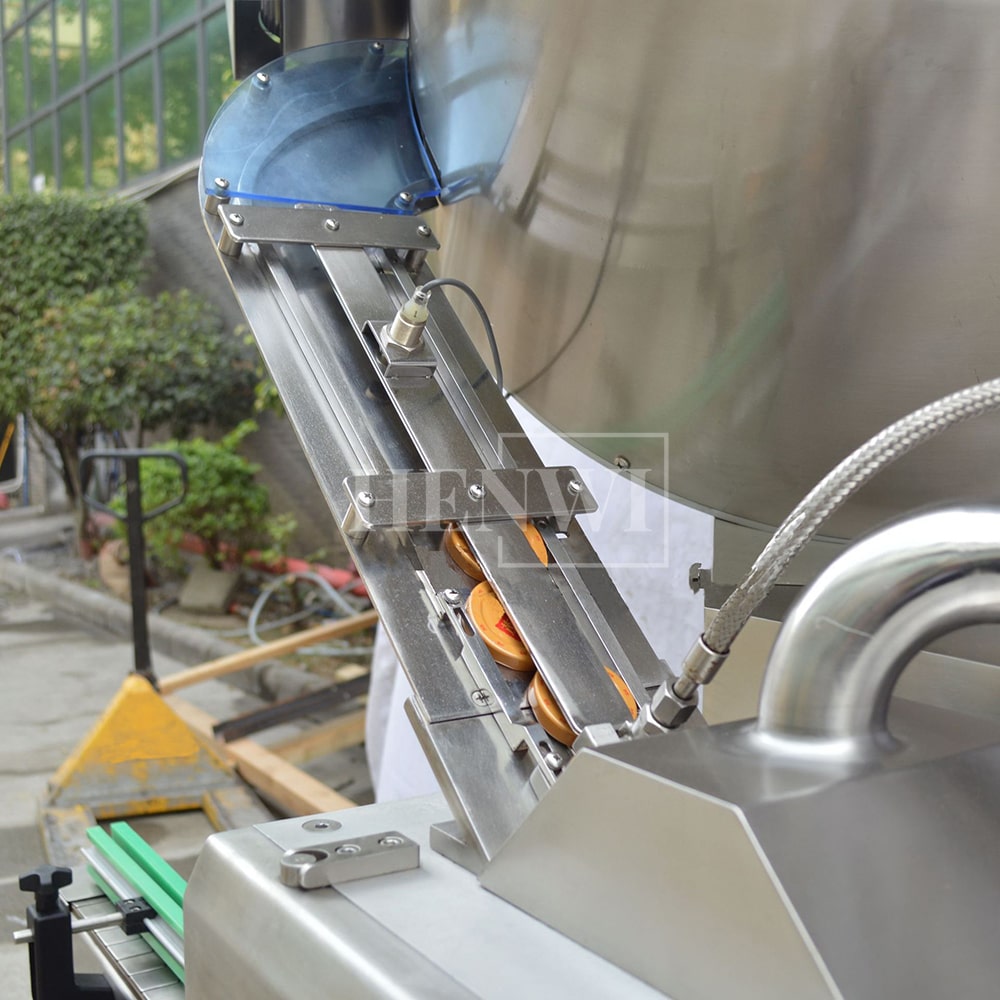

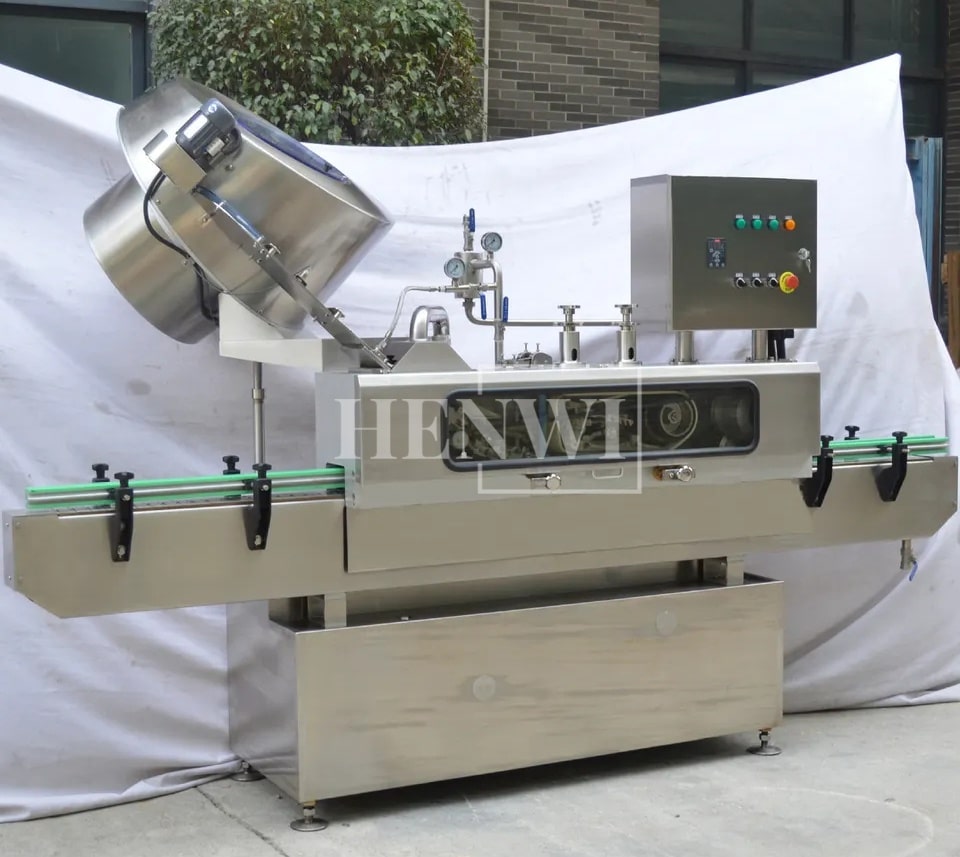

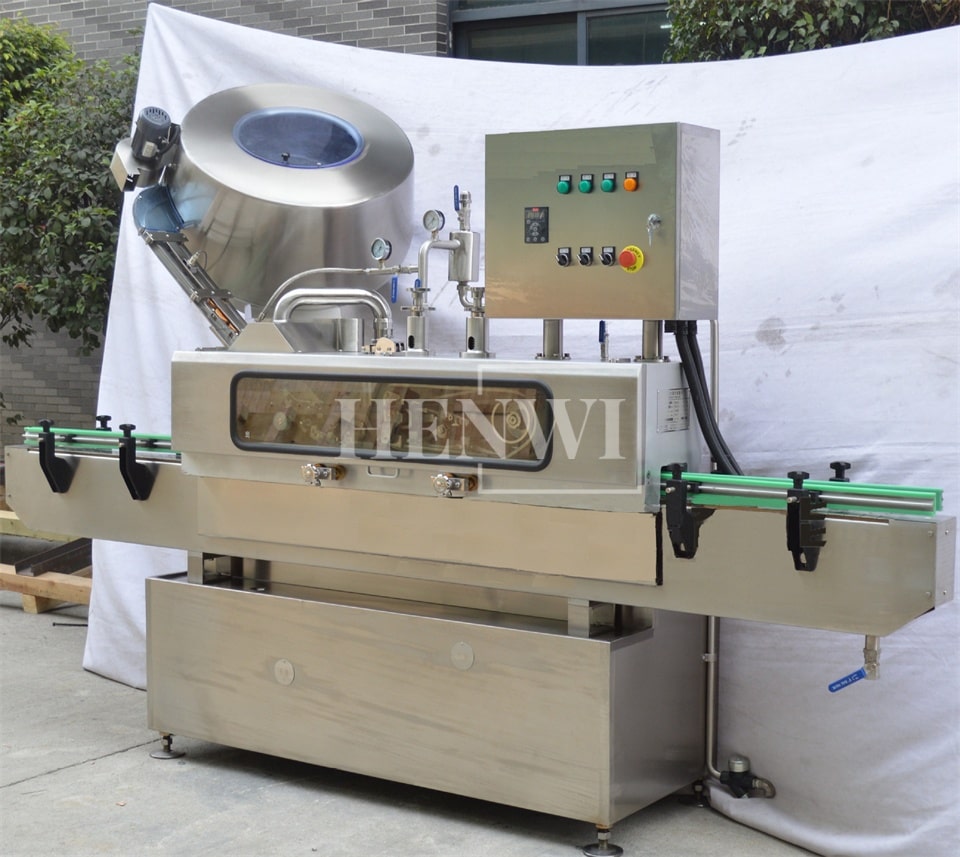

The machine integrates automatic capping, capping, steam injection, and automatic vacuum capping. It has the functions of no capping when there is no bottle, automatic stop alarm when the bottle is stuck or the cap is missing.
It is easy to adjust when changing bottles of different specifications, and the capping is fast and efficient. It is an ideal automatic capping equipment for four-rotation tinplate caps in the beverage, condiment, health care products and other industries.

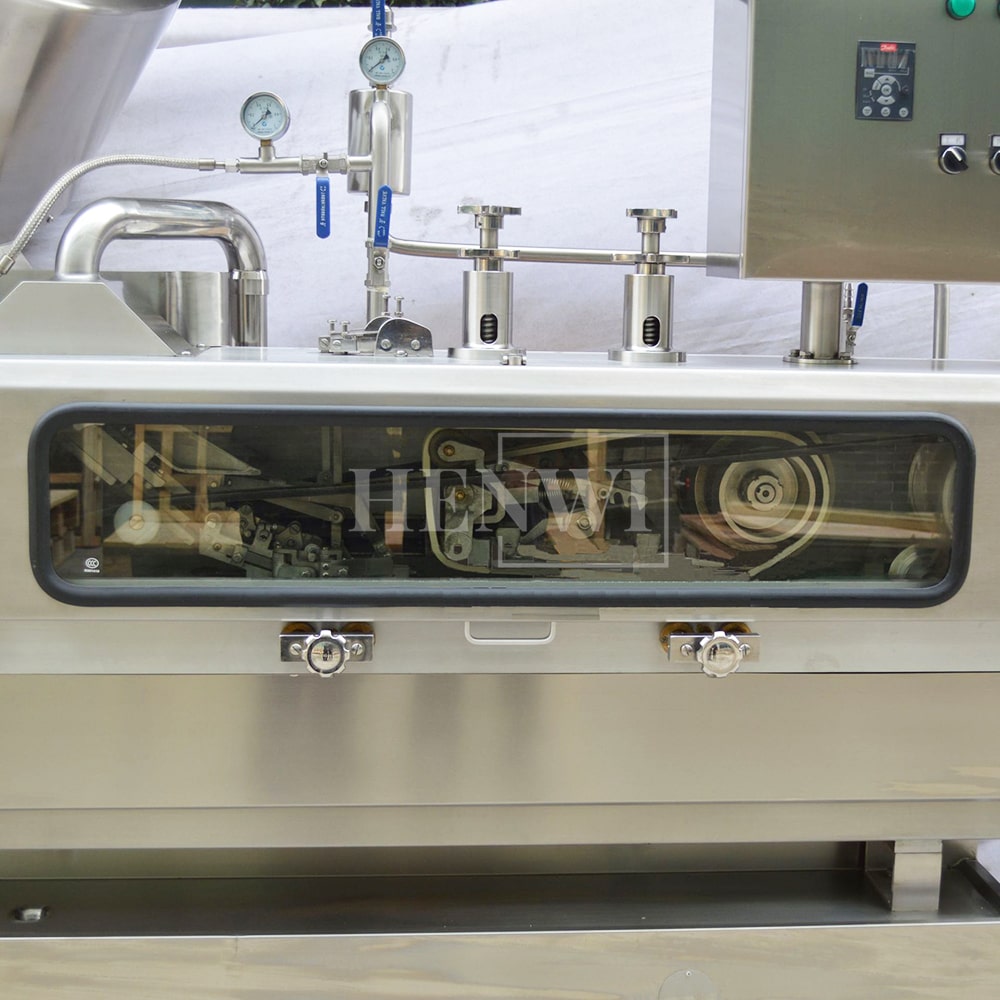

This machine sprays steam into the bottle and then quickly tightens the cap, and forms a vacuum after the steam in the bottle condenses.
Applicable for glass bottle and tinplate lid, like sauce, jam, snack, wine, alcohol, etc.
2. Specification
1
|
Applicable cap diameter
|
38-80mm
|
2
|
Applicable bottle height
|
65-220mm
|
3
|
Applicable bottle diameter
|
30-90mm
|
4
|
Capping speed
|
5000-6000 bottles/hour
|
5
|
Material
|
304 stainless steel
|
6
|
Steam consumption
|
180~230 kg/h
|
7
|

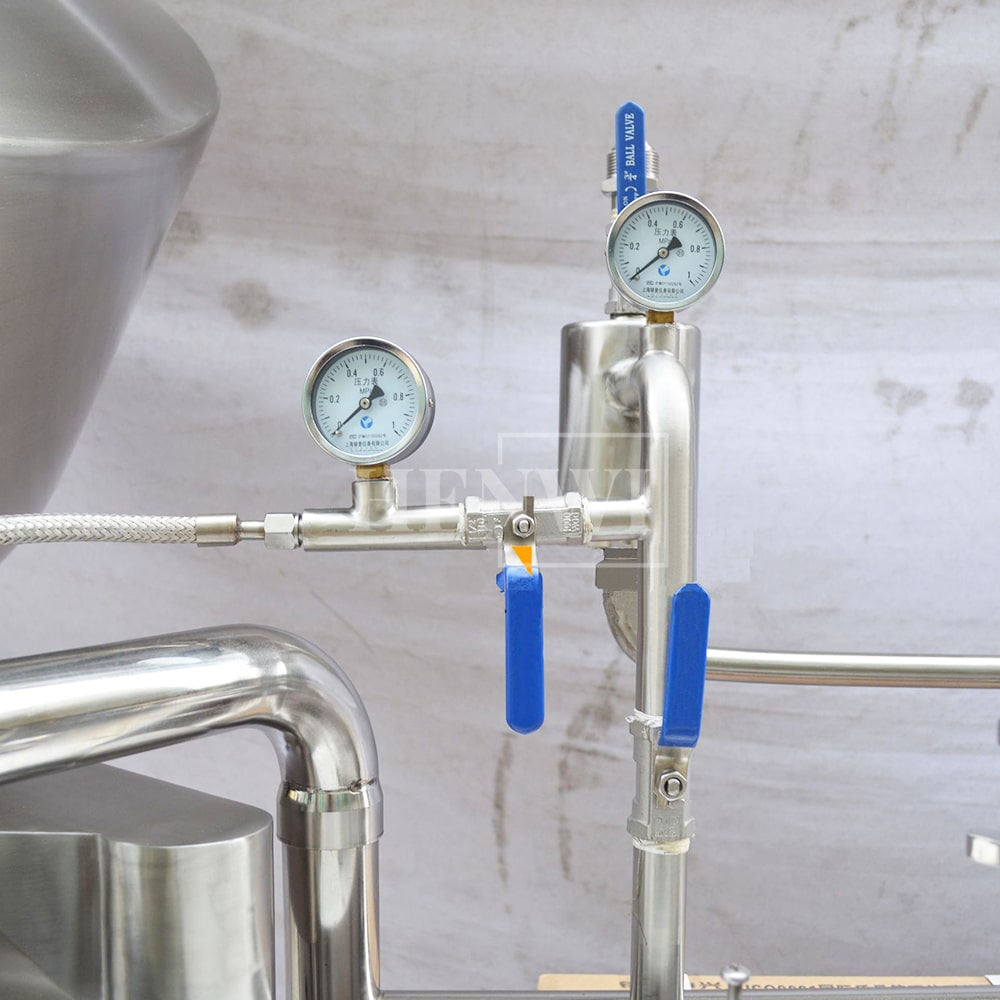

Steam pressure
|
≤0.4 MPa
|
8
|
Max. vacuum
|
-0.06MPa
|
9
|

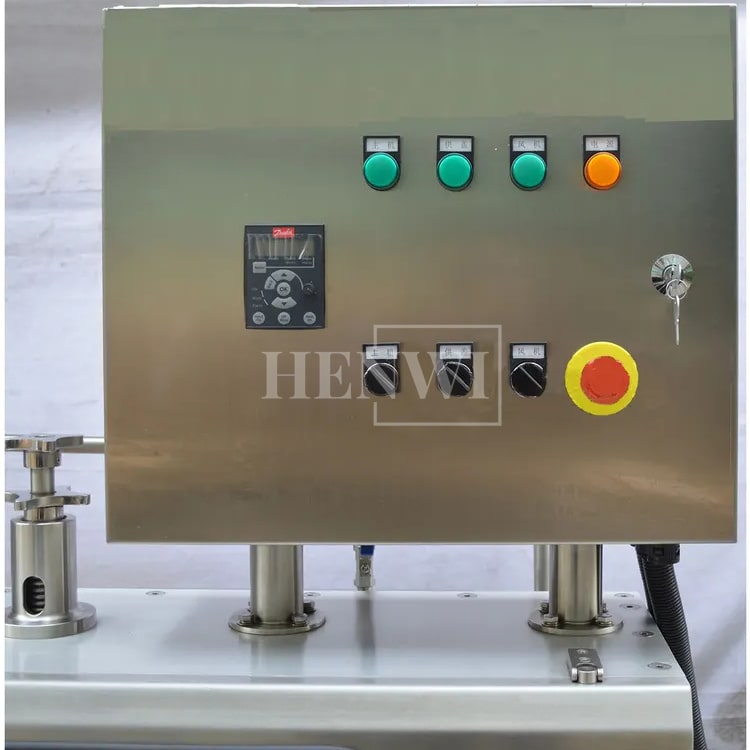

Controller
|
Button control
|
10
|
Power
|
3.5kw
|
11
|
Electrical components
|
Delixi/CHNT/Schneider
|
12
|
Inverter
|
SANLY
|
13
|
Motors
|
DY
|
14
|
Machine size
|
3000*1100*2000 (mm)
|
15
|
Weight
|
1500 (KG)
|
16
|
Power supply
|
220V/50Hz
|
