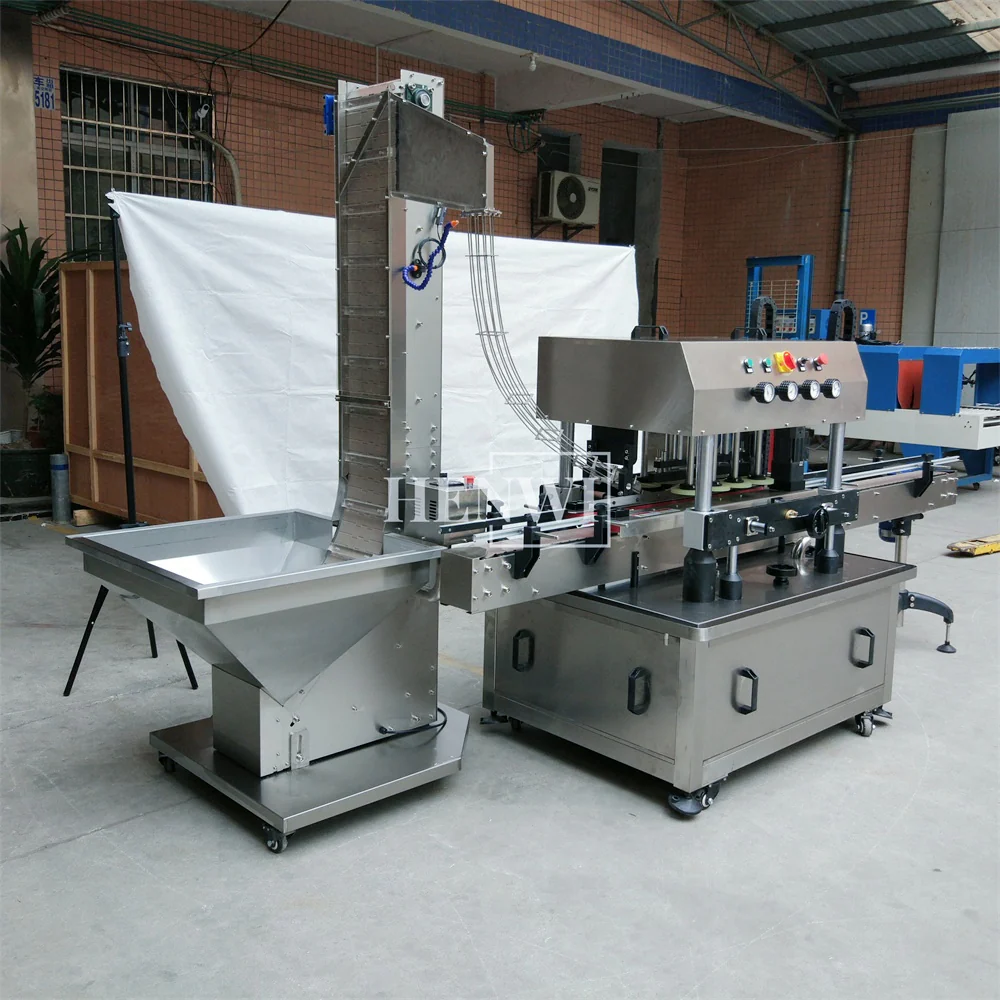

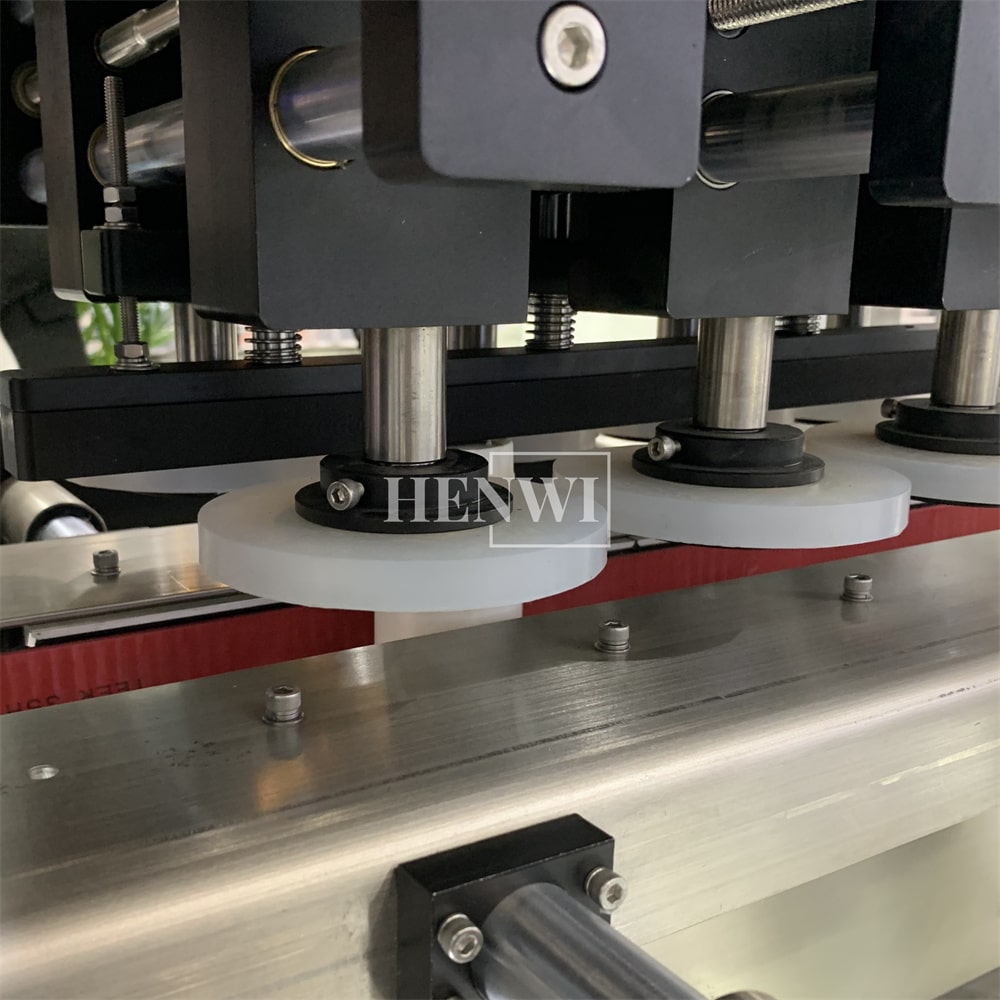

Henwi HWCM-W8 Automatic 8 Wheels High Speed Capper Bottle Screwing Capping Sealing Machine Cover Sealer

1. Introduction

This machine series is suitable for sealing/capping/pressing/screwing the cover on the bottle or jar or can or other containers,

And it can work with filling machine and labeling machine as a production line to pack  powder/liquid cosmetics & food & pharmaceutical & chemical products.

Applicable containers material: plastic, glass, aluminum, PET, PP, PE, tin, iron, etc.

Applicable containers shape: round, square, flat, irregular, etc.

Applicable cover type: screw cap, anti-theft cap, flip cap, aluminum cap, penicillin cap, pointed cap, press pump cap, long nasal cap, spray cap, etc.

2. Specification

1	Qty of capping wheels	8 wheels
2	Applicable cap diameter	30-100mm
3	Capping speed	3000-4200 bottles/hour
4	Material	304 stainless steel
5	Program controller	Touch panel screen & PLC control
6	Air pressure	0.5 -0.7mpa
7	Power	3kw
8	Frequency inverter	Delta/Coreken
9	Electrical components	Delixi/CHNT/Schneider
10	PLC	Mitsubishi
11	Touch screen	Siemens
12	Sensor	SICK/KEYENCE
13	Motors	ZD
14	Pneumatic components	AirTAC
15	Machine size	3000x900x2000 (mm)
16	Weight	500 (KG)
17	Power supply	220V/50Hz

3. Production Line

(1) Bottle Unscrambler

(2) SUS Storage Tank

(3) Automatic Bottling Filling Machine

(4) Automatic Bottle Capping Machine

(5) Automatic Cap Feeding Machine

(6) Automatic Bottle Clamping Conveyor

(7) Aluminum Foil Induction Sealing Machine

(8) Automatic Bottle Labeling Machine

(9) Finished Bottle Collecting Table

(10) Other Accessory Machine
