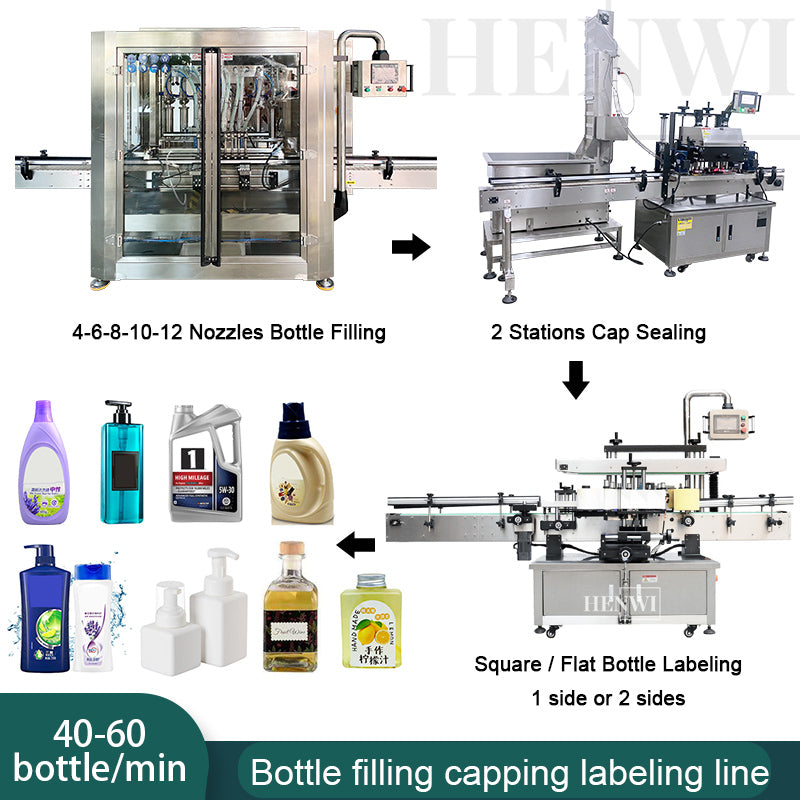

Henwi HWFCL-8 Nozzles Automatic Liquid Bottling Filling Packing Machine with 2 Stations Cap Capping Sealing Machine with 2 Sides Square Bottle & Round Bottle Labeling Machine Line
Henwi HWFCL-8 Nozzles Automatic Liquid Bottling Filling Packing Machine with 2 Stations Cap Capping Sealing Machine with 2 Sides Square Bottle & Round Bottle Labeling Machine Line
Regular price
$12,300.00 USD
Regular price
Sale price
$12,300.00 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
1. Application
2. Specification
8 Nozzles Piston Pump Liquid Filling Bottling Machine
|
1
|
Qty of filling head
|
8 head (2-4-6-8-10-12-16-Customized)
|
|
2
|
Filling range
|
10-120ML;
100-1000ML; 300-3000ML; 500-5000ML; Customized
|
|
3
|
Filling speed
|
About 32~42 bottles/min
(ref. 500ML BOTTLE)
|
|
4
|
Filling accuracy
|
±1%.
|
|
5
|
Material
|
304 /316 stainless steel
|
|
6
|
Program controller
|
Touch panel screen & PLC control
|
|
7
|
Air pressure
|
0.6 -0.8mpa
|
|
8
|
Power
|
5.5kw
|
|
9
|
Capacity of material tank
|
200L
|
|
10
|
Protective device
|
Outage alarm on shortage of liquid in the reservoirtank.
|
|
11
|
Pump type
|
Piston pump
|
|
12
|
Frequency inverter
|
Delta/Coreken
|
|
13
|
Electrical components
|
Delixi/CHNT/Schneider
|
|
14
|
PLC
|
Siemens
|
|
15
|
Touch screen
|
Siemens
|
|
16
|
Servo system
|
TECO/Inovance
|
|
17
|
Sensor
|
SICK/KEYENCE
|
|
18
|
Motors
|
ZD/Beide
|
|
19
|
Pneumatic components
|
AirTAC
|
|
20
|
Machine size
|
4000x1400x2100 (mm)
|
|
21
|
Weight
|
980 (KG)
|
|
22
|
Power supply
|
380V/50Hz
|
2 Stations Model 4 Wheels Cap Capping Sealing Machine with Cap Lifting Elevator Feeding Machine
|
1
|
Qty of capping wheels
|
4 wheels * 2 Stations
|
|
2
|
Applicable cap diameter
|
25-80mm
|
|
3
|
Capping speed
|
3600-6000 bottles/hour
|
|
4
|
Material
|
304 stainless steel
|
|
5
|
Program controller
|
Touch panel screen & PLC control
|
|
6
|
Air pressure
|
0.5 -0.7mpa
|
|
7
|
Power
|
3kw
|
|
8
|
Frequency inverter
|
Delta/Coreken
|
|
9
|
Electrical components
|
Delixi/CHNT/Schneider
|
|
10
|
PLC
|
Siemens
|
|
11
|
Touch screen
|
Siemens
|
|
12
|
Sensor
|
SICK/KEYENCE
|
|
13
|
Servo Parts
|
Inovance
|
|
14
|
Motors
|
ZD
|
|
15
|
Pneumatic components
|
AirTAC
|
|
16
|
Machine size
|
3000x900x2000 (mm)
|
|
17
|
Weight
|
450 (KG)
|
|
18
|
Power supply
|
220V/50Hz
|
Automatic 2 Sides Square Flat Bottle & Round Bottle Labeling Machine
|
1
|
Machine name
|
Automatic double sides square &
round bottle labeling machine
|
|
2
|
Applicable round bottle size
|
Diameter: 30-100mm
|
|
3
|
Applicable square bottle size
|
Width: 30-80mm
|
|
4
|
Applicable labels size
|
Hight: 15-130mm
|
|
5
|
Labeling speed
|
1500-6000 bottles/hour
|
|
6
|
Material
|
304 stainless steel
|
|
7
|
Program controller
|
Touch panel screen & PLC control
|
|
8
|
Air pressure
|
0.5 -0.7mpa
|
|
9
|
Power
|
3kw
|
|
10
|
Frequency inverter
|
Delta/Coreken
|
|
11
|
Electrical components
|
Delixi/CHNT/Schneider
|
|
12
|
PLC
|
Siemens
|
|
13
|
Touch screen
|
Siemens
|
|
14
|
Servo parts
|
Inovance
|
|
15
|
Sensor
|
SICK/KEYENCE
|
|
16
|
Servo motors
|
TECO
|
|
17
|
Stepper motors
|
ZD
|
|
18
|
Pneumatic components
|
AirTAC
|
|
19
|
Machine size
|
3000x1500x1800 (mm)
|
|
20
|
Net weight
|
480 (KG)
|
|
21
|
Power supply
|
220V/50Hz
|
|
22
|
Wooden box packing size
|
2400x1400x2000 (mm)
|
3. Production Line
(1) Bottle Unscrambler
(2) SUS Storage Tank
(3) Automatic Bottling Filling Machine
(4) Automatic Bottle Capping Machine
(5) Automatic Cap Feeding Machine
(6) Automatic Bottle Clamping Conveyor
(7) Aluminum Foil Induction Sealing Machine
(8) Automatic Bottle Labeling Machine
(9) Finished Bottle Collecting Table
(10) Other Accessory Machine
