Henwi HWFCL-4 Nozzles Automatic Liquid Bottling Filling Packing Machine with 2 Stations Cap Capping Sealing Machine with Round Bottle Labeling Machine Line
Henwi HWFCL-4 Nozzles Automatic Liquid Bottling Filling Packing Machine with 2 Stations Cap Capping Sealing Machine with Round Bottle Labeling Machine Line
Regular price
$8,900.00 USD
Regular price
Sale price
$8,900.00 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
1. Application

2. Specification
4 Nozzles Piston Pump Liquid Filling Bottling Machine


|
1
|
Qty of filling head
|
4 head (2-4-6-8-10-12-16-Customized)
|
|
2
|
Filling range
|
10-120ML;
100-1000ML; 300-3000ML; 500-5000ML; Customized
|
|
3
|
Filling speed
|
About 15~20 bottles/min
(ref. 500ML BOTTLE)
|
|
4
|
Filling accuracy
|
±1%.
|
|
5
|
Material
|
304 /316 stainless steel
|
|
6
|
Program controller
|
Touch panel screen & PLC control
|
|
7
|
Air pressure
|
0.6 -0.8mpa
|
|
8
|
Power
|
3.2kw
|
|
9
|
Capacity of material tank
|
100L
|
|
10
|
Protective device
|
Outage alarm on shortage of liquid in the reservoirtank.
|
|
11
|
Pump type
|
Piston pump
|
|
12
|
Frequency inverter
|
Delta/Coreken
|
|
13
|
Electrical components
|
Delixi/CHNT/Schneider
|
|
14
|
PLC
|
Siemens
|
|
15
|
Touch screen
|
Siemens
|
|
16
|
Servo system
|
TECO/Inovance
|
|
17
|
Sensor
|
SICK/KEYENCE
|
|
18
|
Motors
|
ZD/Beide
|
|
19
|
Pneumatic components
|
AirTAC
|
|
20
|
Machine size
|
3000x1400x2100 (mm)
|
|
21
|
Weight
|
780 (KG)
|
|
22
|
Power supply
|
380V/50Hz
|
2 Stations Model 4 Wheels Cap Capping Sealing Machine


|
1
|
Qty of capping wheels
|
4 wheels * 2 Stations
|
|
2
|
Applicable cap diameter
|
25-80mm
|
|
3
|
Capping speed
|
3600-6000 bottles/hour
|
|
4
|
Material
|
304 stainless steel
|
|
5
|
Program controller
|
Touch panel screen & PLC control
|
|
6
|
Air pressure
|
0.5 -0.7mpa
|
|
7
|
Power
|
2.2kw
|
|
8
|
Frequency inverter
|
Delta/Coreken
|
|
9
|
Electrical components
|
Delixi/CHNT/Schneider
|
|
10
|
PLC
|
Siemens
|
|
11
|
Touch screen
|
Siemens
|
|
12
|
Sensor
|
SICK/KEYENCE
|
|
13
|
Servo Parts
|
Inovance
|
|
14
|
Motors
|
ZD
|
|
15
|
Pneumatic components
|
AirTAC
|
|
16
|
Machine size
|
2000x900x1600 (mm)
|
|
17
|
Weight
|
350 (KG)
|
|
18
|
Power supply
|
220V/50Hz
|
Round Bottle Labeling Machine


|
1
|
Machine name
|
Automatic round bottle labeling machine
|
|
2
|
Applicable round bottle size
|
Diameter: 30-100mm
Height: 15-250mm
|
|
3
|
Applicable labels size
|
Hight: 15-130mm
|
|
4
|
Labeling speed
|
1500-2400 bottles/hour
|
|
5
|
Material
|
304 stainless steel
|
|
6
|
Program controller
|
Touch panel screen & PLC control
|
|
7
|
Air pressure
|
0.5 -0.7mpa
|
|
8
|
Power
|
1.2kw
|
|
9
|
Frequency inverter
|
Delta/Coreken
|
|
10
|
Electrical components
|
Delixi/CHNT/Schneider
|
|
11
|
PLC
|
Siemens
|
|
12
|
Touch screen
|
Siemens
|
|
13
|
Sensor
|
SICK/KEYENCE
|
|
14
|
Stepper motors
|
ZD
|
|
15
|
Pneumatic components
|
AirTAC
|
|
16
|
Machine size
|
2000x1100x1400 (mm)
|
|
17
|
Weight
|
300 (KG)
|
|
18
|
Power supply
|
220V/50Hz
|

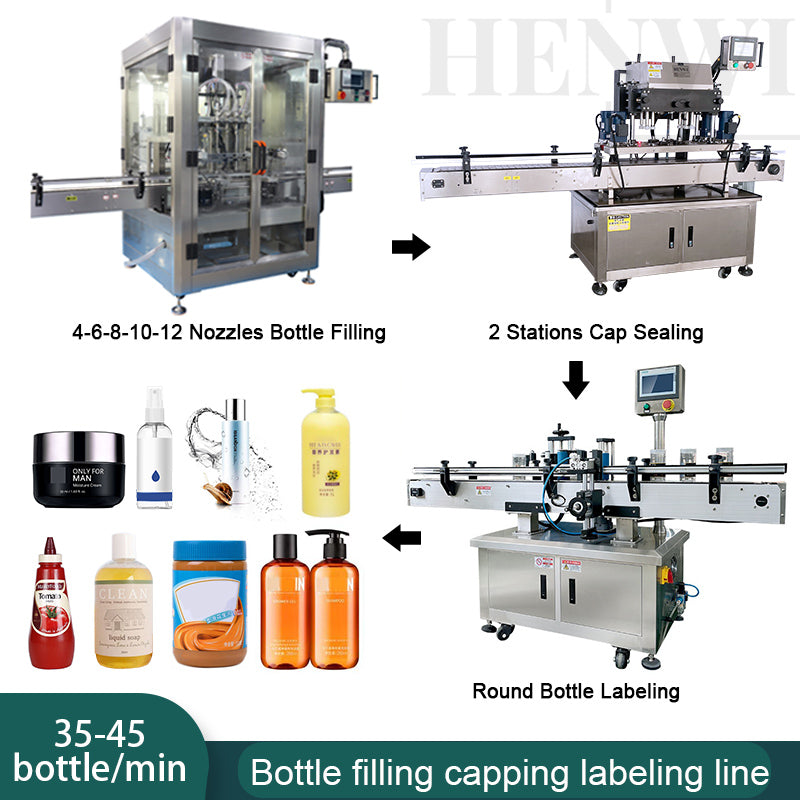

3. Production Line
(1) Bottle Unscrambler
(2) SUS Storage Tank
(3) Automatic Bottling Filling Machine
(4) Automatic Bottle Capping Machine
(5) Automatic Cap Feeding Machine
(6) Automatic Bottle Clamping Conveyor
(7) Aluminum Foil Induction Sealing Machine
(8) Automatic Bottle Labeling Machine
(9) Finished Bottle Collecting Table
(10) Other Accessory Machine
