Henwi HWFCL- 4 Nozzles Moving Tracking Model Liquid Bottling Filling Packing Machine with 8 Wheels Continuously High Speed Capping Machine with Double Sides Square & Round Bottle Labeling Machine
Henwi HWFCL- 4 Nozzles Moving Tracking Model Liquid Bottling Filling Packing Machine with 8 Wheels Continuously High Speed Capping Machine with Double Sides Square & Round Bottle Labeling Machine
Couldn't load pickup availability
1. Working Principle
(1) Automatic feeding and positioning
The working process of the tracking filling machine starts with feeding. Bottles or containers are fed into the filling area through a conveyor belt. Before reaching the filling head, the container is automatically corrected by the positioning system to ensure that each container is accurately in place to ensure the accuracy of filling.
(2) Tracking system
The biggest feature of the tracking filling machine is "tracking". Traditional filling machines usually require the container to stop during filling, while the tracking filling machine allows the container to be filled while moving. The equipment is equipped with a synchronous tracking system that can detect the speed of the container on the conveyor belt and control the synchronous movement of the filling head.
2. Application
Please inquire us if you're not sure whether this machine can process your product or not.
This machine series is suitable for filling bottling packing liquid cosmetics & food & pharmaceutical & chemical products into bottle or jar or other containers, like body cream, skincare lotion, conditioner, concealer, nail polish, lubricant, engine oil, ointment, balm oil, jam, food paste, pie, mayonnaise, ketchup, salad sauce, sauce dressing, butter, wax, petroleum jelly, scented candle, shampoo, liquid soap, liquid laundry detergent, shower gel, dishwasher paste, dish soap, mouthwash water, car wash water, glass cleaner, hair serum, vape liquid, hand sanitizer, water base paint, liquid fertilizer, liquid pesticide, liquid insecticide, etc.
3. Specification
4 Nozzles Moving Tracking Model Liquid Filling Machine
|
1
|
Qty of filling head
|
4 head (2-3-4-Customized)
|
|
2
|
Filling range
|
50-5000ML; (Gear pump)
50-5000ML; (Piston pump) |
|
3
|
Filling speed
|
About 35~70 bottles/min
|
|
4
|
Filling accuracy
|
±1%.
|
|
5
|
Material
|
304 /316 stainless steel
|
|
6
|
Program controller
|
Touch panel screen & PLC control
|
|
7
|
Air pressure
|
0.6 -0.8mpa
|
|
8
|
Power
|
6kw (Piston pump)
8.5kw (Gear pump)
|
|
9
|
Material feeding method
|
Direct suction
|
|
10
|
Protective device
|
Outage alarm on shortage of liquid in the reservoirtank.
|
|
11
|
Pump type
|
Piston pump/Gear pump
|
|
12
|
Frequency inverter
|
Delta/Coreken
|
|
13
|
Electrical components
|
Delixi/CHNT/Schneider
|
|
14
|
PLC
|
Mitsubishi/Inovance/Siemens
|
|
15
|
Touch screen
|
Siemens
|
|
16
|
Servo system
|
INOVANCE
|
|
17
|
Sensor
|
SICK/KEYENCE
|
|
18
|
Motors
|
ZD/Beide
|
|
19
|
Pneumatic components
|
AirTAC
|
|
20
|
Machine size
|
4000x1500x2100 (mm)
|
|
21
|
Weight
|
900 (KG)
|
|
22
|
Power supply
|
380V/50Hz
|
8 Wheels High Speed Continously Bottle Capping Sealing Machine with Cap Elevator Feeding Machine
|
1
|
Qty of capping wheels
|
8 wheels
|
|
2
|
Applicable cap diameter
|
30-100mm
|
|
3
|
Capping speed
|
3000-4200 bottles/hour
|
|
4
|
Material
|
304 stainless steel
|
|
5
|
Program controller
|
Touch panel screen & PLC control
|
|
6
|
Air pressure
|
0.5 -0.7mpa
|
|
7
|
Power
|
3kw
|
|
8
|
Frequency inverter
|
Delta/Coreken
|
|
9
|
Electrical components
|
Delixi/CHNT/Schneider
|
|
10
|
PLC
|
NO
|
|
11
|
Touch screen
|
NO
|
|
12
|
Sensor
|
SICK/KEYENCE
|
|
13
|
Motors
|
ZD
|
|
14
|
Pneumatic components
|
AirTAC
|
|
15
|
Machine size
|
3000x900x2000 (mm)
|
|
16
|
Weight
|
500 (KG)
|
|
17
|
Power supply
|
220V/50Hz
|
|

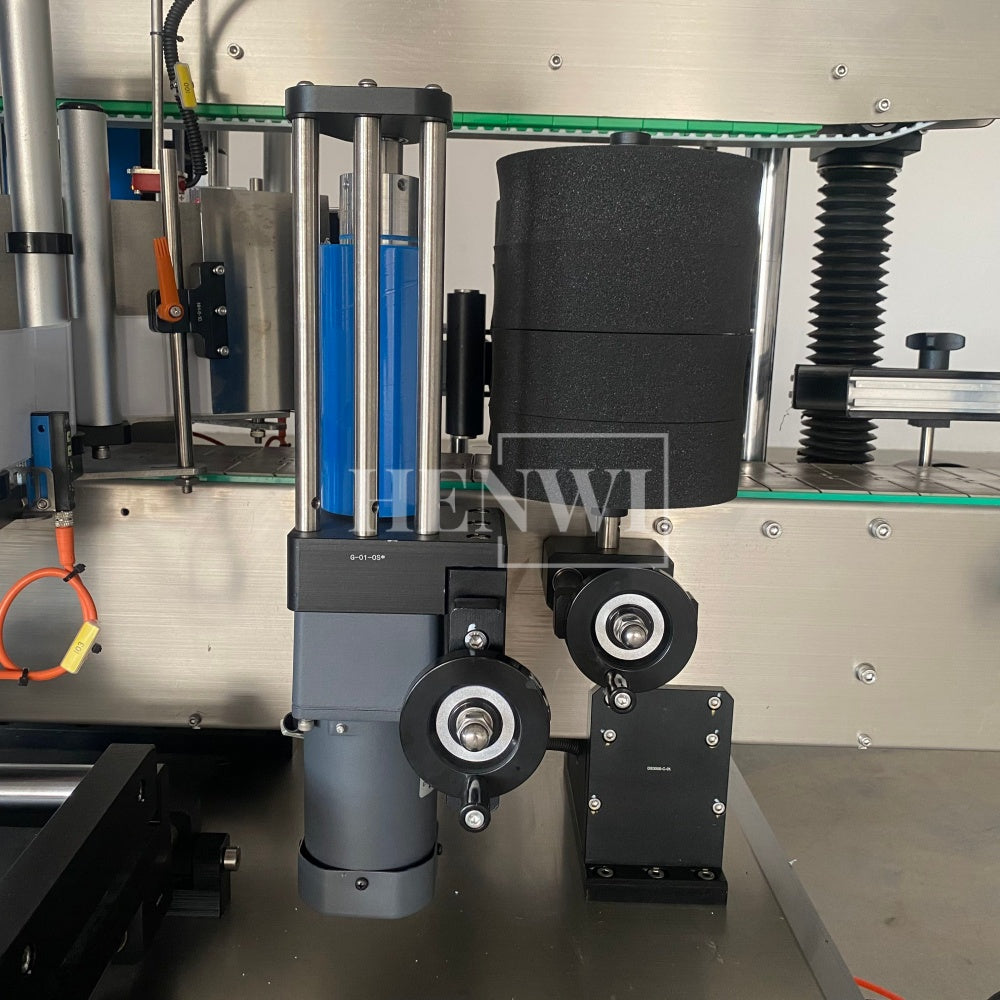

1
|
Machine name
|
Automatic double sides square &
round bottle labeling machine
|
|
2
|
Applicable round bottle size
|
Diameter: 30-100mm
|
|
3
|
Applicable square bottle size
|
Width: 30-110mm
Length: 50-200mm
or customized
|
|
4
|
Applicable labels size
|
Hight: 15-130mm
|
|
5
|
Labeling speed
|
1500-6000 bottles/hour
|
|
6
|
Material
|
304 stainless steel
|
|
7
|
Program controller
|
Touch panel screen & PLC control
|
|
8
|
Air pressure
|
0.5 -0.7mpa
|
|
9
|
Power
|
3kw
|
|
10
|
Frequency inverter
|
Delta/Coreken
|
|
11
|
Electrical components
|
Delixi/CHNT/Schneider
|
|
12
|
PLC
|
Siemens
|
|
13
|
Touch screen
|
Siemens
|
|
14
|
Servo parts
|
Inovance
|
|
15
|
Sensor
|
SICK/KEYENCE
|
|
16
|
Servo motors
|
ZD/TECO
|
|
17
|
Stepper motors
|
ZD
|
|
18
|
Pneumatic components
|
AirTAC
|
|
19
|
Machine size
|
2500x1500x1800 (mm)
|
|
20
|
Net weight
|
480 (KG)
|
|
21
|
Power supply
|
220V/50Hz
|
|
22
|
Wooden box packing size
|
2400x1400x2000 (mm)
|

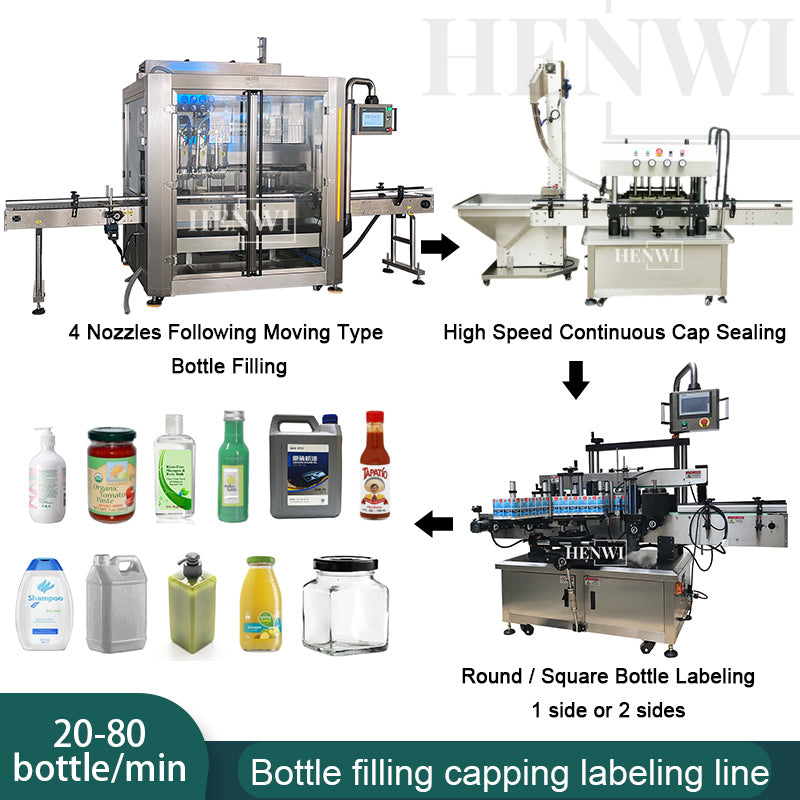

4. Production Line
(1) Bottle Unscrambler
(2) SUS Storage Tank
(3) Automatic Bottling Filling Machine
(4) Automatic Bottle Capping Machine
(5) Automatic Cap Feeding Machine
(6) Automatic Bottle Clamping Conveyor
(7) Aluminum Foil Induction Sealing Machine
(8) Automatic Bottle Labeling Machine
(9) Finished Bottle Collecting Table
(10) Other Accessory Machine
