1. Introduction
(1) Constant temperature stirring: equipped with heating and stirring system, it can keep the liquid at a suitable temperature during the filling process, while ensuring that the ingredients are evenly mixed.
(2) Flexibility: the stirring speed and temperature can be adjusted according to the characteristics of different products.
Please inquire us if you're not sure whether this machine can process your product or not.
This machine series is suitable for filling hot-melt liquid cosmetics & food & pharmaceutical & chemical products into bottle or jar or other containers, like vaseline, hair wax, candle, builder gel, balm oil, solid perfume, air fresher, petroleum jelly, etc.
2. Specification
8 Nozzles Automatic Liquid Mixing Heating Filling Machine
|
1
|
Qty of filling head
|
8 head (4-6-8-10-12-Customized)
|
|
2
|
Filling range
|
100-1000ML;
300-3000ML; 500-5000ML; Customized
|
|
3
|
Filling speed
|
About 35~45 bottles/min
|
|
4
|
Filling accuracy
|
±1%.
|
|
5
|
Main functions
|
Liquid mixing;
Liquid heating;
Liquid filling;
|
|
6
|
Constant temperature method
|
Hot water circulation
|
|
7
|
Material
|
304 /316 stainless steel
|
|
8
|
Program controller
|
Touch panel screen & PLC control
|
|
9
|
Air pressure
|
0.6 -0.8mpa
|
|
10
|
Power
|
8kw
|
|
11
|
Capacity of material tank
|
200L
|
|
12
|
Protective device
|
Outage alarm on shortage of liquid in the reservoirtank.
|
|
13
|
Pump type
|
Piston pump
|
|
14
|
Frequency inverter
|
Delta/Coreken
|
|
15
|
Electrical components
|
Delixi/CHNT/Schneider
|
|
16
|
PLC
|
Siemens
|
|
17
|
Touch screen
|
Siemens
|
|
18
|
Servo system
|
INOVANCE/TECO/HCFA
|
|
19
|
Sensor
|
SICK/KEYENCE
|
|
20
|
Motors
|
ZD/Beide
|
|
21
|
Pneumatic components
|
AirTAC
|
|
22
|
Machine size
|
4000x1400x2100 (mm)
|
|
23
|
Weight
|
800 (KG)
|
|
24
|
Power supply
|
380V/50Hz
|

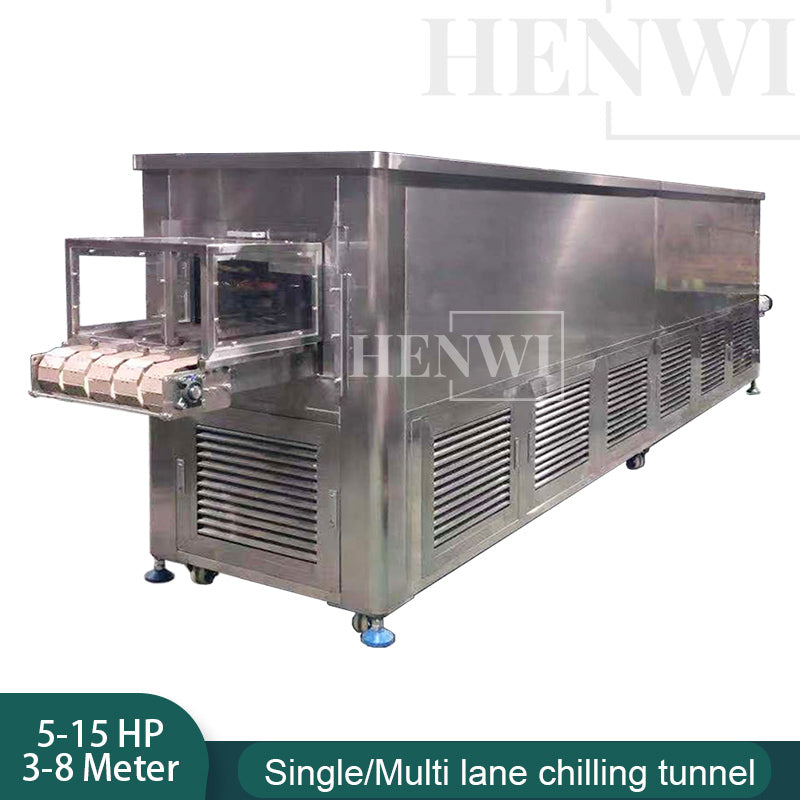

Multi Lane Chilling Tunnel Cooling Tunnel Conveyor
| 1 |
Voltage specification
|
380V/50Hz/ 3 phase
|
| 2 |
Freezing temperature
|
-18 ºC
|
| 3 |
Compressor power
|
5HP / 4.5KW
|
| 4 |
Optional conveyor
|
Multi lane
|
| 5 |
Cooling way
|
Air Cooling by fans
|
| 6 |
Machine size
|
3000*800*1500mm
|
| 7 |
Conveyor belt size
|
4000*300mm
|
| 8 |
Machine weight
|
1100KG
|
| 9 |
Freezing time
|
2-5 min
|
| 10 |
Special functions
|
Time setting and temperature setting
|
| 11 |
Material
|
SUS304
|
| 12 |
Compressor
|
Maneurop French
|
| 13 |
Customized length
|
4-8 meter
|
1 Station 4 Wheels Bottle Capping Sealing Machine
|
1
|
Qty of capping wheels
|
4 wheels
|
|
2
|
Applicable cap diameter
|
25-80mm
|
|
3
|
Capping speed
|
1800-3600 bottles/hour
|
|
4
|
Material
|
304 stainless steel
|
|
5
|
Program controller
|
Touch panel screen & PLC control
|
|
6
|
Air pressure
|
0.5 -0.7mpa
|
|
7
|
Power
|
2kw
|
|
8
|
Frequency inverter
|
Delta/Coreken
|
|
9
|
Electrical components
|
Delixi/CHNT/Schneider
|
|
10
|
PLC
|
Siemens
|
|
11
|
Touch screen
|
Siemens
|
|
12
|
Servo parts
|
Inovance
|
|
13
|
Sensor
|
SICK/KEYENCE
|
|
14
|
Motors
|
ZD
|
|
15
|
Pneumatic components
|
AirTAC
|
|
16
|
Machine size
|
2000x800x1600 (mm)
|
|
17
|
Weight
|
350 (KG)
|
|
18
|
Power supply
|
220V/50Hz
|
Air Cooling Model Aluminum Foil Electromagnetic Induction Sealing Machine
| 1 |
Cap diameter
|
25-130mm
|
| 2 |
Bottle height
|
50-350mm
|
| 3 |
Sealing speed
|
30-40 bottles/Min
|
| 4 |
Exterior material
|
SUS201
|
| 5 |
Voltage
|
220V/50Hz
|
| 6 |
Power
|
4200W
|
| 7 |
Maximum operating current
|
19A
|
| 8 |
Sealing way
|
Electromagnetic Induction
|
| 9 |
Sealing head size
|
750*230*200mm
|
| 10 |
Cooling way
|
Air cooling
|
| 11 |
Machine size
|
700*750*1400mm
|
| 12 |
Machine weight
|
40KG
|
| 13 |
Corrugated boxes
packaging dimensions
|
1500*550*730mm
|
| 14 |
Corrugated boxes
packaging weight
|
50KG
|
| 15 |
Wooden case
packaging dimensions
|
1560*600*880mm
|
| 16 |
Wooden case
packaging weight
|
76KG
|
Automatic 2 Sides Square Flat Bottle & Round Bottle Labeling Machine
|
1
|
Machine name
|
Automatic double sides square &
round bottle labeling machine
|
|
2
|
Applicable round bottle size
|
Diameter: 30-100mm
|
|
3
|
Applicable square bottle size
|
Width: 30-80mm
|
|
4
|
Applicable labels size
|
Hight: 15-130mm
|
|
5
|
Labeling speed
|
1500-6000 bottles/hour
|
|
6
|
Material
|
304 stainless steel
|
|
7
|
Program controller
|
Touch panel screen & PLC control
|
|
8
|
Air pressure
|
0.5 -0.7mpa
|
|
9
|
Power
|
3kw
|
|
10
|
Frequency inverter
|
Delta/Coreken
|
|
11
|
Electrical components
|
Delixi/CHNT/Schneider
|
|
12
|
PLC
|
Siemens
|
|
13
|
Touch screen
|
Siemens
|
|
14
|
Servo parts
|
Inovance
|
|
15
|
Sensor
|
SICK/KEYENCE
|
|
16
|
Servo motors
|
TECO
|
|
17
|
Stepper motors
|
ZD
|
|
18
|
Pneumatic components
|
AirTAC
|
|
19
|
Machine size
|
3000x1500x1800 (mm)
|
|
20
|
Net weight
|
480 (KG)
|
|
21
|
Power supply
|
220V/50Hz
|
|
22
|
Wooden box packing size
|
2400x1400x2000 (mm)
|
|
23
|
Wooden box packing weight
|
530 (KG)
|

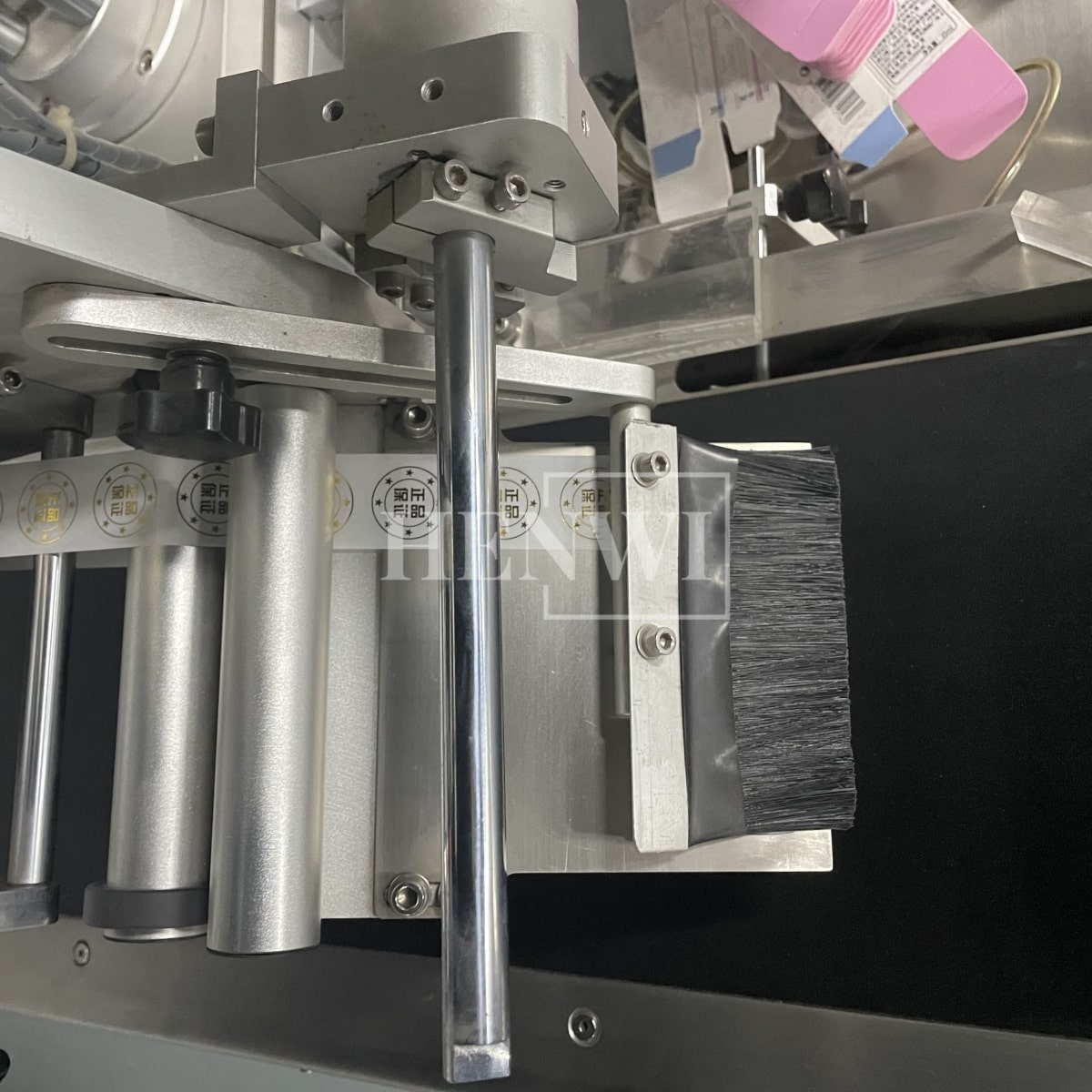

Automatic Bottle Jar Top Flat / Box Case Flank Side Labeller Machine
|
1
|
Machine name
|
Automatic bottle / box top flat side
labeling machine
|
|
2
|
Applicable containers
|
round bottle, square bottle, box, case, etc.
|
|
3
|
Applicable round bottle size
|
Diameter: 30-100mm
Height: 15-250mm
|
|
4
|
Applicable square bottle size
|
Width: 30-80mm
Height: 15-250mm
|
|
5
|
Applicable box size
|
Width: ≤130mm
Length: ≤130mm
Height: 10-200mm or Customized
|
|
6
|
Applicable labels size
|
Hight: 10-130mm
|
|
7
|
Labeling speed
|
2400-9000 bottles/hour
|
|
8
|
Material
|
304 stainless steel
|
|
9
|
Program controller
|
Touch panel screen & PLC control
|
|
10
|
Air pressure
|
0.5 -0.7mpa
|
|
11
|
Power
|
1.2kw
|
|
12
|
Frequency inverter
|
Delta/Coreken
|
|
13
|
Electrical components
|
Delixi/CHNT/Schneider
|
|
14
|
PLC
|
Mitsubishi/MAGS
|
|
15
|
Touch screen
|
Siemens/Weinview/Samkoon
|
|
16
|
Sensor
|
SICK/KEYENCE
|
|
17
|
Servo motors
|
TECO
|
|
18
|
Pneumatic components
|
AirTAC
|
|
19
|
Machine size
|
2000x700x1400 (mm)
|
|
20
|
Weight
|
190 (KG)
|
|
21
|
Power supply
|
220V/50Hz
|

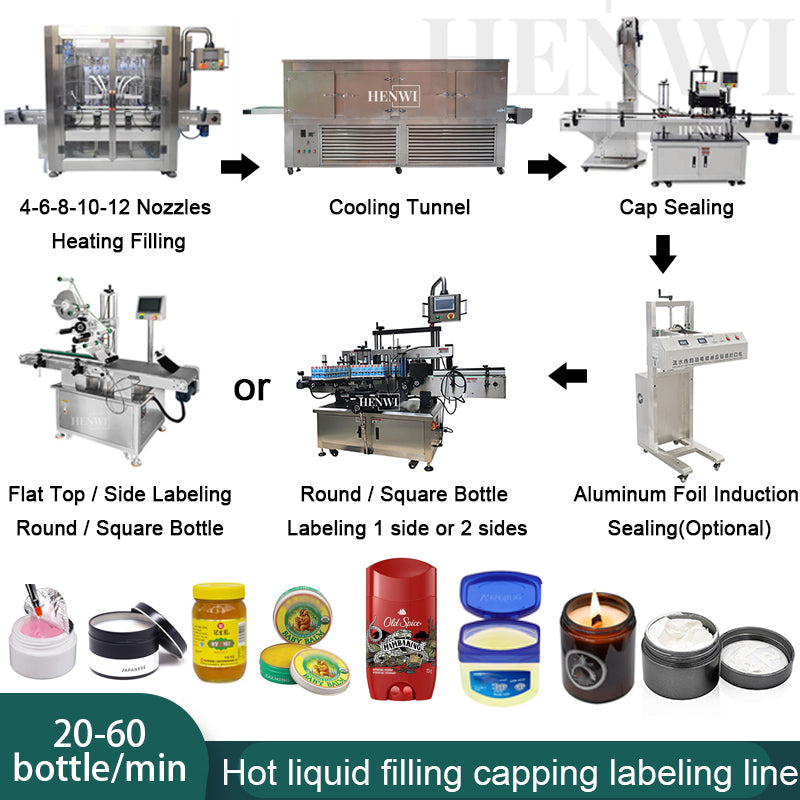

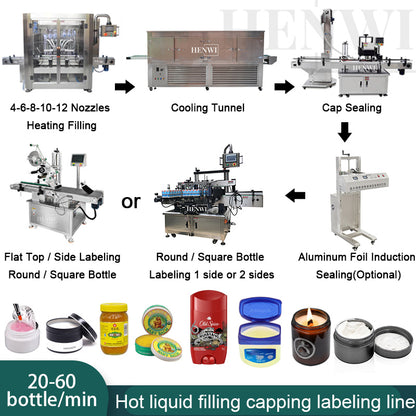

3. Production Line
(1) Bottle Unscrambler
(2) SUS Storage Tank
(3) Automatic Bottling Filling Machine
(4) Automatic Bottle Capping Machine
(5) Automatic Cap Feeding Machine
(6) Automatic Bottle Clamping Conveyor
(7) Aluminum Foil Induction Sealing Machine
(8) Automatic Bottle Labeling Machine
(9) Finished Bottle Collecting Table
(10) Other Accessory Machine
