Henwi HWFCL-Automatic 1 Nozzle Gear Pump Liquid Filling Machine with 4 Wheels 1 Station Capping Machine with Round Bottle Labeling Machine
Henwi HWFCL-Automatic 1 Nozzle Gear Pump Liquid Filling Machine with 4 Wheels 1 Station Capping Machine with Round Bottle Labeling Machine
Regular price
$3,900.00 USD
Regular price
Sale price
$3,900.00 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
1. Application
2. Specification
1 Nozzle Gear Pump Filling Machine
|
1
|
Qty of filling head
|
1 head
|
|
2
|
Filling range
|
50-500ml
|
|
3
|
Filling speed
|
About 10~30 bottles/min
|
|
4
|
Filling accuracy
|
±0.5%.
|
|
5
|
Material
|
304 /316 stainless steel
|
|
6
|
Program controller
|
Touch panel screen & PLC control
|
|
7
|
Air pressure
|
0.6 -0.8mpa
|
|
8
|
Power
|
1.1kw (Gear pump)
|
|
9
|
Material feeding method
|
Direct suction or Hopper feeding
|
|
10
|
Protective device
|
Outage alarm on shortage of liquid in the reservoirtank.
|
|
11
|
Pump type
|
Gear pump
|
|
12
|
Electrical components
|
Delixi/CHNT/Schneider
|
|
13
|
PLC
|
Delta
|
|
14
|
Touch screen
|
Delta
|
|
15
|
Servo driver
|
HCFA
|
|
16
|
Servo motor
|
HCFA
|
|
17
|
Sensor
|
Navi
|
|
18
|
Motors
|
ZD
|
|
19
|
Pneumatic components
|
AirTAC
|
|
20
|
Machine size
|
2000x800x1600 (mm)
|
|
21
|
Weight
|
200 (KG)
|
|
22
|
Power supply
|
220V/50Hz
|
1 Station 4 Wheels Bottle Capping Sealing Machine
|
1
|
Qty of capping wheels
|
4 wheels
|
|
2
|
Applicable cap diameter
|
25-80mm
|
|
3
|
Capping speed
|
1800-3600 bottles/hour
|
|
4
|
Material
|
304 stainless steel
|
|
5
|
Program controller
|
Touch panel screen & PLC control
|
|
6
|
Air pressure
|
0.5 -0.7mpa
|
|
7
|
Power
|
2kw
|
|
8
|
Frequency inverter
|
Delta/Coreken
|
|
9
|
Electrical components
|
Delixi/CHNT/Schneider
|
|
10
|
PLC
|
Siemens
|
|
11
|
Touch screen
|
Siemens
|
|
12
|
Servo parts
|
Inovance
|
|
13
|
Sensor
|
SICK/KEYENCE
|
|
14
|
Motors
|
ZD
|
|
15
|
Pneumatic components
|
AirTAC
|
|
16
|
Machine size
|
2000x800x1600 (mm)
|
|
17
|
Weight
|
350 (KG)
|
|
18
|
Power supply
|
220V/50Hz
|
Round Bottle Labeling Machine
|
1
|
Machine name
|
Automatic round bottle labeling machine
|
|
2
|
Applicable round bottle size
|
Diameter: 30-100mm
Height: 15-250mm
|
|
3
|
Applicable labels size
|
Hight: 15-130mm
|
|
4
|
Labeling speed
|
1500-2400 bottles/hour
|
|
5
|
Material
|
304 stainless steel
|
|
6
|
Program controller
|
Touch panel screen & PLC control
|
|
7
|
Air pressure
|
0.5 -0.7mpa
|
|
8
|
Power
|
1.2kw
|
|
9
|
Frequency inverter
|
Delta/Coreken
|
|
10
|
Electrical components
|
Delixi/CHNT/Schneider
|
|
11
|
PLC
|
Siemens
|
|
12
|
Touch screen
|
Siemens
|
|
13
|
Sensor
|
SICK/KEYENCE
|
|
14
|
Stepper motors
|
ZD
|
|
15
|
Pneumatic components
|
AirTAC
|
|
16
|
Machine size
|
2000x1100x1400 (mm)
|
|
17
|
Weight
|
300 (KG)
|
|
18
|
Power supply
|
220V/50Hz
|

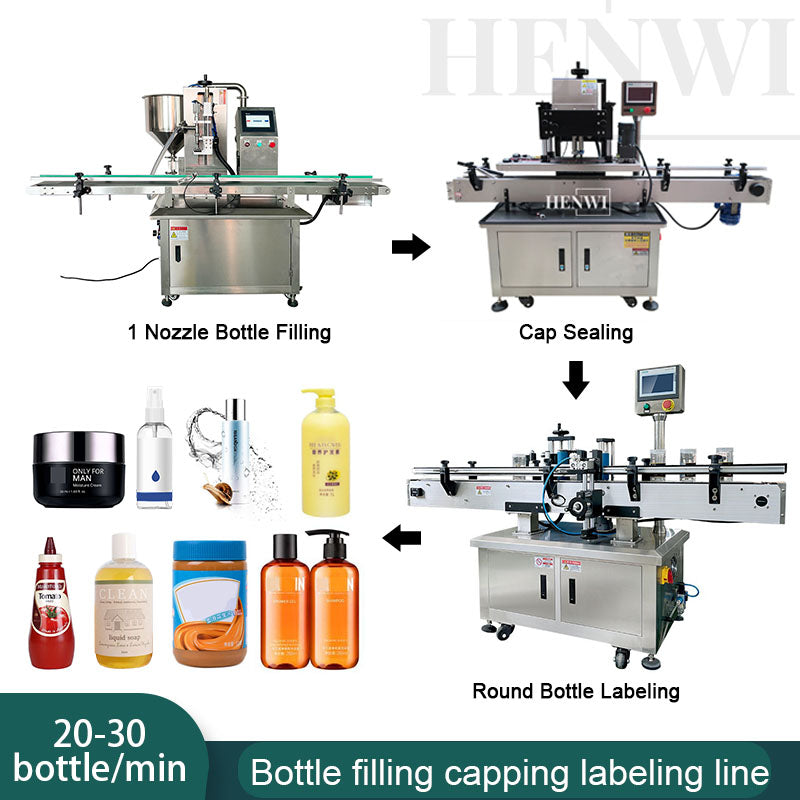

3. Production Line
(1) Bottle Unscrambler
(2) SUS Storage Tank
(3) Automatic Bottling Filling Machine
(4) Automatic Bottle Capping Machine
(5) Automatic Cap Feeding Machine
(6) Automatic Bottle Clamping Conveyor
(7) Aluminum Foil Induction Sealing Machine
(8) Automatic Bottle Labeling Machine
(9) Finished Bottle Collecting Table
(10) Other Accessory Machine
