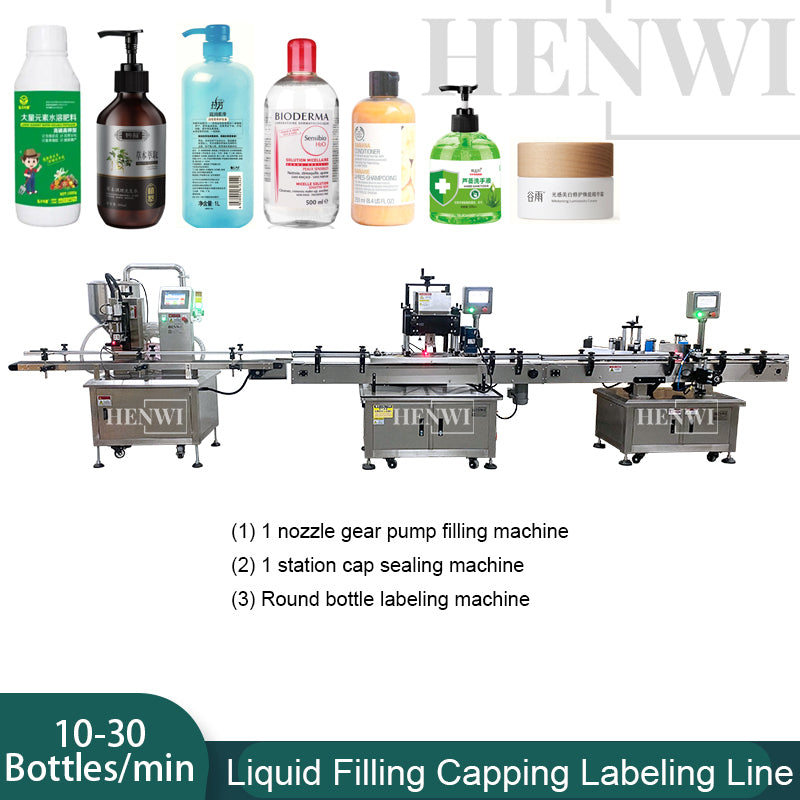

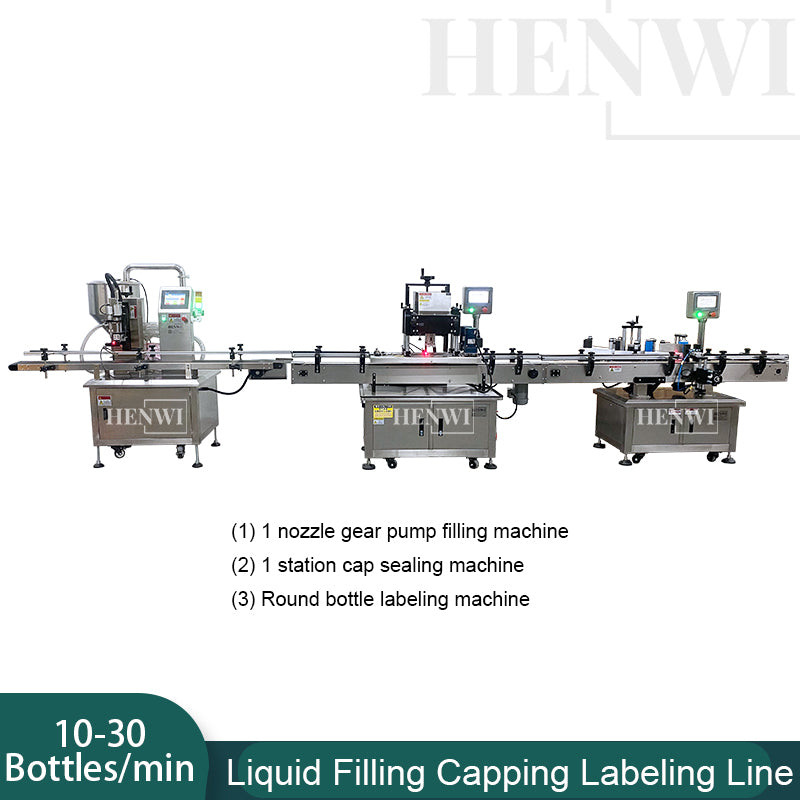

Henwi HWFCL-Automatic 1 Nozzle Gear Pump Liquid Filling Machine with 4 Wheels Capping Machine with Round Bottle Labeling Machine
Henwi HWFCL-Automatic 1 Nozzle Gear Pump Liquid Filling Machine with 4 Wheels Capping Machine with Round Bottle Labeling Machine
Couldn't load pickup availability
1. Application
Please inquire us if you're not sure whether this machine can process your product or not.
This machine series is suitable for filling bottling packing liquid cosmetics & food & pharmaceutical & chemical products into bottle or jar or other containers, like body cream, skincare lotion, conditioner, concealer, nail polish, lubricant, engine oil, ointment, balm oil, jam, food paste, pie, mayonnaise, ketchup, salad sauce, sauce dressing, butter, wax, petroleum jelly, scented candle, shampoo, liquid soap, liquid laundry detergent, shower gel, dishwasher paste, dish soap, mouthwash water, car wash water, glass cleaner, hair serum, vape liquid, hand sanitizer, water base paint, liquid fertilizer, liquid pesticide, liquid insecticide, etc.
Applicable for plastic bottle, jar, round bottle, square bottle, etc.
2. Specification
1 Nozzle Gear Pump Filling Machine
|
1
|
Qty of filling head
|
1 head
|
|
2
|
Filling range
|
50-500ml
|
|
3
|
Filling speed
|
About 10~30 bottles/min
|
|
4
|
Filling accuracy
|
±0.5%.
|
|
5
|
Material
|
304 /316 stainless steel
|
|
6
|
Program controller
|
Touch panel screen & PLC control
|
|
7
|
Air pressure
|
0.6 -0.8mpa
|
|
8
|
Power
|
1.1kw (Gear pump)
|
|
9
|
Material feeding method
|
Direct suction or Hopper feeding
|
|
10
|
Protective device
|
Outage alarm on shortage of liquid in the reservoirtank.
|
|
11
|
Pump type
|
Gear pump
|
|
12
|
Electrical components
|
Delixi/CHNT/Schneider
|
|
13
|
PLC
|
Delta
|
|
14
|
Touch screen
|
Delta
|
|
15
|
Servo driver
|
HCFA
|
|
16
|
Servo motor
|
HCFA
|
|
17
|
Sensor
|
Navi
|
|
18
|
Motors
|
ZD
|
|
19
|
Pneumatic components
|
AirTAC
|
|
20
|
Machine size
|
2000x800x1600 (mm)
|
|
21
|
Weight
|
200 (KG)
|
|
22
|
Power supply
|
220V/50Hz
|
1 Station 4 Wheels Bottle Capping Sealing Machine
|
1
|
Qty of capping wheels
|
4 wheels
|
|
2
|
Applicable cap diameter
|
25-80mm
|
|
3
|
Capping speed
|
1800-3600 bottles/hour
|
|
4
|
Material
|
304 stainless steel
|
|
5
|
Program controller
|
Touch panel screen & PLC control
|
|
6
|
Air pressure
|
0.5 -0.7mpa
|
|
7
|
Power
|
2kw
|
|
8
|
Frequency inverter
|
Delta/Coreken
|
|
9
|
Electrical components
|
Delixi/CHNT/Schneider
|
|
10
|
PLC
|
Siemens
|
|
11
|
Touch screen
|
Siemens
|
|
12
|
Servo parts
|
Inovance
|
|
13
|
Sensor
|
SICK/KEYENCE
|
|
14
|
Motors
|
ZD
|
|
15
|
Pneumatic components
|
AirTAC
|
|
16
|
Machine size
|
2000x800x1600 (mm)
|
|
17
|
Weight
|
350 (KG)
|
|
18
|
Power supply
|
220V/50Hz
|
Round Bottle Labeling Machine
|
1
|
Machine name
|
Automatic round bottle labeling machine
|
|
2
|
Applicable round bottle size
|
Diameter: 30-100mm
Height: 15-250mm
|
|
3
|
Applicable labels size
|
Hight: 15-130mm
|
|
4
|
Labeling speed
|
1500-2400 bottles/hour
|
|
5
|
Material
|
304 stainless steel
|
|
6
|
Program controller
|
Touch panel screen & PLC control
|
|
7
|
Air pressure
|
0.5 -0.7mpa
|
|
8
|
Power
|
1.2kw
|
|
9
|
Frequency inverter
|
Delta/Coreken
|
|
10
|
Electrical components
|
Delixi/CHNT/Schneider
|
|
11
|
PLC
|
Siemens
|
|
12
|
Touch screen
|
Siemens
|
|
13
|
Sensor
|
SICK/KEYENCE
|
|
14
|
Stepper motors
|
ZD
|
|
15
|
Pneumatic components
|
AirTAC
|
|
16
|
Machine size
|
2000x1100x1400 (mm)
|
|
17
|
Weight
|
300 (KG)
|
|
18
|
Power supply
|
220V/50Hz
|
3. Production Line
(1) Bottle Unscrambler
(2) SUS Storage Tank
(3) Automatic Bottling Filling Machine
(4) Automatic Bottle Capping Machine
(5) Automatic Cap Feeding Machine
(6) Automatic Bottle Clamping Conveyor
(7) Aluminum Foil Induction Sealing Machine
(8) Automatic Bottle Labeling Machine
(9) Finished Bottle Collecting Table
(10) Other Accessory Machine
