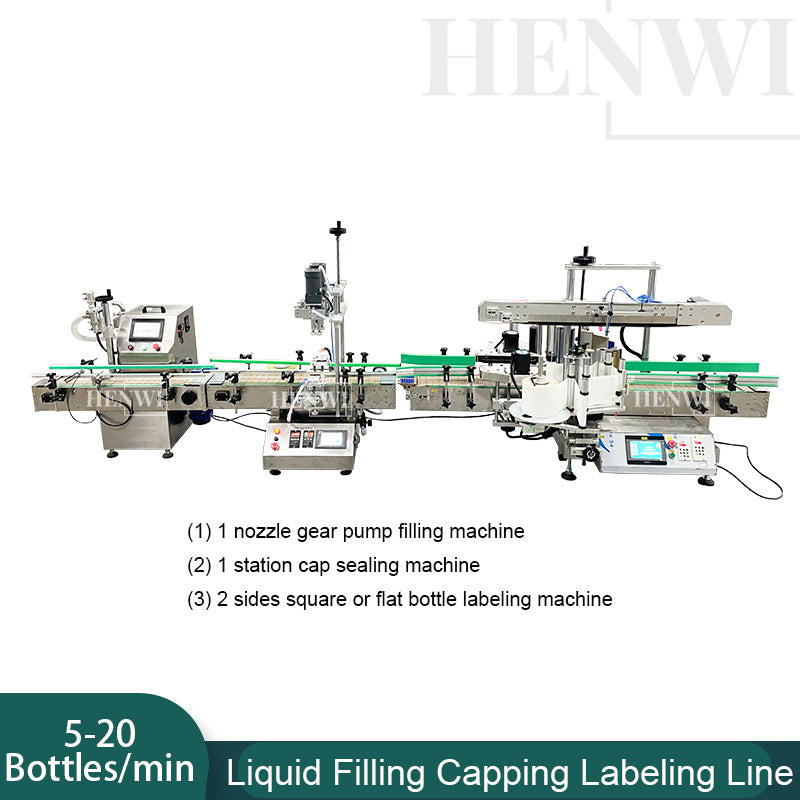

Henwi HWFCL- Desktop Model 1 Nozzle Gear Pump Model Liquid Filling Bottling Machine with 1 Station Capping Machine with Double Sides Square / Flat Bottle Labeling Machine
Henwi HWFCL- Desktop Model 1 Nozzle Gear Pump Model Liquid Filling Bottling Machine with 1 Station Capping Machine with Double Sides Square / Flat Bottle Labeling Machine
Couldn't load pickup availability
1. Introduction
Please inquire us if you're not sure whether this machine can process your product or not.

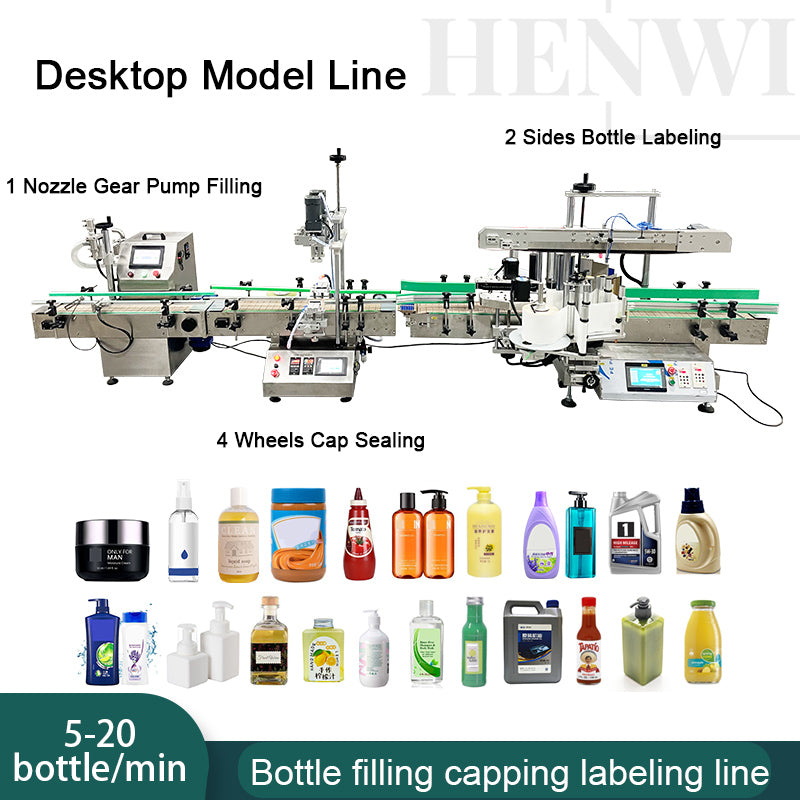

This machine series is suitable for filling bottling packing liquid cosmetics & food & pharmaceutical & chemical products into bottle or jar or other containers, like body cream, skincare lotion, conditioner, concealer, nail polish, lubricant, engine oil, ointment, balm oil, jam, food paste, pie, honey, syrup, mayonnaise, ketchup, salad sauce, sauce dressing, butter, wax, petroleum jelly, scented candle, shampoo, liquid soap, liquid laundry detergent, shower gel, dishwasher paste, dish soap, mouthwash water, car wash water, glass cleaner, hair serum, vape liquid, hand sanitizer, water base paint, liquid fertilizer, liquid pesticide, liquid insecticide, etc.
2. Specification
1 Nozzle Desktop Gear Pump Model Liquid Filling Machine
|
1
|
Qty of filling head
|
1 head
|
|
2
|
Filling range
|
50-5000ml
|
|
3
|
Filling speed
|
1200-2400 bottles/hour
|
|
4
|
Filling accuracy
|
±1%
|
|
5
|
Material
|
304/316 stainless steel
|
|
6
|
Power
|
0.2kw
|
|
7
|
Material feeding method
|
Direct suction
|
|
8
|
Pump type
|
Gear pump
|
|
9
|
Working pressure
|
0.4-0.7Mpa
|
|
10
|
Pneumatic components
|
AirTAC
|
|
11
|
Electric parts
|
DELIXI/CHNT
|
|
12
|
PLC
|
Weijie
|
|
13
|
Touch screen
|
Weijie
|
|
14
|
Machine size
|
1200*600*1200 (mm)
|
|
15
|
Weight
|
80 (KG)
|
|
16
|
Power supply
|
220V/50Hz/1phase
|
|
1
|
Qty of capping wheels
|
4 wheels
|
|
2
|
Applicable cap diameter
|
25-80mm
|
|
3
|
Capping speed
|
1200-2400 bottles/hour
|
|
4
|
Material
|
304 stainless steel
|
|
5
|
Program controller
|
Touch panel screen & PLC control
|
|
6
|
Air pressure
|
0.5 -0.7mpa
|
|
7
|
Power
|
1.5kw
|
|
8
|
Frequency inverter
|
DIGTAL
|
|
9
|
Electrical components
|
Delixi/CHNT
|
|
10
|
PLC
|
YKHMI
|
|
11
|
Touch screen
|
YKHMI
|
|
12
|
Sensor
|
Domestic
|
|
13
|
Motors
|
LN
|
|
14
|
Pneumatic components
|
AirTAC
|
|
15
|
Machine size
|
1200x650x1500 (mm)
|
|
16
|
Weight
|
100 (KG)
|
|
17
|
Power supply
|
220V/50Hz
|
|
1
|
Machine name
|
Desktop model square bottle 2 sides labeling machine
|
|
2
|
Applicable square bottle size
|
Length: 80-200mm
Width: 50-180mm
Height: 50-350mm
or customized
|
|
3
|
Applicable labels size
|
Hight: 15-200mm
Width: 15-180mm
or customized
|
|
4
|
Labeling speed
|
1200-2400 bottles/hour
|
|
5
|
Material
|
304 stainless steel
|
|
6
|
Program controller
|
Touch panel screen & PLC control
|
|
7
|
Air pressure
|
0.5 -0.7mpa
|
|
8
|
Power
|
1kw
|
|
9
|
Frequency inverter
|
Coreken
|
|
10
|
Electrical components
|
Delixi/CHNT/Schneider
|
|
11
|
PLC
|
Wecon/MAGS/INOVANCE
|
|
12
|

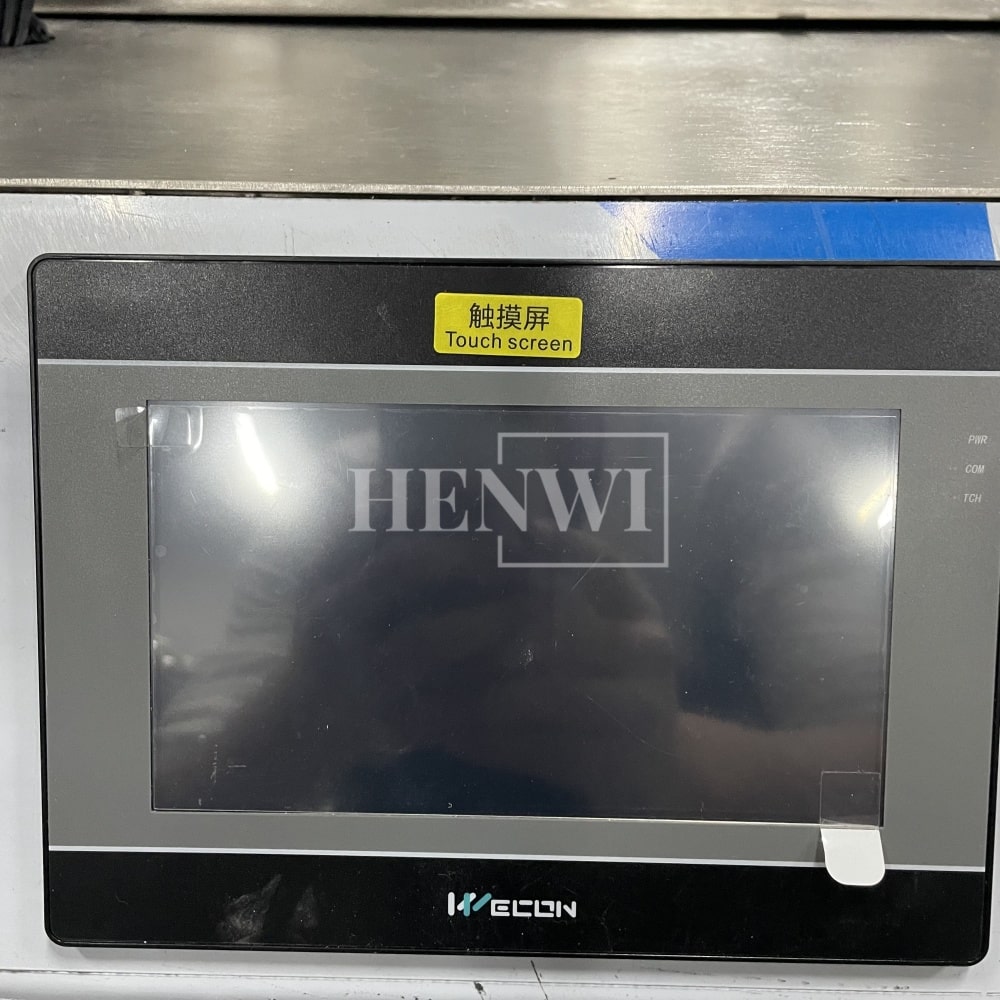

Touch screen
|
Wecon/MAGS/INOVANCE
|
|
13
|
Sensor
|
SICK/KEYENCE
|
|
14
|
Pneumatic components
|
AirTAC
|
|
15
|
Machine size
|
1800x1400x1400 (mm)
|
|
16
|
Weight
|
150 (KG)
|
|
17
|
Power supply
|
220V/50Hz/1phase
|

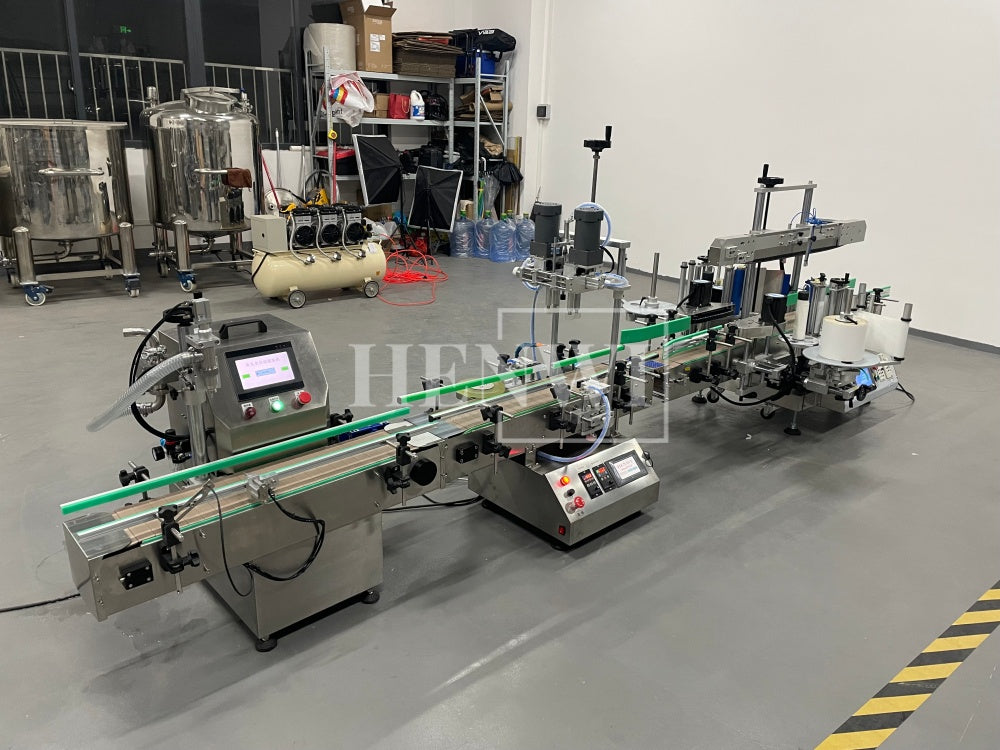

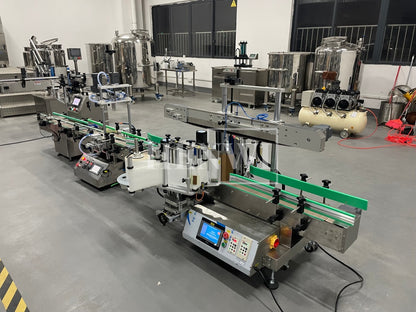

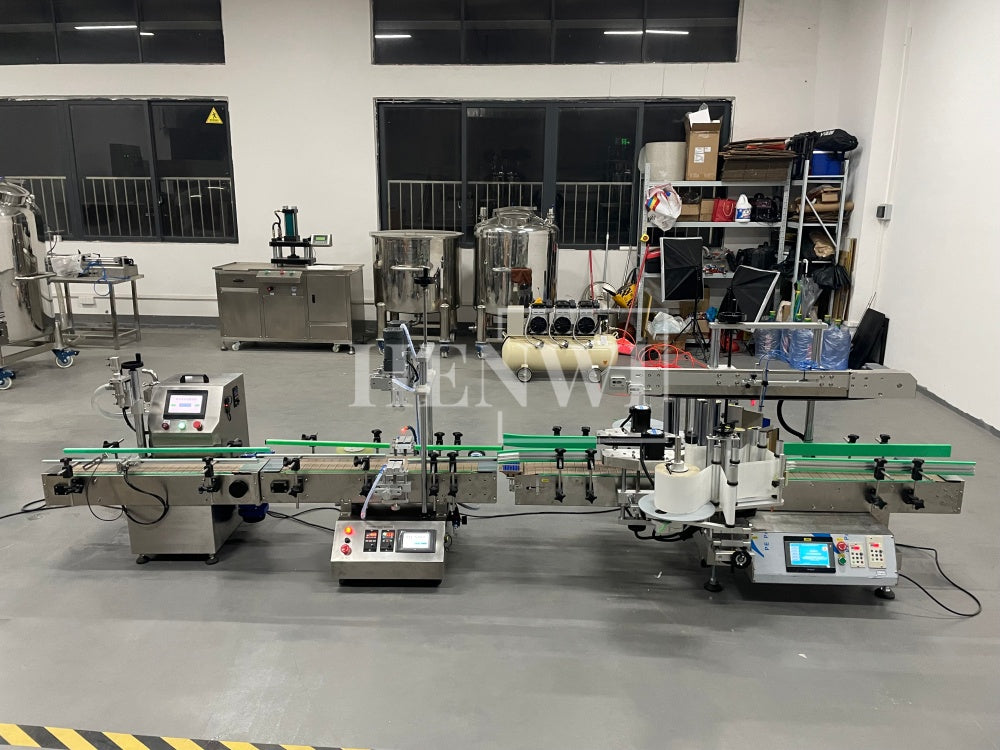

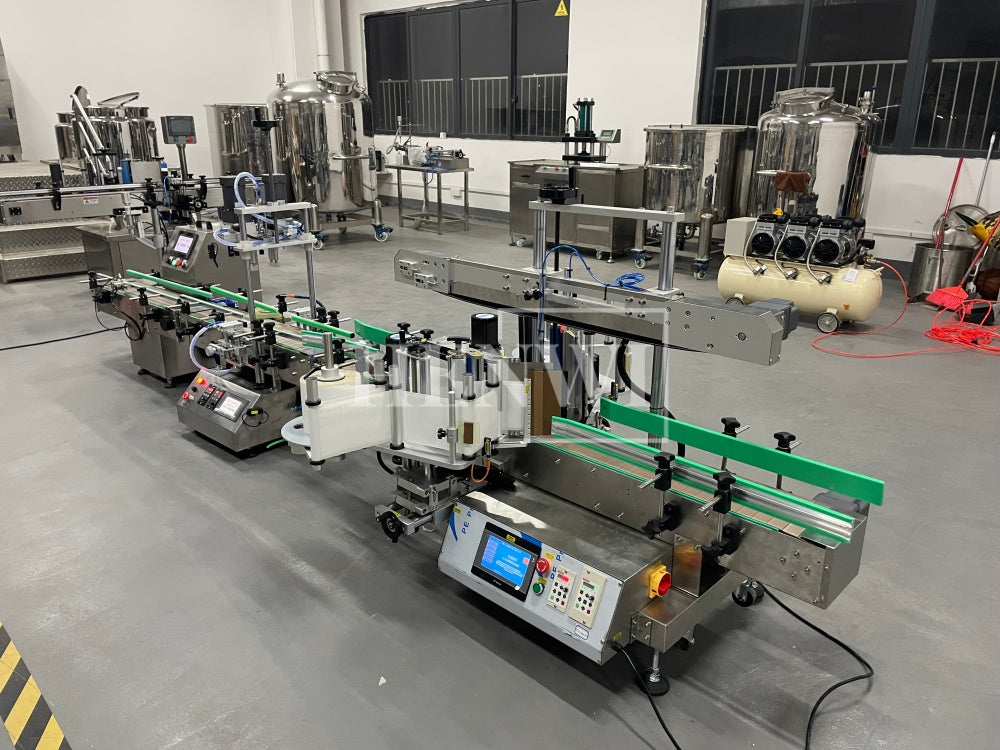

3. Filling Capping Labeling Production Line
