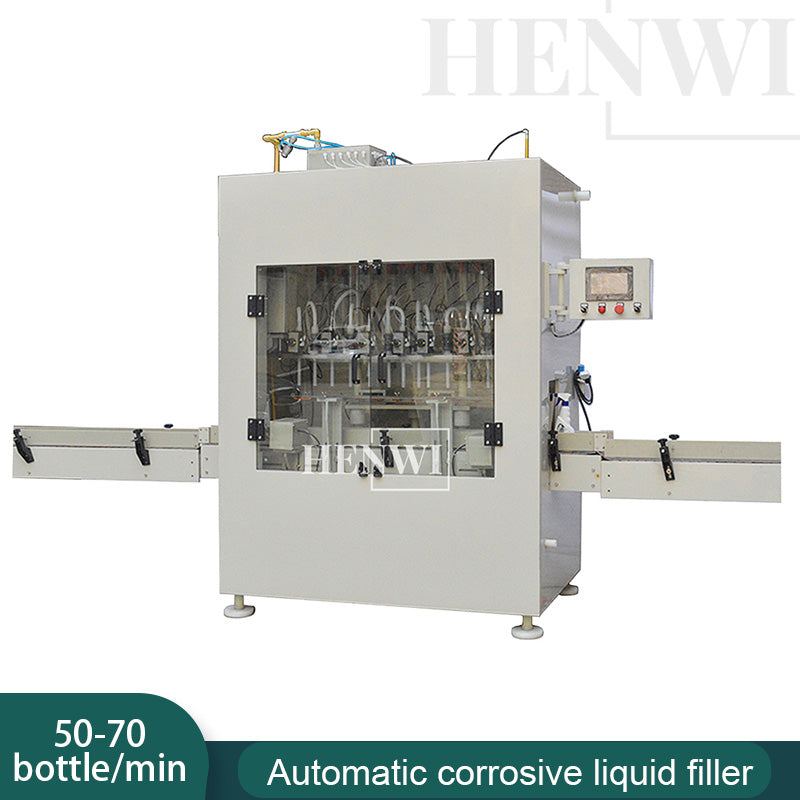

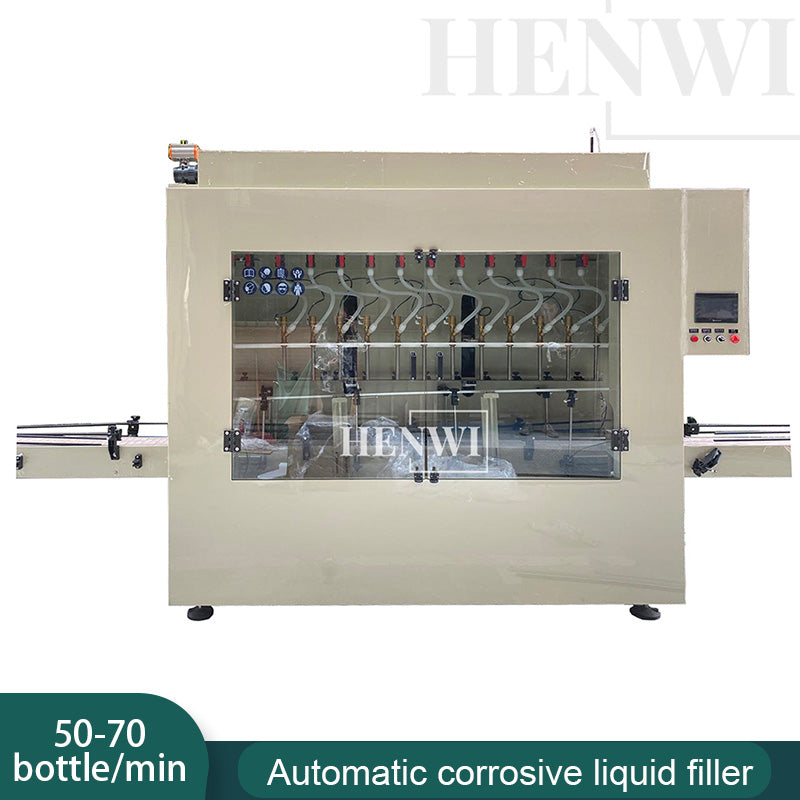

Henwi HWFF-4-32 Nozzles Anti Corrosive Automatic Filler Rust Disinfectant Remover Kitchen Toilet Cleaner Bleach Liquid Alkaline Filling Machine
Henwi HWFF-4-32 Nozzles Anti Corrosive Automatic Filler Rust Disinfectant Remover Kitchen Toilet Cleaner Bleach Liquid Alkaline Filling Machine
1. Introduction
Automatic self-flowing filling machines rely on the principle of gravity and liquid self-flow to transport liquid from the storage tank to the filling container. The specific process is as follows:
(1) The liquid is stored in the storage tank on the filling machine, which is located above the filling container. The liquid flows down naturally due to gravity and the self-flow characteristics of the liquid.

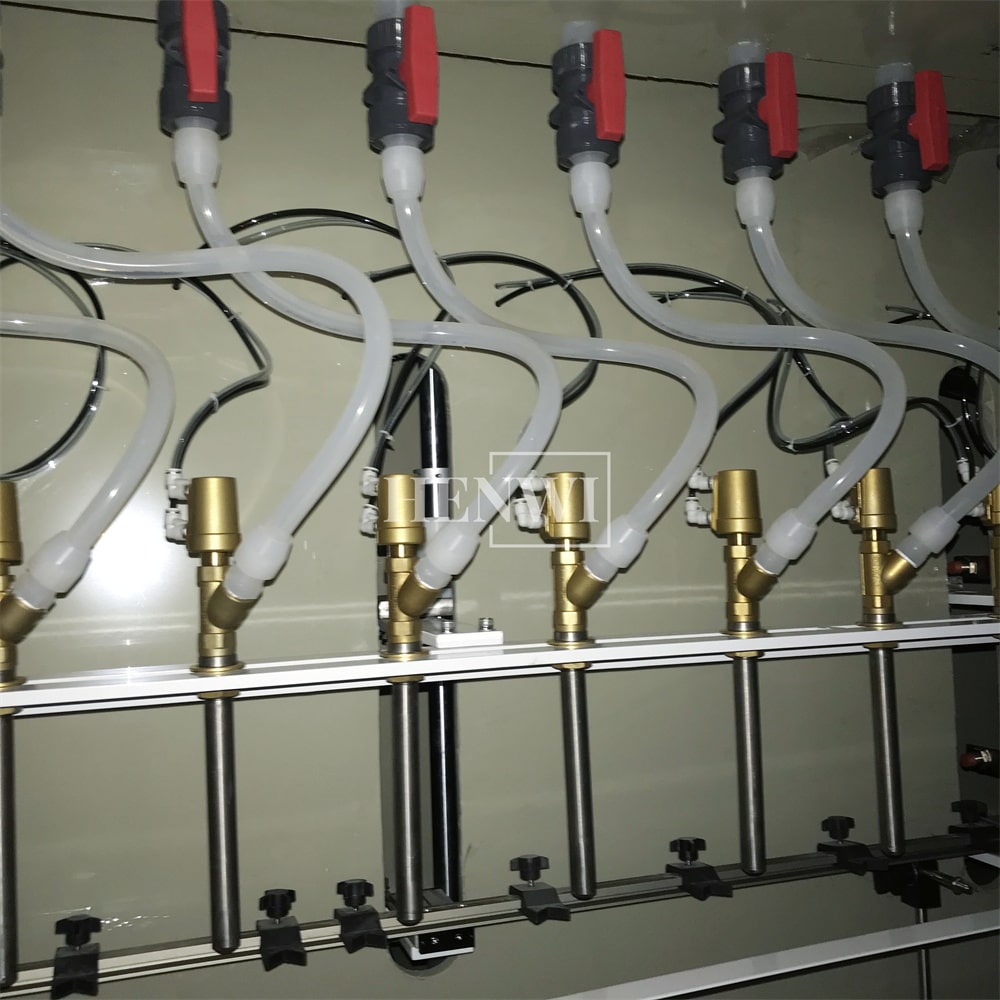

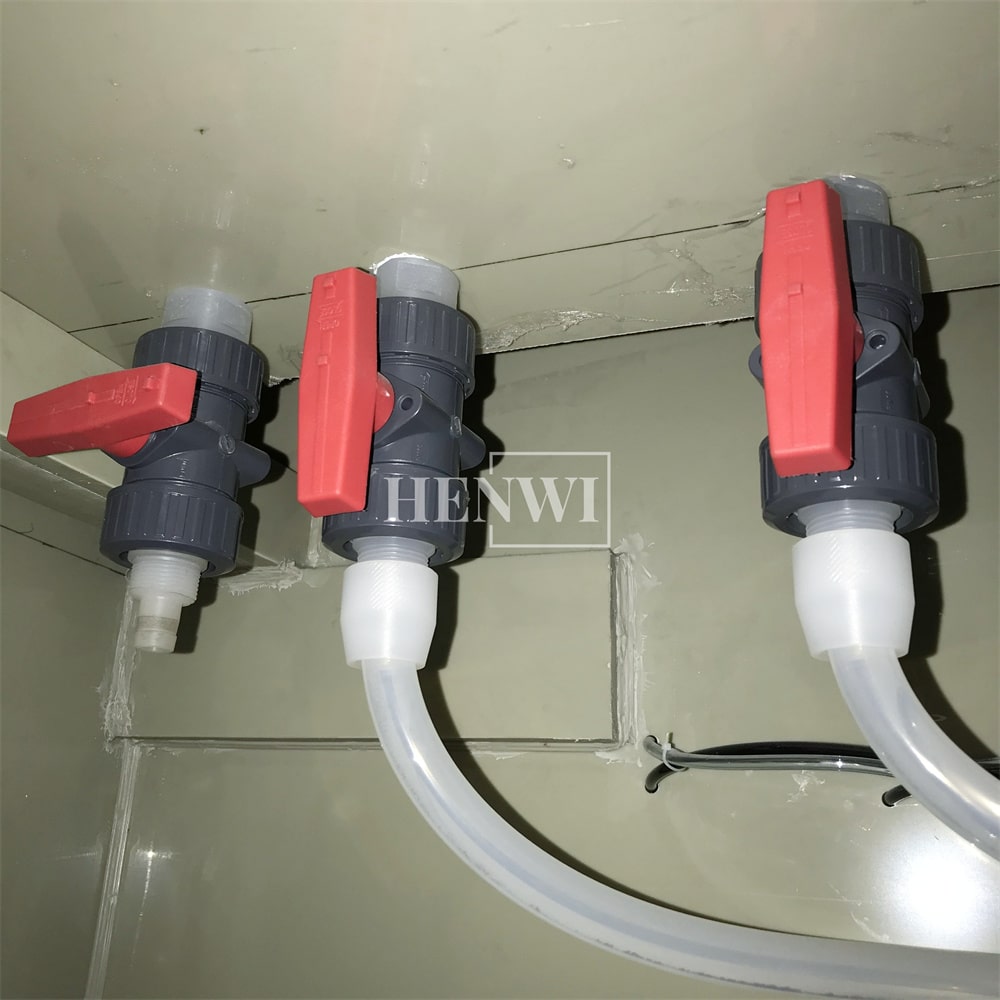

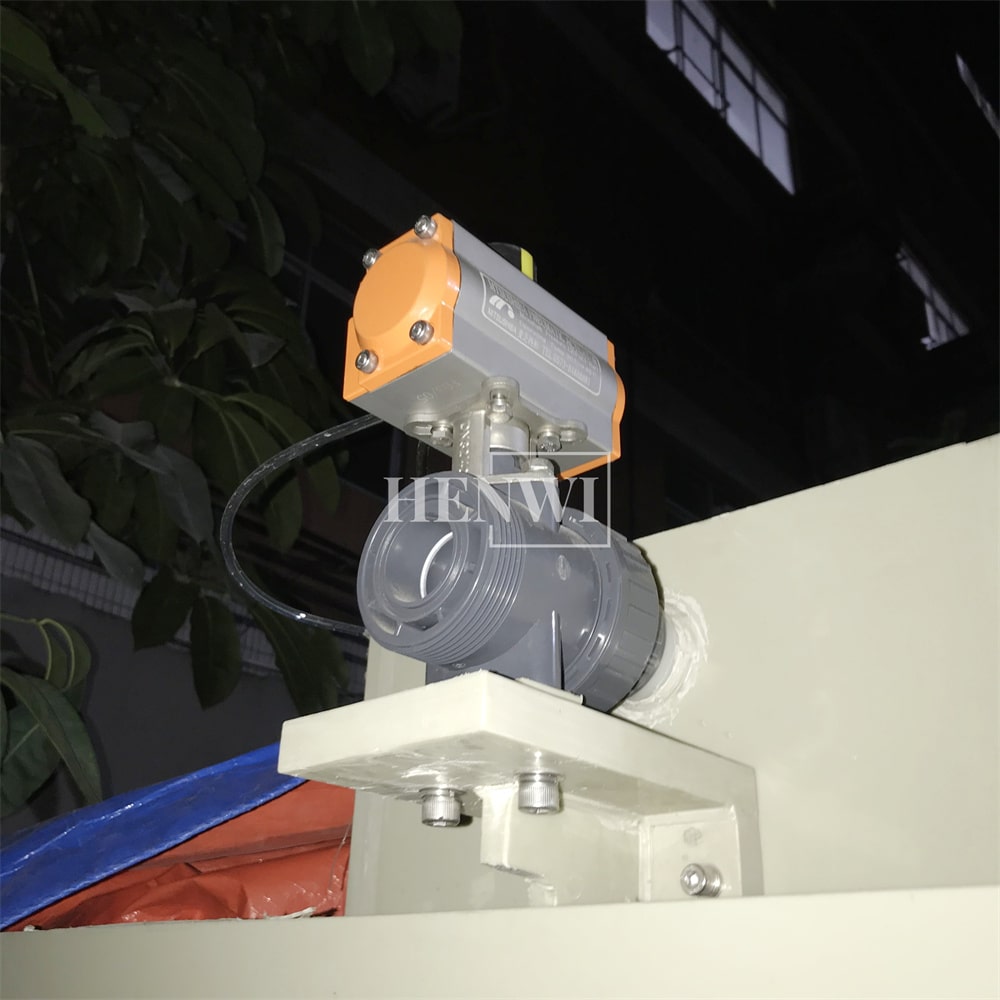

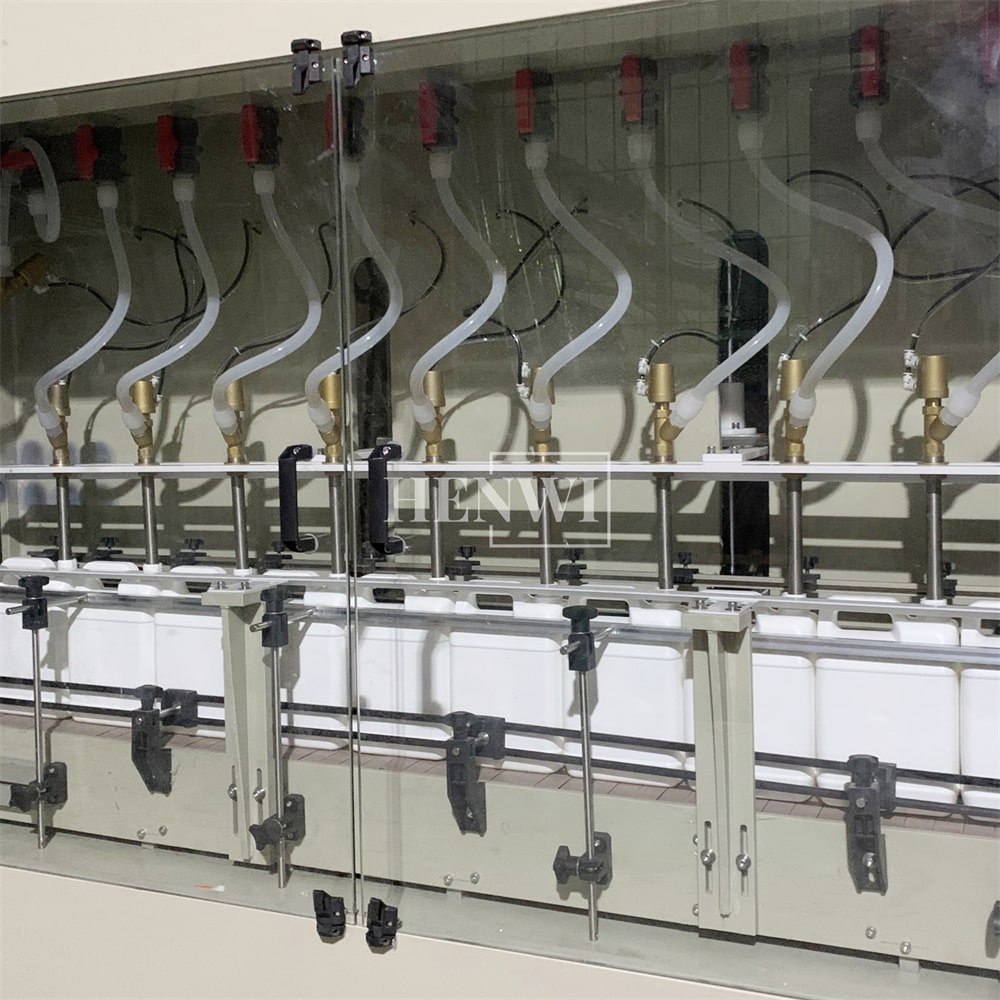

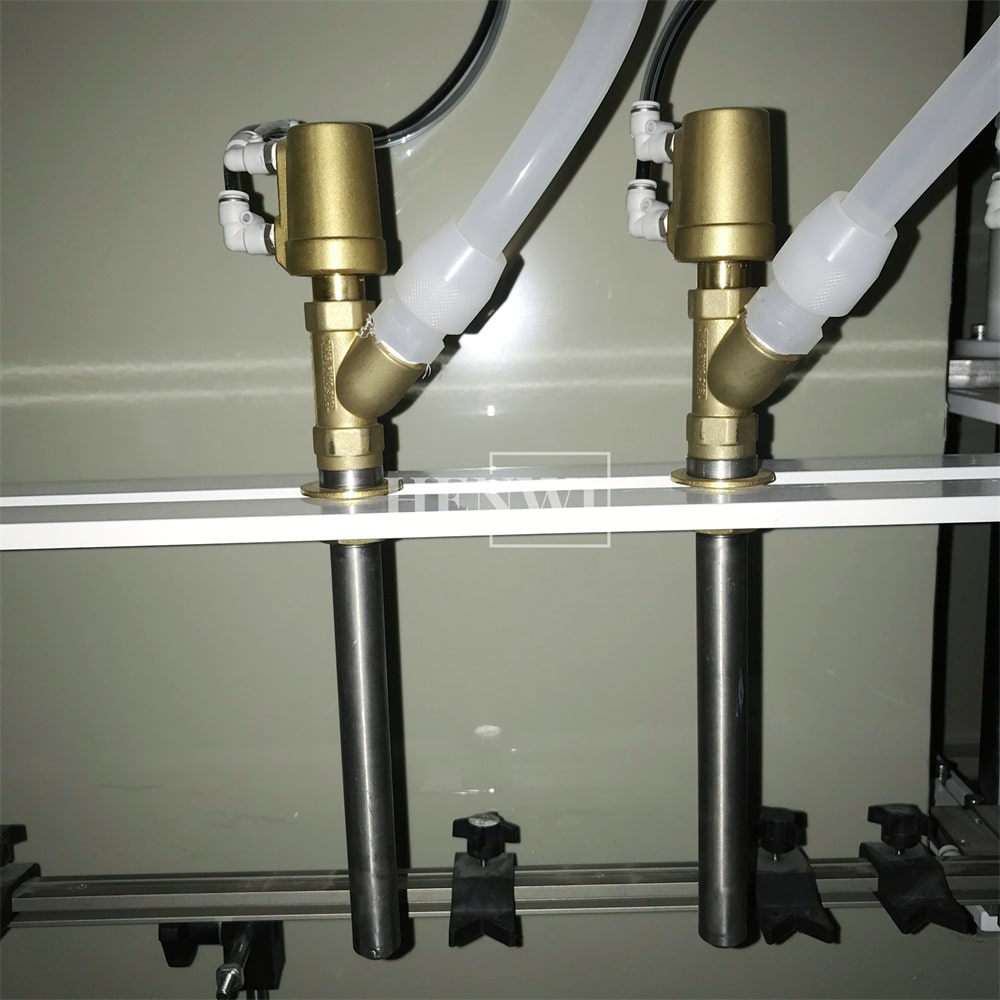

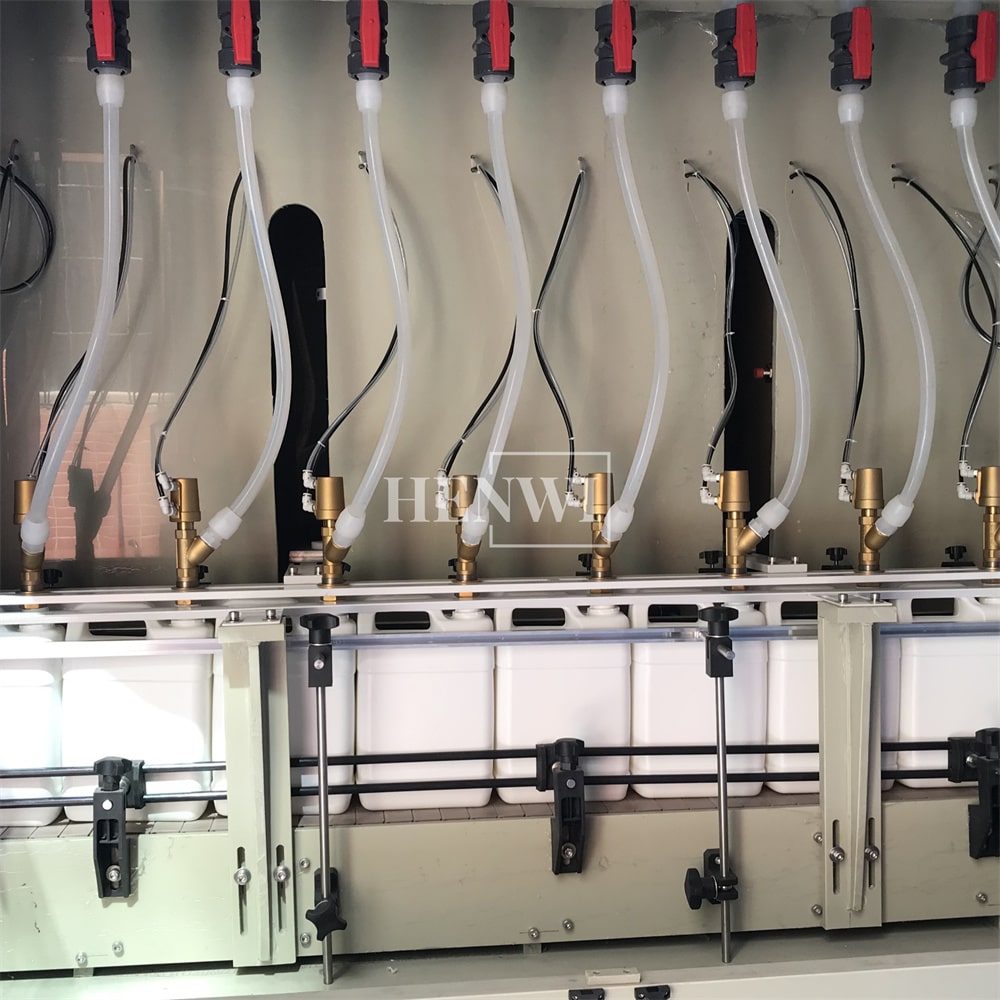

(2) At the beginning of filling, the valve or filling nozzle is opened, and the liquid flows into the filling container by gravity. After filling to the set capacity, the filling nozzle automatically closes to complete the filling.
Anti-corrosive model bottle filling machine, which wildely used for filling toilet cleaner, liquid fertilizer, rust remover, insecticide, pesticide, disinfection liquid, bleach, disinfectant, chemical liquid, strong acid liquid, alkaline liquid, etc.
2. Specification
1
|
Qty of filling head
|
12 heads (4-32 nozzles customized)
|
2
|
Filling capacity
|
50-5000ml (Customized)
|
3
|
Filling speed
|
50-70 bpm (ref. 500ml)
|
4
|
Filling accuracy
|
±1%.
|
5
|
Material
|
PP/SUS316L
|
6
|
Filling way
|
Self-flowing by gravity
|
7
|
Air pressure
|
0.6 -0.8mpa
|
8
|
Voltage
|
220V/50Hz
|
9
|
Machine size
|
3500*1200*2000mm
|
10 |
Weight
|
650kg
|
