Henwi HWFCL- Semi Auto Bleach Alkaline / Acid Liquid Fertilizer Rust Remover Kitchen Toilet Cleaner PP Mixer Machine Tank Corrosion Resistance Mixing Machine Anti Corrosive Filling Capping Labeling Machine Production Line
Henwi HWFCL- Semi Auto Bleach Alkaline / Acid Liquid Fertilizer Rust Remover Kitchen Toilet Cleaner PP Mixer Machine Tank Corrosion Resistance Mixing Machine Anti Corrosive Filling Capping Labeling Machine Production Line
Regular price
$4,500.00 USD
Regular price
Sale price
$4,500.00 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
1. Introduction
Please inquire us if you're not sure whether this machine can process your product or not.

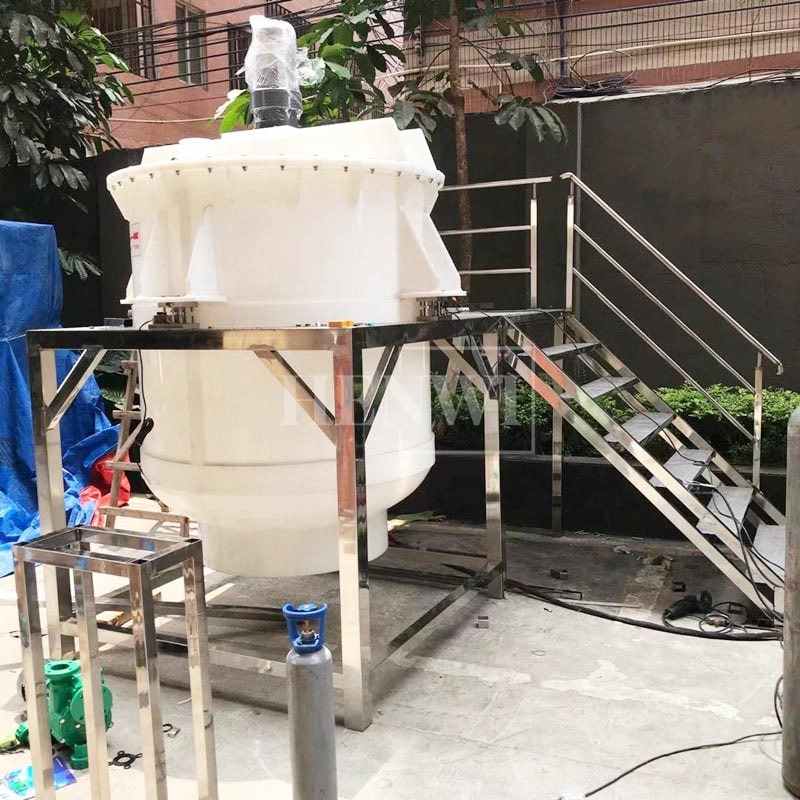

The PP plastic mixer is mainly used in chemical, petroleum, and other industrial lines. It is specially for the strong causticity product. Such as the strong acid and alkaline liquid, bleach, disinfectant, kitchen cleaner, toilet cleaner, insecticide, pesticide, liquid fertilizer, etc.

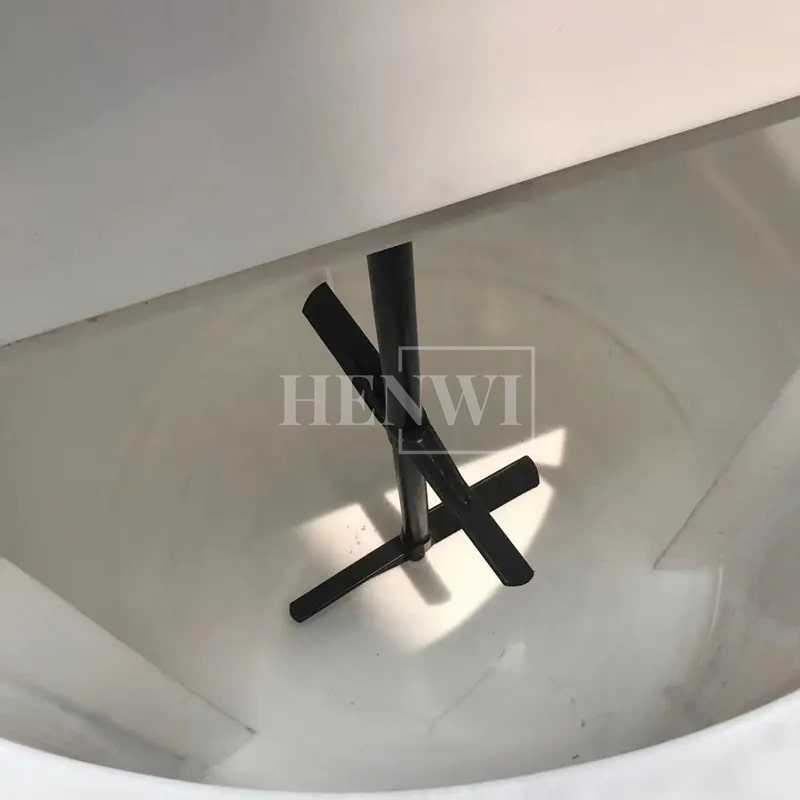

The mixer pot is made of PP/PVC/PET material. It is very hard to reaction with any chemical products. The stirring blade is made of enamel. This machine has explosion preventing motor, easy operating, light weight, also anti-corrosive.
Applicable production: Toilet cleaner, Porcelain cleaner, Descaling agent, Rust remover, Drain cleaner, Kitchen grease cleaner, Industrial cleaner, Disinfectant, Bleach, Deodorizer, Polyaluminum chloride solution, Polyferric sulfate, Phosphorus remover, Flocculant solution, Coagulant aid, Ammonia nitrogen remover, Heavy metal trapping agent, Acid-base regulator, Decolorizing agent, Herbicide aqueous solution, Fungicide aqueous solution, Water-based pesticide, Foliar fertilizer aqueous solution, Micronutrient fertilizer, Fertilizer concentrate, Oxalic acid solution, Hydrochloric acid dilution, Sulfuric acid dilution, Phosphoric acid solution, Acetic acid solution (low concentration), Calcium chloride solution, Magnesium chloride solution, Copper sulfate solution, Zinc sulfate solution, Alum solution, Pickling solution, Alkaline cleaning solution, Degreasing agent, Passivating solution, Surface conditioner, Activating solution
2. Specification
PP Mixer Machine Tank Corrosion Resistance Mixing Machine
|
1
|
Tank capacity
|
500L
|
1000L
|
2000L
|
3000L
|
5000L
|
|
2
|
Mixing motor
|
2.2KW
|
4KW
|
5.5KW
|
7.5KW
|
11KW
|
|
3
|

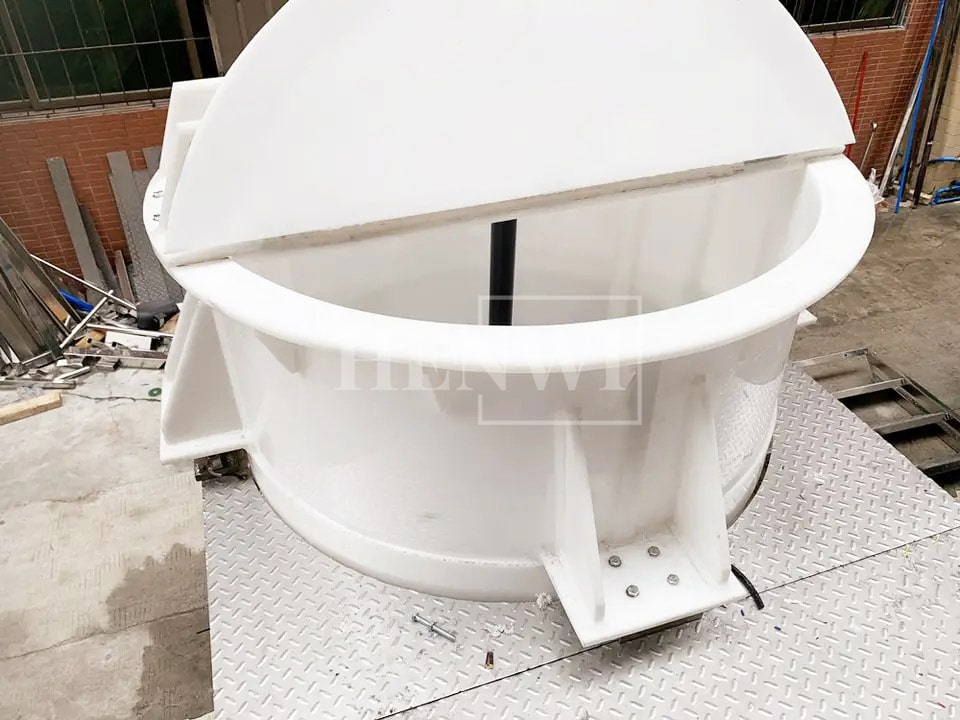

Tank lid
|
Half-opened lid
|
||||
|
4
|
Power supply
|
380V/50Hz
|
||||
|
5
|
Tank material
|
PP / PVC / Customized
|
||||
|
6
|
Frame material
|
SUS304
|
||||
|
7
|
Mixing paddle material
|
Enamel
|
||||
|
8
|
Mixing motor
|
Explosion-Proof Motor
|
||||
|
9
|
Control
|
Anti-Explosive Button Control Electricity Box
|
||||
|
10
|
Mixing speed
|
0-63rpm
|
||||
|
11
|
Work temperature
|
(PP)-10°C~100°C （PVC）-10℃ to 60℃
|
||||
PP Liquid Filter
|
1
|
Specification: Testing liquid: Water S.G. 1.0
|
||||||
|
2
|
Model
|
BFD-2001
|
BFD-2004
|
BFD-2006
|
BFD-3006
|
BFD-2018
|
BFD-3018
|
|
3
|
Filtration(m³)
|
3
|
5
|
10/15
|
15-20
|
20-25
|
30-50
|
|
4
|
Barrel diameter(mm)
|
140
|
200
|
280
|
280
|
450
|
450
|
|
5
|
Filter bag material
|
PP
NMO
SUS
|
PP
NMO
SUS
|
PP
NMO
SUS
|
PP
NMO
SUS
|
PP
NMO
SUS
|
PP
NMO
SUS
|
|
6
|
Filter bag size(mm)
|
105*450
|
150*450
|
180*450
|
180*810
|
180*450
|
180*810
|
|
7
|
Filter bag qty(pcs)
|
1
|
1
|
1
|
1
|
2/3
|
2/3
|
|
8
|
Suitable temperature(℃)
|
75
|
75
|
75
|
75
|
75
|
75
|
|
9
|
Connection
|
Union
|
Union
|
Flange
|
Flange
|
Flange
|
Flange
|
|
10
|
Caliber(mm)
|
25-32
|
25-32
|
50-63
|
50-63
|
63-90
|
63-110
|
PP Liquid Storage Tank
|
Tank Capacity(L)
|
Tank Diameter(mm)
|
Foot Distance(mm)
|
Tank Length(mm)
|
Tank Thickness(mm)
|
|
500
|
700
|
500
|
1500
|
14
|
|
1000
|
800
|
1100
|
2240
|
14
|
|
2000
|
1200
|
800
|
2100
|
14
|
|
3000
|
1200
|
1400
|
3000
|
14
|
|
4000
|
1400
|
1400
|
3100
|
14
|
|
5000
|
1400
|
1800
|
3700
|
15
|
|
6000
|
1600
|
1600
|
3400
|
15
|
|
8000
|
1800
|
1700
|
3700
|
15
|
|
10000
|
1800
|
2200
|
4500
|
16
|
|
12000
|
1800
|
2500
|
5250
|
16
|
|
15000
|
2000
|
2500
|
5300
|
16
|
|
20000
|
2200
|
3500
|
6050
|
18
|
|
25000
|
2400
|
3500
|
6200
|
18
|
|
30000
|
2600
|
3500
|
6450
|
20
|
1 Nozzles Horizontal Anti Corrosive Filler Acid Liquid Alkaline Liquid Filling Machine
|
1
|
Qty of filling head
|
1 head (horizontal model)
|
|
2
|
Filling capacity
|
50-500ml,
100-1000ml,
250-2500ml,
Customized,
|
|
3
|
Filling speed
|
20-30 bpm (ref. 500ml)
|
|
4
|
Filling accuracy
|
±1%.
|
|
5
|
Material
|
SUS304 /PVC
|
|
6
|
Air pressure
|
0.6 -0.8mpa
|
|
7
|
Air consumption
|
0.045m3/min
|
|
8
|
Machine size
|
1200*450*600mm
|
2 Nozzles Vertical Corrosion Proof PP Filler Kitchen Toilet Cleaner Pesticide Bleach Filling Machine
|
1
|
Qty of filling head
|
2 head
|
|
2
|
Filling capacity
|
300ML-1000ML
500ML-5000ML
|
|
3
|
Filling speed
|
35-45 bpm (ref.500ml)
|
|
4
|
Filling accuracy
|
±1%.
|
|
5
|
Material
|
SUS304 / PVC
|
|
6
|
Air pressure
|
0.6 -0.8mpa
|
|
7
|
Air consumption
|
0.045m3/min
|
|
8
|
Machine size
|
760*750*1600mm
|
|
9
|
Weight
|
85kg
|
Semi-Auto 4 Wheels Bottle Screwing Capping Sealing Machine
|
1
|
Qty of capping wheels
|
4 wheels
|
|
2
|
Applicable cap diameter
|
20-80mm
|
|
3
|
Capping speed
|
1200-1800 bottles/hour
|
|
4
|
Material
|
304 stainless steel
|
|
5
|
Controller
|
Button control
|
|
6
|
Automation
|
Desktop, semi automatic
|
|
7
|
Air pressure
|
0.5 -0.7mpa
|
|
8
|
Power
|
0.3kw
|
|
9
|
Electrical components
|
Delixi/CHNT/Schneider
|
|
10
|
Motors
|
DY
|
|
11
|
Pneumatic components
|
AirTAC
|
|
12
|
Machine size
|
500x380x700 (mm)
|
|
13
|
Weight
|
35 (KG)
|
|
14
|
Power supply
|
220V/50Hz
|
Vertical Semi Auto Model Round Bottle Labeling Machine
|
1
|
Machine name
|
Manual vertical model round bottle labeling machine
|
|
2
|
Applicable round bottle size
|
Diameter: 30-100mm
Height: 15-250mm
|
|
3
|
Applicable labels size
|
Hight: 15-130mm
|
|
4
|
Labeling speed
|
1200-2400 bottles/hour
|
|
5
|
Material
|
304 stainless steel
|
|
6
|
Program controller
|
Touch panel screen & PLC control
|
|
7
|
Air pressure
|
0.5 -0.7mpa
|
|
8
|
Power
|
1kw
|
|
9
|
Frequency inverter
|
Coreken
|
|
10
|
Electrical components
|
Delixi/CHNT/Schneider
|
|
11
|
PLC
|
MAGS/INOVANCE
|
|
12
|
Touch screen
|
MAGS/INOVANCE
|
|
13
|
Sensor
|
SICK/KEYENCE
|
|
14
|
Pneumatic components
|
AirTAC
|
|
15
|
Machine size
|
1200x490x1100 (mm)
|
|
16
|
Weight
|
80 (KG)
|
|
17
|
Power supply
|
220V/50Hz
|
