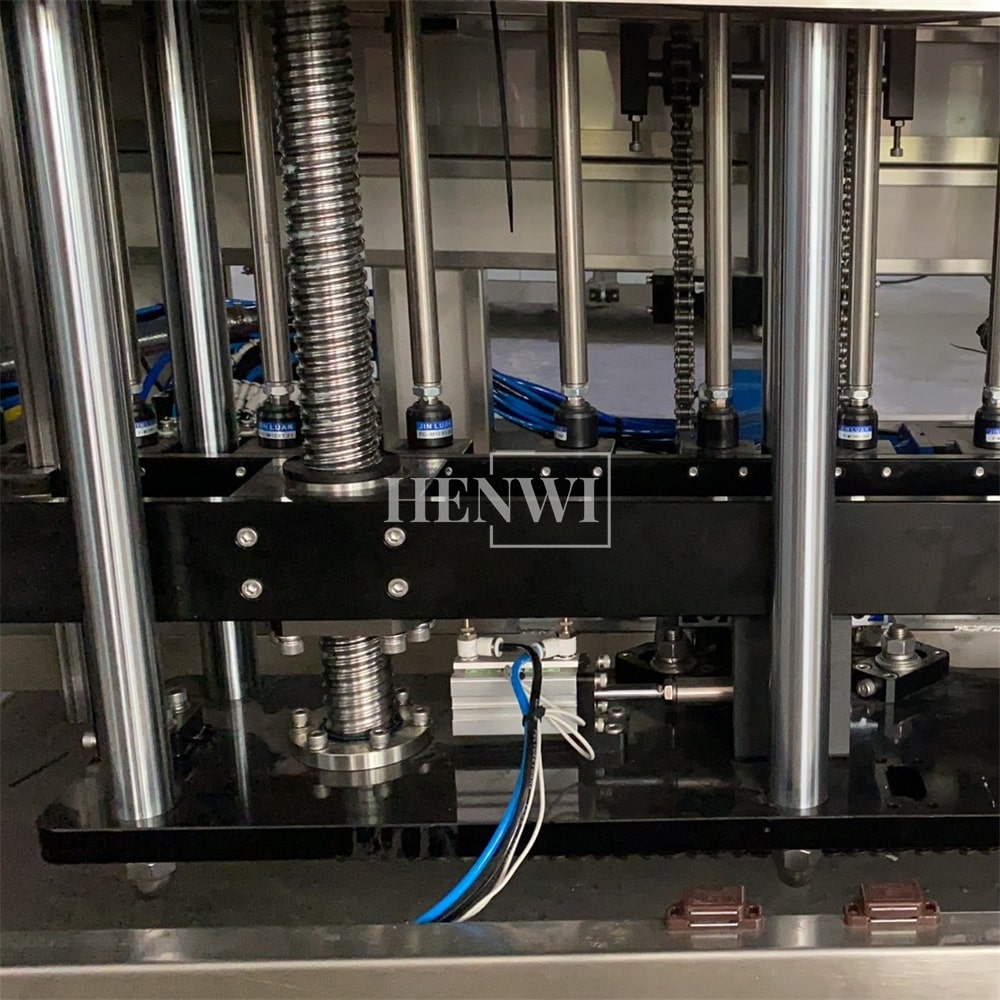

Henwi HWFM-CTF-6 Six Nozzles Automatic Constant Temperature Liquid Mixing Heating Bottling Filling Machine 6 Heads Bottle Filler With Mixer Heater
Henwi HWFM-CTF-6 Six Nozzles Automatic Constant Temperature Liquid Mixing Heating Bottling Filling Machine 6 Heads Bottle Filler With Mixer Heater
1. Introduction
(1) Constant temperature stirring: equipped with heating and stirring system, it can keep the liquid at a suitable temperature during the filling process, while ensuring that the ingredients are evenly mixed.
(2) Flexibility: the stirring speed and temperature can be adjusted according to the characteristics of different products.
Please inquire us if you're not sure whether this machine can process your product or not.
This machine series is suitable for filling hot-melt liquid cosmetics & food & pharmaceutical & chemical products into bottle or jar or other containers, like vaseline, hair wax, candle, builder gel, balm oil, solid perfume, air fresher, petroleum jelly, etc.
2. Specification
1
|
Qty of filling head
|
6 head (4-6-8-10-12-Customized)
|
2
|
Filling range
|
100-1000ML;
300-3000ML; 500-5000ML; Customized
|
3
|
Filling speed
|
About 25~35 bottles/min
|
4
|
Filling accuracy
|
±1%.
|
5
|
Main functions
|
Liquid mixing;
Liquid heating;
Liquid filling;
|
6
|
Constant temperature method
|
Hot water circulation
|
7
|
Material
|
304 /316 stainless steel
|
8
|
Program controller
|
Touch panel screen & PLC control
|
9
|
Air pressure
|
0.6 -0.8mpa
|
10
|
Power
|
7kw
|
11
|
Capacity of material tank
|
200L
|
12
|
Protective device
|
Outage alarm on shortage of liquid in the reservoirtank.
|
13
|
Pump type
|
Piston pump
|
14
|
Frequency inverter
|
Delta/Coreken
|
15
|
Electrical components
|
Delixi/CHNT/Schneider
|
16
|
PLC
|
Mitsubishi
|
17
|
Touch screen
|
Siemens
|
18
|
Servo system
|
TECO
|
19
|
Sensor
|
SICK/KEYENCE
|
20
|
Motors
|
ZD/Beide
|
21
|
Pneumatic components
|
AirTAC
|
22
|
Machine size
|
4000x1300x2100 (mm)
|
23
|
Weight
|
700 (KG)
|
24
|
Power supply
|
380V/50Hz
|
3. Production Line
(1) Bottle Unscrambler
(2) SUS Storage Tank
(3) Automatic Bottling Filling Machine
(4) Automatic Bottle Capping Machine
(5) Automatic Cap Feeding Machine
(6) Automatic Bottle Clamping Conveyor
(7) Aluminum Foil Induction Sealing Machine
(8) Automatic Bottle Labeling Machine
(9) Finished Bottle Collecting Table
(10) Other Accessory Machine
