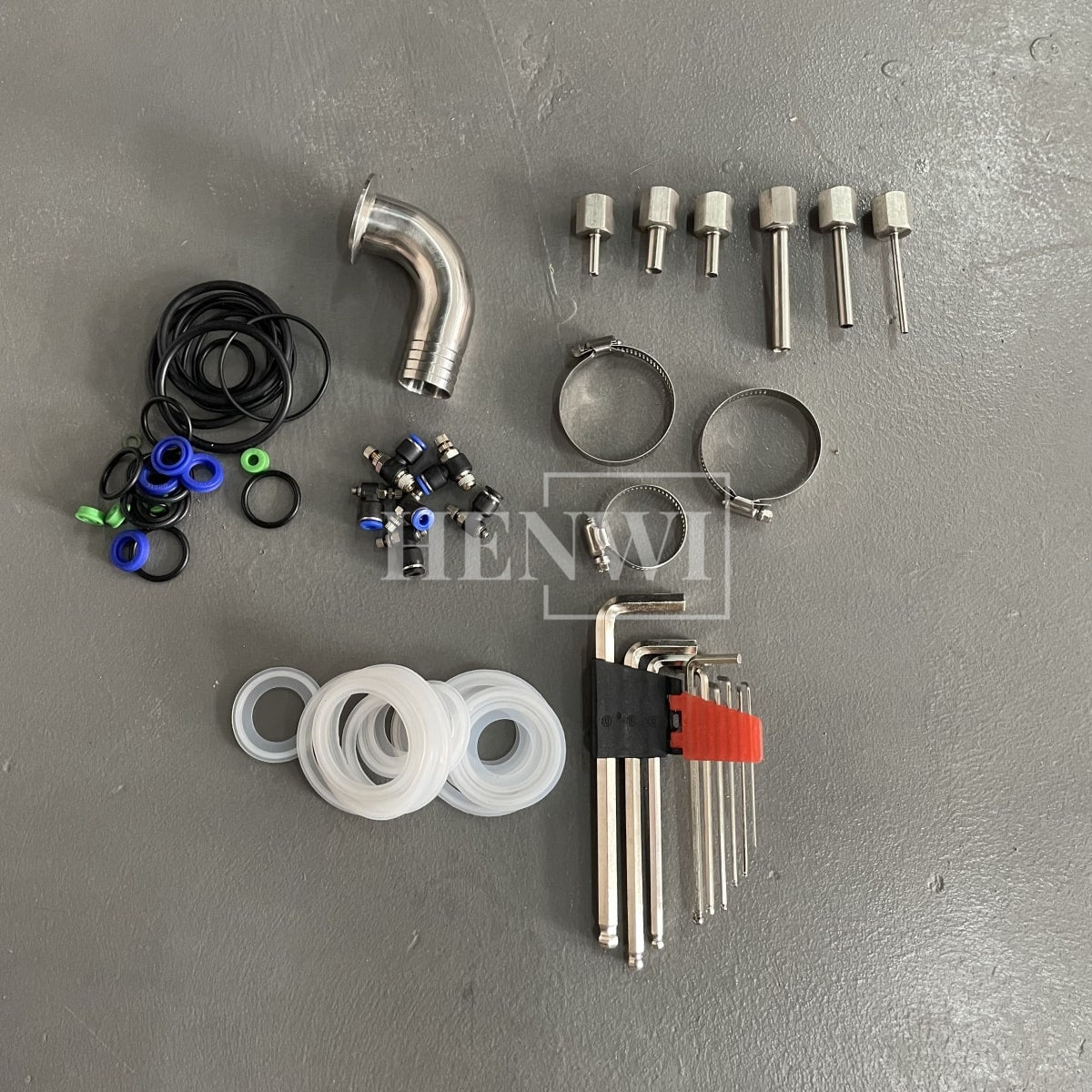

Henwi HWFM-G-1 One Nozzle Gear Pump Model Automatic Liquid Bottling Filling Packing Machine 1 Head Bottle Filler

1. Working Principle

The working process of the automatic single-head gear pump filling machine can be divided into several stages, involving liquid delivery, automatic container entry and exit, filling control, etc.
(1) Liquid delivery
Feeding system: Liquid cosmetics are pumped into the gear pump through the feed pipe. The feeding system is usually connected to a liquid storage tank to ensure sufficient liquid supply during the filling process.
Gear pump drive: The gear pump is driven by a motor, and the gear pump is started according to the preset flow control system, and the liquid is transported from the pump chamber to the filling head.
(2) Automatic bottle feeding and positioning
Container transportation: Containers (such as bottles or cans) are automatically transported to the filling area through a conveyor belt and accurately positioned under the filling head. The conveying system will detect the presence of the container through sensors to ensure that each container is in the correct position.
(3) Filling process
Filling control: The PLC (programmable logic controller) control system of the gear pump filling machine pre-sets the liquid volume for each filling. According to the set volume and the speed of the gear pump, the filling machine will accurately control the amount of liquid injected each time.

2. Application

Please inquire us if you're not sure whether this machine can process your product or not.

This machine series is suitable for filling bottling packing liquid cosmetics & food & pharmaceutical & chemical products into bottle or jar or other containers, like body cream, skincare lotion, conditioner, concealer, nail polish, lubricant, engine oil, ointment, balm oil, jam, food paste, pie, mayonnaise, ketchup, salad sauce, sauce dressing, butter, wax, petroleum jelly, scented candle, shampoo, liquid soap, liquid laundry detergent, shower gel, dishwasher paste, dish soap, mouthwash water, car wash water, glass cleaner, hair serum, vape liquid, hand sanitizer, water base paint, liquid fertilizer, liquid pesticide, liquid insecticide, etc.

3. Specification

1	Qty of filling head	1 head (1 head or 2 heads)
2	Filling range	100-2000ML;
3	Filling speed	About 30~50 bottles/min
4	Filling accuracy	±1%.
5	Material	304 /316 stainless steel
6	Program controller	Touch panel screen & PLC control
7	Air pressure	0.6 -0.8mpa
8	Power	1.5kw (Gear pump)
9	Material feeding method	Direct suction or Hopper feeding
10	Protective device	Outage alarm on shortage of liquid in the reservoirtank.
11	Pump type	Gear pump
12	Frequency inverter	SANLY
13	Electrical components	Delixi/CHNT/Schneider
14	PLC	Mitsubishi
15	Touch screen	MAGS
16	Servo system	INOVANCE
17	Sensor	SICK/KEYENCE
18	Motors	Raynen
19	Pneumatic components	AirTAC
20	Machine size	2000x800x1600 (mm)
21	Weight	200 (KG)
22	Power supply	220V/50Hz

4. Production Line

(1) Bottle Unscrambler

(2) SUS Storage Tank

(3) Automatic Bottling Filling Machine

(4) Automatic Bottle Capping Machine

(5) Automatic Cap Feeding Machine

(6) Automatic Bottle Clamping Conveyor

(7) Aluminum Foil Induction Sealing Machine

(8) Automatic Bottle Labeling Machine

(9) Finished Bottle Collecting Table

(10) Other Accessory Machine
