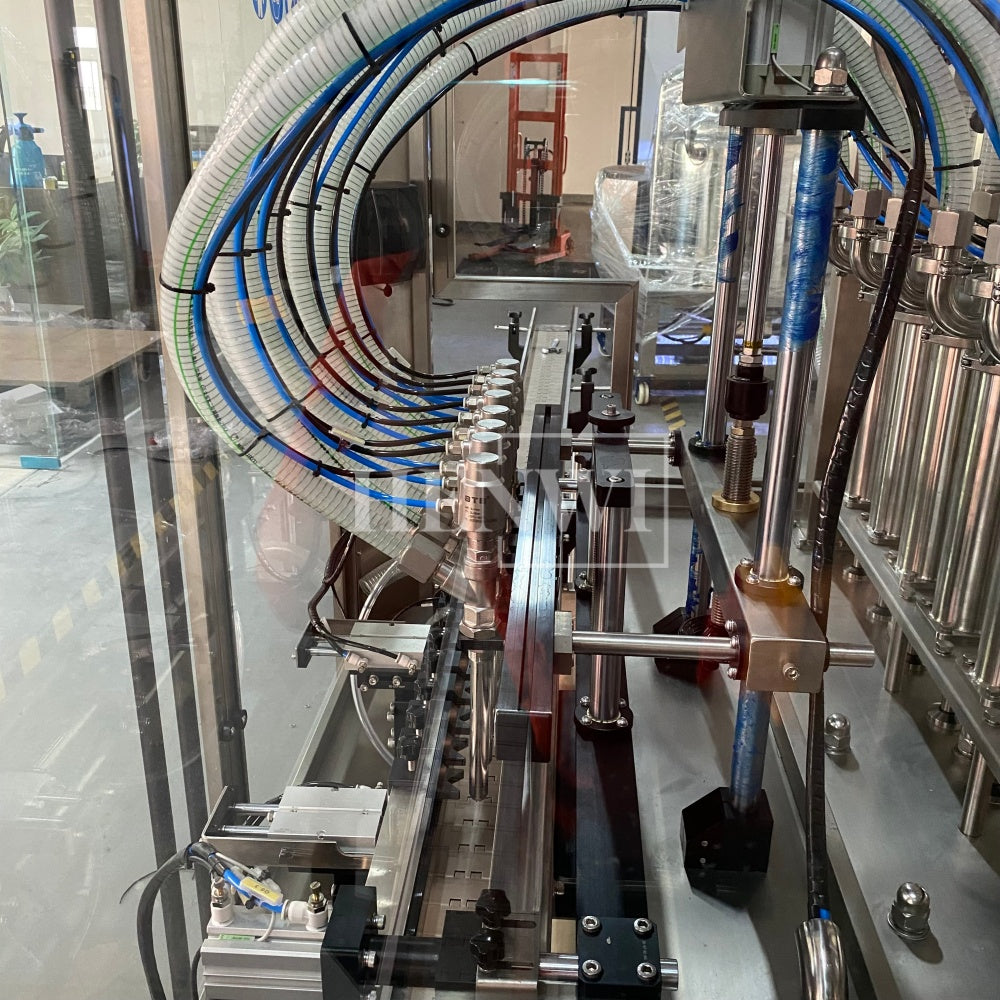

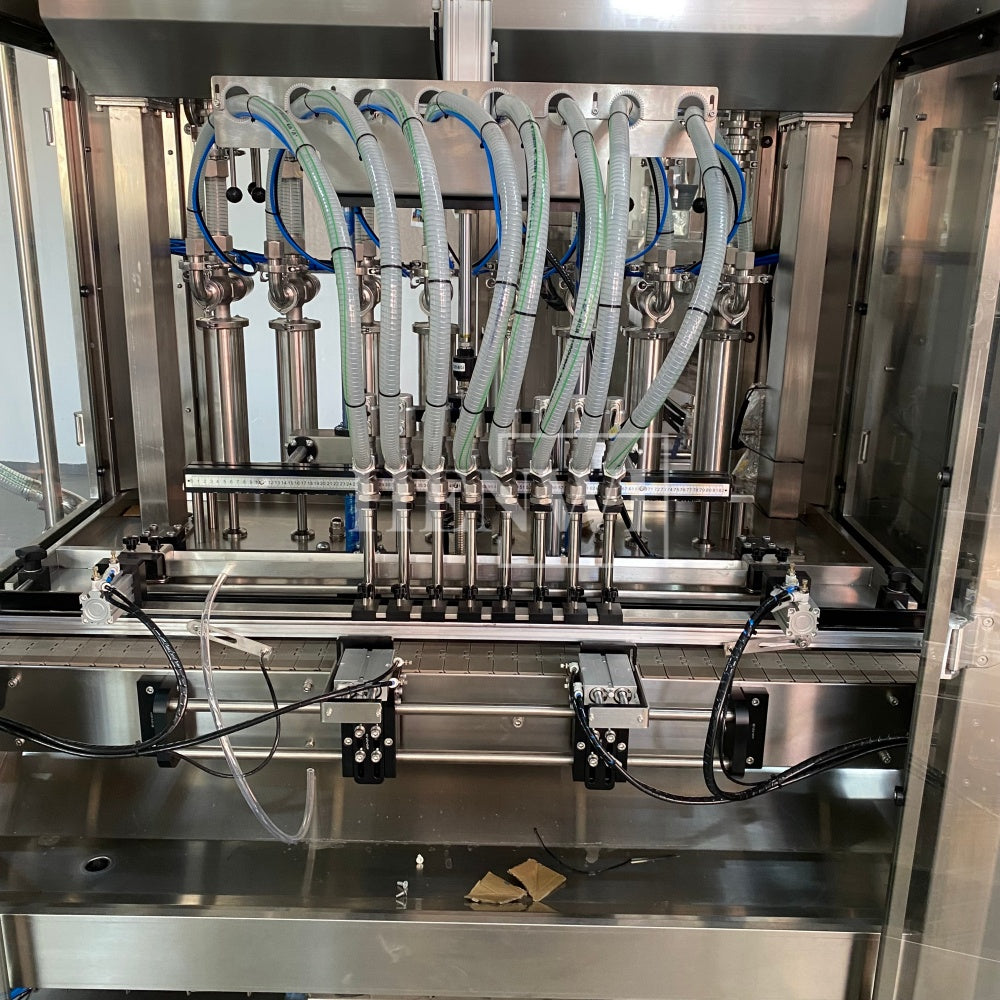

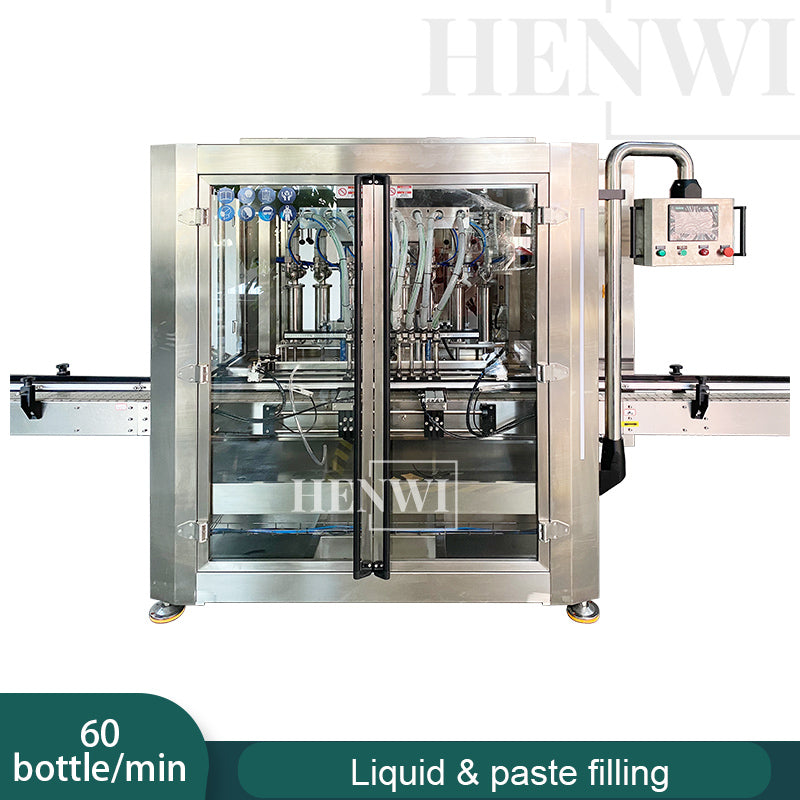

Henwi HWFM-P-8 Eight Nozzles Automatic Liquid Bottling Filling Packing Machine 8 Heads Bottle Filler

1. Introduction

Please inquire us if you're not sure whether this machine can process your product or not.

This machine series is suitable for filling bottling packing liquid cosmetics & food & pharmaceutical & chemical products into bottle or jar or other containers, like body cream, skincare lotion, conditioner, concealer, nail polish, lubricant, engine oil, ointment, balm oil, jam, food paste, pie, mayonnaise, ketchup, salad sauce, sauce dressing, butter, wax, petroleum jelly, scented candle, shampoo, liquid soap, liquid laundry detergent, shower gel, dishwasher paste, dish soap, mouthwash water, car wash water, glass cleaner, hair serum, vape liquid, hand sanitizer, water base paint, liquid fertilizer, liquid pesticide, liquid insecticide, etc.

2. Specification

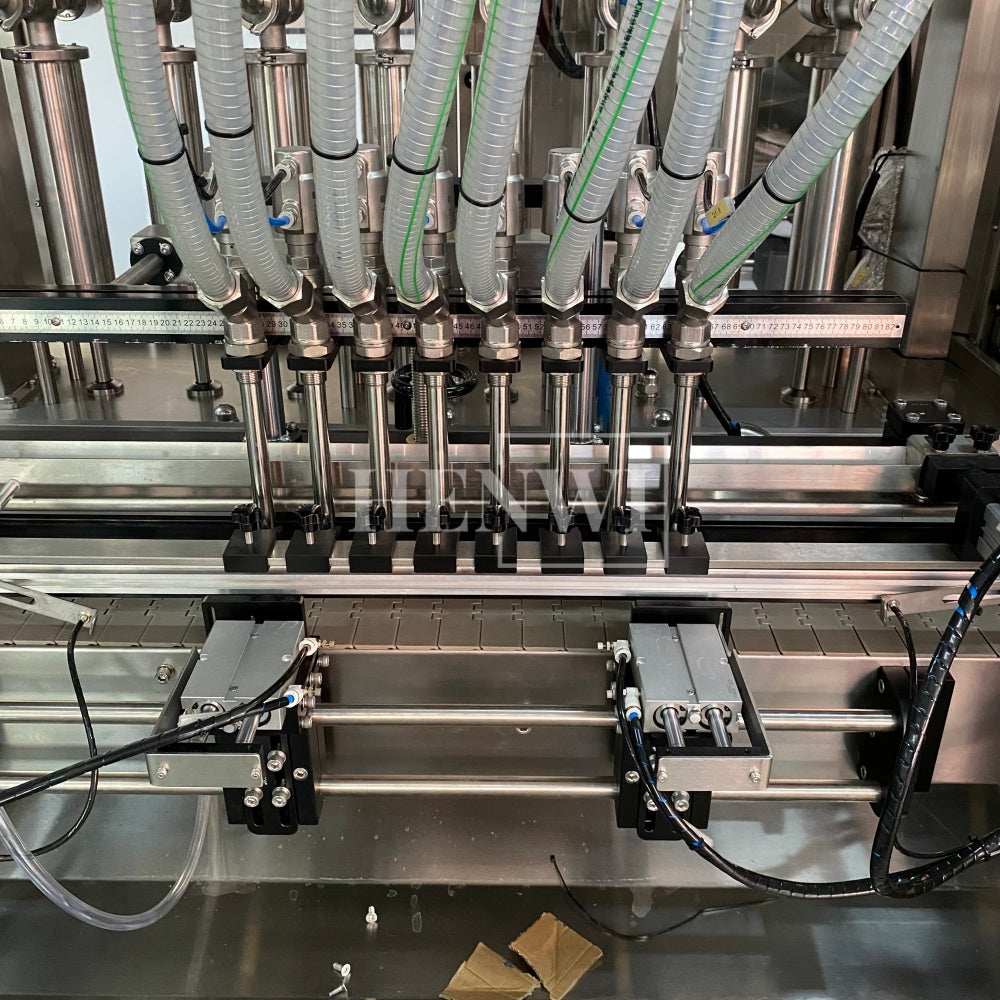

1	Qty of filling head	8 head (2-4-6-8-10-12-16-Customized)
2	Filling range	10-120ML; 100-1000ML; 300-3000ML; 500-5000ML; Customized
3	Filling speed	About 32~42 bottles/min (ref. 500ML BOTTLE)
4	Filling accuracy	±1%.
5	Material	304 /316 stainless steel

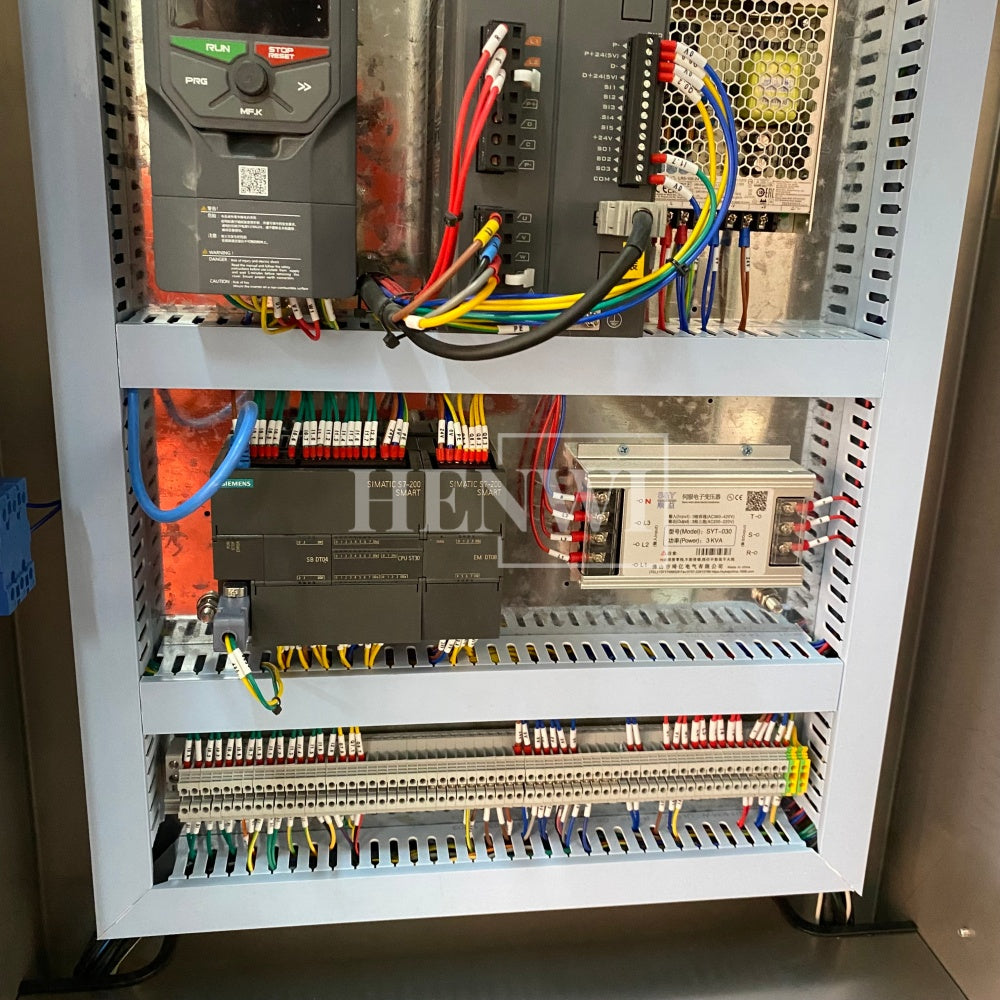

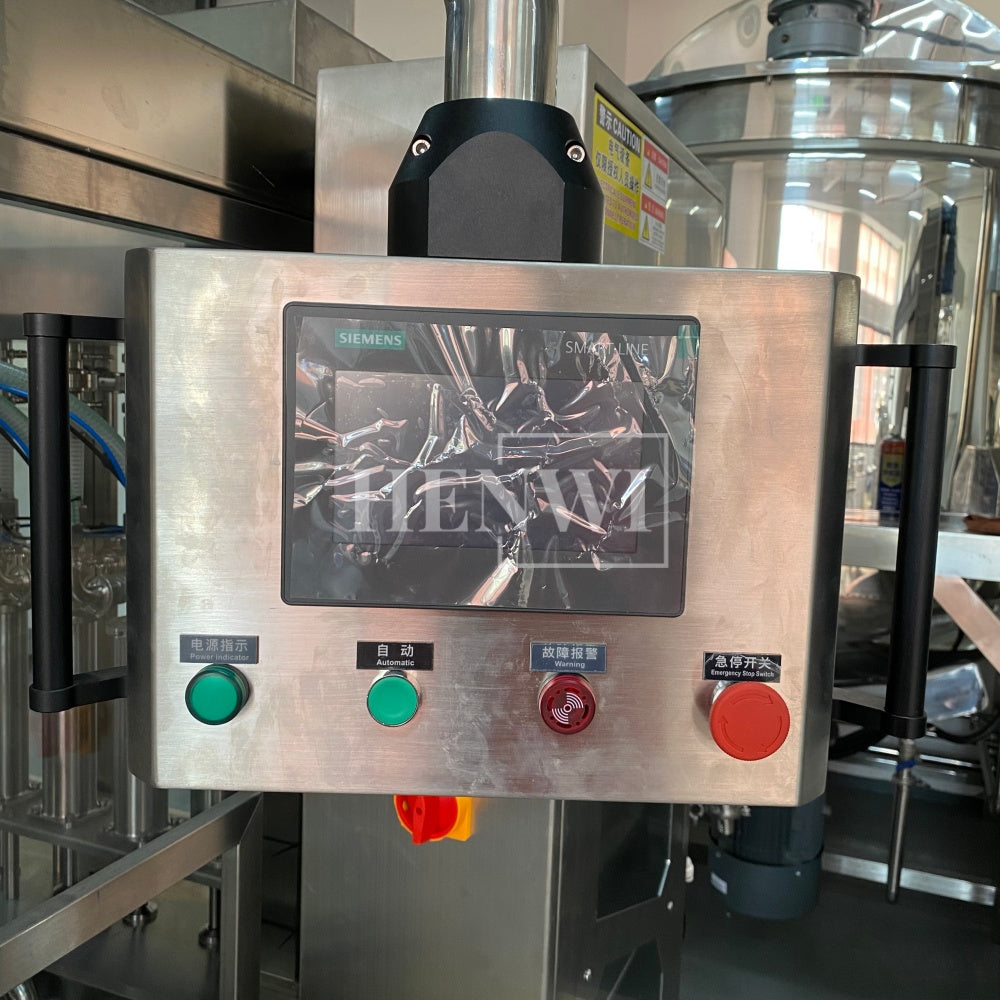

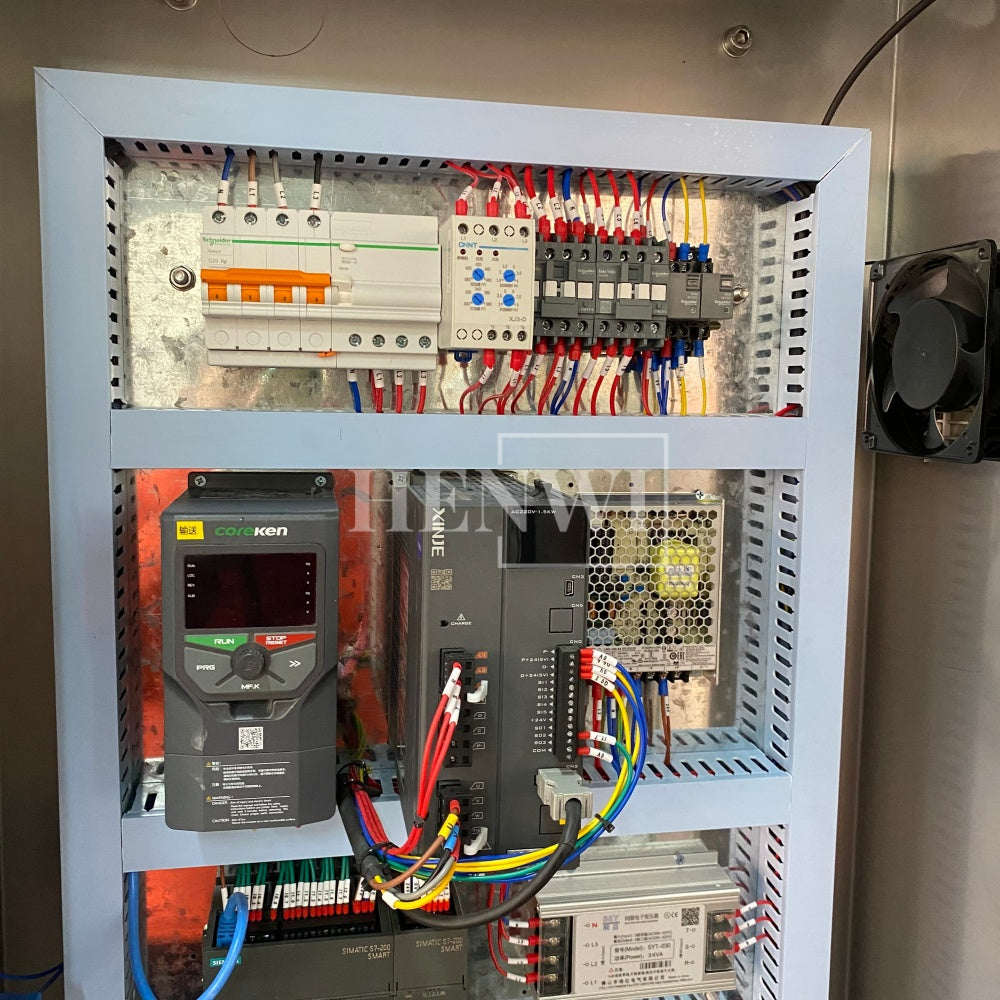

6	Program controller	Touch panel screen & PLC control

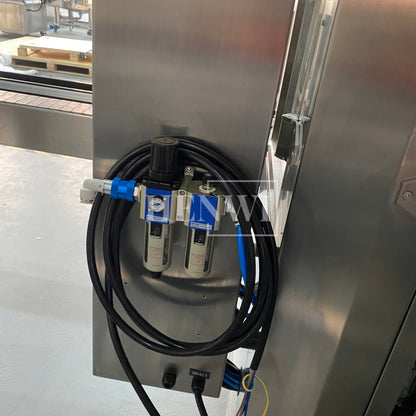

7	Air pressure	0.6 -0.8mpa
8	Power	5.5kw

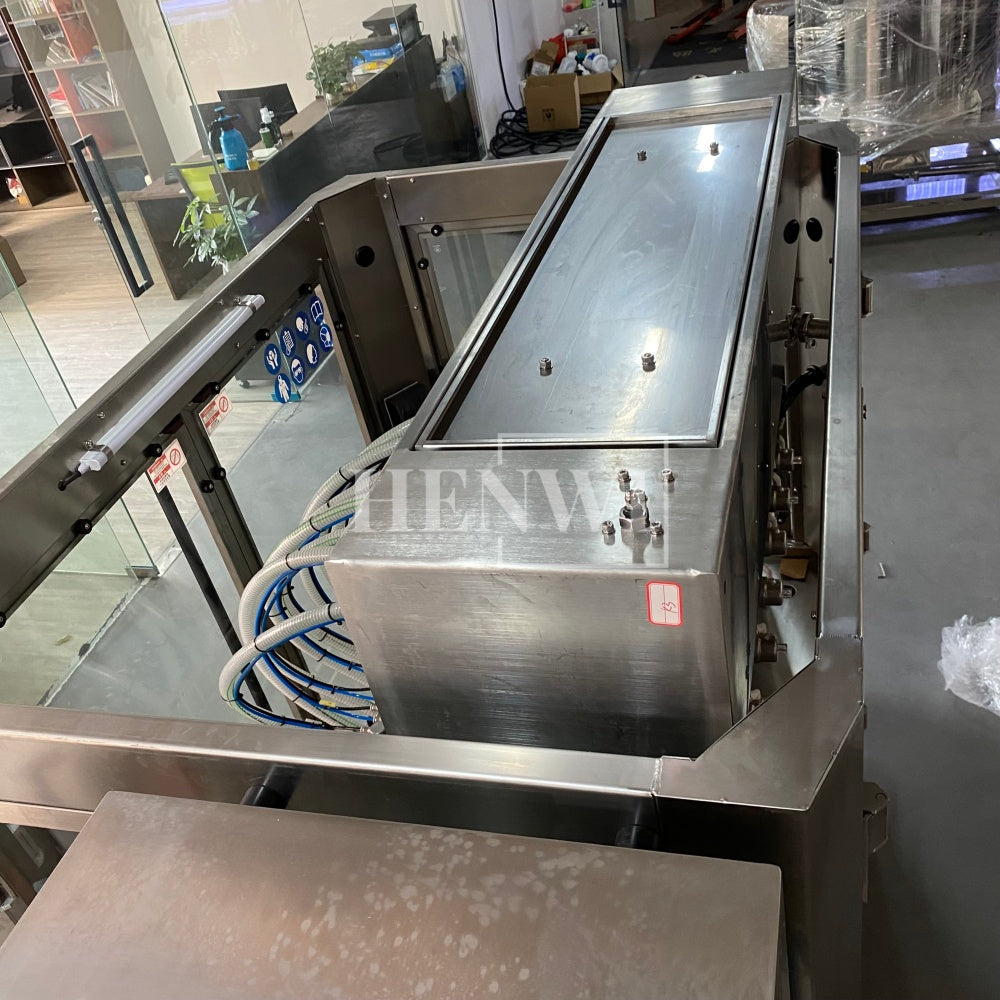

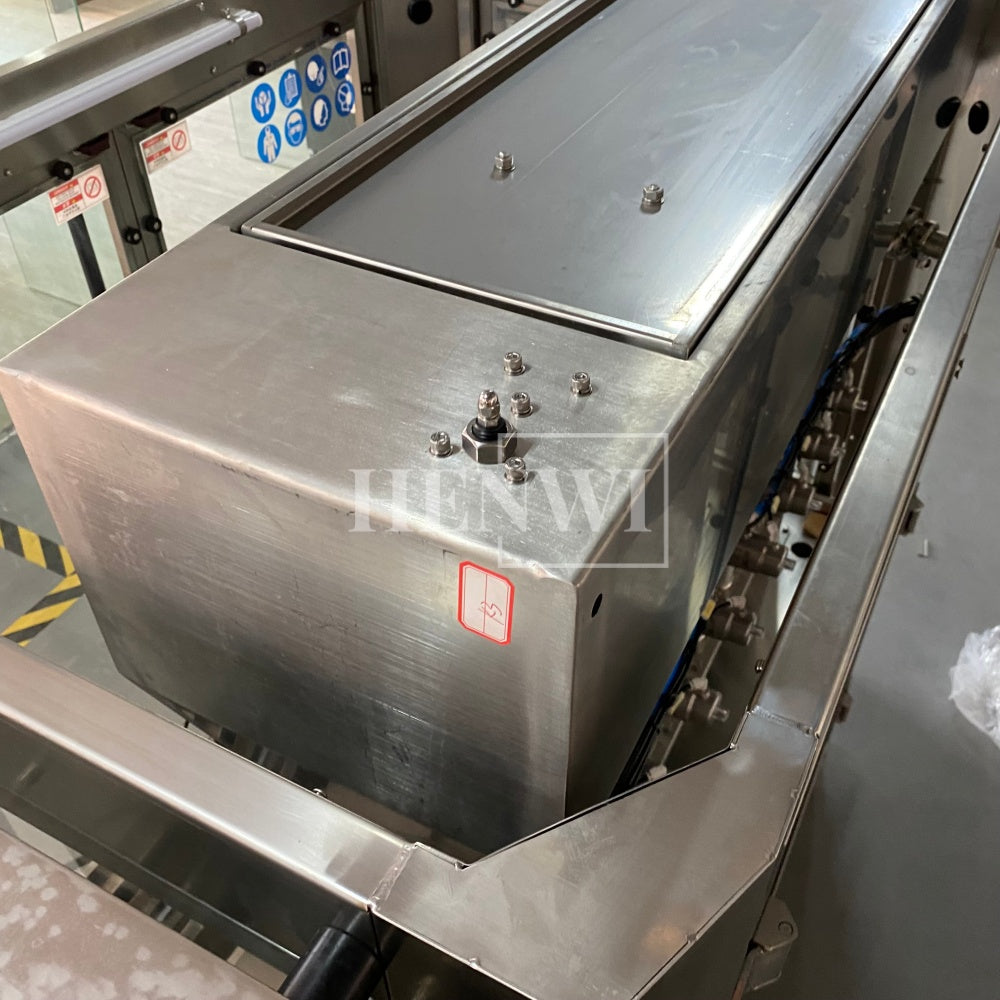

9	Capacity of material tank	200L
10	Protective device	Outage alarm on shortage of liquid in the reservoirtank.

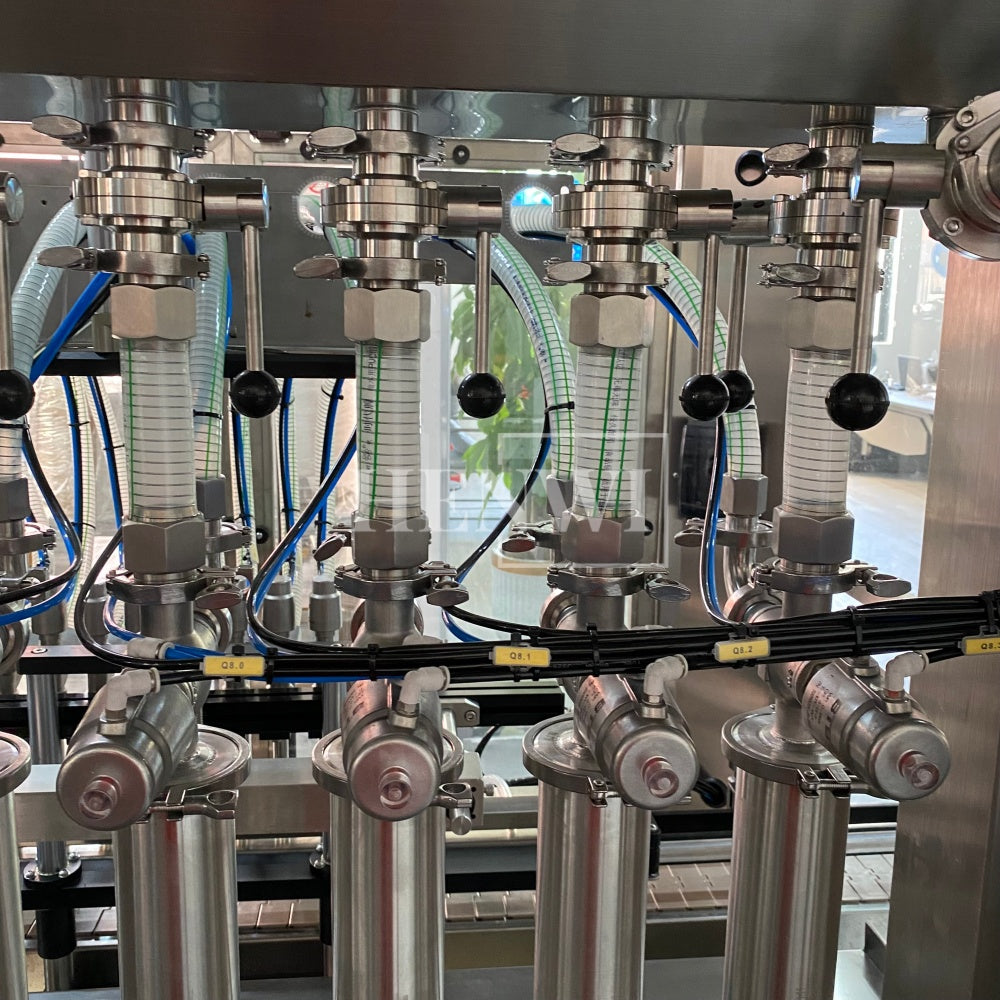

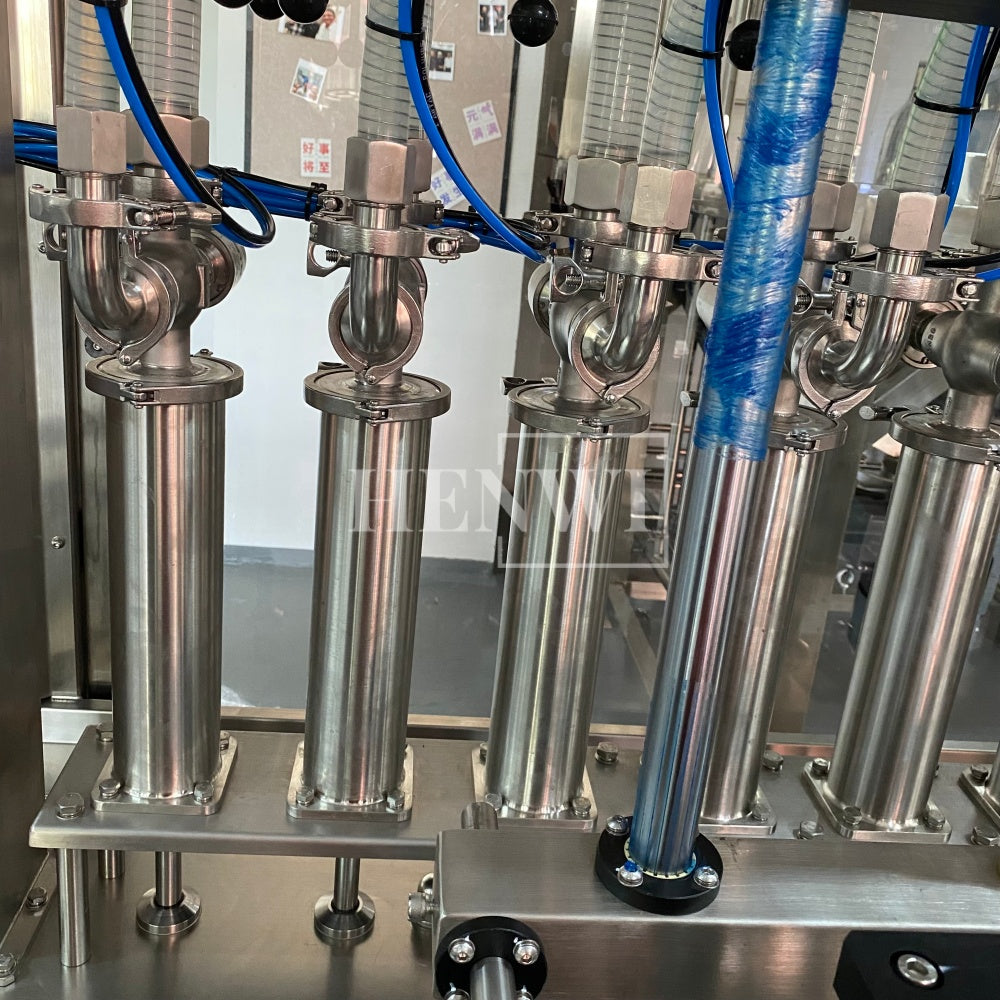

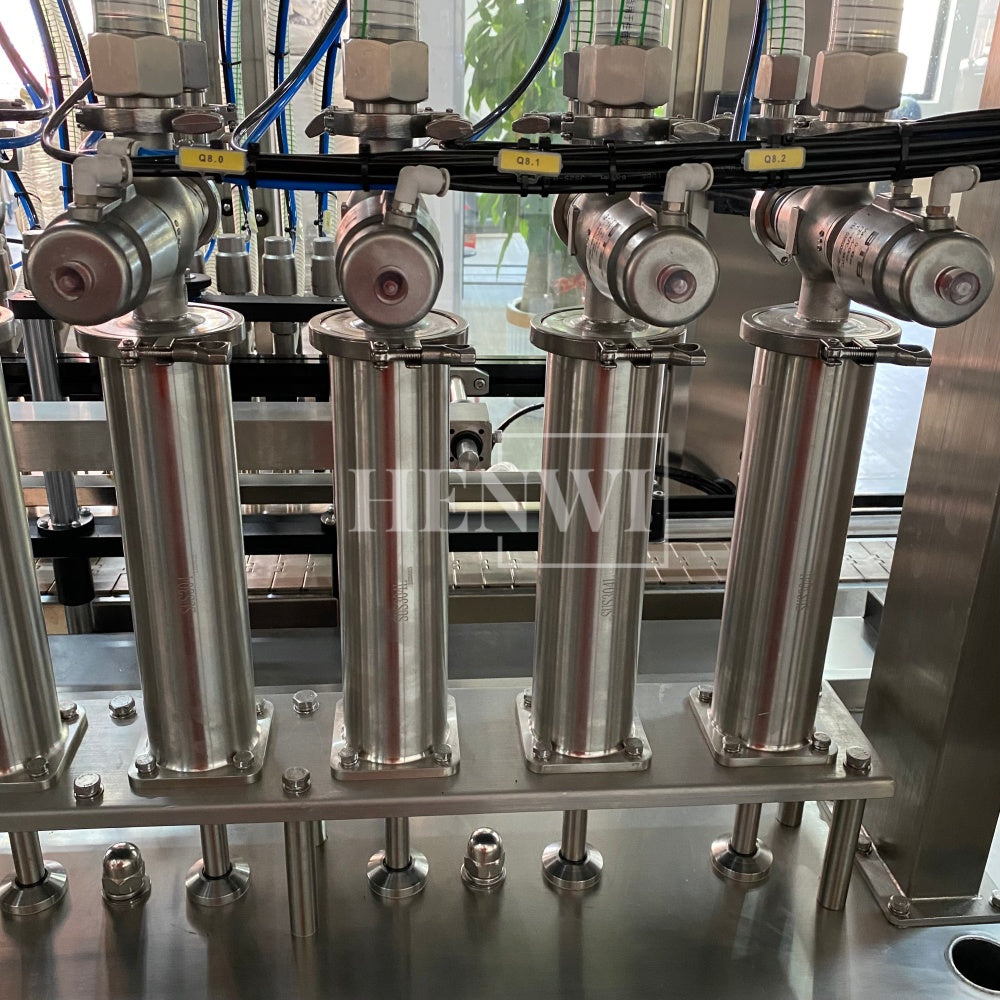

11	Pump type	Piston pump

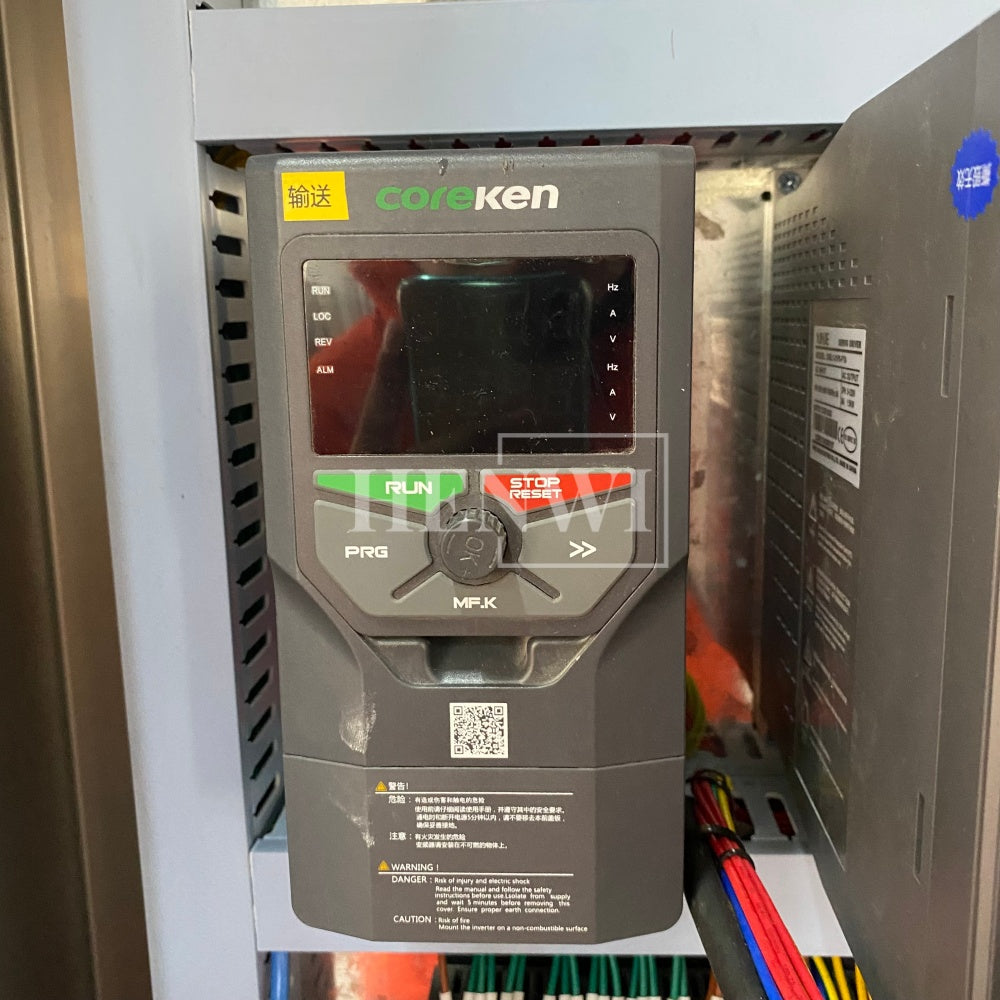

12	Frequency inverter	Delta/Coreken

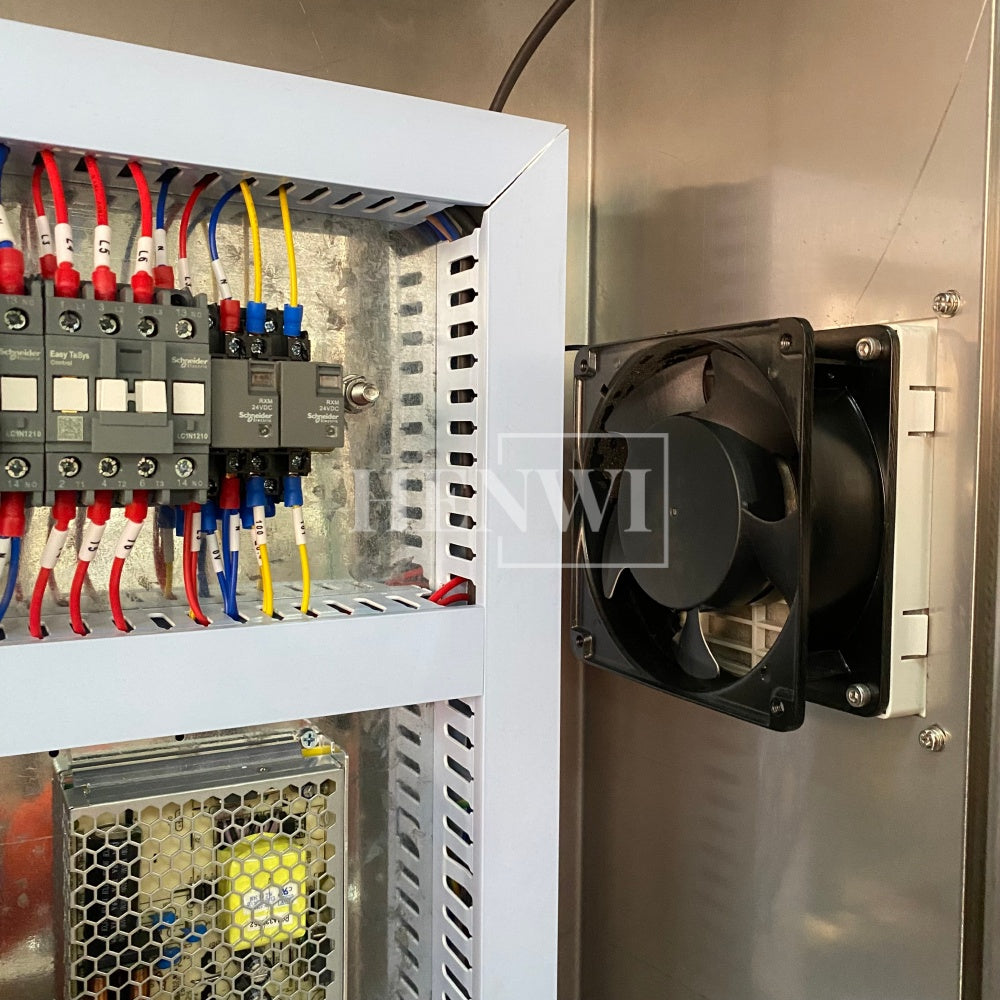

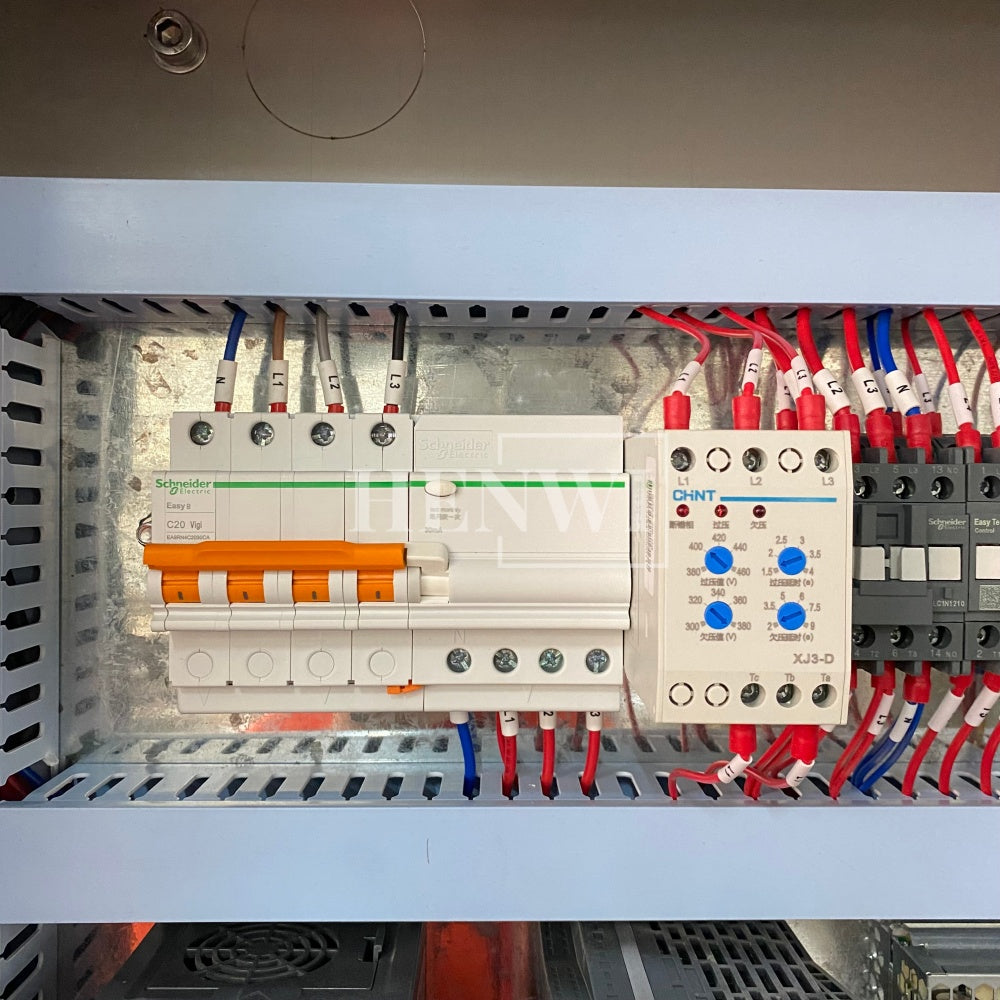

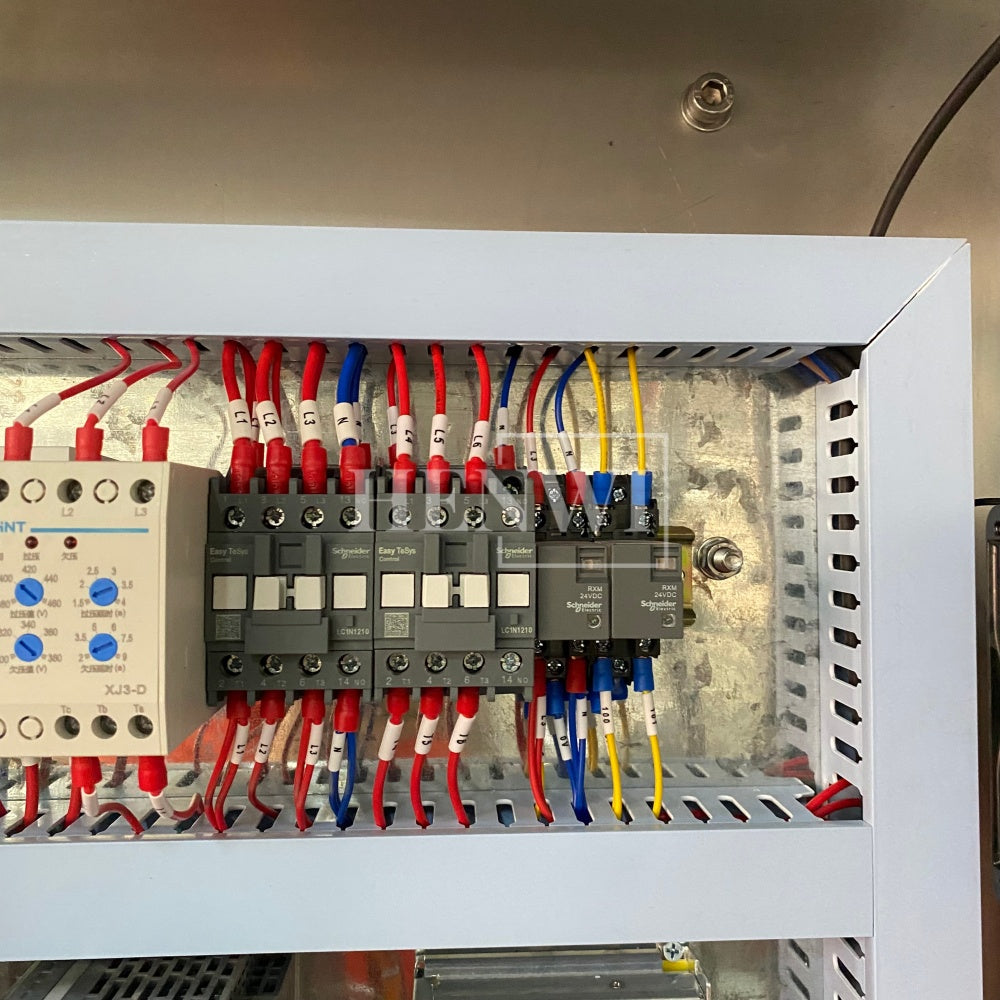

13	Electrical components	Delixi/CHNT/Schneider

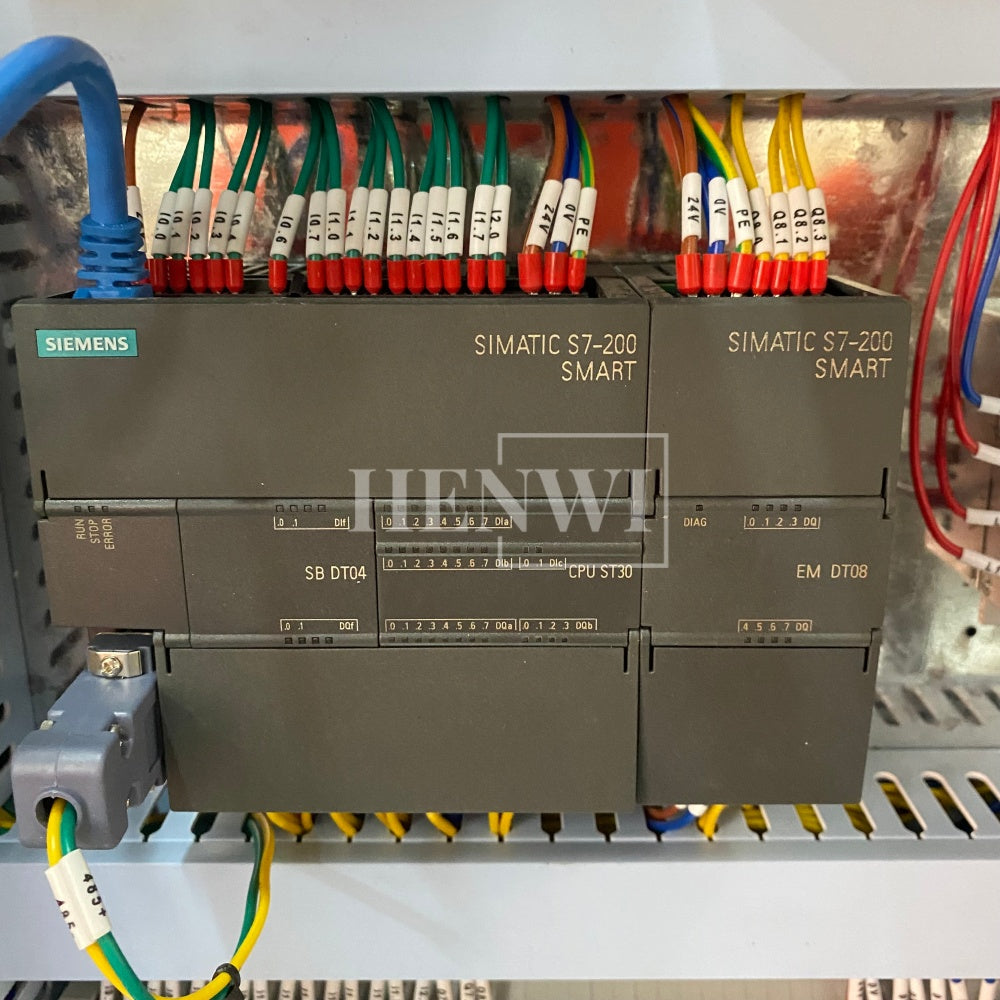

14	PLC	Mitsubishi
15	Touch screen	Siemens

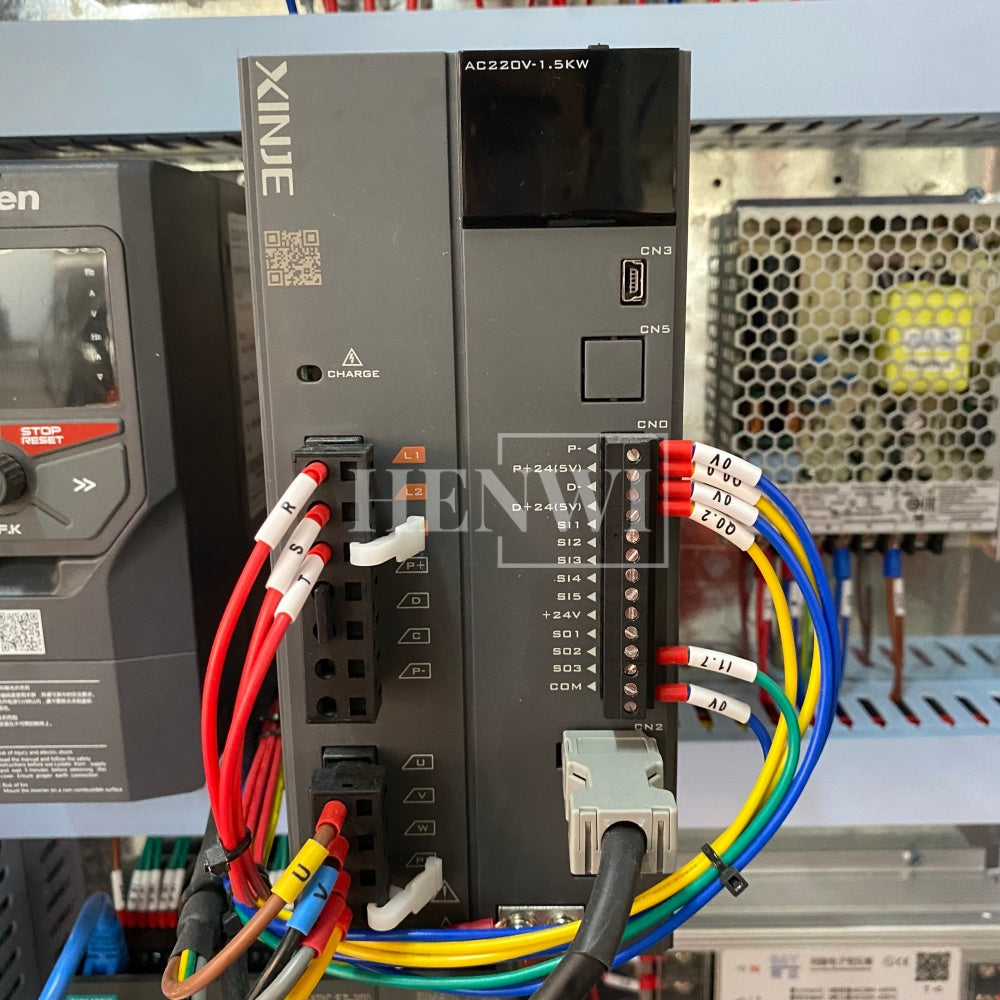

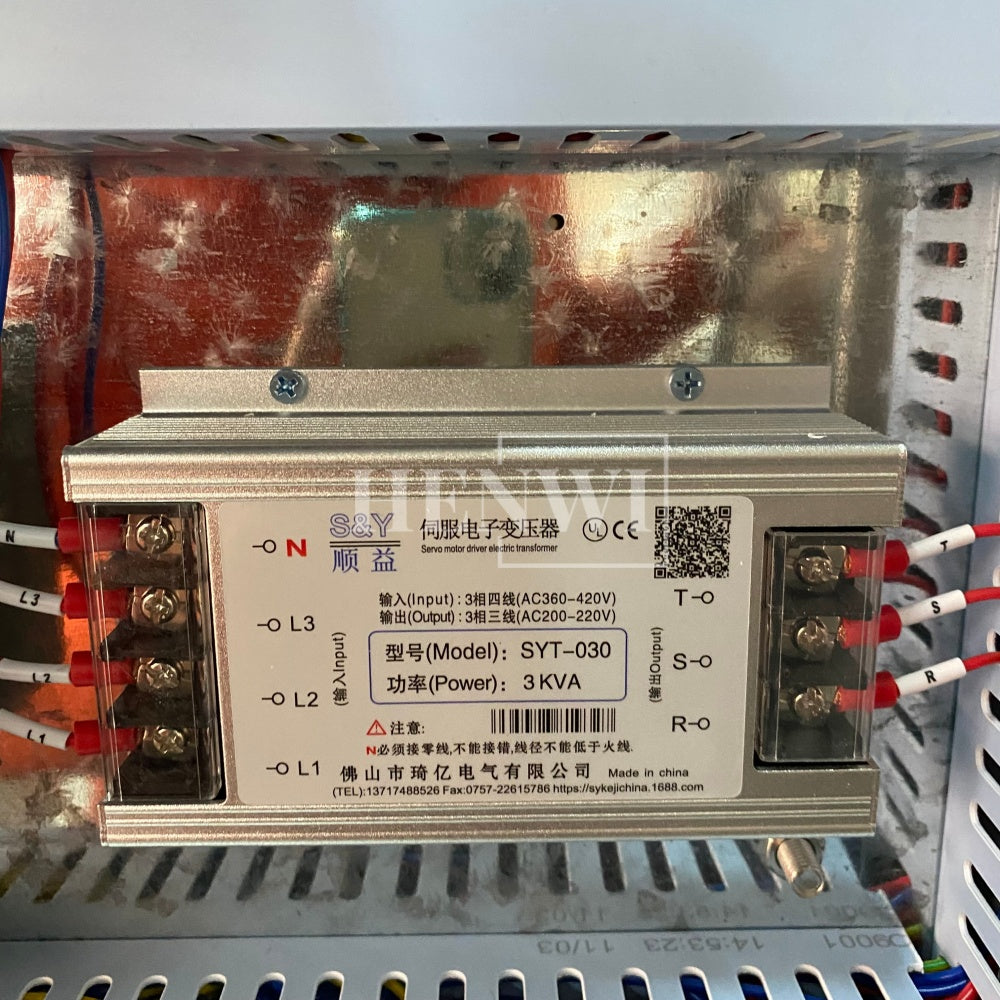

16	Servo system	TECO
17	Sensor	SICK/KEYENCE
18	Motors	ZD/Beide

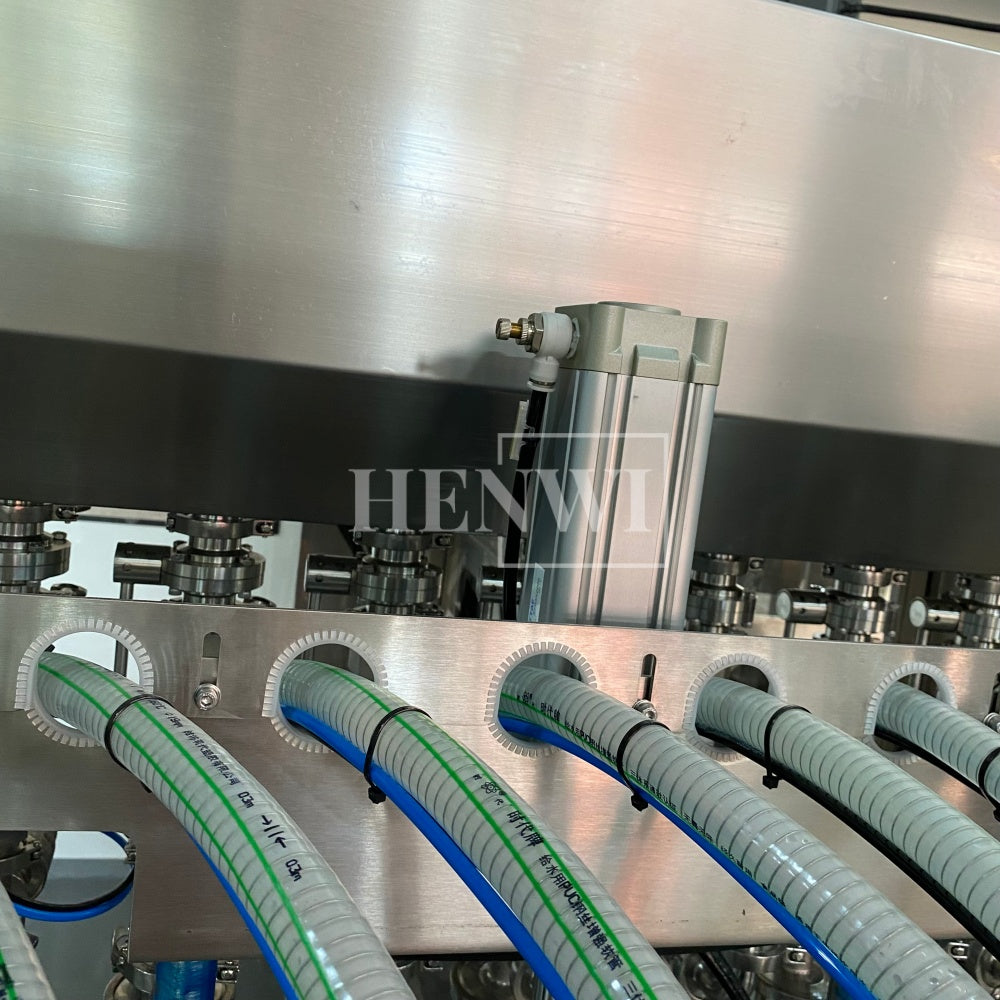

19	Pneumatic components	AirTAC
20	Machine size	4000x1400x2100 (mm)
21	Weight	550 (KG)
22	Power supply	380V/50Hz

3. Production Line

(1) Bottle Unscrambler

(2) SUS Storage Tank

(3) Automatic Bottling Filling Machine

(4) Automatic Bottle Capping Machine

(5) Automatic Cap Feeding Machine

(6) Automatic Bottle Clamping Conveyor

(7) Aluminum Foil Induction Sealing Machine

(8) Automatic Bottle Labeling Machine

(9) Finished Bottle Collecting Table

(10) Other Accessory Machine
