Henwi HWFM-SF-2 Two Nozzles Automatic Granular Paste Bottling Filling Machine 2 Heads Sauce Bottle Filler

1. Introduction

Please inquire us if you're not sure whether this machine can process your product or not.

This machine series is suitable for filling bottling packing granular food paste products or easy-solid-liquid-stratification products into bottle or jar or other containers, like chili paste, fruit jam, vegetable puree, seasoning sauce, gel, jelly, gelatin, etc. The material hopper is with mixing paddle to avoid sediment.

The machine uses stainless steel piston cylinder filling to ensure that the granular material or particle shape inside the paste is complete. At the same time, the hopper is equipped with a mixing paddle to ensure that the material is uniform and not stratified.

2. Specification

1	Qty of filling head	2 heads
2	Filling range	50-200ML; Customized
3	Filling speed	About 20~30 bottles/min
4	Filling accuracy	±1%.
5	Material	304 /316 stainless steel
6	Program controller	Touch panel screen & PLC control
7	Air pressure	0.6 -0.8mpa
8	Power	1.2kw
9	Capacity of material tank	100L
10	Protective device	Outage alarm on shortage of liquid in the reservoirtank.
11	Pump type	Piston pump

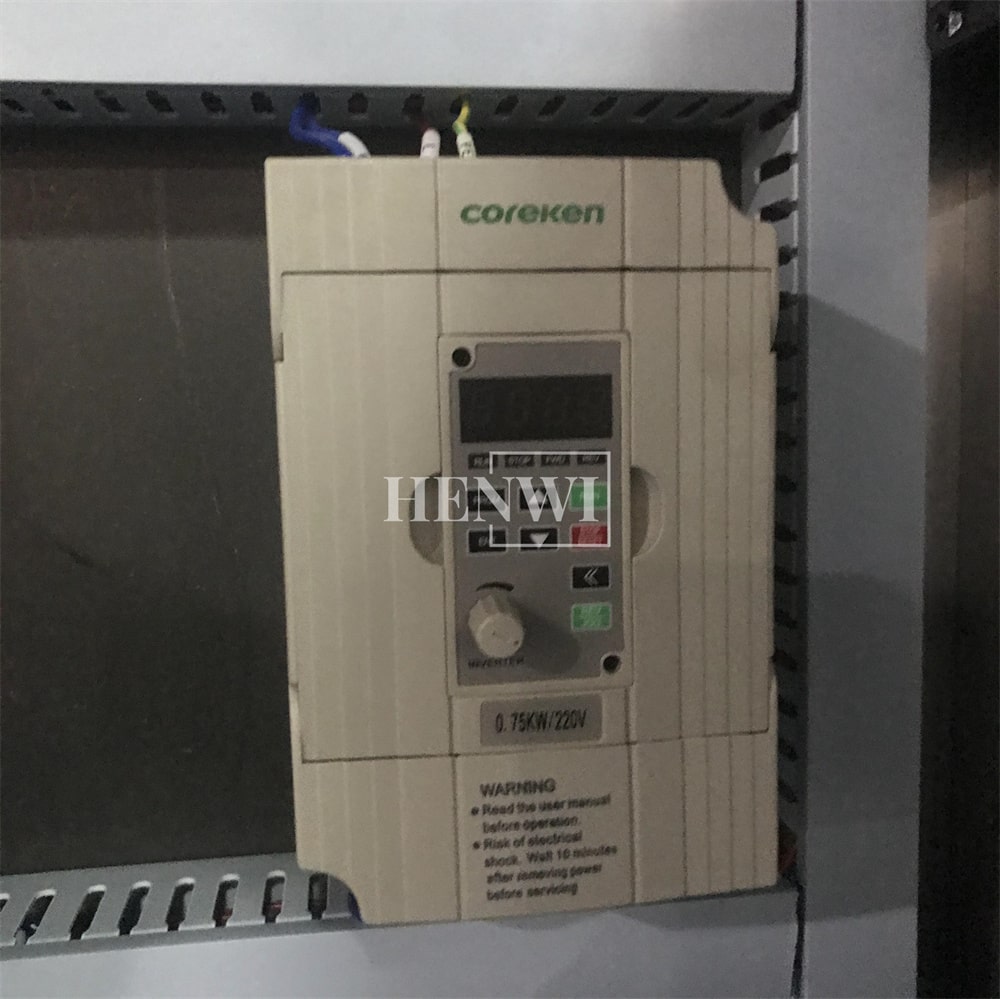

12	Frequency inverter	Schneider
13	Electrical components	Delixi/CHNT/Schneider
14	PLC	Siemens
15	Touch screen	Weinview
16	Sensor	Omron
17	Motors	ZD
18	Pneumatic components	AirTAC
19	Machine size	2000*1600*1800 (mm)
20	Weight	600 (KG)
21	Power supply	220V/50Hz

3. Production Line

(1) Bottle Unscrambler

(2) SUS Storage Tank

(3) Automatic Bottling Filling Machine

(4) Automatic Bottle Capping Machine

(5) Automatic Cap Feeding Machine

(6) Automatic Bottle Clamping Conveyor

(7) Aluminum Foil Induction Sealing Machine

(8) Automatic Bottle Labeling Machine

(9) Finished Bottle Collecting Table

(10) Other Accessory Machine
