Henwi HWFM-T-2 Two Nozzles Tracking Model Automatic Liquid Bottling Filling Packing Machine 2 Heads Bottle Moving Filler

1. Working Principle

(1) Automatic feeding and positioning
The working process of the tracking filling machine starts with feeding. Bottles or containers are fed into the filling area through a conveyor belt. Before reaching the filling head, the container is automatically corrected by the positioning system to ensure that each container is accurately in place to ensure the accuracy of filling.

(2) Tracking system

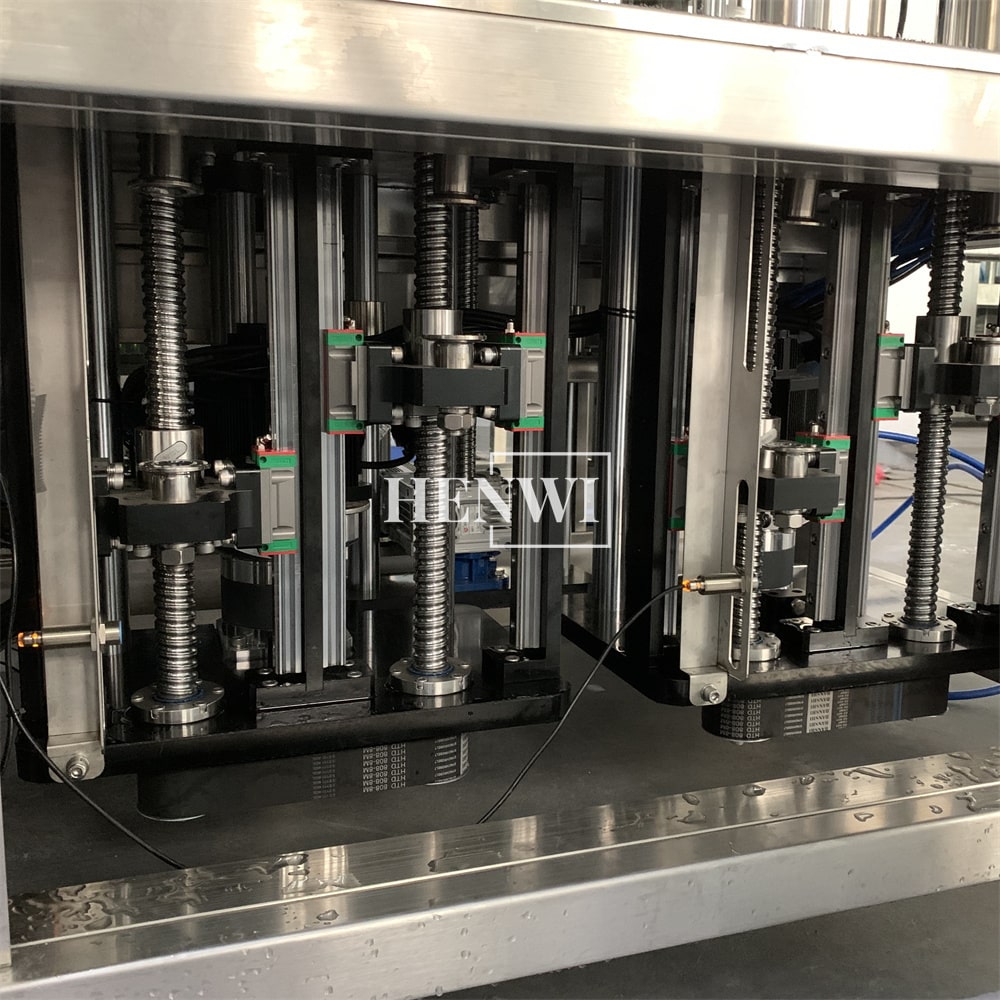

The biggest feature of the tracking filling machine is "tracking". Traditional filling machines usually require the container to stop during filling, while the tracking filling machine allows the container to be filled while moving. The equipment is equipped with a synchronous tracking system that can detect the speed of the container on the conveyor belt and control the synchronous movement of the filling head.

2. Application

Please inquire us if you're not sure whether this machine can process your product or not.

This machine series is suitable for filling bottling packing liquid cosmetics & food & pharmaceutical & chemical products into bottle or jar or other containers, like body cream, skincare lotion, conditioner, concealer, nail polish, lubricant, engine oil, ointment, balm oil, jam, food paste, pie, mayonnaise, ketchup, salad sauce, sauce dressing, butter, wax, petroleum jelly, scented candle, shampoo, liquid soap, liquid laundry detergent, shower gel, dishwasher paste, dish soap, mouthwash water, car wash water, glass cleaner, hair serum, vape liquid, hand sanitizer, water base paint, liquid fertilizer, liquid pesticide, liquid insecticide, etc.

3. Specification

1	Qty of filling head	2 head (2-3-4-Customized)
2	Filling range	100-2000ML; (Gear pump) 500-5000ML; (Piston pump)
3	Filling speed	About 20~40 bottles/min
4	Filling accuracy	±1%.
5	Material	304 /316 stainless steel
6	Program controller	Touch panel screen & PLC control
7	Air pressure	0.6 -0.8mpa
8	Power	4kw (Piston pump) 6.5kw (Gear pump)
9	Material feeding method	Direct suction
10	Protective device	Outage alarm on shortage of liquid in the reservoirtank.
11	Pump type	Piston pump/Gear pump
12	Frequency inverter	Delta/Coreken
13	Electrical components	Delixi/CHNT/Schneider
14	PLC	Mitsubishi
15	Touch screen	Siemens
16	Servo system	INOVANCE
17	Sensor	SICK/KEYENCE
18	Motors	ZD/Beide
19	Pneumatic components	AirTAC
20	Machine size	4000x1500x2100 (mm)
21	Weight	650 (KG)
22	Power supply	380V/50Hz

4. Production Line

(1) Bottle Unscrambler

(2) SUS Storage Tank

(3) Automatic Bottling Filling Machine

(4) Automatic Bottle Capping Machine

(5) Automatic Cap Feeding Machine

(6) Automatic Bottle Clamping Conveyor

(7) Aluminum Foil Induction Sealing Machine

(8) Automatic Bottle Labeling Machine

(9) Finished Bottle Collecting Table

(10) Other Accessory Machine
