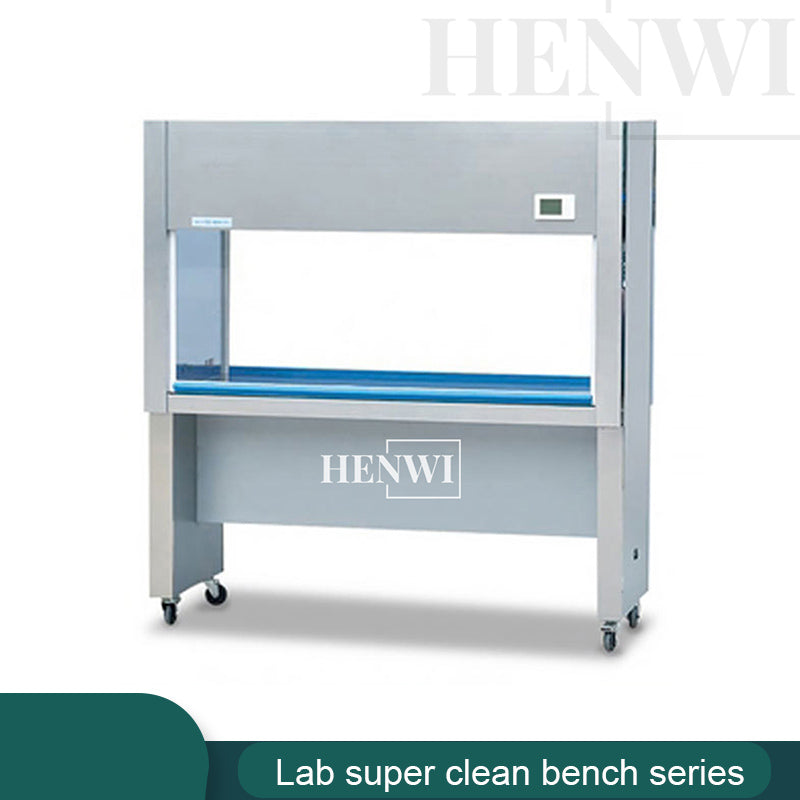

This is a kind of clean bench widely used in medical treatment, chemical experiments, electron, precise machinery, instrument, apparatus, medical preparation, operating room, foodstuff, drinks, daily-use cosmetic, stock raising, and aviation, as well as providing a germfree dustless clean environment.
1. Adopting arbitrary positioning sliding door system
2. The shell is welded by cold-rolled plates, the surface is electrostatically sprayed, and the work surface is SUS304 brushed stainless steel, which is corrosion-resistant and easy to clean. 3. The lighting and sterilization systems are interlocked safely, and there is the timing of the function of ultraviolet light 4. Digital display LCD control interface, more user-friendly design 5. The vertical quasi-closed table top and the formation of a downward flow air curtain in the operation room can effectively prevent the input of external air and the operation area is clean 6. Equipped with HEPA high-efficiency air filter, with primary filter for preliminary filtration, which can effectively extend the service life of the high-efficiency filter 7. 1-4 person model customized, 1 or 1 sides model customized.
2. Specification
Venting Mode
Vertical Venting
Vertical Venting
Vertical Venting
Vertical Venting
Model
SW-CJ-1D
SW-CJ-2D
SW-CJ-1FD
SW-CJ-2FD
Maximum Power
300W
600W
400W
800W
Weight
85Kg
150Kg
100Kg
160Kg
Working Area Dimensions
700x490x
515mm
1140x485x
515mm
870x580x
515mm
1360x580x
515mm
External Dimensions
855x550x
1600mm
1300x550x
1600mm
1030x650x
1600mm
1515x645x
1625mm
Applicable Number of People
1 Person/1 Side
2 Person/1 Side
1 Person/1 Side
2 Person/1 Side
HEPA Filter
695x460x38 (1 pcs)
135x460x38 (1 pcs)
865x555x38 (1 pcs)
355x555x38 (1 pcs)
Specifications and Quantity of Fluorescent Lamp/UV Lamp
15Wx(1 pcs)
/15Wx(1 pcs)
30Wx(1 pcs)
/30Wx(1 pcs)
20Wx(1 pcs)
/20Wx(1 pcs)
30Wx(1 pcs)
/30Wx(1 pcs)
Cleanliness Level
100 Grage@≥0.5μM(USA-209E)
Bacteria Count
≤0.5 pcs /vessel·hour(Φ90mm Culturing Plate)
Average Wind Speed
0.25~0.45m/s(Fast and slow two speeds)
Noise
≤62dB(A)
Vibration Half Peak Value
≤0.5μM(x,y,z Direction)
Illumination
≥300Lx
Power supply
AC220V/50Hz
Venting Mode
Vertical Venting
Horizontal Venting
Model
SW-CJ-1F
SW-CJ-2F
SW-CJ-1G
SW-CJ-2G
Maximum Power
400W
800W
300W
600W
Weight
100Kg
160Kg
85Kg
150Kg
Working Area Dimensions
870x580x
515mm
1360x580x
515mm
700x400x
515mm
1140x400x
515mm
External Dimensions
1030x670x
1600mm
1520x670x
1625mm
855x550x
1600mm
1300x550x
1600mm
Applicable Number of People
1 Person/2 Side
2 Person/2 Side
1 Person/1 Side
2 Person/1 Side
HEPA Filter
865x555x38 (1 pcs)
1355x555x38 (1 pcs)
695x600x38 (1 pcs)
1135x600x38 (1 pcs)
Specifications and Quantity of Fluorescent Lamp/UV Lamp
