Henwi HWLD-Lab Vacuum Pump Vp145 110V 1/2 HP 5 Cfm Single Stage Rotary Vane HVAC High Performance Vacuum Pump for Air Conditioning

Henwi HWLD-Lab Vacuum Pump Vp145 110V 1/2 HP 5 Cfm Single Stage Rotary Vane HVAC High Performance Vacuum Pump for Air Conditioning

Regular price $70.00 USD
Regular price Sale price $70.00 USD
Sale Sold out
Shipping calculated at checkout.

1. Introduction

The vacuum pump is mainly applied in many fields, such as refrigeration maintain, printing machine, medical equipment, vacuum packing, gas analyze and thermoplastic molding ect.
Exact indication of internal system pressure on the vacuum gauge. The vacuum gauge can equip on all models of vacuum pump.

1. High efficiency filter,smoke less.
2. Copper wire motor,long service life.

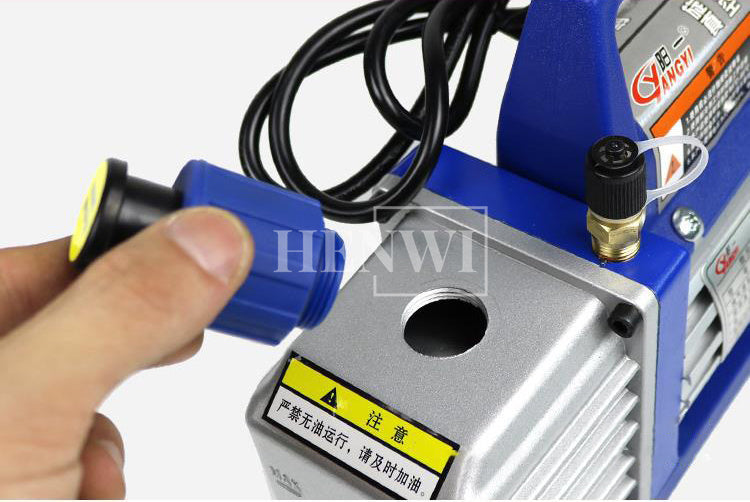

3. Big sight glass for monitoring oil level,prevent oil lack.
4. The overall design of pump and motor is more portable.
5. Low maintenance cost
6. Integrated body structure with high precision
7. Forced lubrication for pump to ensure the high reliabililty
8. Oil window design to avoid run out of oil

2. Specification

1 Single Stage HW-1.0A HW-1.5A HW-2.0A HW-2.5A
2 Flow Rate 220V 50Hz 1.5CFM 2.5CFM 3.5CFM 4.5CFM
3 42L/min 70L/min 100L/min 128L/min
4 110V 60Hz 1.8CFM 3CFM 4CFM 5CFM
5 50L/min 84L/min 114L/min 142L/min
6 Ultimate Vacuum 5Pa 5Pa 5Pa 5Pa
7 150 microns 150 microns 150 microns 150 microns
8 Power 1/4HP 1/4HP 1/3HP 1/3HP
9 Inlet Port 1/4"Flare 1/4"Flare 1/4"Flare 1/4"Flare
10 Oil Capacity 320ml 300ml 350ml 350ml
11 Dimensions(mm) 270x119x216 270x119x216 278x119x216 278x119x216
12 Weight 5.3kg 5.5kg 6.5kg 6.8kg



1 Single Stage HW-3.0A HW-4.0A HW-5.0A
2 Flow Rate 220V 50Hz 6CFM 8CFM 10CFM
3 170L/min 226L/min 283L/min
4 110V 60Hz 7CFM 9CFM 12CFM
5 198L/min 254L/min 340L/min
6 Ultimate Vacuum 5Pa 5Pa 5Pa
7 150 microns 150 microns 150 microns
8 Power 1/2HP 3/4HP 1HP
9 Inlet Port 1/4"&3/8" 1/4"&3/8" 1/4"&3/8"
10 Oil Capacity 450ml 700ml 800ml
11 Dimensions(mm) 320x134x232 370x140x250 390x140x250
12 Weight 10kg 14kg 14.5kg
