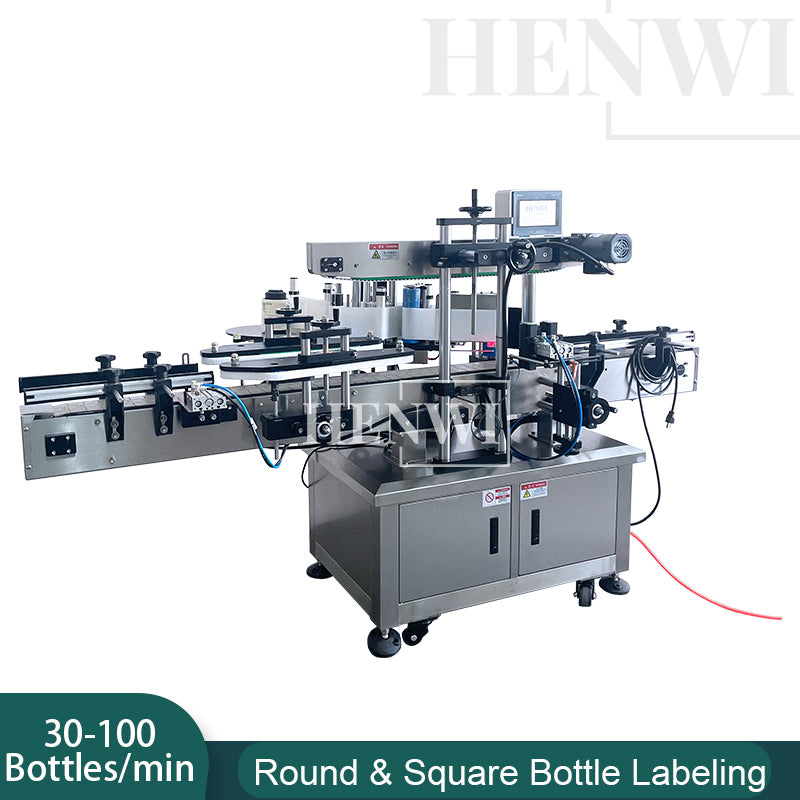

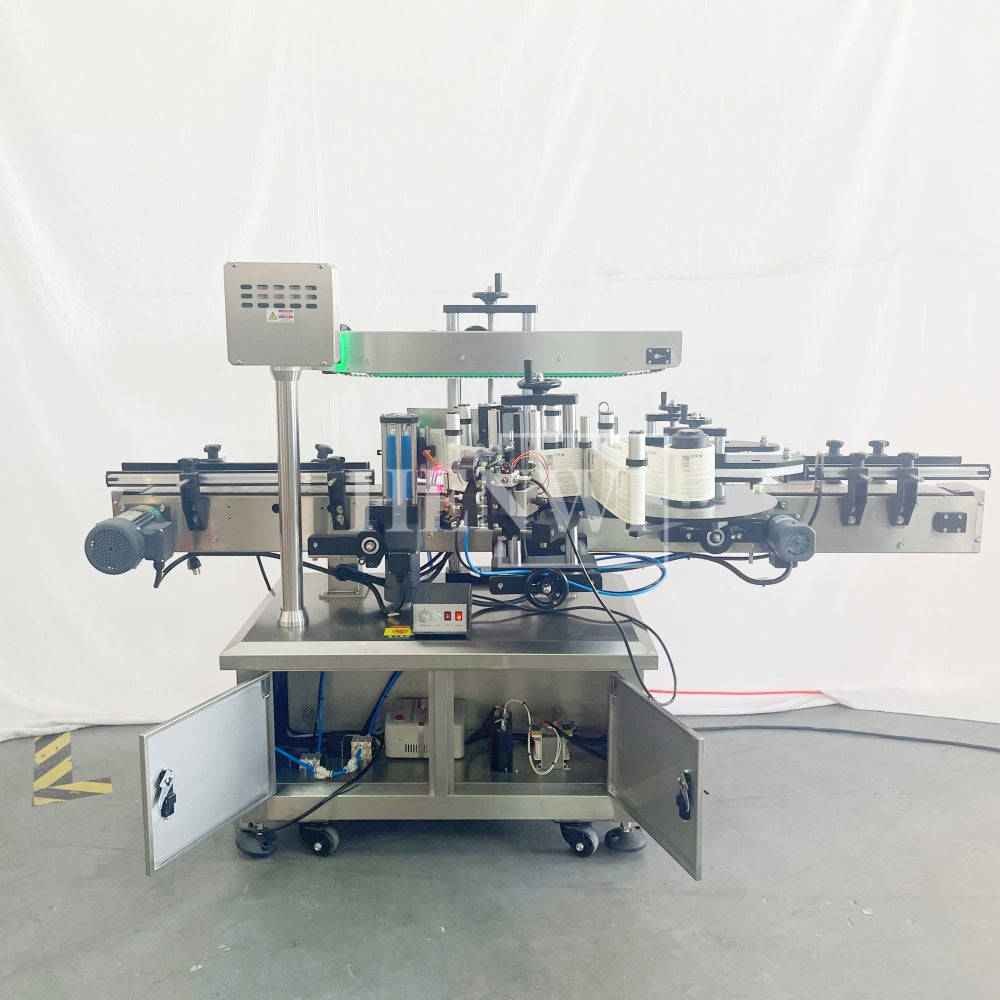

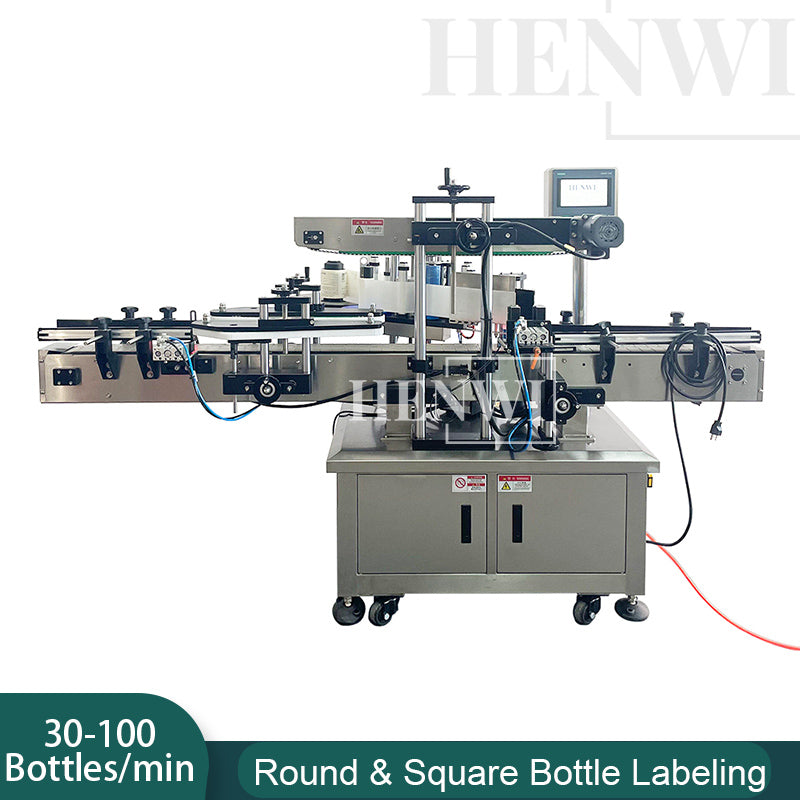

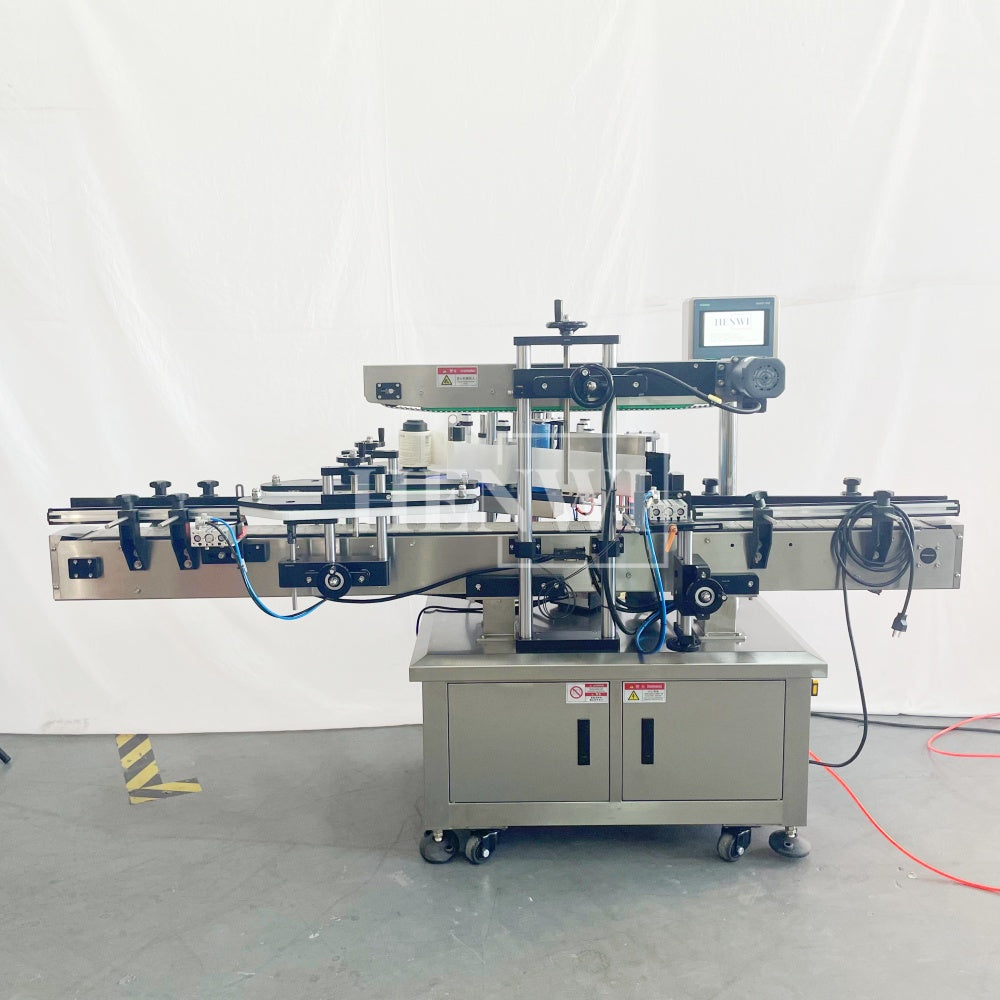

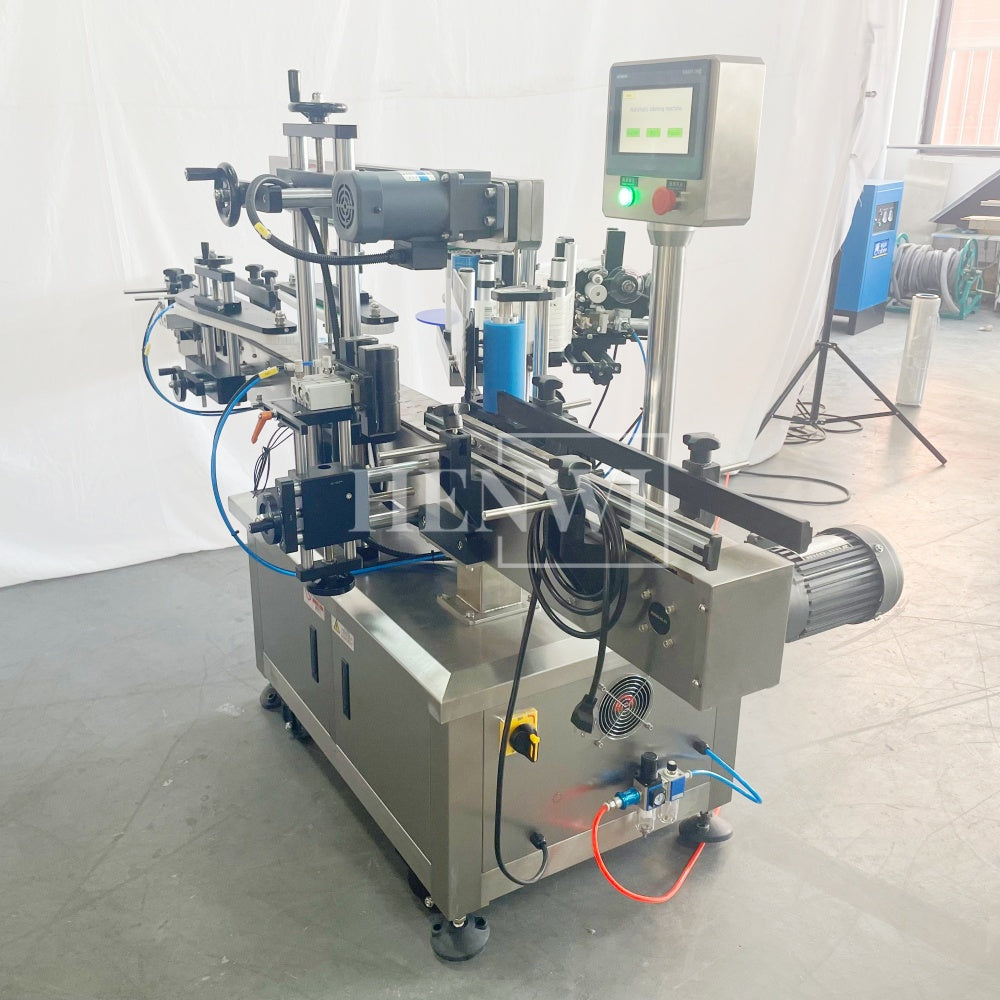

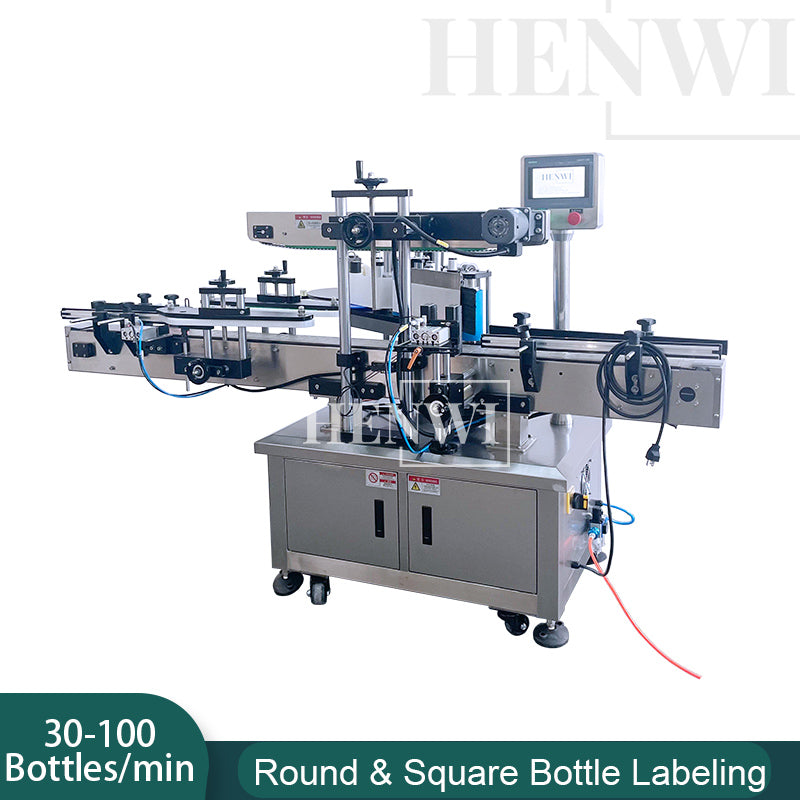

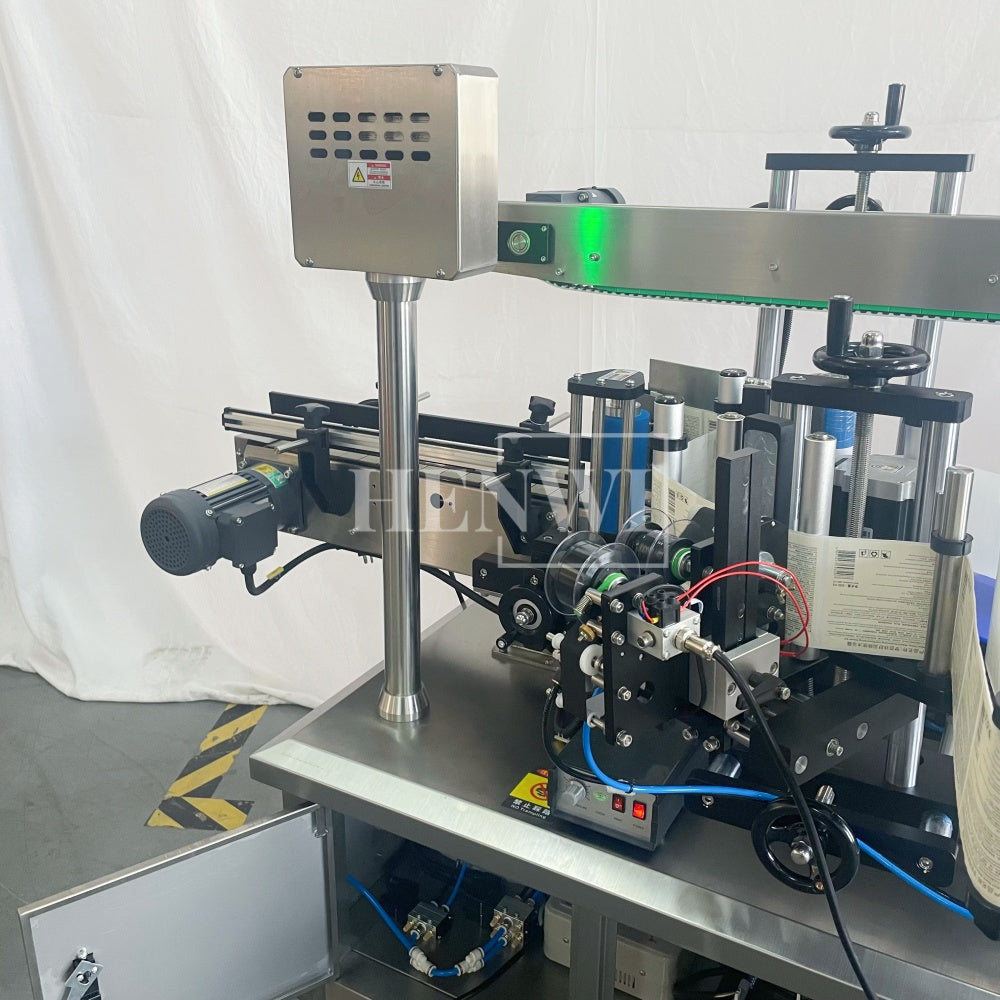

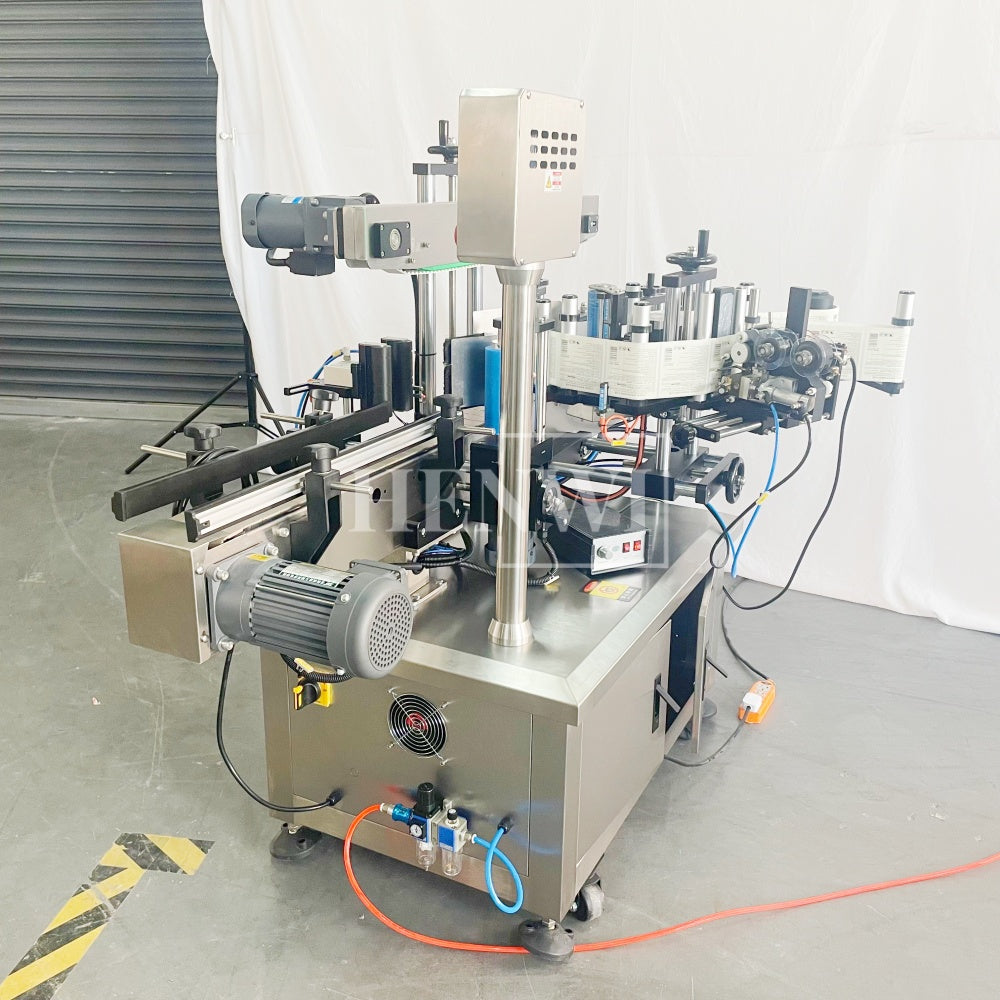

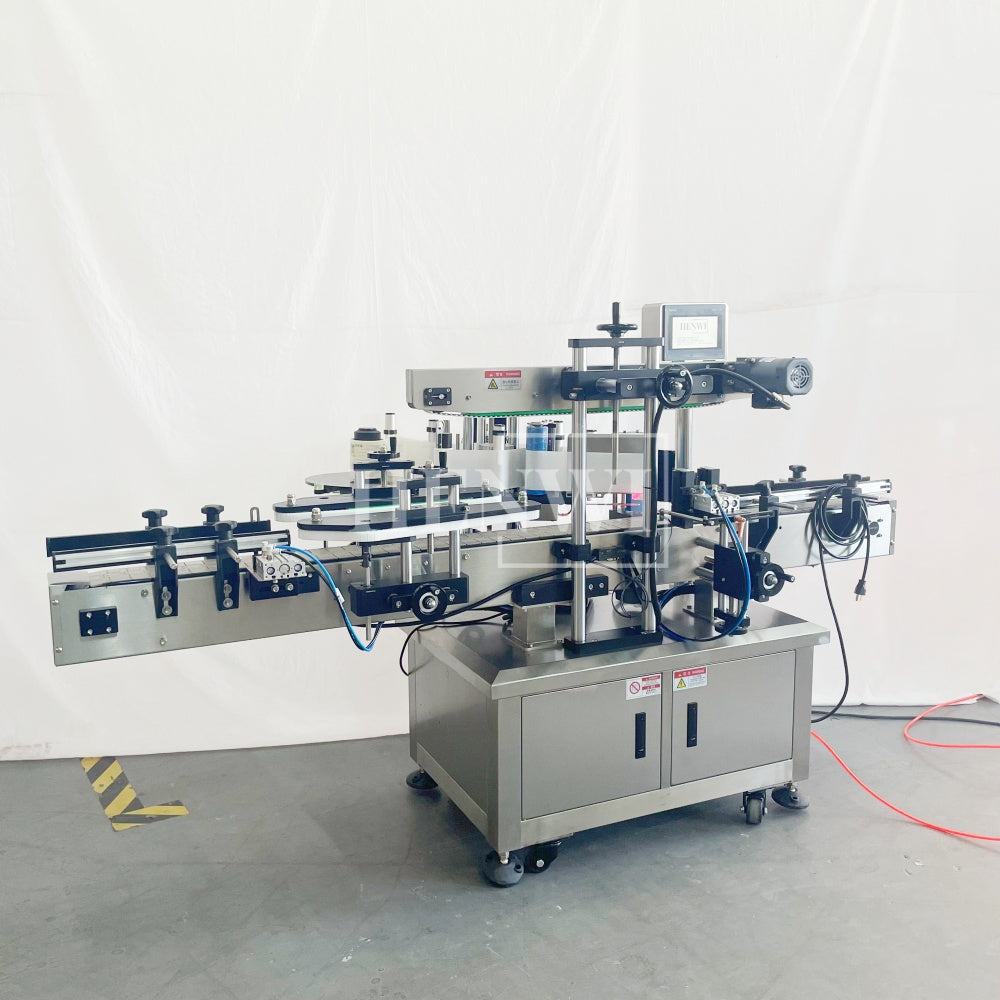

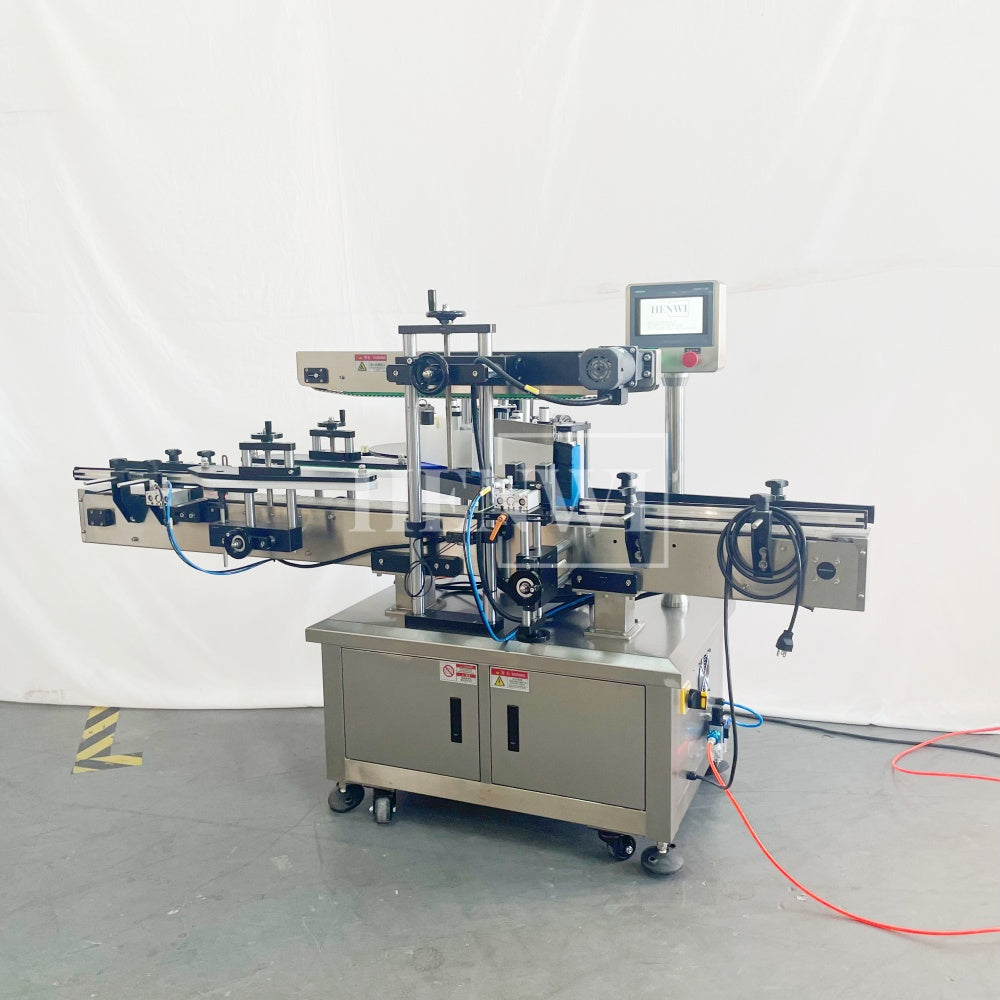

Henwi HWLM-RS 1 Side Automatic Round Bottle & Square Bottle One Side Labeller Machine Self-Adhesive Sticker Labeling Machine

1. Introduction

This machine series is suitable for labeling/sticking the self-adhesive sticker on the bottle or jar or can or other containers,

And it can work with filling machine and capping machine as a production line to pack  powder/liquid cosmetics & food & pharmaceutical & chemical products.

Applicable containers material: plastic, glass, aluminum, PET, PP, PE, tin, iron, etc.

Applicable containers shape: round, square, flat, irregular, etc.

Applicable labels type: Labels type: self-adhesive sticker, hot-melt glue sticker, sleeve film, etc.

2. Specification

1	Machine name	Automatic 1 sides square &  round bottle labeling machine
2	Applicable round bottle size	Diameter: 30-120mm (or customized)
3	Applicable square bottle size	Width: 30-80mm  Length: 30-250mm (or customized)
4	Applicable labels size	Hight: 15-130mm (or customized)
5	Labeling speed	1500-6000 bottles/hour
6	Material	304 stainless steel

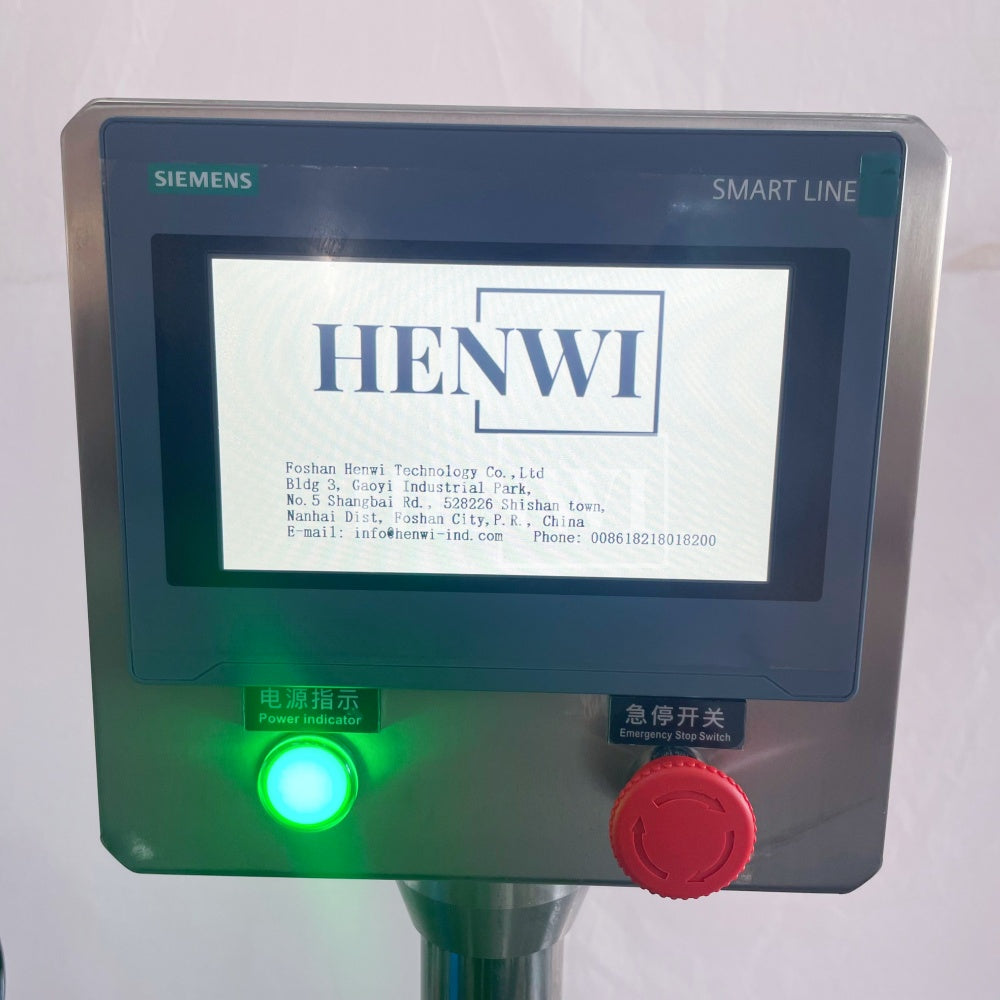

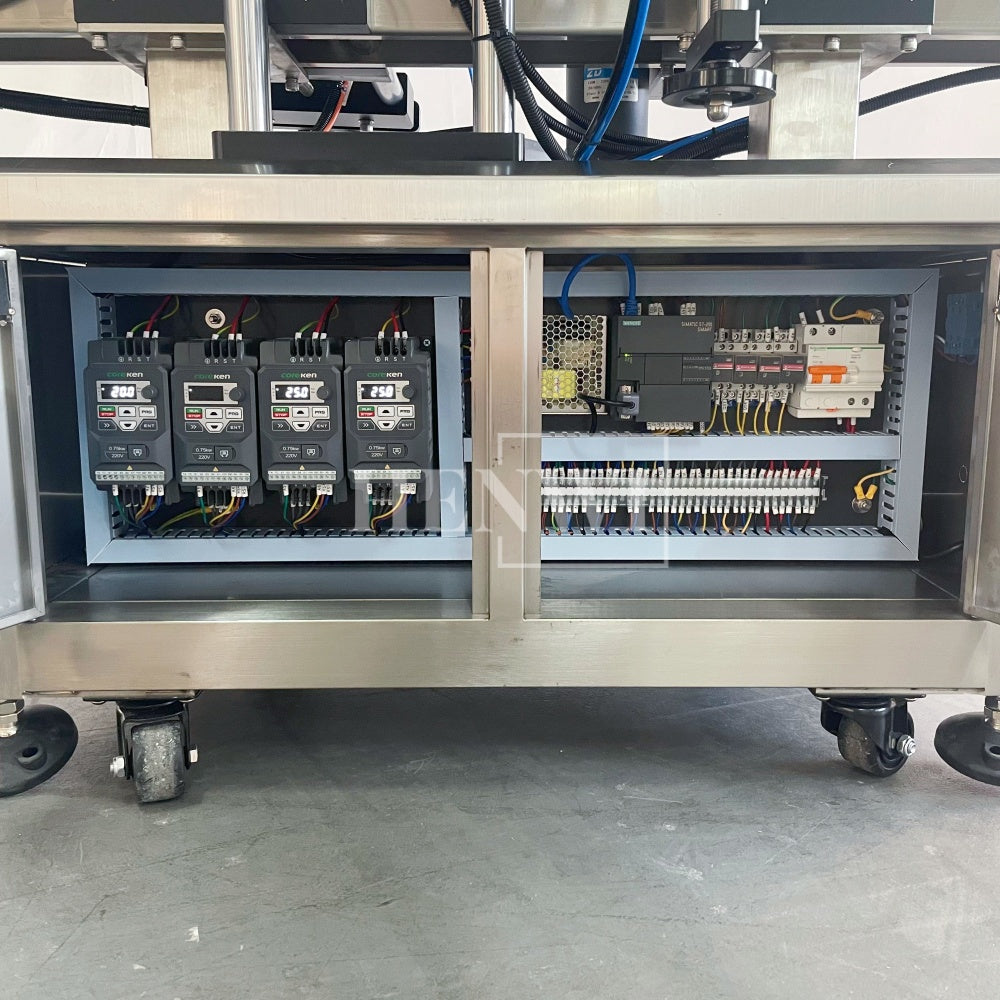

7	Program controller	Touch panel screen & PLC control
8	Air pressure	0.5 -0.7mpa
9	Power	3kw

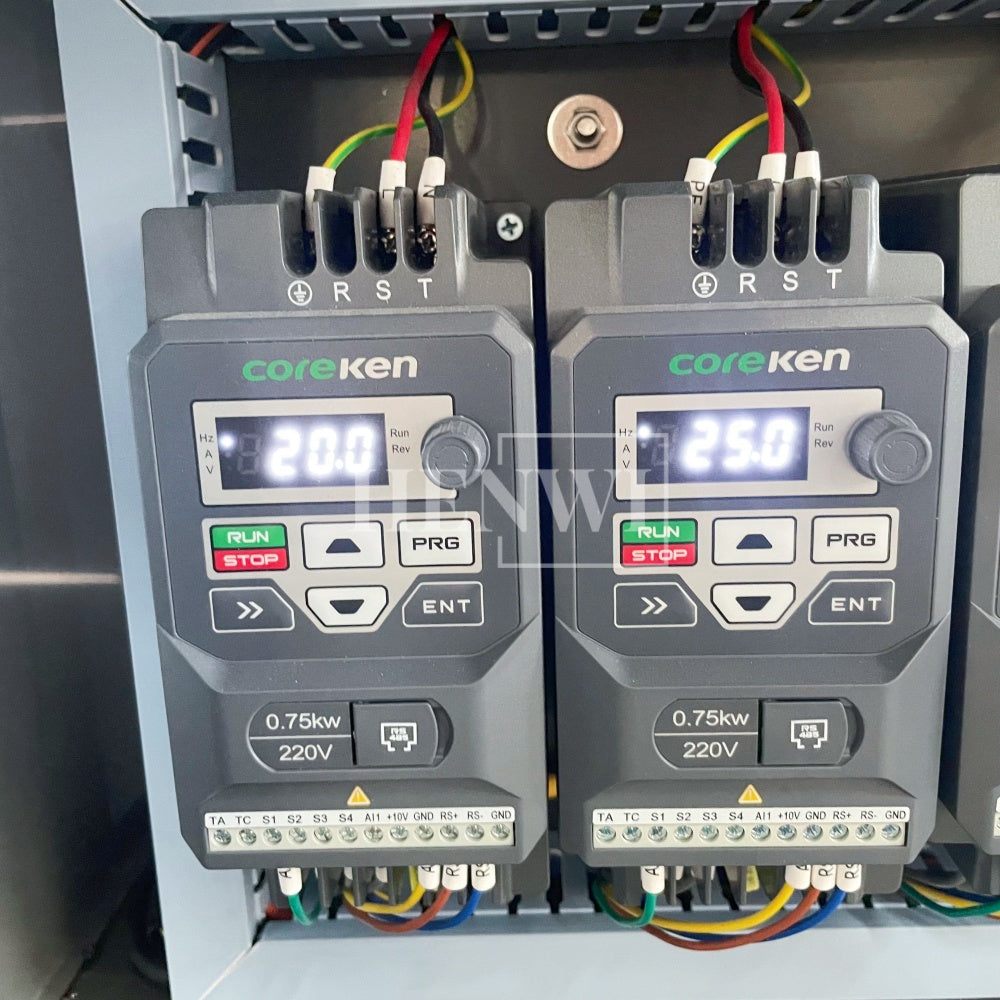

10	Frequency inverter	Delta/Coreken
11	Electrical components	Delixi/CHNT/Schneider

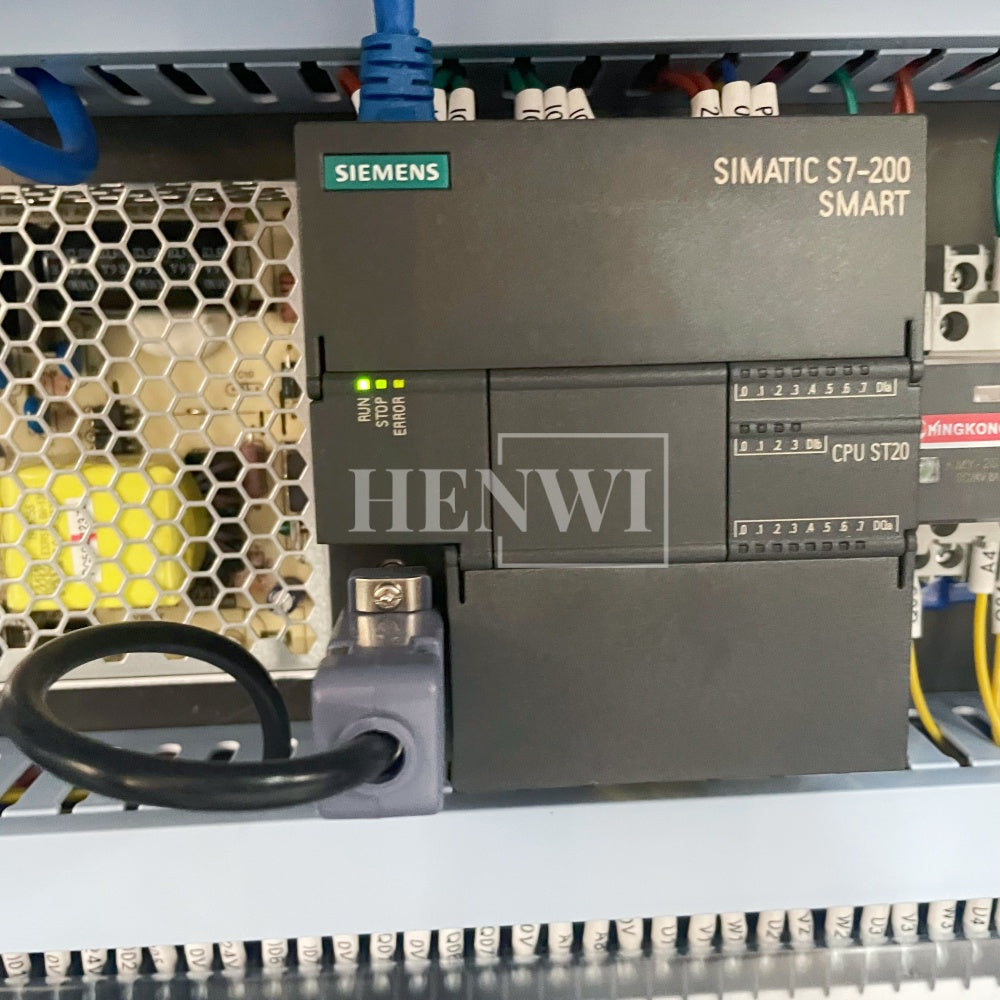

12	PLC	Siemens
13	Touch screen	Siemens
14	Servo parts	Inovance
15	Sensor	SICK/KEYENCE

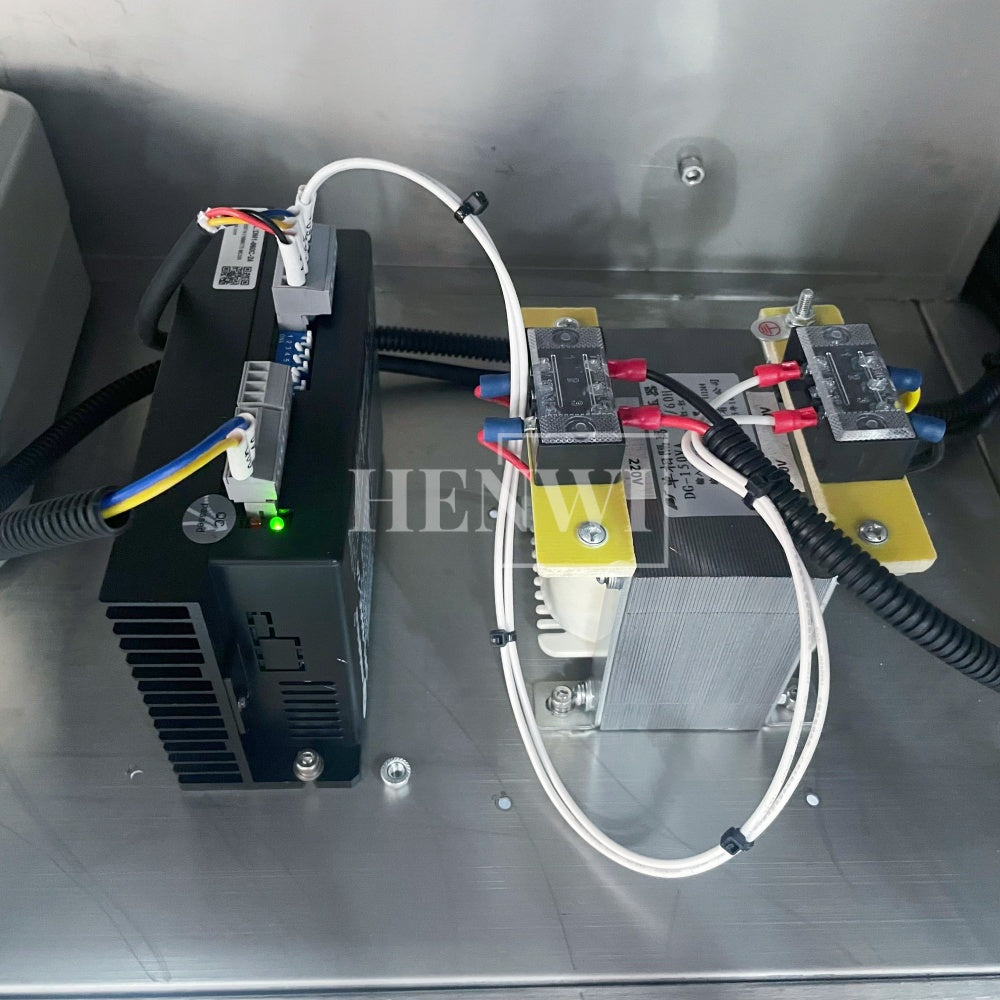

16	Servo motors	ZD
17	Stepper motors	ZD

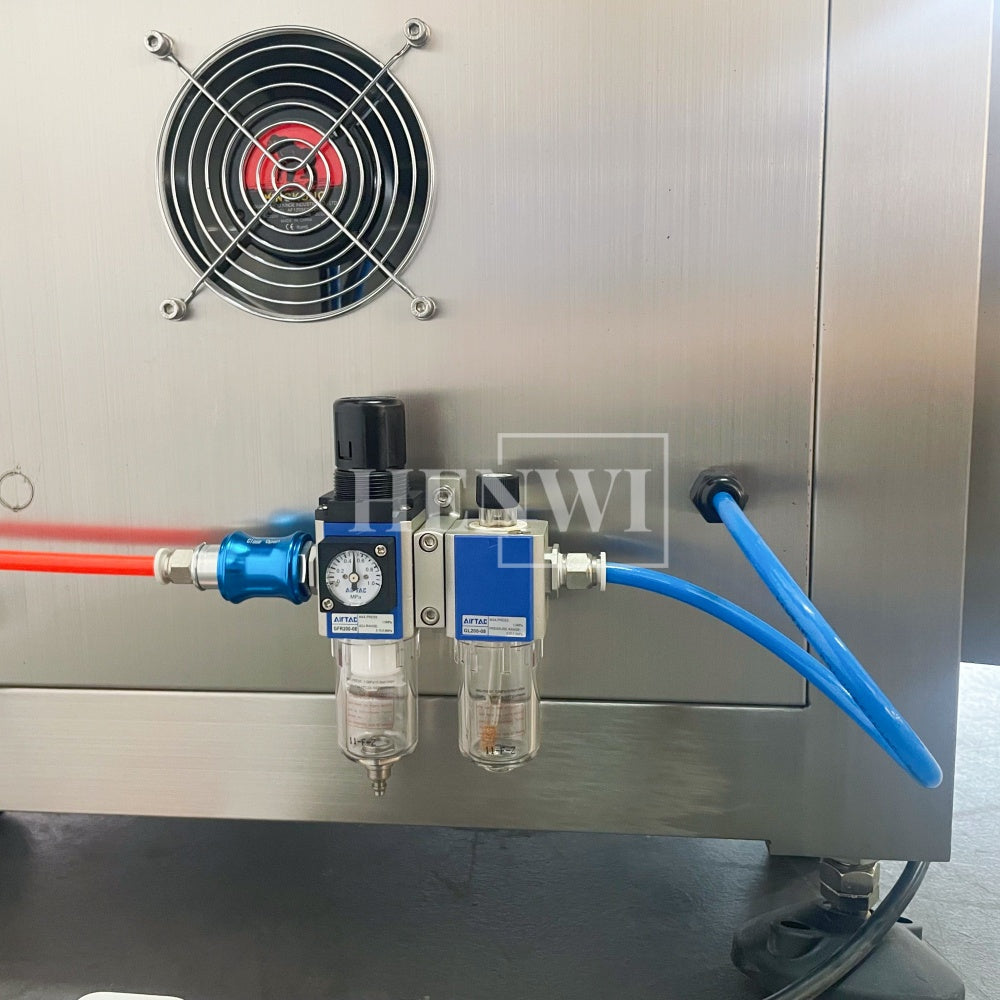

18	Pneumatic components	AirTAC
19	Machine size	2000x1000x1600 (mm)
20	Net weight	350 (KG)
21	Power supply	220V/50Hz
22	Wooden box packing size	2400x1100x1600 (mm)
23	Wooden box packing weight	400 (KG)

3. Production Line

(1) Bottle Unscrambler

(2) SUS Storage Tank

(3) Automatic Bottling Filling Machine

(4) Automatic Bottle Capping Machine

(5) Automatic Cap Feeding Machine

(6) Automatic Bottle Clamping Conveyor

(7) Aluminum Foil Induction Sealing Machine

(8) Automatic Bottle Labeling Machine

(9) Finished Bottle Collecting Table

(10) Other Accessory Machine
