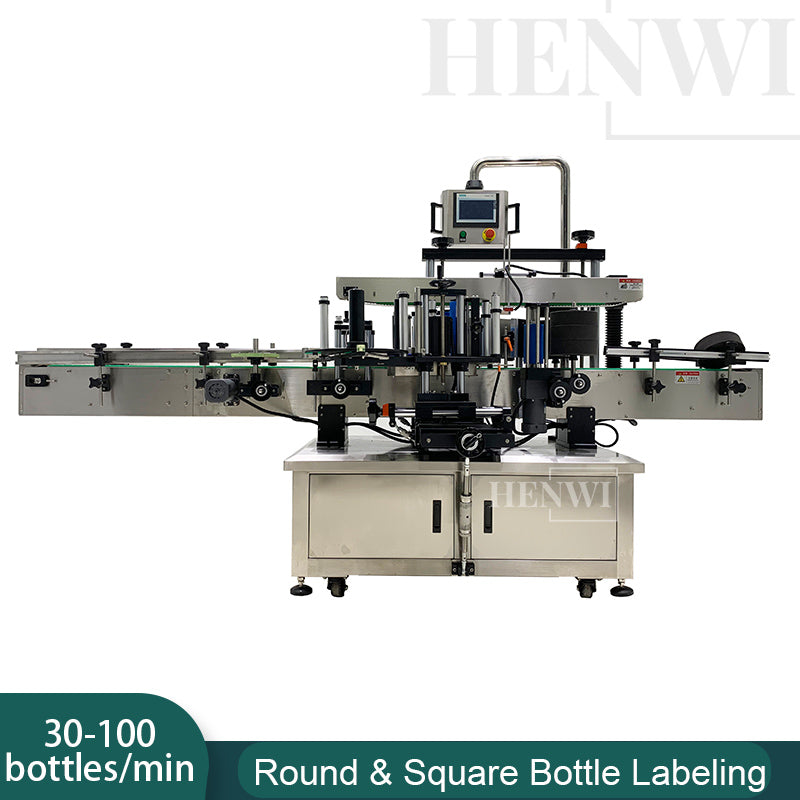

Henwi HWLM-RS Automatic Round Bottle & Square Bottle Double Side Labeller Machine Self-Adhesive Sticker Labeling Machine

1. Introduction

This machine series is suitable for labeling/sticking the self-adhesive sticker on the bottle or jar or can or other containers,

And it can work with filling machine and capping machine as a production line to pack  powder/liquid cosmetics & food & pharmaceutical & chemical products.

Applicable containers material: plastic, glass, aluminum, PET, PP, PE, tin, iron, etc.

Applicable containers shape: round, square, flat, irregular, etc.

Applicable labels type: Labels type: self-adhesive sticker, hot-melt glue sticker, sleeve film, etc.

2. Specification

1	Machine name	Automatic double sides square &  round bottle labeling machine
2	Applicable round bottle size	Diameter: 30-100mm
3	Applicable square bottle size	Width: 30-80mm
4	Applicable labels size	Hight: 15-130mm
5	Labeling speed	1500-6000 bottles/hour
6	Material	304 stainless steel

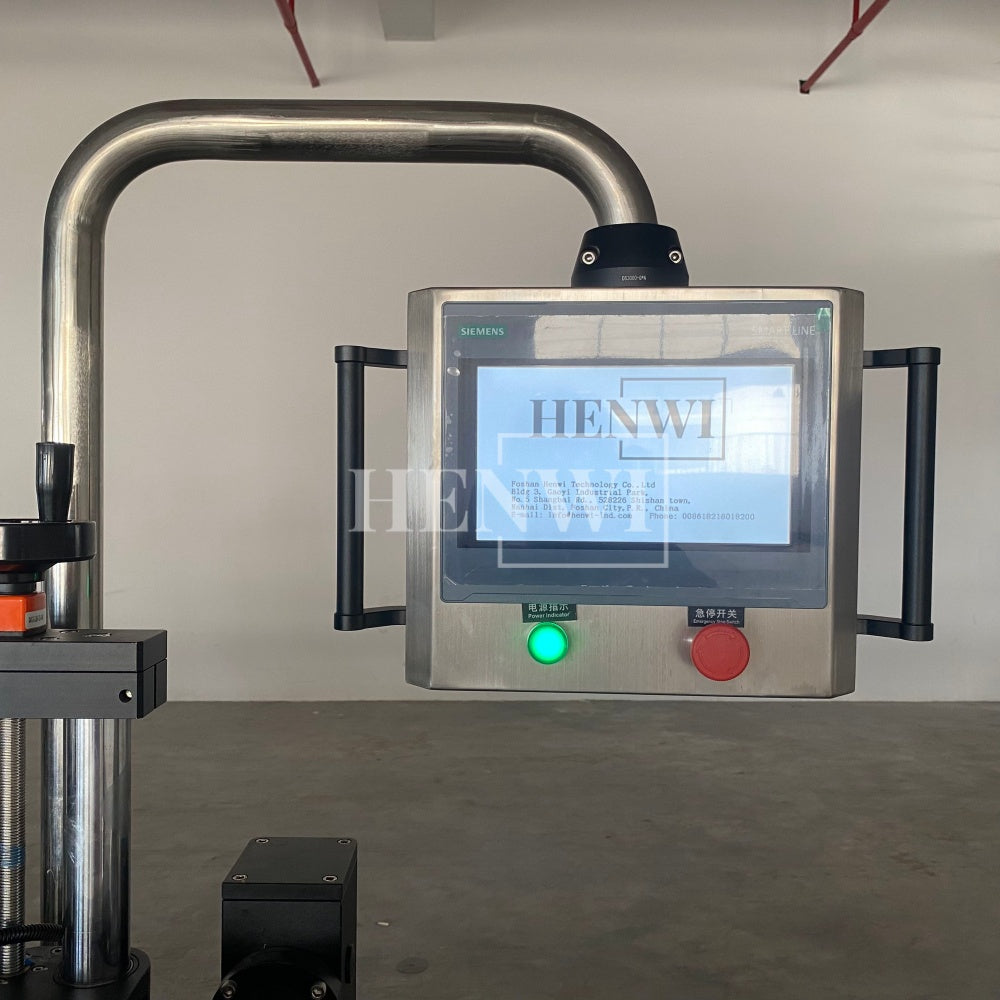

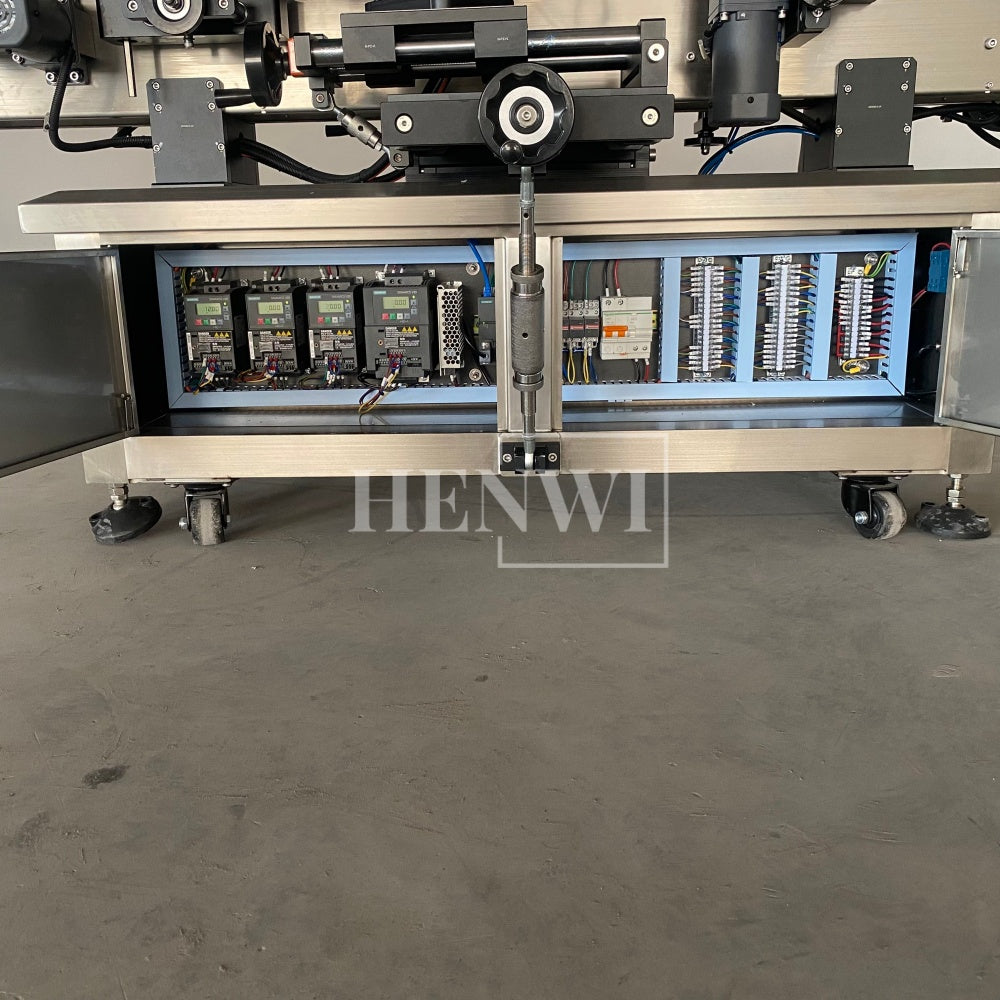

7	Program controller	Touch panel screen & PLC control

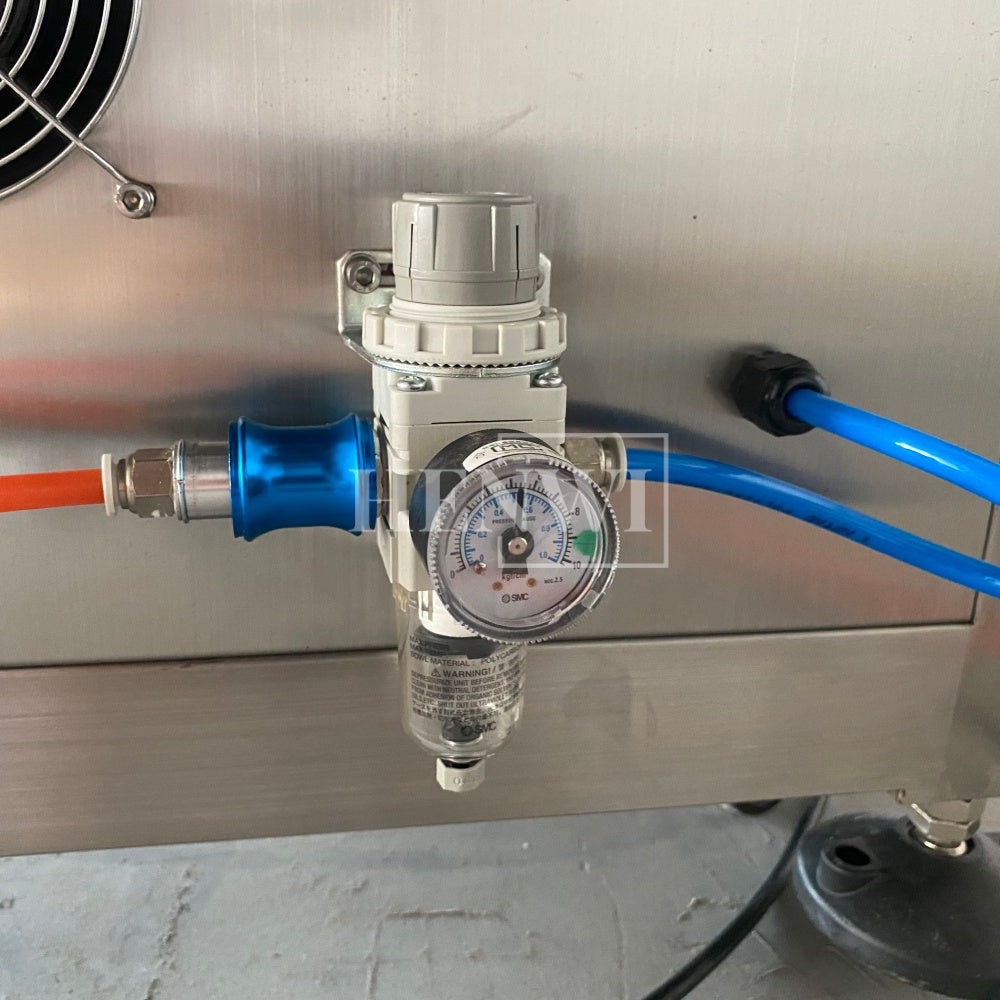

8	Air pressure	0.5 -0.7mpa
9	Power	3kw

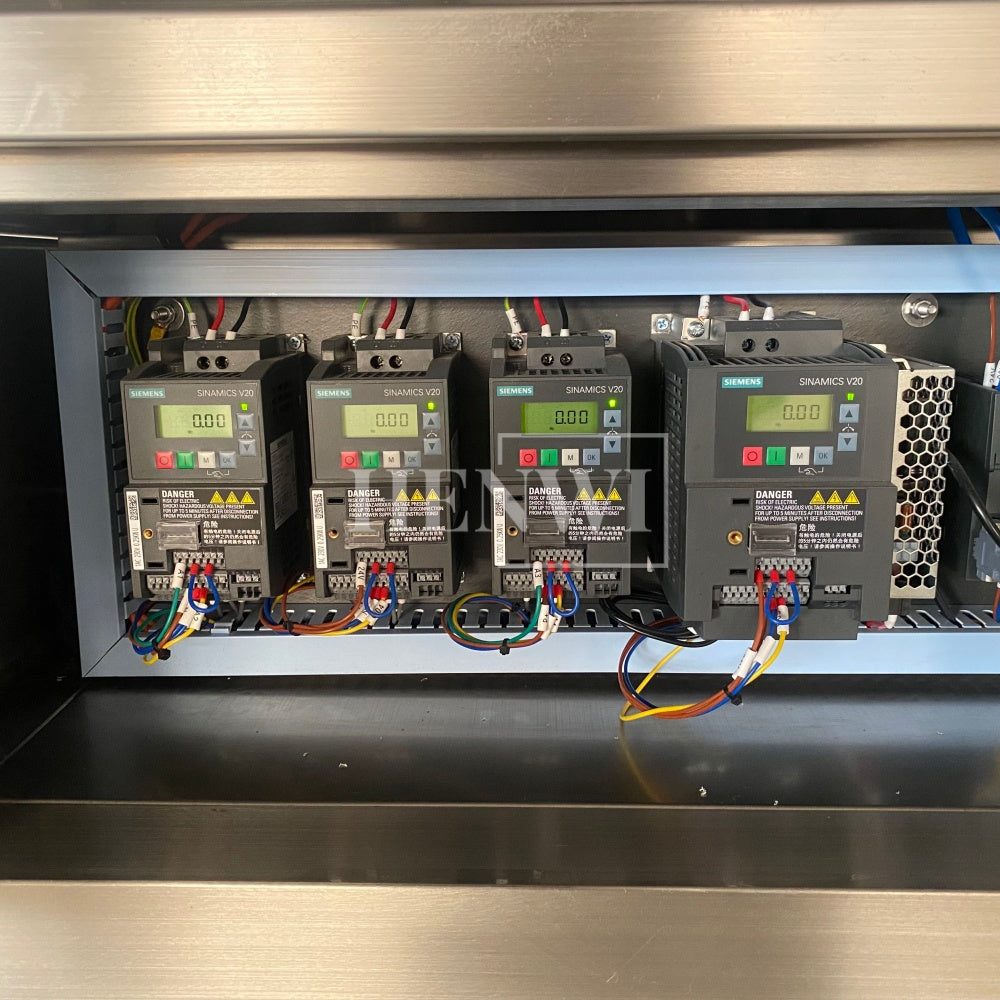

10	Frequency inverter	Delta/Coreken

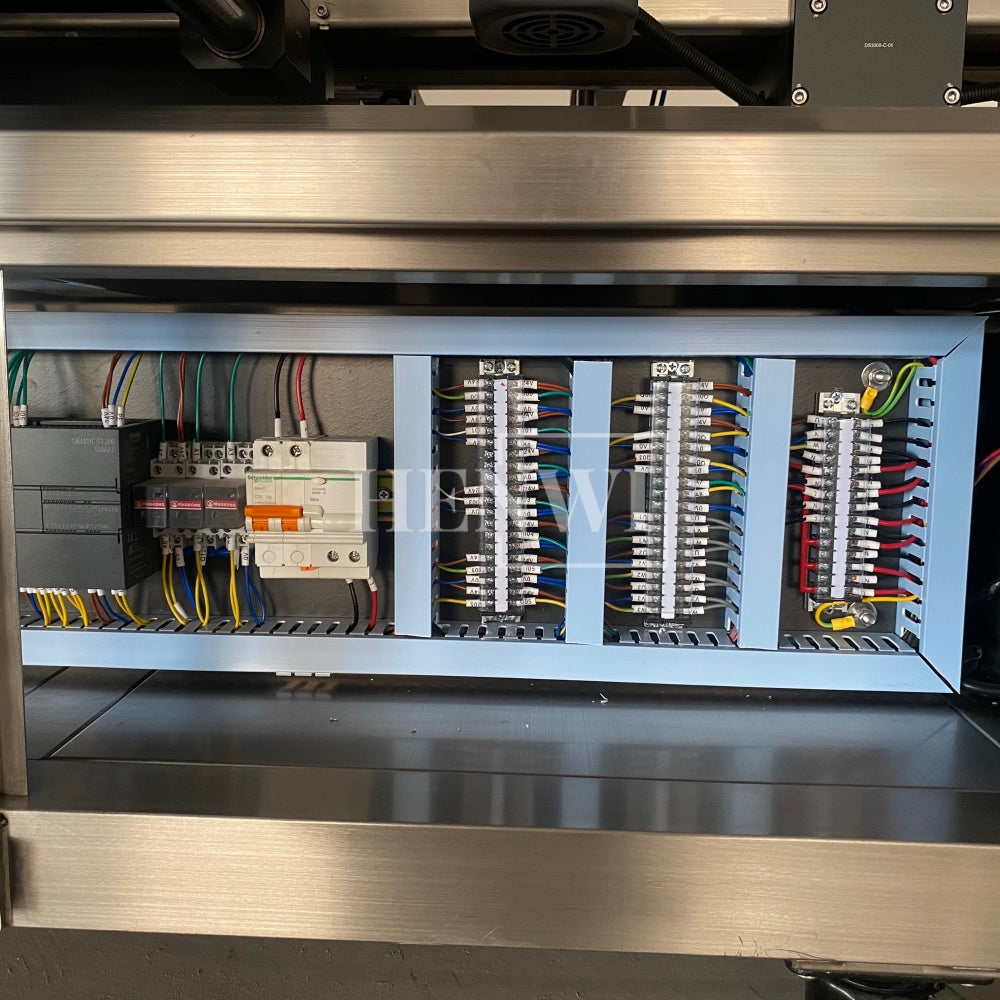

11	Electrical components	Delixi/CHNT/Schneider

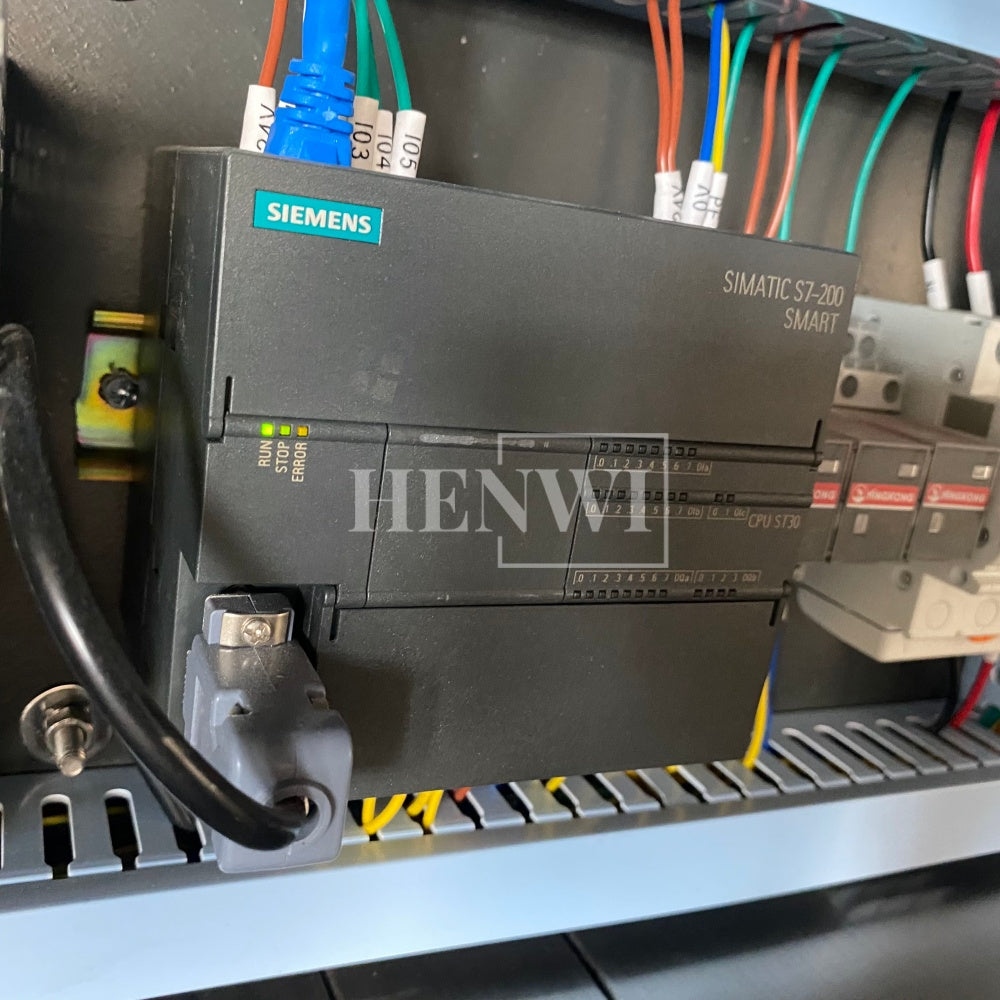

12	PLC	Siemens

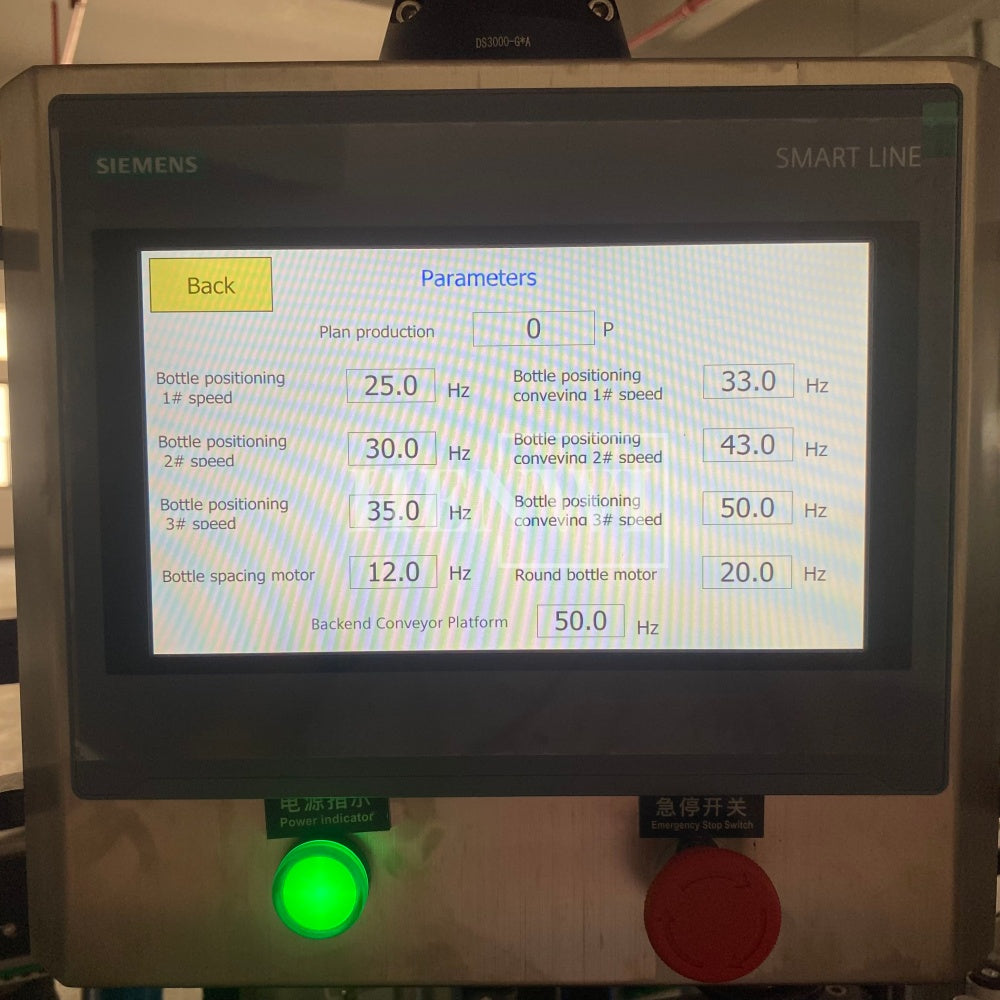

13	Touch screen	Siemens
14	Servo parts	Inovance

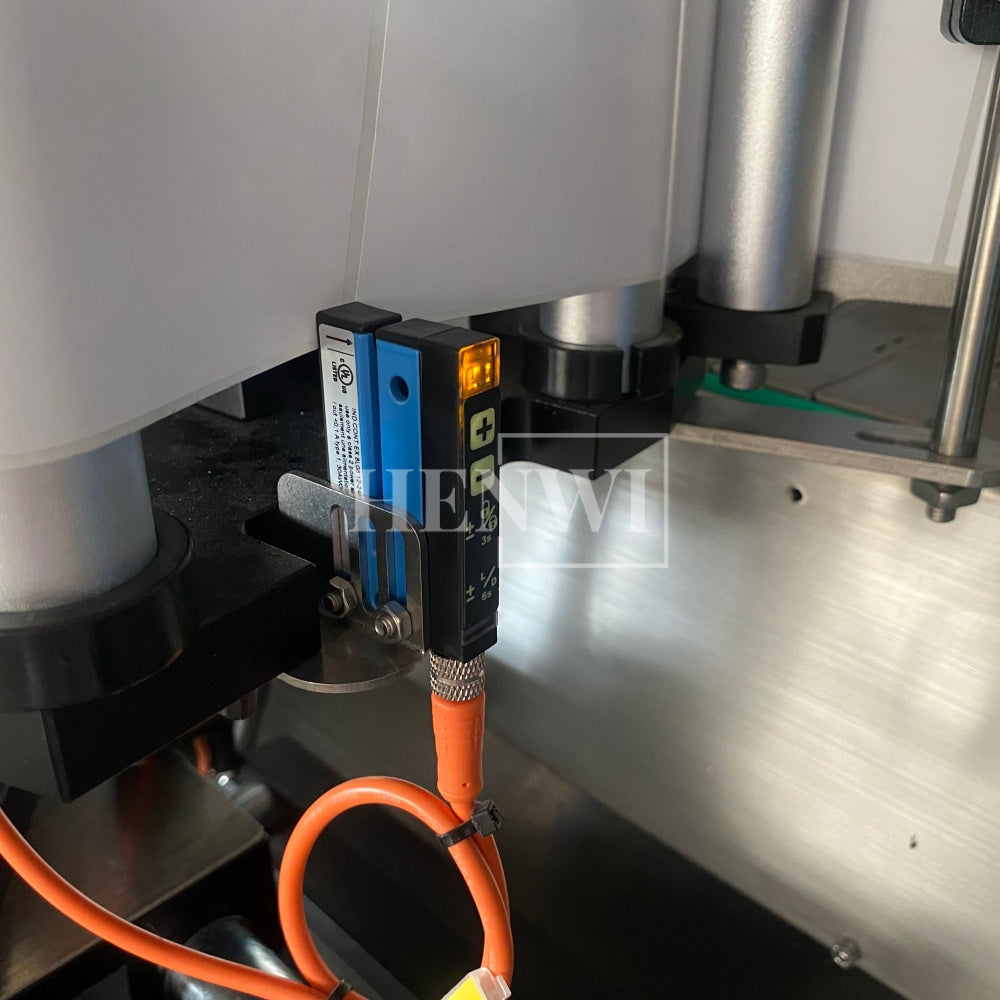

15	Sensor	SICK/KEYENCE
16	Servo motors	TECO

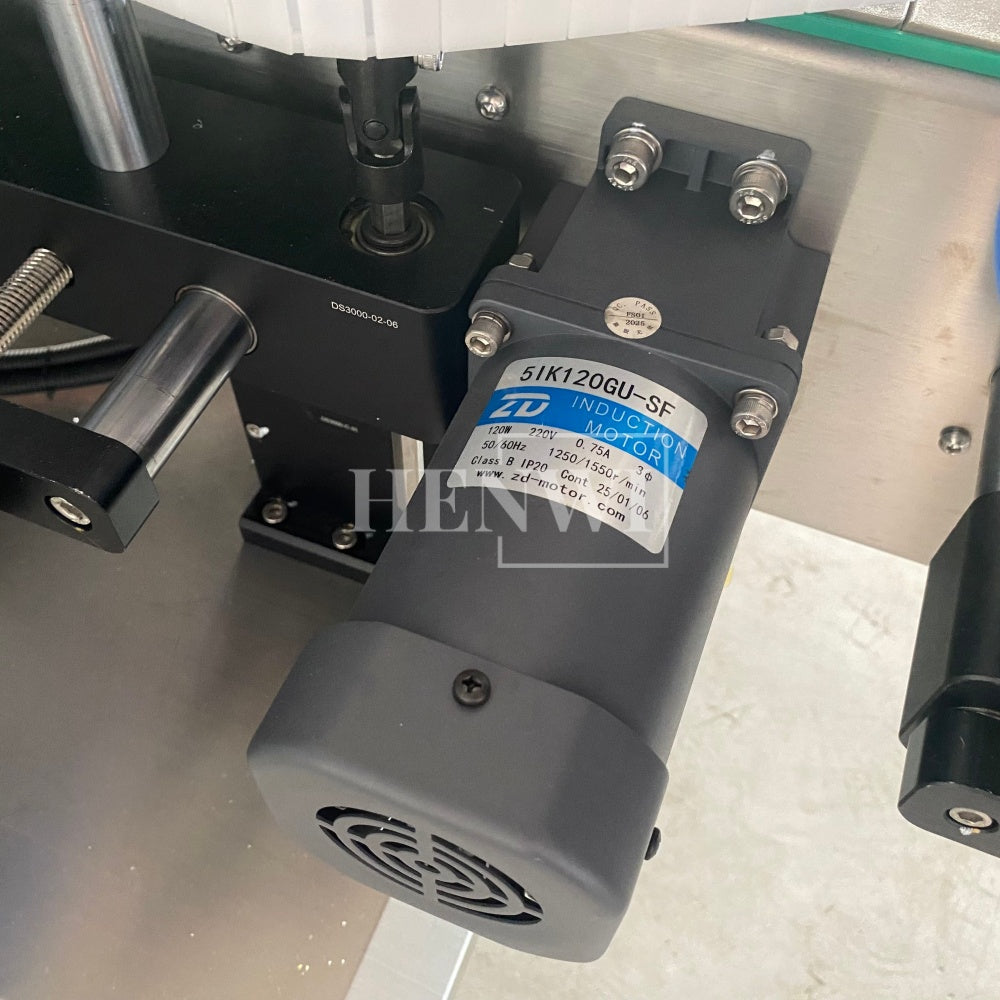

17	Stepper motors	ZD
18	Pneumatic components	AirTAC
19	Machine size	3000x1500x1800 (mm)
20	Net weight	480 (KG)
21	Power supply	220V/50Hz
22	Wooden box packing size	2400x1400x2000 (mm)
23	Wooden box packing weight	530 (KG)

3. Production Line

(1) Bottle Unscrambler

(2) SUS Storage Tank

(3) Automatic Bottling Filling Machine

(4) Automatic Bottle Capping Machine

(5) Automatic Cap Feeding Machine

(6) Automatic Bottle Clamping Conveyor

(7) Aluminum Foil Induction Sealing Machine

(8) Automatic Bottle Labeling Machine

(9) Finished Bottle Collecting Table

(10) Other Accessory Machine
