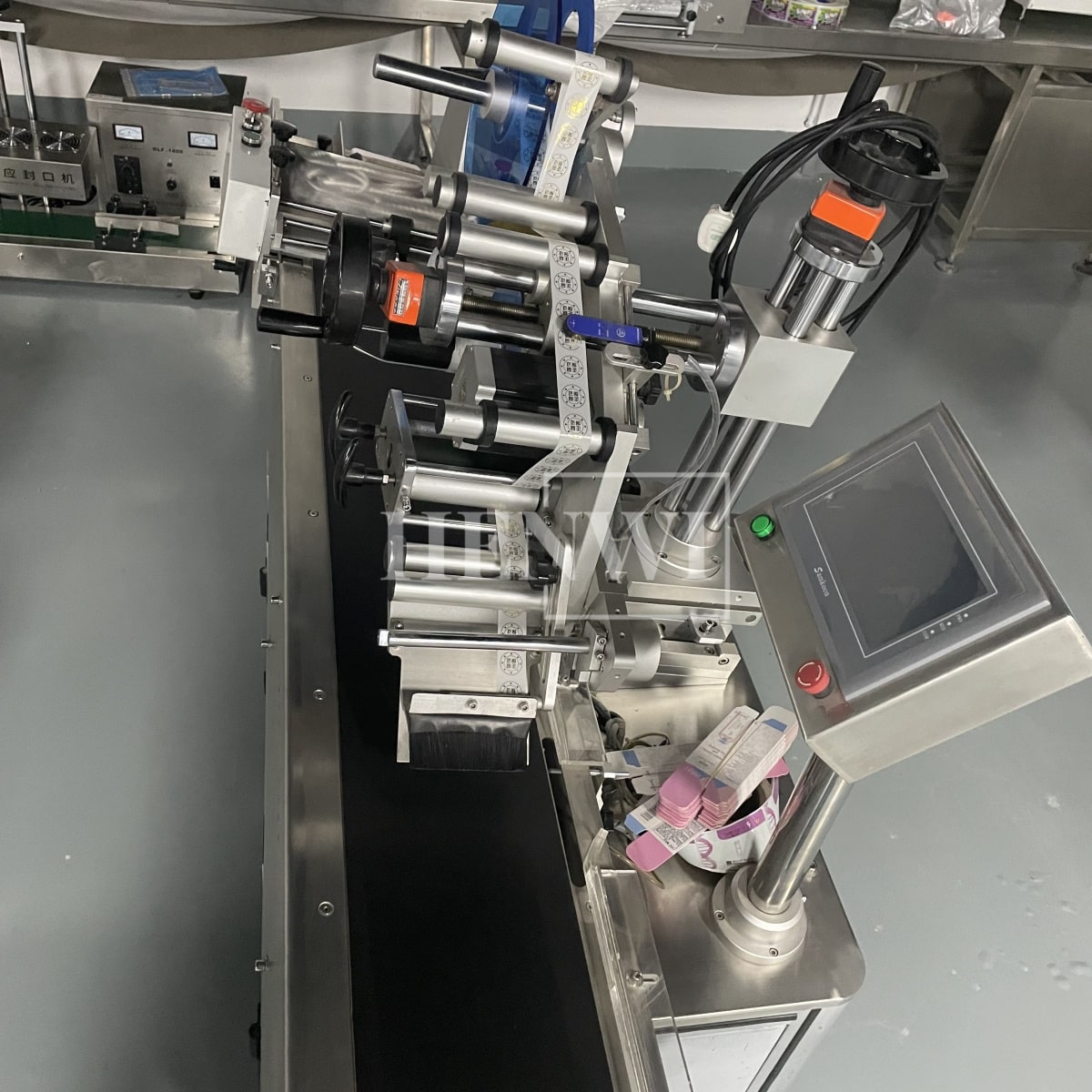

Henwi HWLM-TF Automatic Bottle Jar Top Flat / Box Case Flank Side Labeller Machine Self-Adhesive Sticker Labeling Machine

1. Introduction

This machine series is suitable for labeling/sticking the self-adhesive sticker on the bottle or jar or can or other containers,

And it can work with filling machine and capping machine as a production line to pack  powder/liquid cosmetics & food & pharmaceutical & chemical products.

Applicable containers material: plastic, glass, aluminum, PET, PP, PE, tin, iron, etc.

Applicable containers shape: round, square, flat, irregular, etc.

Applicable labels type: Labels type: self-adhesive sticker, hot-melt glue sticker, sleeve film, etc.

2. Specification

1	Machine name	Automatic bottle / box top flat side labeling machine
2	Applicable containers	round bottle, square bottle, box, case, etc.
3	Applicable round bottle size	Diameter: 30-100mm Height: 15-250mm
4	Applicable square bottle size	Width: 30-80mm Height: 15-250mm
5	Applicable box size	Width: ≤130mm Length: ≤130mm Height: 10-200mm or Customized
6	Applicable labels size	Hight: 10-130mm
7	Labeling speed	2400-9000 bottles/hour
8	Material	304 stainless steel
9	Program controller	Touch panel screen & PLC control
10	Air pressure	0.5 -0.7mpa
11	Power	1.2kw
12	Frequency inverter	Delta/Coreken
13	Electrical components	Delixi/CHNT/Schneider
14	PLC	Mitsubishi/MAGS
15	Touch screen	Siemens/Weinview/Samkoon
16	Sensor	SICK/KEYENCE
17	Servo motors	TECO
18	Pneumatic components	AirTAC
19	Machine size	2000x700x1400 (mm)
20	Weight	190 (KG)
21	Power supply	220V/50Hz

3. Production Line

(1) Bottle Unscrambler

(2) SUS Storage Tank

(3) Automatic Bottling Filling Machine

(4) Automatic Bottle Capping Machine

(5) Automatic Cap Feeding Machine

(6) Automatic Bottle Clamping Conveyor

(7) Aluminum Foil Induction Sealing Machine

(8) Automatic Bottle Labeling Machine

(9) Finished Bottle Collecting Table

(10) Other Accessory Machine
