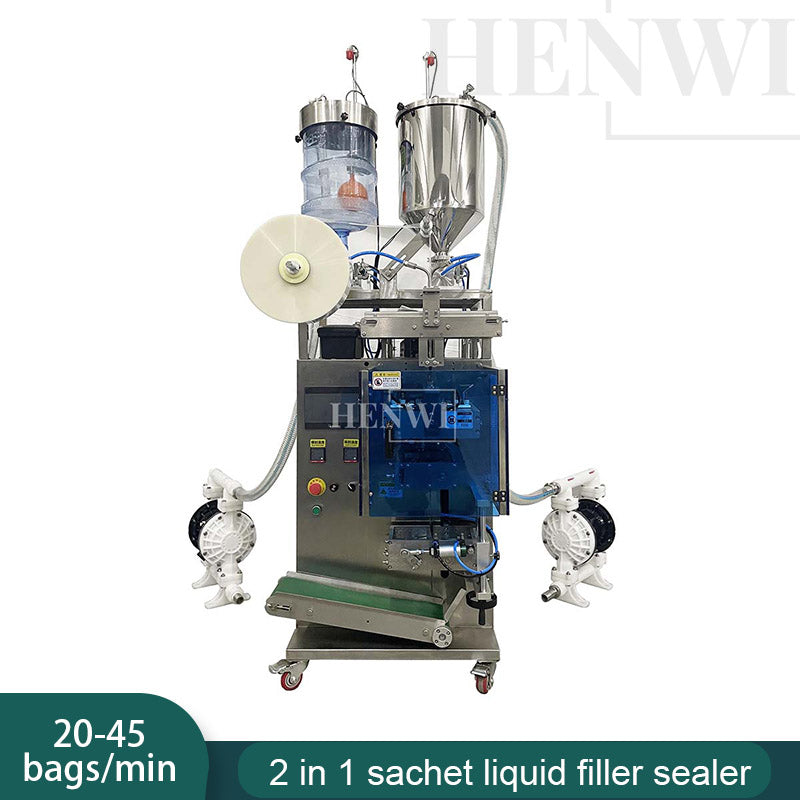

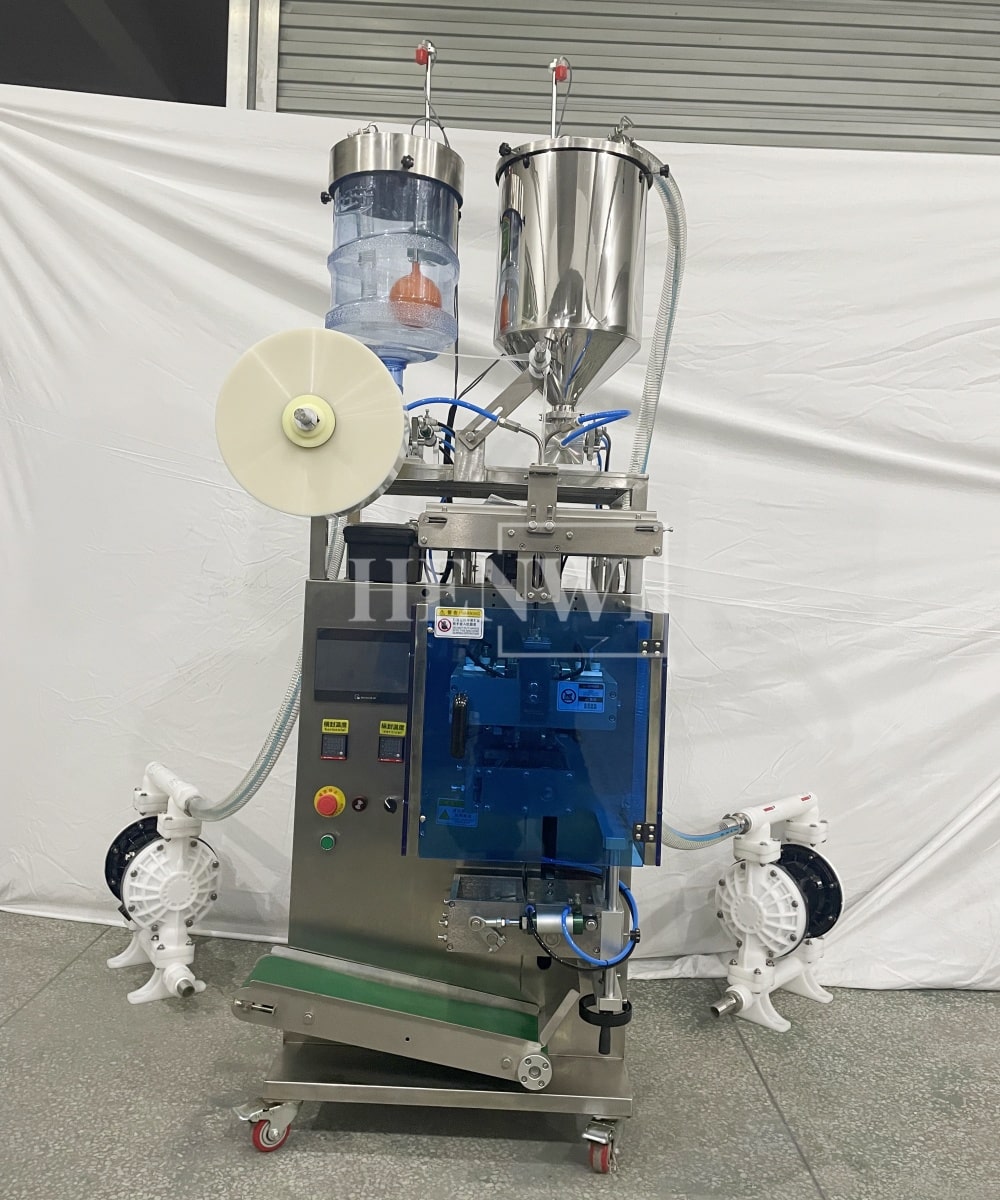

Henwi HWSM-Single Lane 2 in 1 Liquid Sachet Filler Sealer Hair Dye Color Dying Cream Gel Filling Packing Machine

Henwi HWSM-Single Lane 2 in 1 Liquid Sachet Filler Sealer Hair Dye Color Dying Cream Gel Filling Packing Machine

Regular price $9,000.00 USD
Regular price Sale price $9,000.00 USD
Sale Sold out
Shipping calculated at checkout.

1. Introduction

Single-row roll film bag forming liquid filling and sealing machine is a kind of equipment that automatically forms, fills and seals roll film bags, and is mainly used for packaging liquid materials.

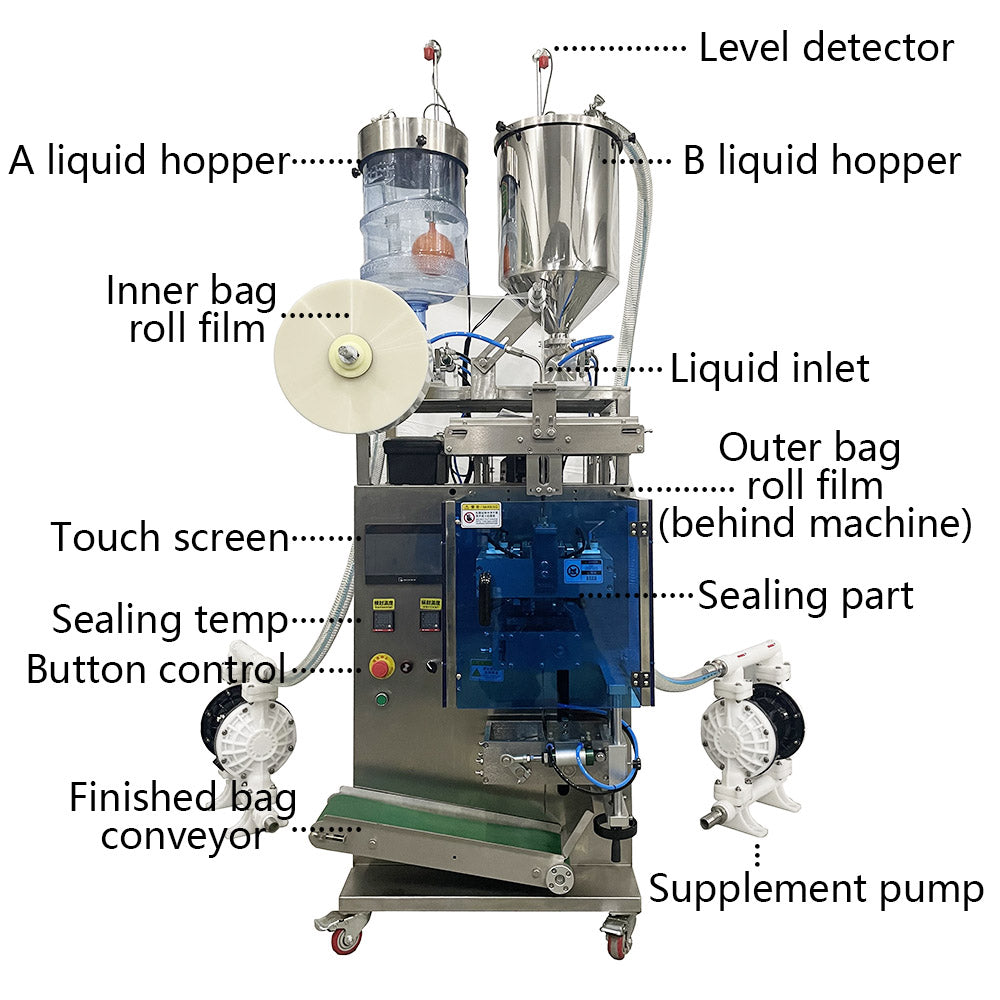

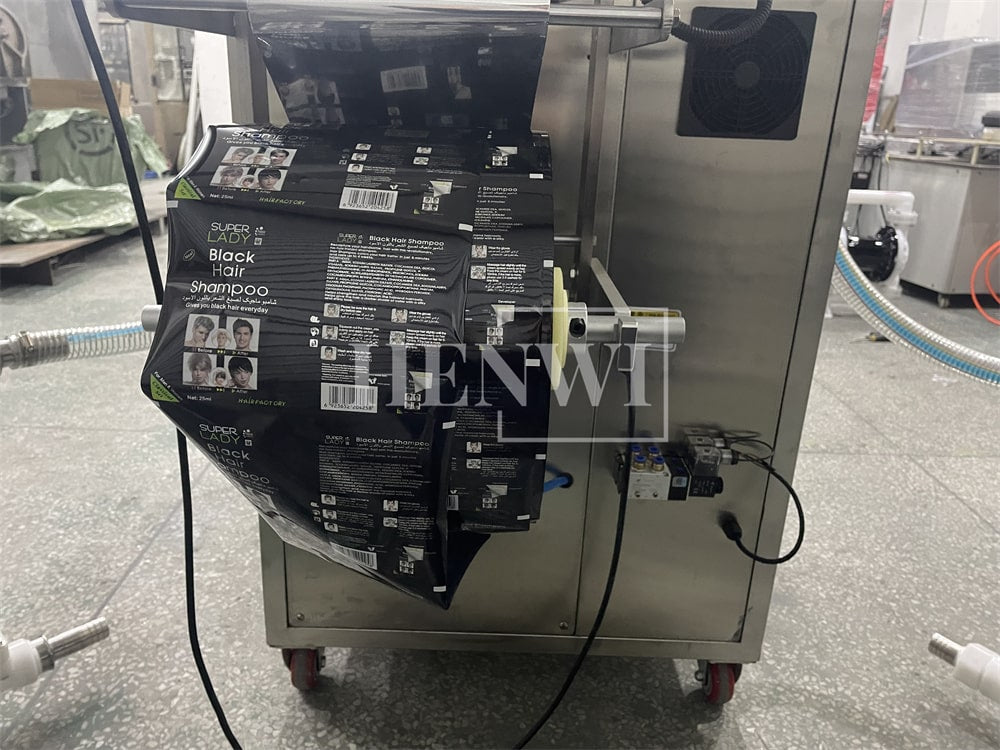

Working step: (1) Film roll placement and transportation ➡ (2) Bag forming ➡ (3) Longitudinal heat sealing ➡ (4) Horizontal heat sealing and cutting ➡ (5) Liquid filling ➡ (6) Bag sealing ➡ (7) Finished product output

Applicable sachet material: plastic, PP, PE, PET, BOPP, kraft bag, laminated sachet, etc.

Applicable filling material: hair dye cream, liquid, water, sauce, juice, oil, jam, honey, cream, shampoo, ketchup, mayonnaise, etc.

2. Specification

1
Filling Range
(15+15)ml
(30+30)ml
2
Bag Size
W:30-100mm;L:30-150mm
W:30-137mm ; L:30-175mm
3
Maximum Roll Width
220mm
280mm
4
Bag Type
Four-side seal middle layer / Four-side seal left and right separation
5
Measuring Method

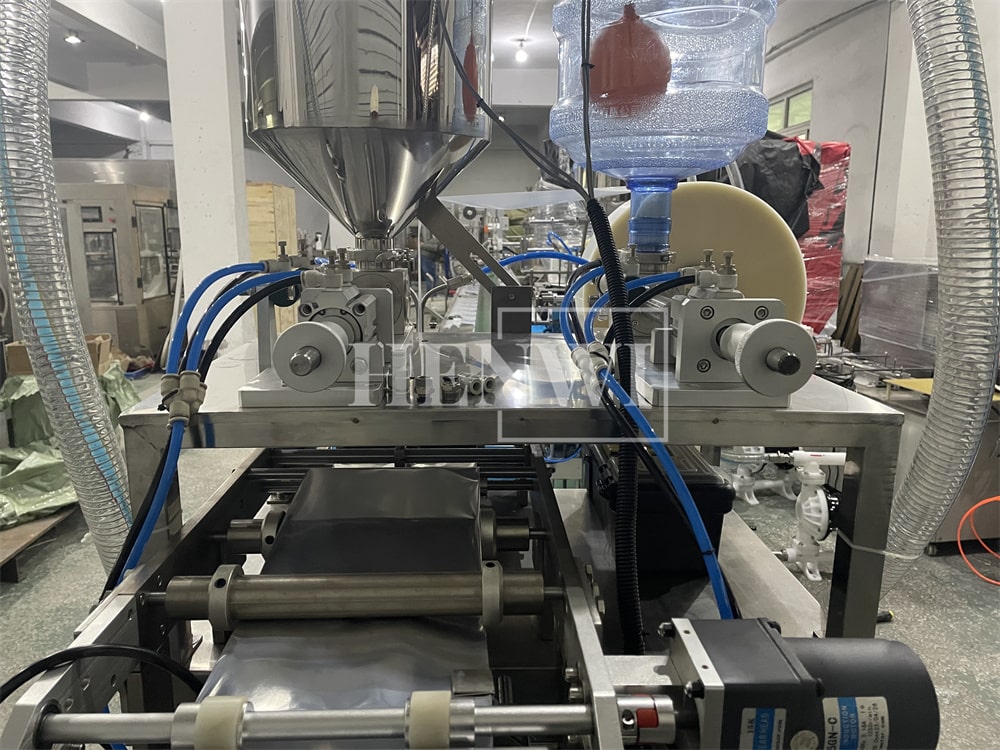

Stainless steel 304; Pneumatic plunger pump (SUS316L)
6
Control Method
Fatek PLC control, color touch screen operation
7
Productivity
20-35 (bags/minute)
20-45 (bags/minute)
8
Voltage/Power
220V/50-60Hz /1.5KW
220V/50-60HZ/2.0KW
9
Air Consumption
0.3m³/min ; 0.6-0.8Mpa
10
Equipment Size (L*W*H)
900*1300*1600mm
1165*1319*1680mm
11
Equipment Weight
300KG
350KG
12
Chassis and Material Contact Partial Material
The cabinet is made of SUS201 stainless steel, and the material contact part is made of SUS316L stainless steel
The cabinet is made of SUS304 stainless steel, and the material contact part is made of SUS316L stainless steel
13

Packaging Material
Material: PE composite film, such as: pure aluminum, aluminum plating, nylon, etc.; Thickness: 0.08-0.12mm; 3-layer or 4-layer
structure Inner diameter of the roll core: 75mm; diameter of the whole roll: 300-500mm
