Henwi HWTM-FS Automatic Aluminum Tube Filling Sealing Machine Metal Tube Filler And Folding Sealer
Henwi HWTM-FS Automatic Aluminum Tube Filling Sealing Machine Metal Tube Filler And Folding Sealer
1. Introduction
Please inquire us if you're not sure whether this machine can process your product or not.
This machine series is suitable for filling and sealing liquid cosmetics & food & pharmaceutical & chemical products into soft tube containers, like plastic tube, aluminum tube, and aluminum-plastic laminated tube.
Applicable for toothpaste, body cream, skincare lotion, conditioner, concealer, ointment, unguent, jam, food paste, pie, condensed milk, dressing, butter, skin jelly, body gel, hand sanitizer, paint, glue, sunscreen, face cleaner, balm oil, moisturizer, etc.
2. Specification
1
|
Qty of filling head
|
1 head
|
2
|
Filling range
|
6-60ML;
10-120ML; 25-250ML; 50-500ML; Customized
|
3
|
Filling speed
|
About 30~70 tubes/min
|
4
|
Filling accuracy
|
±1%.
|
5
|
Functions
|
Filling, Sealing, Coding
|
6
|
Sealing method
|
Folding Sealing
|
7
|
Sealing shape
|
Flat tail only
|
8
|
Number of work positions
|
12
|
9
|
Applicable tube diameter
|
12-50mm
|
10
|
Applicable tube height
|
50-250mm
|
11
|
Automatic detection function
|
No work without hose
|
12
|
Material
|
304 /316 stainless steel
|
13
|
Program controller
|
Touch panel screen & PLC control
|
14
|
Air pressure
|
0.6 -0.8mpa
|
15
|
Power
|
3kw
|
16
|
Capacity of material tank
|
40L
|
17
|
Protective device
|
Equipped with safety device
Overload protection
|
18
|
Pump type
|
Piston pump
|
19
|
Frequency inverter
|
Mitsubishi
|
20
|

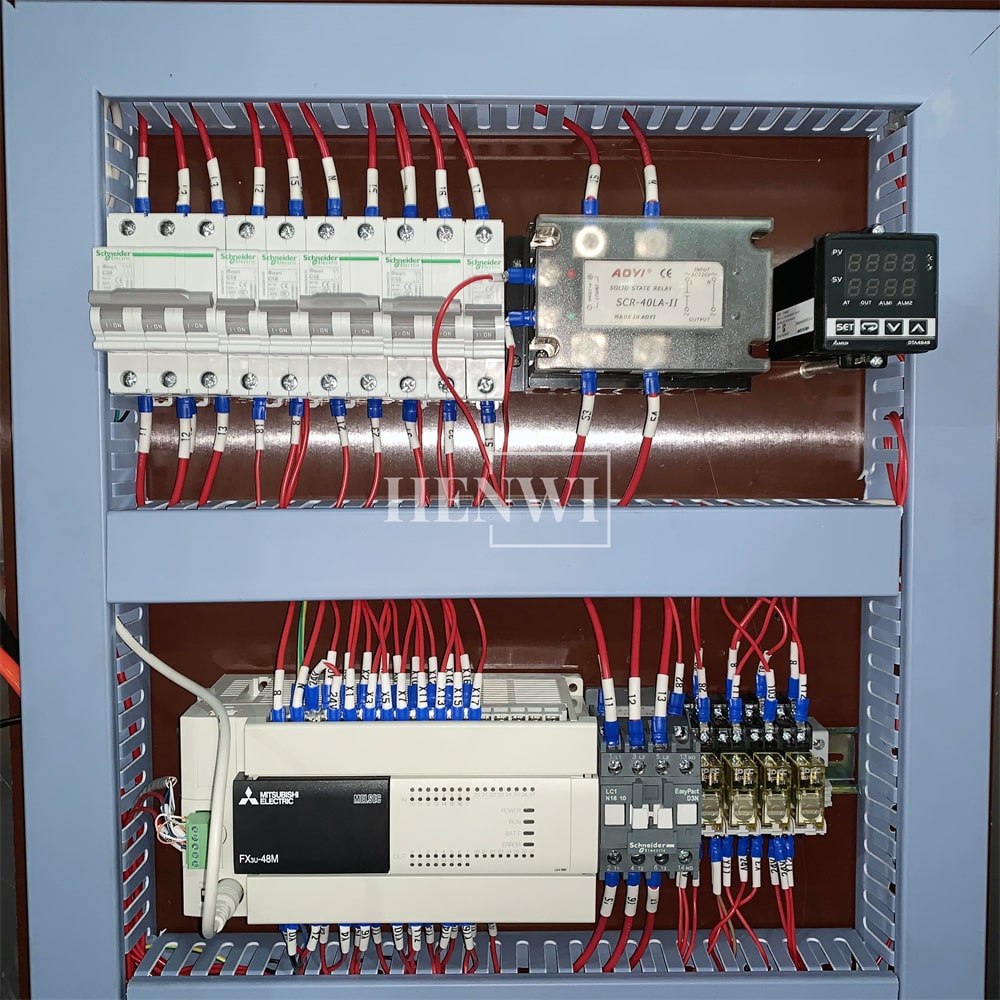

Electrical components
|
Delixi/CHNT/Schneider
|
21
|
PLC
|
Mitsubishi
|
22
|
Touch screen
|
Mitsubishi
|
23
|
Servo system
|
Hechuan
|
24
|
Sensor
|
Banner/OMRON/Panasonic
|
25
|
Motors
|
ZD/Beide
|
26
|
Pneumatic components
|
AirTAC
|
27
|
Machine size
|
2620×1250×1980 (mm)
|
28
|
Weight
|
1100 (KG)
|
29
|
Power supply
|
380V/50Hz
|
3. Production Line
(1) Water Purification Treatment Device
(2) Raw Water Tank & Pure Water Tank
(3) Vacuum Homogenizing Heating Mixer Machine
(4) SUS Storage Tank
(5) Automatic Tube Filling Sealing Machine
(6) Other Accessory Machine
4. Processing Step
(1) Tube loading
(2) Tube marking
(3) Tube pressing & detection
(4) Filling material
(5) Tube folding
(6) Date coding
(7) Finished tube product discharging
