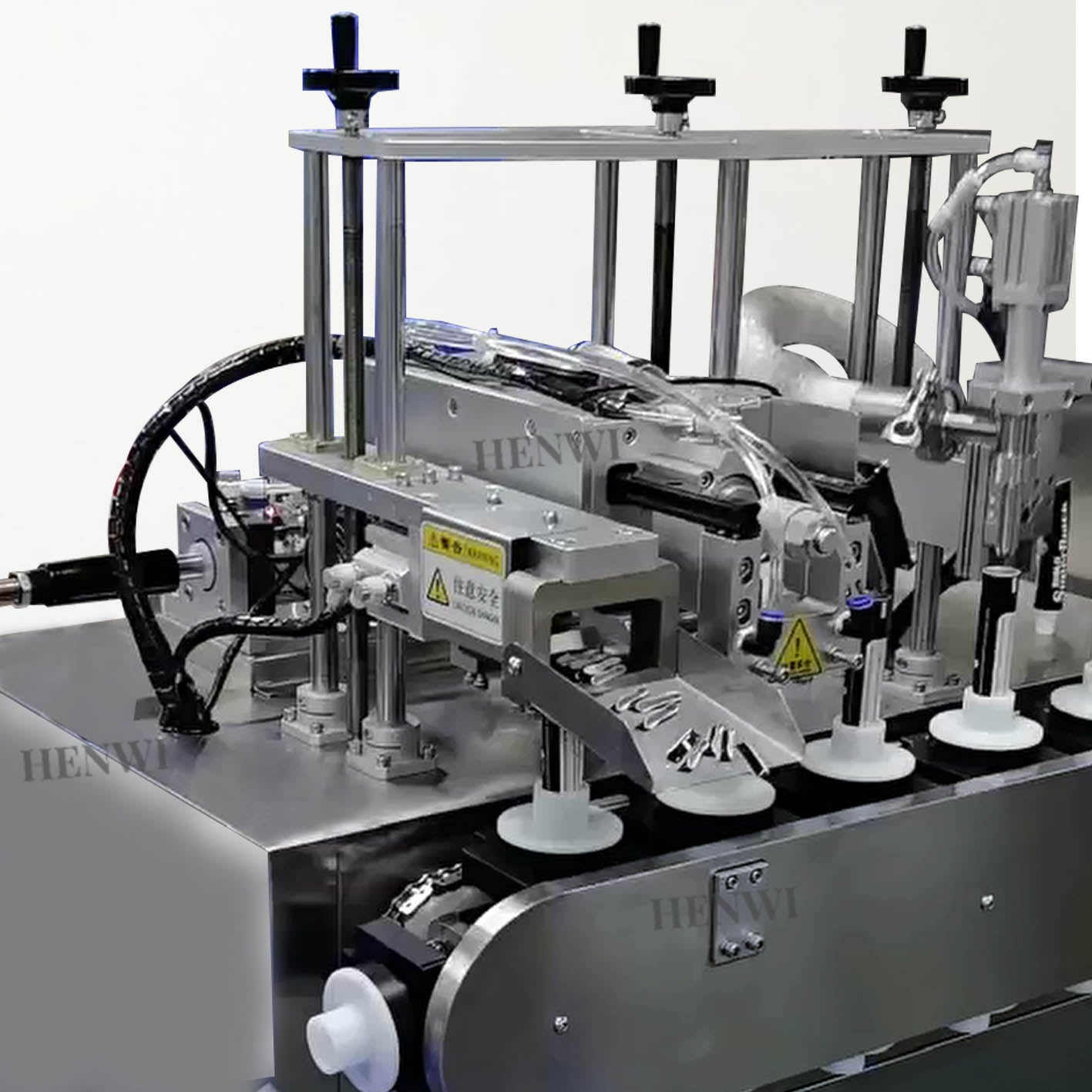

Henwi HWTM-USL Linear Model Cheap Automatic Laminated Tube Filling Sealing Machine Composited Tube Filler And Ultrasonic Sealer
Henwi HWTM-USL Linear Model Cheap Automatic Laminated Tube Filling Sealing Machine Composited Tube Filler And Ultrasonic Sealer
Couldn't load pickup availability
1. Introduction
Please inquire us if you're not sure whether this machine can process your product or not.
This machine series is suitable for filling and sealing liquid cosmetics & food & pharmaceutical & chemical products into soft tube containers, like plastic tube, aluminum tube, and aluminum-plastic laminated tube.
Applicable for toothpaste, body cream, skincare lotion, conditioner, concealer, ointment, unguent, jam, food paste, pie, condensed milk, dressing, butter, skin jelly, body gel, hand sanitizer, paint, glue, sunscreen, face cleaner, balm oil, moisturizer, etc.
2. Specification
|
1
|
Qty of filling head
|
1 head (Linear Model)
|
|
2
|
Filling range
|
6-60ML;
10-120ML; 25-250ML; Customized
|
|
3
|
Filling speed
|
About 15~20 tubes/min
|
|
4
|
Filling accuracy
|
±1%.
|
|
5
|
Functions
|
Filling, Sealing, Coding
|
|
6
|
Sealing method
|
Ultrasonic Sealing
|
|
7
|
Ultrasonic frequency
|
20 kHz
|
|
8
|
Sealing shape
|
Flat tail, curved tail, special-shaped tail
|
|
9
|
Benchmarking method
|
Servo calibration
|
|
10
|
Applicable tube diameter
|
16-50mm
|
|
11
|
Applicable tube height
|
50-250mm
|
|
12
|
Automatic detection function
|
No work without hose
|
|
13
|
Material
|
304 /316 stainless steel
|
|
14
|
Program controller
|
Touch panel screen & PLC control
|
|
15
|
Air pressure
|
0.6 -0.8mpa
|
|
16
|
Power
|
4.5kw
|
|
17
|
Capacity of material tank
|
30L
|
|
18
|
Protective device
|
Equipped with safety device
Overload protection
|
|
19
|
Pump type
|
Piston pump / Magnetic Pump
|
|
20
|
Frequency inverter
|
Dingshi
|
|
21
|
Electrical components
|
CHNT/Schneider
|
|
22
|
PLC
|
Weisheng Industrial Control
|
|
23
|
Touch screen
|
Kunlun Tongtai
|
|
24
|
Servo system
|
Dingshi
|
|
25
|
Sensor
|
Hageson
|
|
26
|
Motors
|
Dingshi/ZD
|
|
27
|
Pneumatic components
|
Jayand
|
|
28
|
Switching power supply
|
Meanwell
|
|
29
|
AC
|
Chint
|
|
28
|
Machine size
|
1200*800*1500 (mm)
|
|
29
|
Weight
|
220 (KG)
|
|
30
|
Power supply
|
220V/50Hz
|
3. Production Line
(1) Water Purification Treatment Device
(2) Raw Water Tank & Pure Water Tank
(3) Vacuum Homogenizing Heating Mixer Machine
(4) SUS Storage Tank
(5) Automatic Tube Filling Sealing Machine
(6) Other Accessory Machine
4. Optional Tail Shape
