Henwi HWTM-USS-1 Semi Automatic Composited Tube Filling Sealing Machine Laminated Tube Filler And Ultrasound Sealer

1. Introduction

Please inquire us if you're not sure whether this machine can process your product or not.

This machine series is suitable for filling and sealing liquid cosmetics & food & pharmaceutical & chemical products into soft tube containers, like plastic tube, aluminum tube, and aluminum-plastic laminated tube.

Applicable for toothpaste, body cream, skincare lotion, conditioner, concealer, ointment, unguent, jam, food paste, pie, condensed milk, dressing, butter, skin jelly, body gel, hand sanitizer, paint, glue, sunscreen, face cleaner, balm oil, moisturizer, etc.

2. Specification

1	Qty of filling head	1 head
2	Filling range	6-60ML; 10-120ML; 25-250ML; 50-500ML; Customized
3	Filling speed	About 10~12 tubes/min
4	Filling accuracy	±1%.
5	Functions	Filling, Sealing, Coding
6	Sealing method	Ultrasonic Sealing
7	Ultrasonic frequency	20 kHz
8	Sealing shape	Flat tail only
9	Number of work positions	1
10	Applicable tube diameter	12-50mm
11	Applicable tube height	50-220mm
12	Automatic detection function	No work without hose
13	Material	304 /316 stainless steel
14	Program controller	Touch panel screen & PLC control
15	Air pressure	0.6 -0.8mpa
16	Power	2kw
17	Material feeding method	Direct suction
18	Protective device	Overload protection
19	Pump type	Piston pump
20	Frequency inverter	Delta
21	Electrical components	CHNT/Schneider
22	PLC	HCFA
23	Touch screen	MCGS
24	Servo system	Hechuan

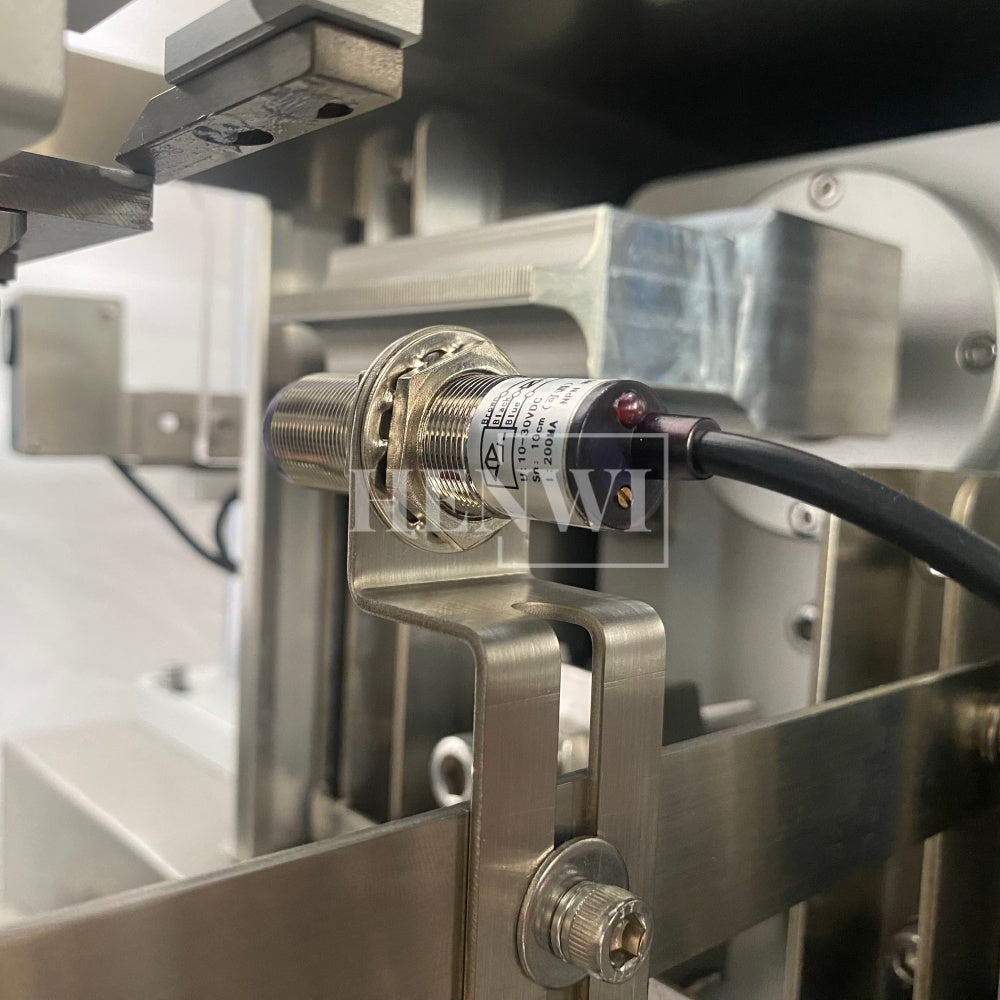

25	Sensor	Panasonic
26	Motors	ZD/Beide
27	Pneumatic components	AirTAC
28	Machine size	860*650*1550 (mm)
29	Weight	130 (KG)
30	Power supply	220V/50Hz

3. Production Line

(1) Water Purification Treatment Device

(2) Raw Water Tank & Pure Water Tank

(3) Vacuum Homogenizing Heating Mixer Machine

(4) SUS Storage Tank

(5) Tube Filling Sealing Machine

(6) Other Accessory Machine

4. Optional Tail Shape
