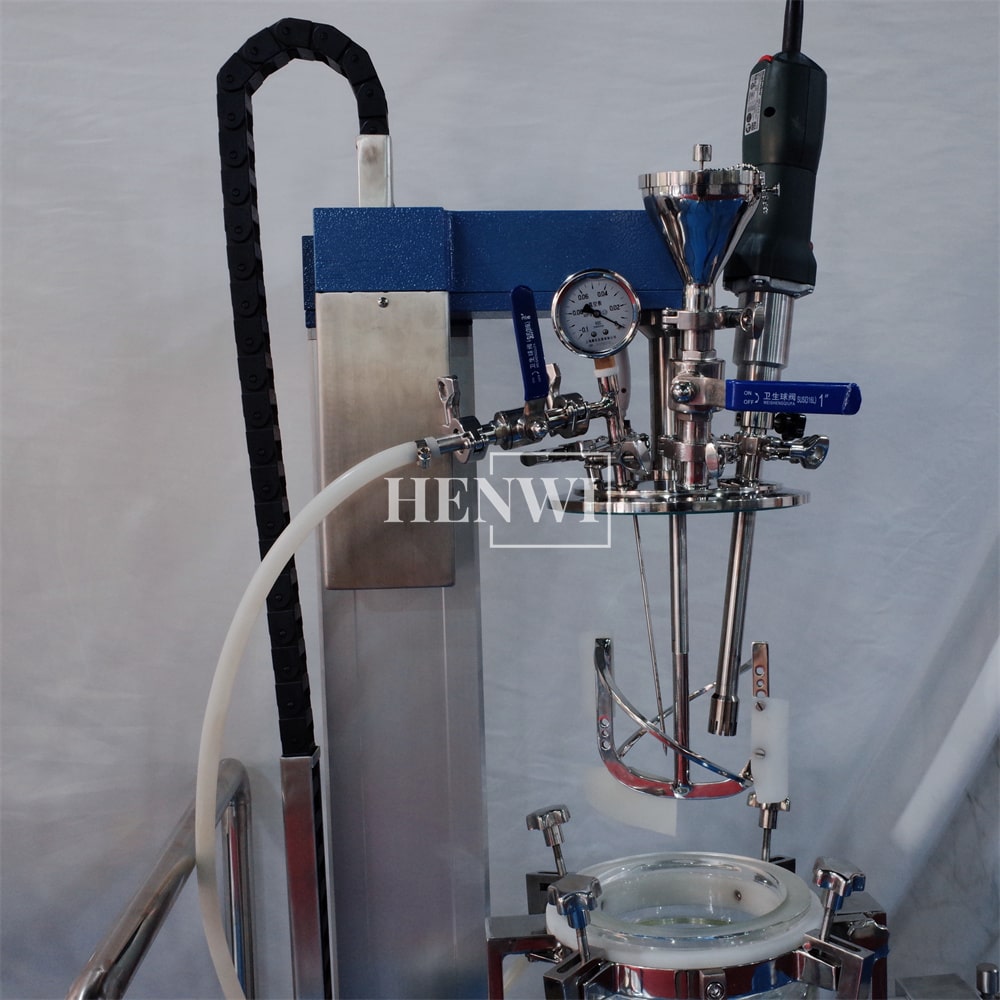

Henwi HWVM-LB-20L Laboratory Reactor Model Lab Vacuum Emulsifying Homogenizing Heating Mixer Tank Machine
Henwi HWVM-LB-20L Laboratory Reactor Model Lab Vacuum Emulsifying Homogenizing Heating Mixer Tank Machine
1. Introduction
The laboratory vacuum emulsifier machine is mainly used to evenly mix the water phase and the oil phase to form a stable emulsion. It can effectively reduce the particle size, improve the texture and stability of the product, and facilitate research and development and small-scale production.
This machine series is suitable for making cosmetics & food & pharmaceutical & chemical products sample, like body cream, skincare lotion, conditioner, concealer, nail polish, lubricant, engine oil, ointment, balm oil, toothpaste, jam, food paste, pie, mayonnaise, ketchup, salad sauce, sauce dressing, butter, wax, petroleum jelly, scented Candle, shampoo, liquid soap, liquid detergent, hand sanitizer, essential oil, etc.
For the capacity, we have 2 liter model, 5 liter model, 10 liter model, 20 liter model for your option.
2. Specification
1
|
Model:
|
HWVM-LB-20L
|
2
|
Working capacity
|
20 Liters
|
3
|
Heating method
|
Hot water circulation(equipped)
Up to 100℃
|
4
|
Mixing type
|
Anchor scraper (optional spiral belt)
|
5
|
Scraper material
|
Silicone rubber (optional PTFE hard scraper)
|
6
|
Mixing motor power
|
0.35KW
|
7
|
Mixing speed
|
0-200 rpm
|
8
|
Homogenizer type
|
Upper homogenizer
|
9
|
Homogenizer power
|
2.1KW
|
10
|
Homogenizer speed
|
8000-30000 rpm
|
11
|
Lifting height
|
380mm
|
12
|
Vacuum
|
-0.096Mpa (positive pressure optional)
150W
|
13
|
Viscosity max.
|
100000CP
|
14
|
Components on cover
|
Filter, vacuum meter, vent, hopper
|
15
|
Control method
|
Button control
|
16
|
Jacket
|
Single jacket, 2 layers
|
17
|
Tank's materials
|
Inner layer Glass/5mm
Outer layer Glass/5mm (optional SUS316/SUS304)
|
18
|
Power supply
|
220V/50Hz/1 phase
|
29 | Machine size |
1450*700*1550mm
|
20 | Machine weight | 200KG |
