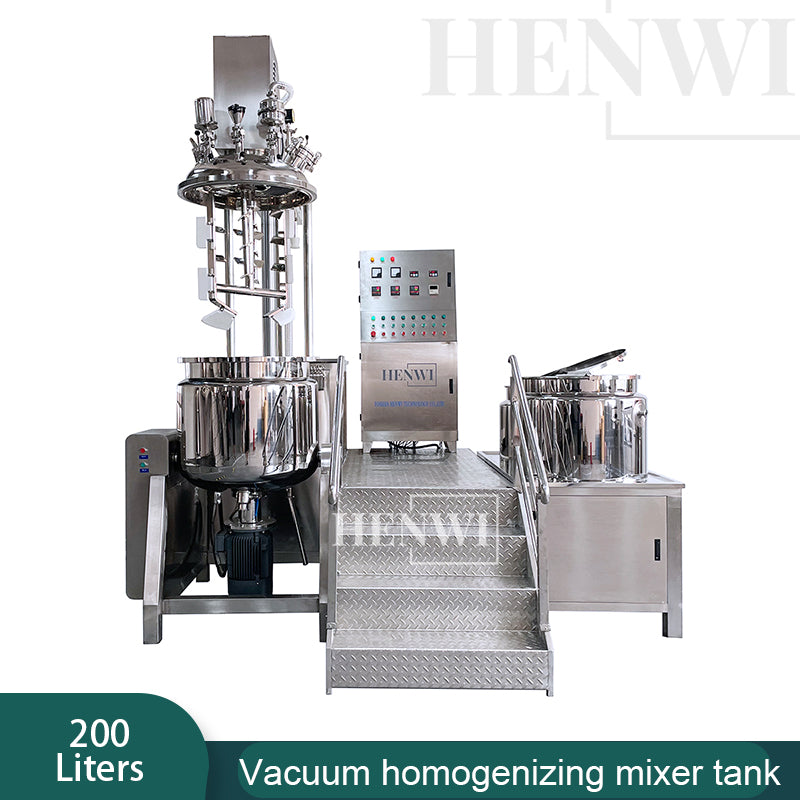

Henwi HWVM-LT-200L Hydraulic Lifting Cover Model Vacuum Emulsifying Homogenizing Heating Mixer Tank Machine

Henwi HWVM-LT-200L Hydraulic Lifting Cover Model Vacuum Emulsifying Homogenizing Heating Mixer Tank Machine

Regular price $15,000.00 USD
Regular price Sale price $15,000.00 USD
Sale Sold out
Shipping calculated at checkout.

1. Introduction

Please inquire us if you're not sure whether this machine can process your product or not.

This machine series is suitable for making cosmetics & food & pharmaceutical & chemical products, like body cream, skincare lotion, conditioner, concealer, nail polish, lubricant, engine oil, ointment, balm oil, toothpaste, jam, food paste, pie, mayonnaise, ketchup, salad sauce, sauce dressing, butter, wax, petroleum jelly, scented Candle, etc.

2. Specification

1
Model:
HWVM-LT-200L
2
Working capacity
200 Liters
3
Heating method
Steam/electric
4
Mixing type
Upper frame oar scraper mixer
5
Mixing motor power
2.2KW
6
Mixing frequency inverter
2.2KW
7
Mixing speed
0-65 rpm
8
Homogenizer type
Bottom homogenizer
9
Homogenizer frequency inverter
4KW
10
Homogenizer speed
0-3000rpm(50Hz)/0-3600rpm(60Hz)
11
Hydraulic lifting system
0.75KW
12
Vacuum system
Water cycle vacuum pump, power:1.5KW
13
Control method
Button control
14
Frequency inverter
Delta
15
Electrical components
Delixi
16
Jacket
Double jacket,3 layers
17
Tank's materials
Inner layer 4mm/SUS316
Middle layer 4mm/SUS304
Outer layer 2mm/SUS304
18
Water and oil phase tank
180L/120L
With dispersing and heating function
19
Power supply
220V/380V/415V/440V/3 phase(Optional)


3. Production Line

(1) Water Purification Treatment Device

(2) Raw Water Tank & Pure Water Tank

(3) Vacuum Homogenizing Heating Mixer Machine

(4) SUS Storage Tank

(5) Automatic Bottling Filling Machine

(6) Automatic Bottle Capping Machine

(7) Automatic Bottle Labeling Machine

(8) Other Accessory Machine



4. Working Principle

The materials in the water-phase tank and oil-phase tank are heated up and stirred. After they are thoroughly mixed, they will be transferred to the emulsifying tank by vacuum pump. The material will be stirred by the upper part of the central paddle, combined with the PTFE scraper sweeping the wall, the material will be stirred thoroughly and meanwhile be pushed down to the emulsifier at the low part of the central axle. With very high speed emulsifying effect, the material will be seriously cut, sheared, and cracked into 200nm - 2um particles. The bubbles appear during the process will be sucked out promptly in the vacuum status in the tank.



5. Main Parts of Machine
