Henwi HWVMM-LT-500L Mayonnaise Making Machine Hydraulic Lifting Cover Model Vacuum Emulsifying Homogenizing Heating Mixer Tank Machine
Henwi HWVMM-LT-500L Mayonnaise Making Machine Hydraulic Lifting Cover Model Vacuum Emulsifying Homogenizing Heating Mixer Tank Machine
Couldn't load pickup availability
1. Introduction
Please inquire us if you're not sure whether this machine can process your product or not.
This machine series is suitable for making food sauce products, like Mayonnaise, Ketchup, Salad Sauce, Custard Dressing, Cheese Sauce, Costa Sauce, Pastry Sauce, Rock Roast Dressing, Caesar Sauce, Chubby Sauce, etc.
2. Specification
|
1
|
Model:
|
HWVMM-LT-500L
|
|
2
|
Working capacity
|
500 Liters
|
|
3
|
Heating method
|
Steam/electric
|
|
4
|
Mixing type
|
Upper frame oar scraper mixer
|
|
5
|
Mixing motor power
|
5.5KW
|
|
6
|
Mixing frequency inverter
|
5.5KW
|
|
7
|
Mixing speed
|
0-36 rpm
|
|
8
|
Homogenizer type
|
Bottom homogenizer
|
|
9
|
Homogenizer frequency inverter
|
30KW
|
|
10
|
Homogenizer speed
|
0-4500rpm
|
|
11
|
Hydraulic lifting system
|
1.5KW
|
|
12
|
Material transfer
|
Pump/Vacuum suction
|
|
13
|
Load cell
|
Equiped
|
|
14
|
Discharge
|
5.5KW Lobe pump
|
|
15
|
Vacuum system
|
Water cycle vacuum pump, power: 2.2KW
|
|
16
|
Control method
|
PLC + Touch screen
|
|
17
|
Frequency inverter
|
Delta
|
|
18
|
Electrical components
|
Delixi, Schneider
|
|
19
|
Jacket
|
Double jacket,3 layers
|
|
20
|
Tank's materials
|
Inner layer 5mm/SUS316
Middle layer 5mm/SUS304 Outer layer 3mm/SUS304 |
|
21
|
Yolk and oil phase tank
|
300L/300L
With dispersing and heating function
|
|
22
|
Power supply
|
Standard: 380V/50Hz
220V/380V/415V/440V/3 phase(Optional)
|
3. Production Line
(1) Water Purification Treatment Device
(2) Raw Water Tank & Pure Water Tank
(3) Vacuum Homogenizing Heating Mixer Machine
(4) SUS Storage Tank
(5) Automatic Bottling Filling Machine
(6) Automatic Bottle Capping Machine
(7) Automatic Bottle Labeling Machine
(8) Other Accessory Machine
4. Working Principle
The materials in the water-phase tank and oil-phase tank are heated up and stirred. After they are thoroughly mixed, they will be transferred to the emulsifying tank by vacuum pump. The material will be stirred by the upper part of the central paddle, combined with the PTFE scraper sweeping the wall, the material will be stirred thoroughly and meanwhile be pushed down to the emulsifier at the low part of the central axle. With very high speed emulsifying effect, the material will be seriously cut, sheared, and cracked into 200nm - 2um particles. The bubbles appear during the process will be sucked out promptly in the vacuum status in the tank.

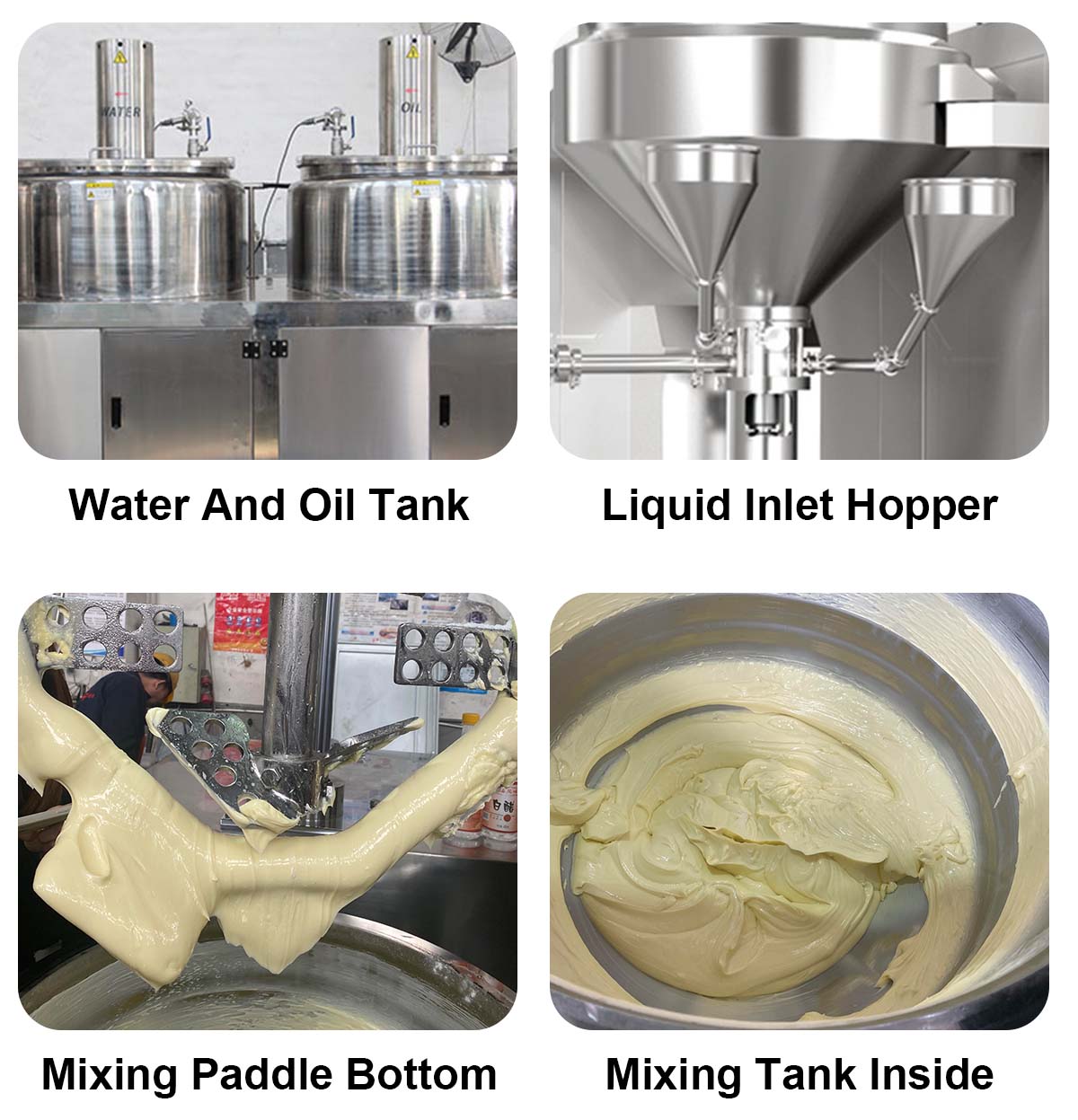

5. Main Parts of Machine
