Henwi HWXS-Microporous PP Paper Filter Mobile Perfume Water Filtering Device Folding Polypropylene Filter

Henwi HWXS-Microporous PP Paper Filter Mobile Perfume Water Filtering Device Folding Polypropylene Filter

Regular price $600.00 USD
Regular price Sale price $600.00 USD
Sale Sold out
Shipping calculated at checkout.

1. Introduction

This perfume production line is widely used for making perfume water, cosmetics water,  Florida water, etc.
Processing step:
1. Purifying city water or ground water by RO water treatment device.
2. Putting purified water and essence into freezing mixing tank, then start processing it.
3. After processing perfume water, transferring it into storage tank.
4. Cleaning perfume bottle by air to eliminate impurity.
5. Filling perfume water into glass bottle, the liquid level will be equally high due to vacuum filling.
6. Crimping the spray pump on the bottle.
7. Pressing collar ring on the spray pump, some of spray pump don't need collar ring.
8. Packing the glass bottle into box with transparent film.
In the whole production machine line, almost need 5~7 workers to operate it.

2. Specification

1
Machine Name
Pneumatic Mobile Perfume Filtering Machine
2
Drive
Pneumatic
3
Principle
Pressure Filtration
4
Filter Shell
Stainless Steel 304
5
Filter Element
Microporous Folding Filter
6
Filter Element Material
PP(Polypropylene Microporous Membrane)
7
Filter Precision
0.1μm
8
Application
Liquid filtration
9

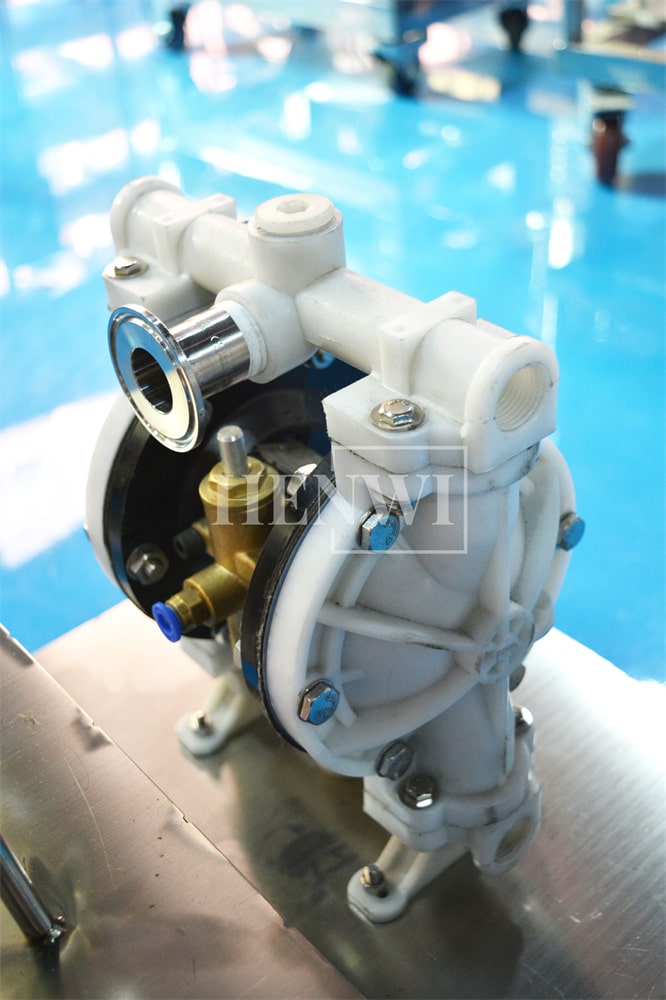

Diaphragm Pump
Sandpiper
10
Pump Capacity
0-2.4T/H
11
Working Pressure
4-8kg/cm2
12
Scope of Applications
Perfume, wine, alcohol, floral water, toner, cosmetics water, fragrance water, etc.


3. Production Line

(1) Water Purification Treatment Device

(2) Raw Water Tank & Pure Water Tank

(3) Perfume Chilling Mixing Machine Tank

(4) Perfume Storage Tank

(5) Semi Automatic 4 Nozzles Perfume Vacuum Filling Machine

(6) Perfume Spray Pump Cap Crimping Machine

(7) Perfume Lid/Collar Ring Pressing Machine

(8) Perfume Cartoning Boxing Machine

(9) Operating Conveyor

(10) Other Accessory Machine
