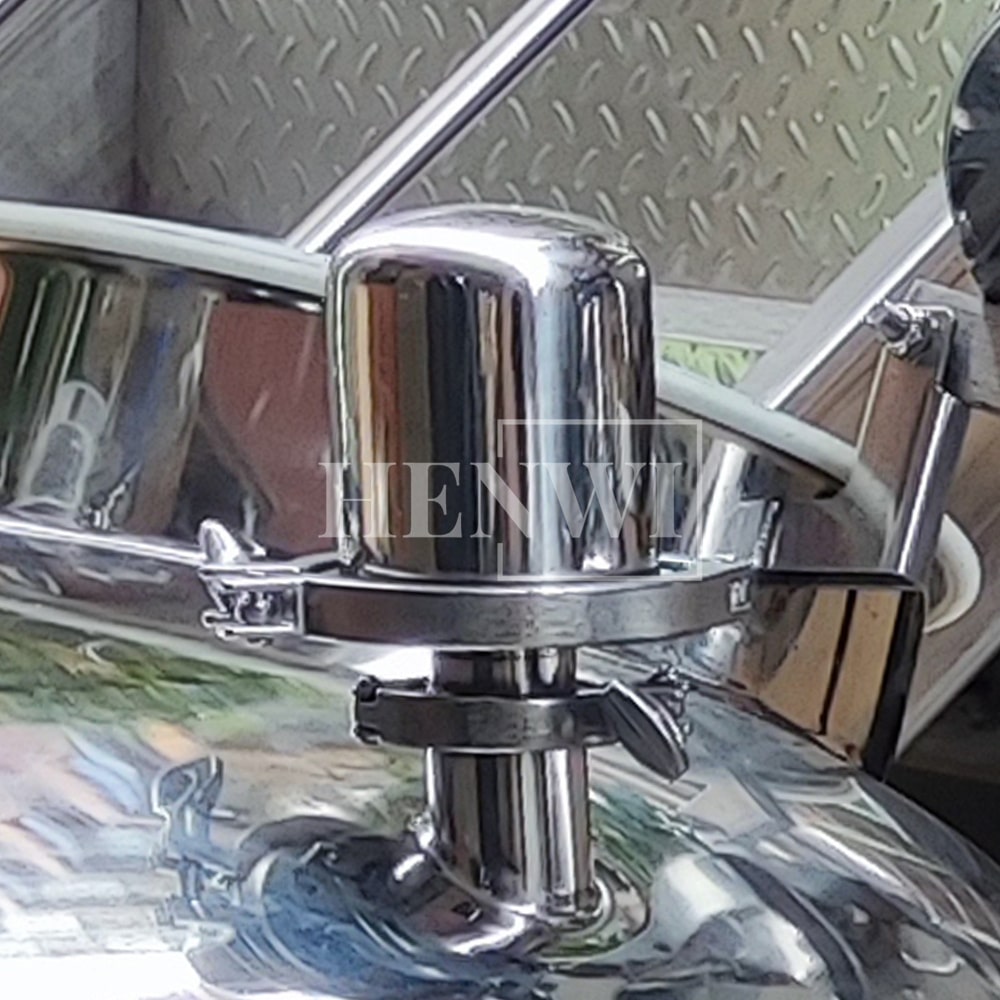

Henwi HWXS-Perfume Storage Tank With Pneumatic Mixer Paddle
Henwi HWXS-Perfume Storage Tank With Pneumatic Mixer Paddle
Regular price
$800.00 USD
Regular price
Sale price
$800.00 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
1. Introduction
This perfume production line is widely used for making perfume water, cosmetics water, Florida water, etc.
Processing step:
1. Purifying city water or ground water by RO water treatment device.
2. Putting purified water and essence into freezing mixing tank, then start processing it.
3. After processing perfume water, transferring it into storage tank.
4. Cleaning perfume bottle by air to eliminate impurity.
5. Filling perfume water into glass bottle, the liquid level will be equally high due to vacuum filling.
6. Crimping the spray pump on the bottle.
7. Pressing collar ring on the spray pump, some of spray pump don't need collar ring.
8. Packing the glass bottle into box with transparent film.
In the whole production machine line, almost need 5~7 workers to operate it.
2. Specification
| 1 |
Machine Name
|
Perfume Sealed Mixing Storage Tank
|
| 2 |
Machine Material
|
SUS304/SUS316
|
| 3 |
Capacity
|
100L/200L/300L/500L/1000L/2000L/5000L/Customized
|
| 4 |
Layer
|
1 Layer
|
| 5 |
Thickness
|
2 mm~5 mm (Customized)
|
| 6 |
Air Source
|
0.5-0.6Mpa
|
| 7 |
Lid
|
Sealable lid / Manhole
|
| 8 |
Wheels
|
2 Universal wheels and 2 one-way wheels
|
| 9 |
Mixing Motor
|
Pneumatic motor
|
| 10 |
Discharge
|
Bottom Ball Valve Outlet
|
| 11 |
Bottom
|
Cone bottom
|
| 12 |
Optional functions
|
Thermograph Gauge, Fluid Level Indicator.
|
3. Production Line
(1) Water Purification Treatment Device
(2) Raw Water Tank & Pure Water Tank
(3) Perfume Chilling Mixing Machine Tank
(4) Perfume Storage Tank
(5) Semi Automatic 4 Nozzles Perfume Vacuum Filling Machine
(6) Perfume Spray Pump Cap Crimping Machine
(7) Perfume Lid/Collar Ring Pressing Machine
(8) Perfume Cartoning Boxing Machine
(9) Operating Conveyor
(10) Other Accessory Machine
