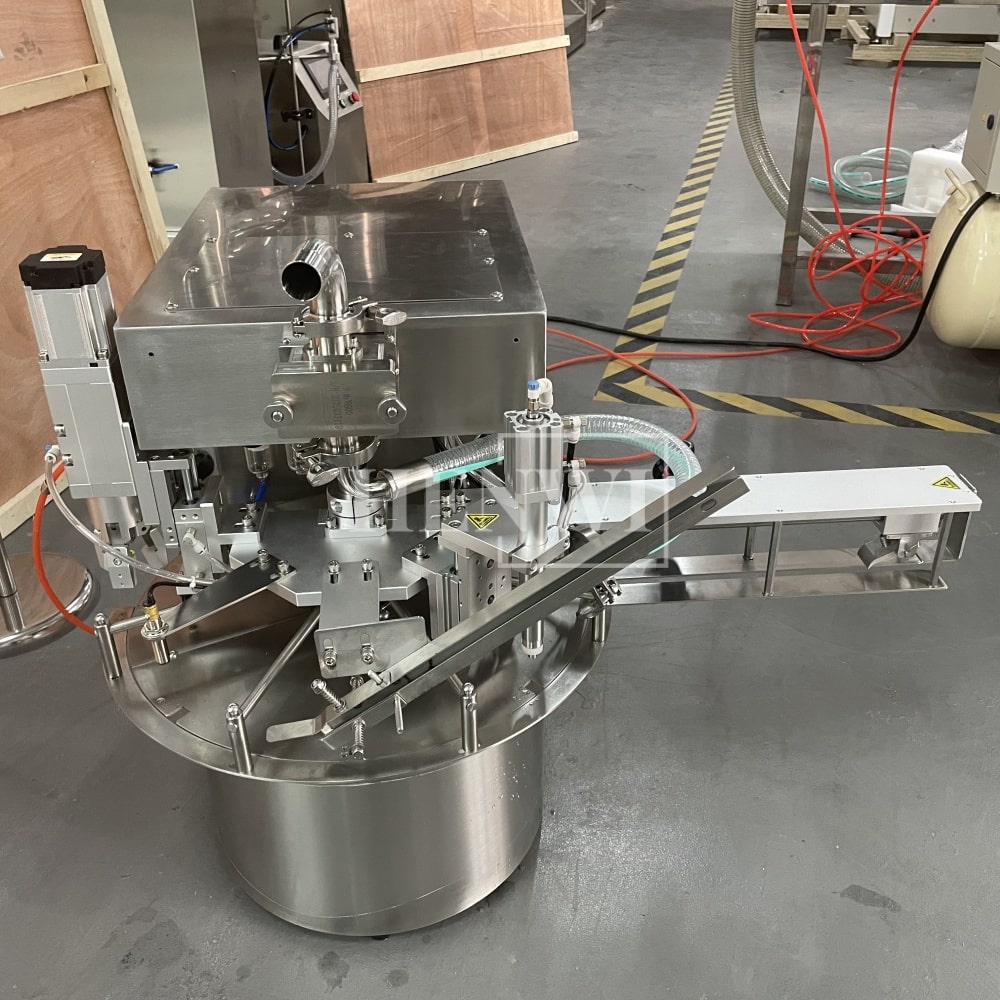

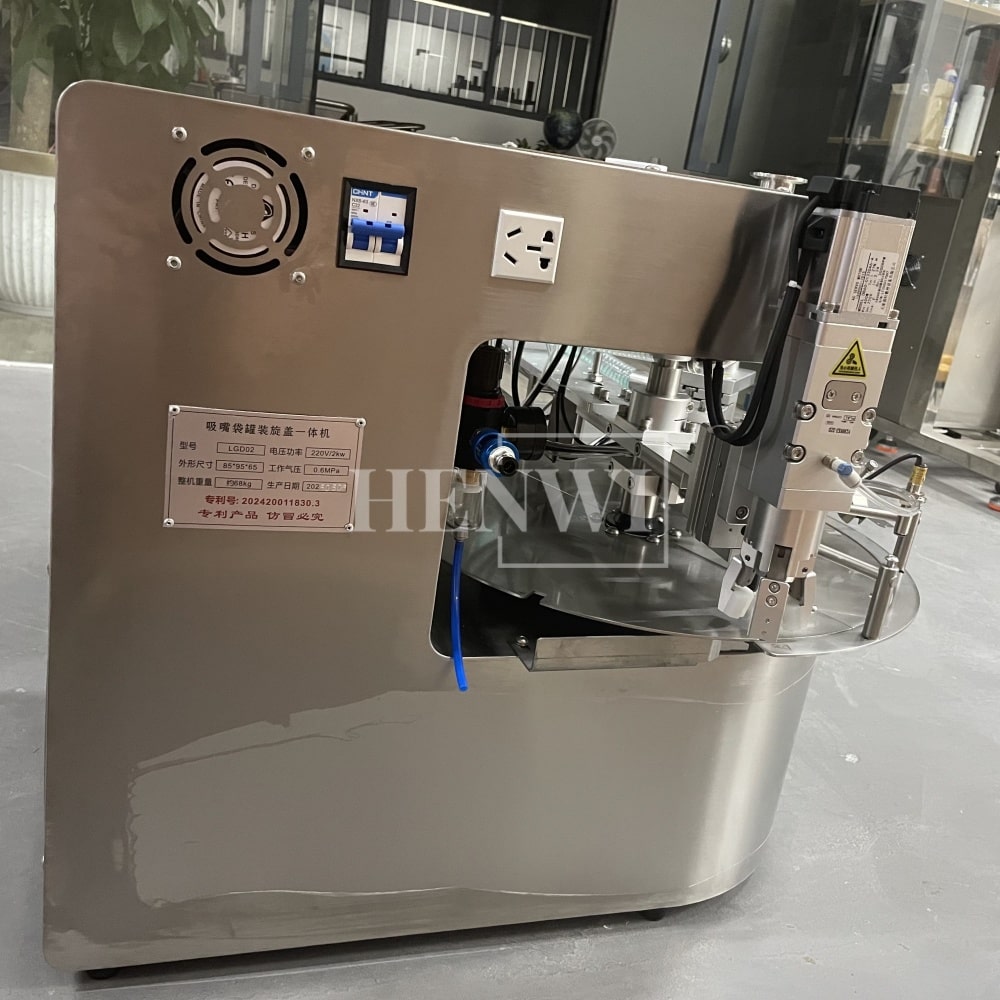

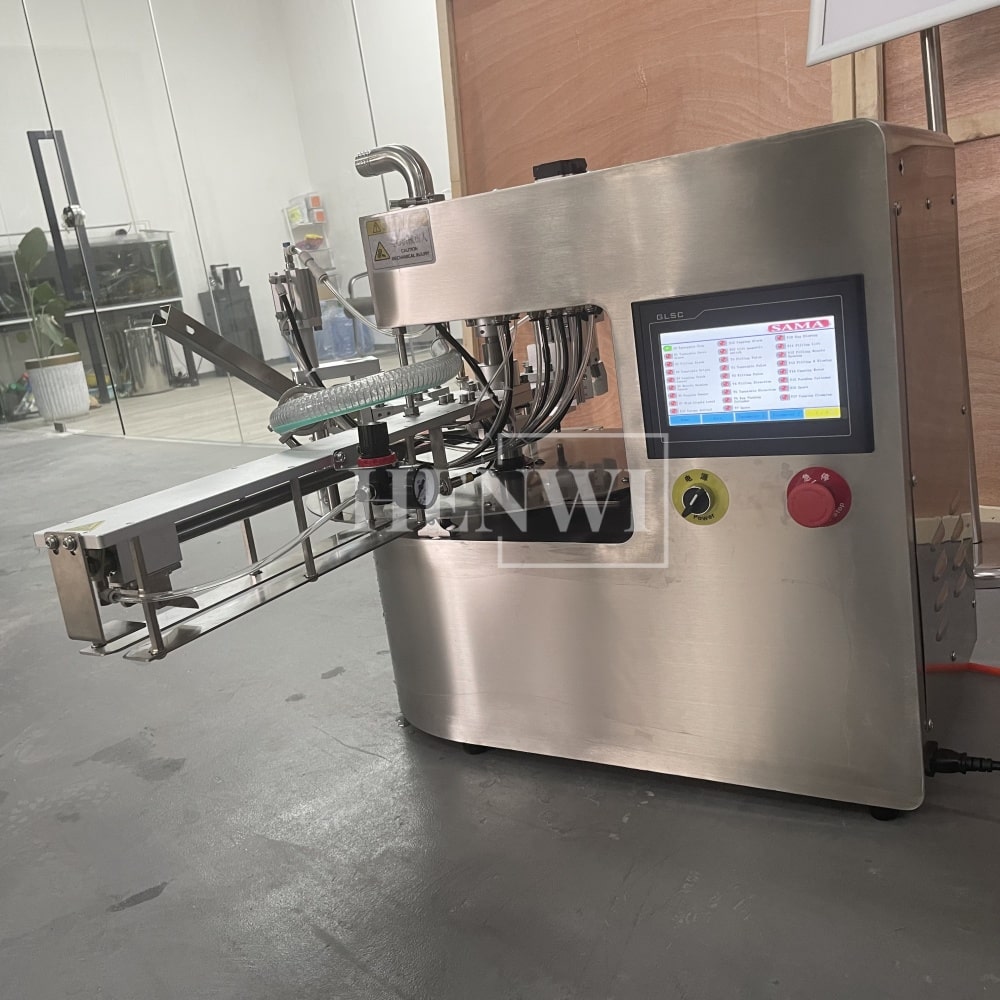

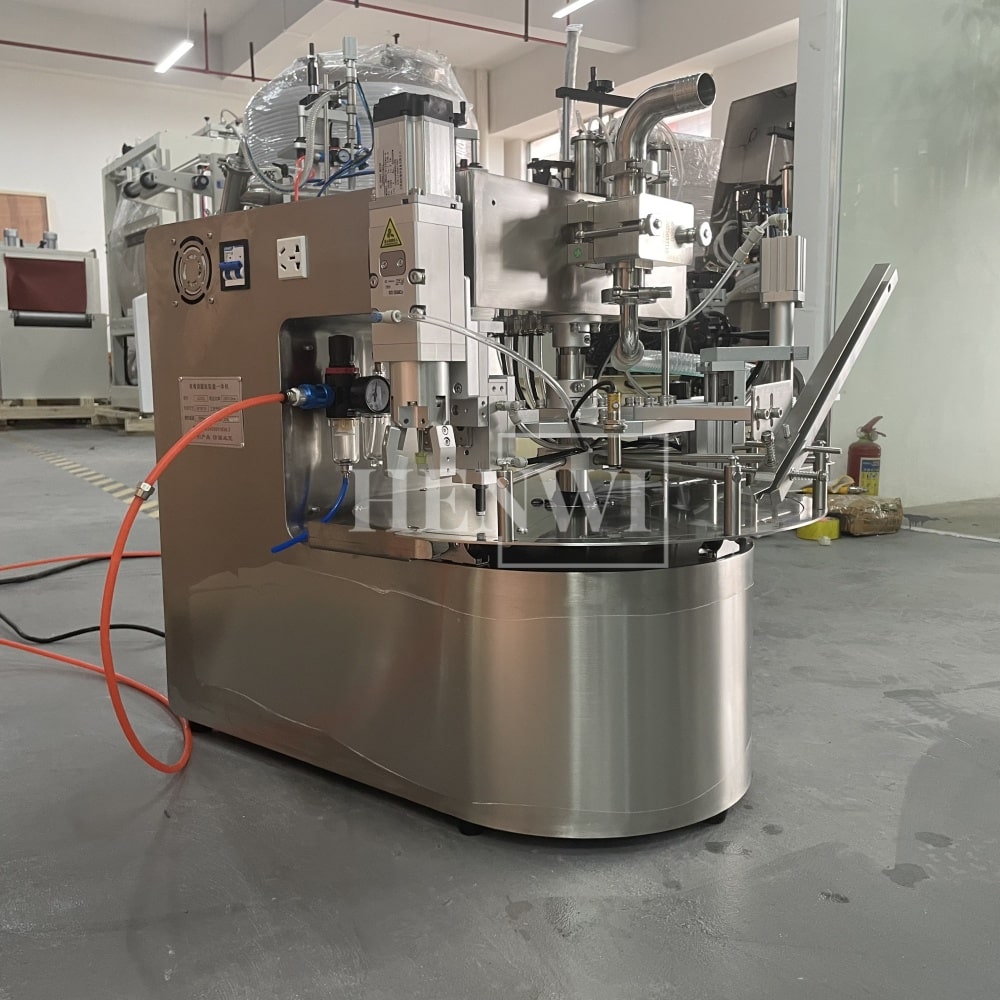

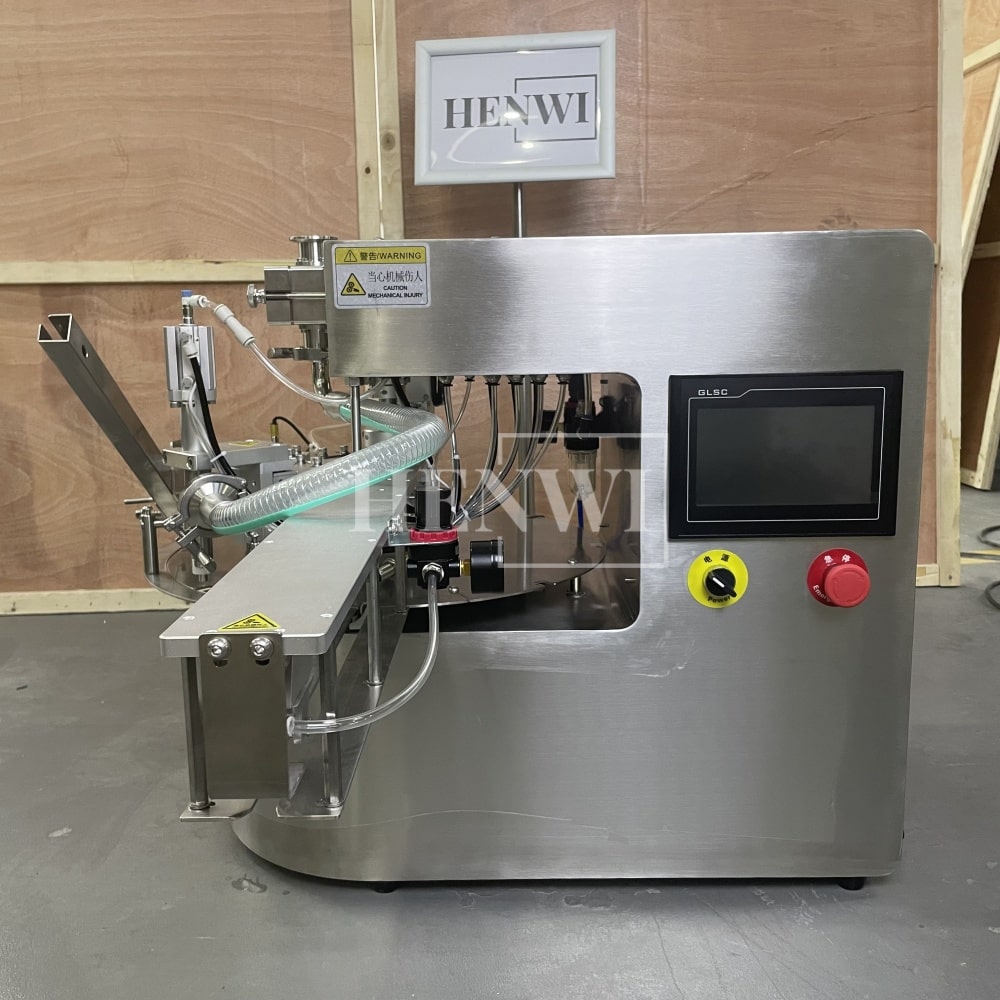

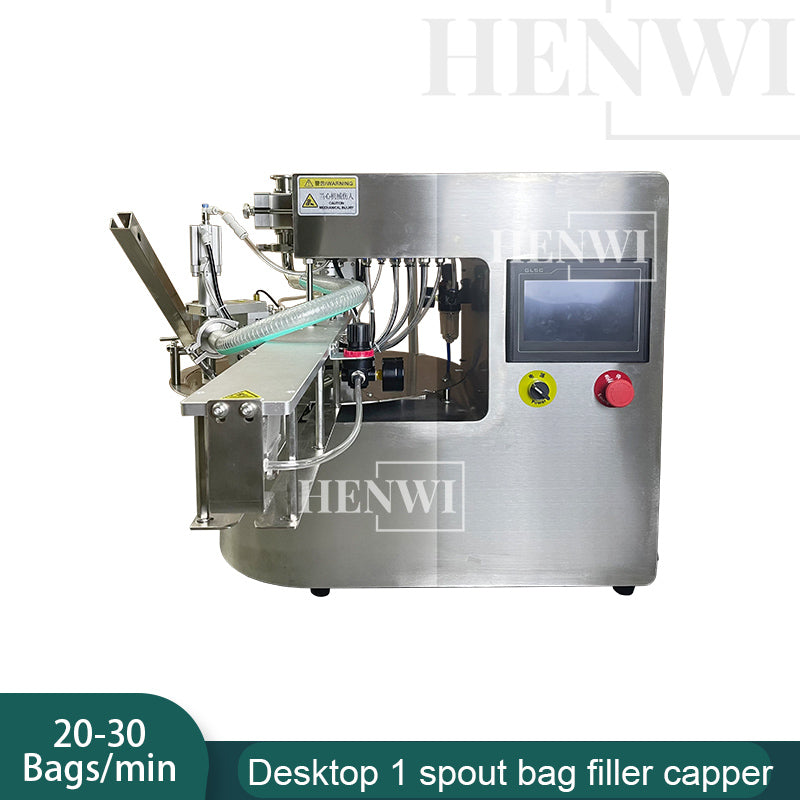

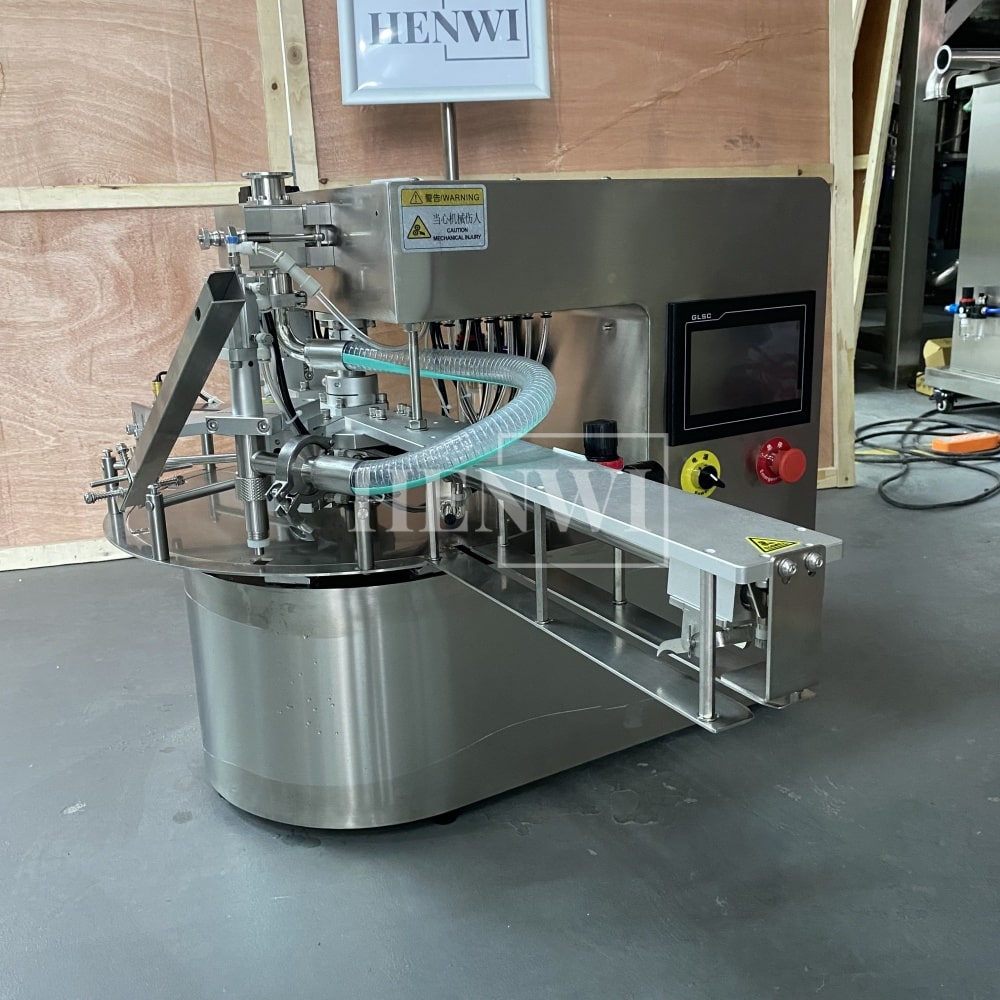

Henwi HWFM-S1 Desktop Semi Auto Spout Sachet Filling Capping Machine 1 Nozzle Spout Pouch Bag One Station Filler Sealer

Henwi HWFM-S1 Desktop Semi Auto Spout Sachet Filling Capping Machine 1 Nozzle Spout Pouch Bag One Station Filler Sealer

$4,500.00 USD
$4,500.00 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.


1. Introduction

Working step: (1) Bag feeding ➡ (2) Bag clamping ➡ (3) Bag opening ➡ (4) Filling ➡ (5) Pre-sealing (optional) ➡ (6) Sealing ➡ (7) Cooling (optional) ➡ (8) Finished product output.

Applicable sachet shape: (1) 3 sides sealed bag, (2) 4 sides sealed bag, (3) back sealed bag, (4) doypack, (5) zippered bag, (6) spout pouch, (7) zippered doypack, (8) bellows bag, etc.

Applicable sachet material: plastic, PP, PE, PET, aluminum, kraft bag, laminated sachet, etc.

Applicable filling material: powder, granule, liquid, particle, food, candy, tablet, snack, cosmetics, liquid chemical, medicine, etc.

2. Specification

1 Dimensions 80x60x70cm
2 Weight 70kg

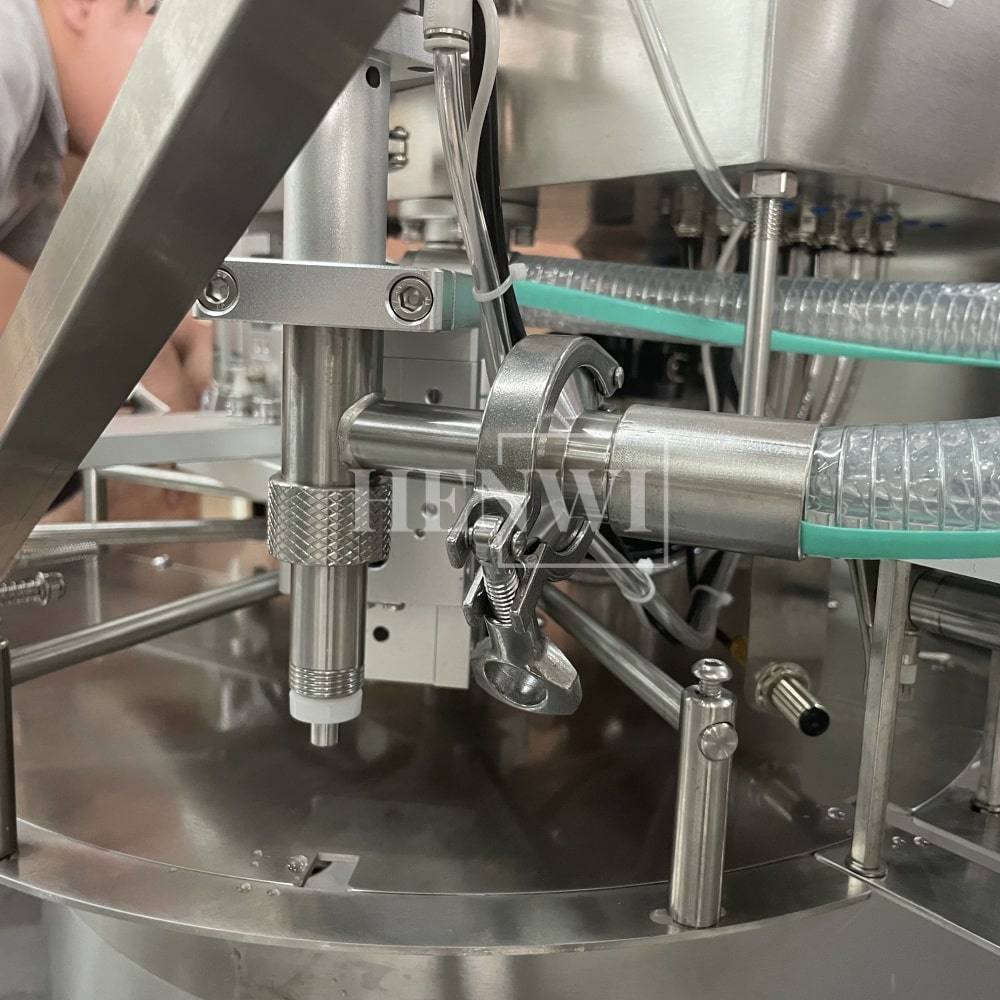

3 Filling nozzle 1 nozzle
4 Filling range 50-2000ml
5 Capping nozzle 1 nozzle
6 Capping diameter 10-30mm or customized
7 Power supply (KW) 2KW
8 Power source 220V/50Hz
9 Compress air consumption 0.5 (m3/min)
10 Compressed air pressure 0.5-0.8 MPa
11 Noise level ≤85dB
12 Speed 15-30 bags/minute
13 Filling accuracy ±1 gram
14 Bag feeding method Manual bag hanging
15 Filling method

Gear pump

Lobe pump

Piston pump
16 Cap feeding method Vibratory disc feeding
17 Bag discharge method Automatic bag discharge

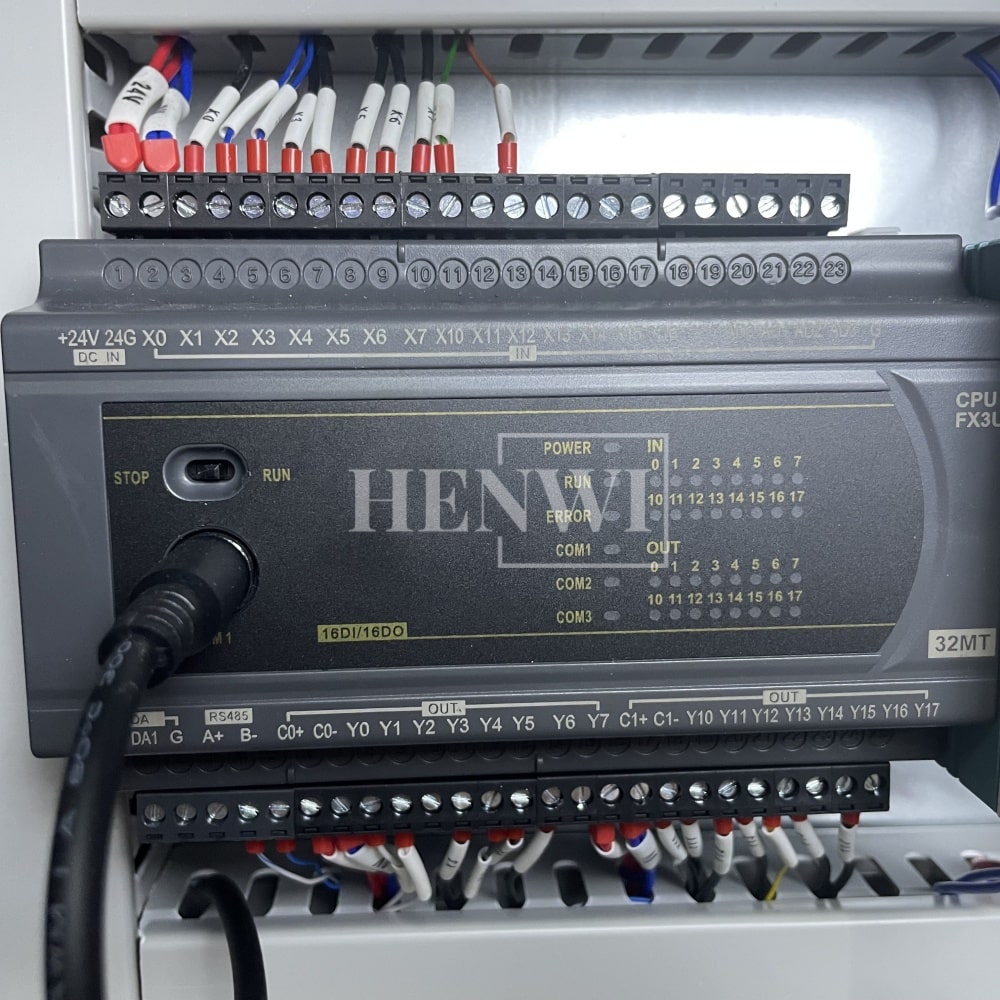

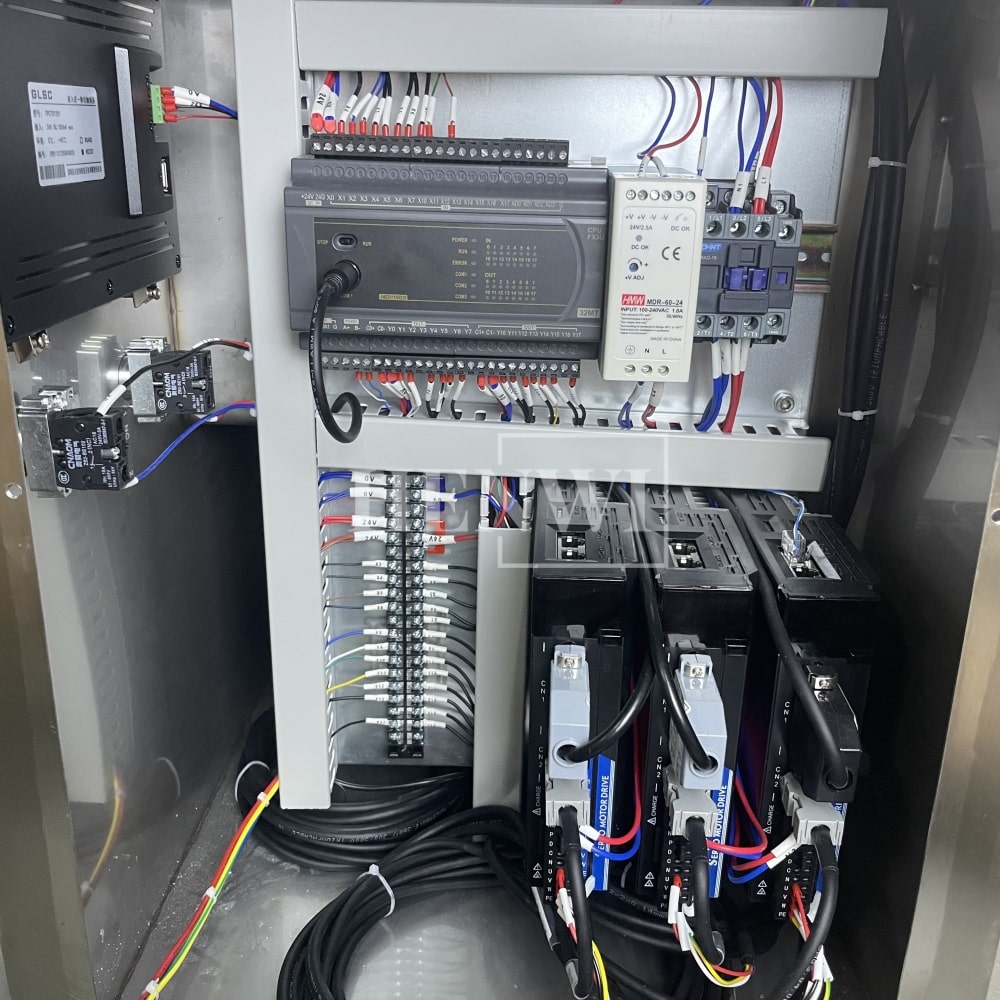

18 PLC Weisheng Industrial Control

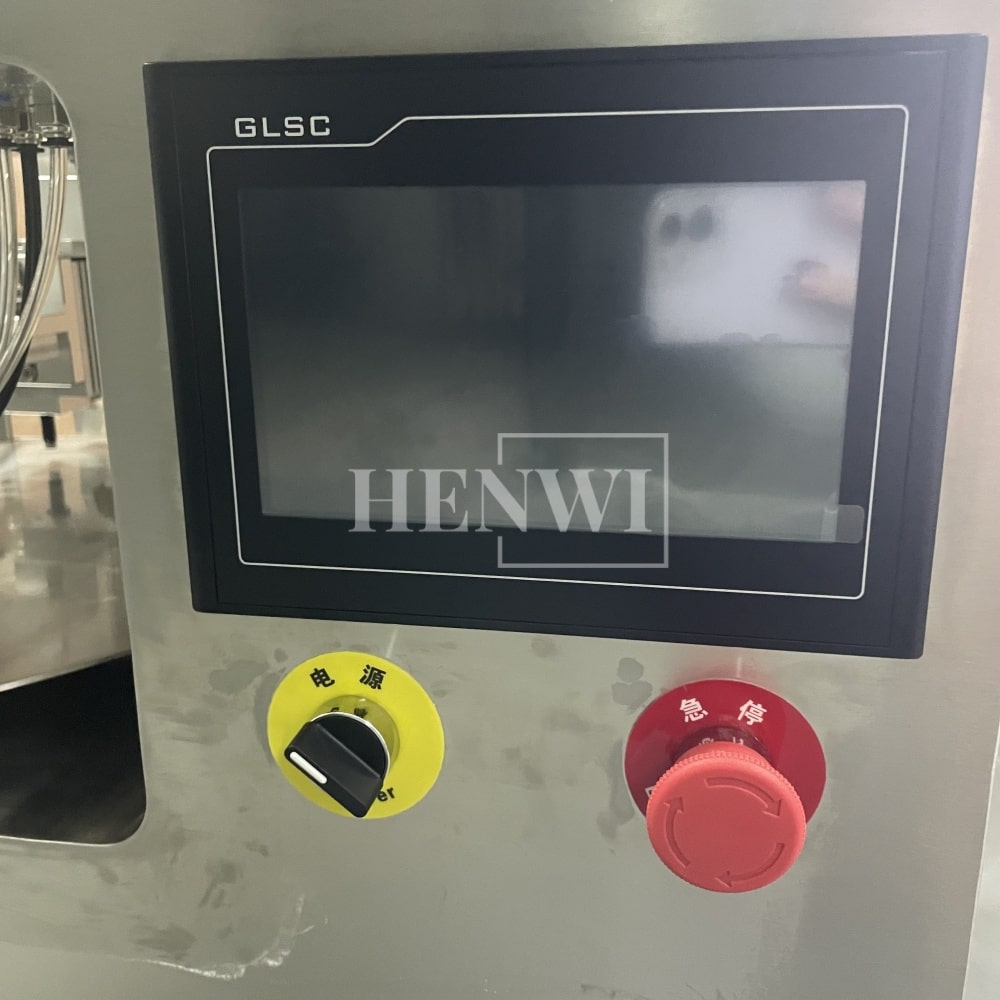

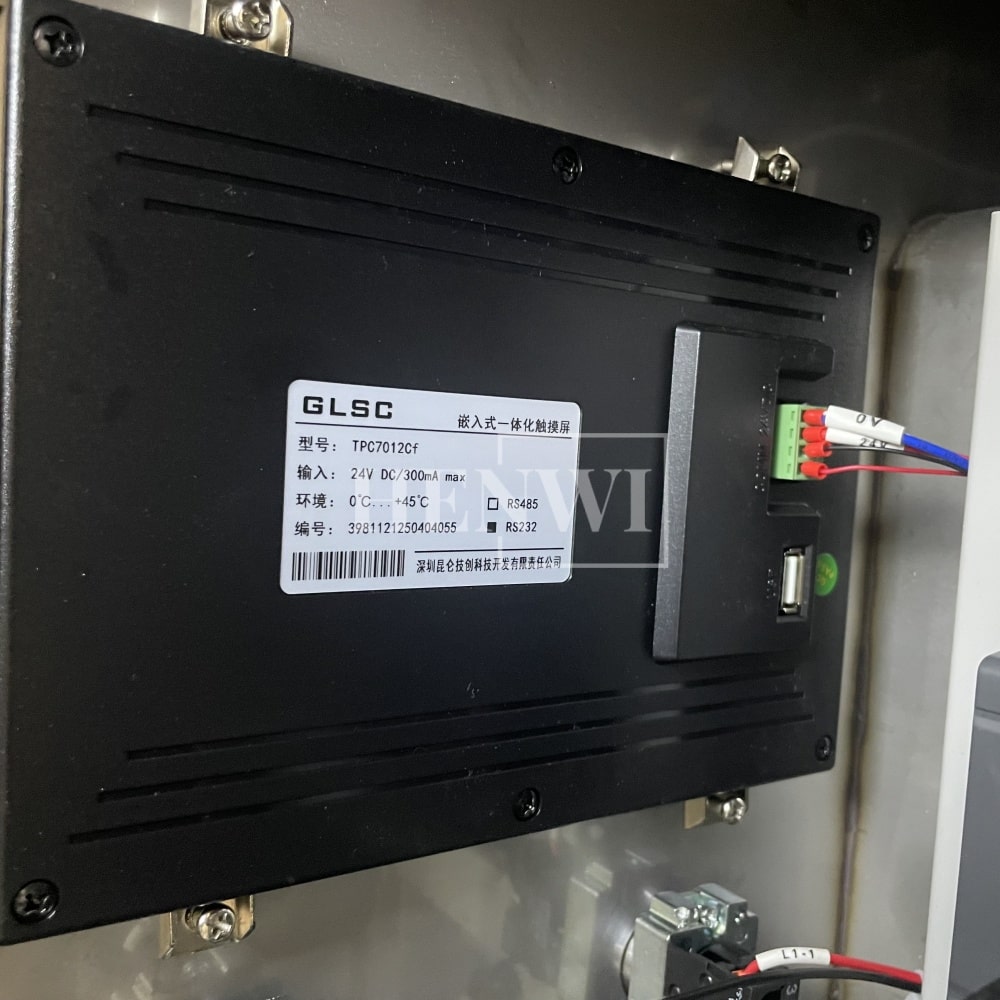

19 Touch Screen Kunlun
20 AC Contactor CHNT
21 Switch Electronics CHNT

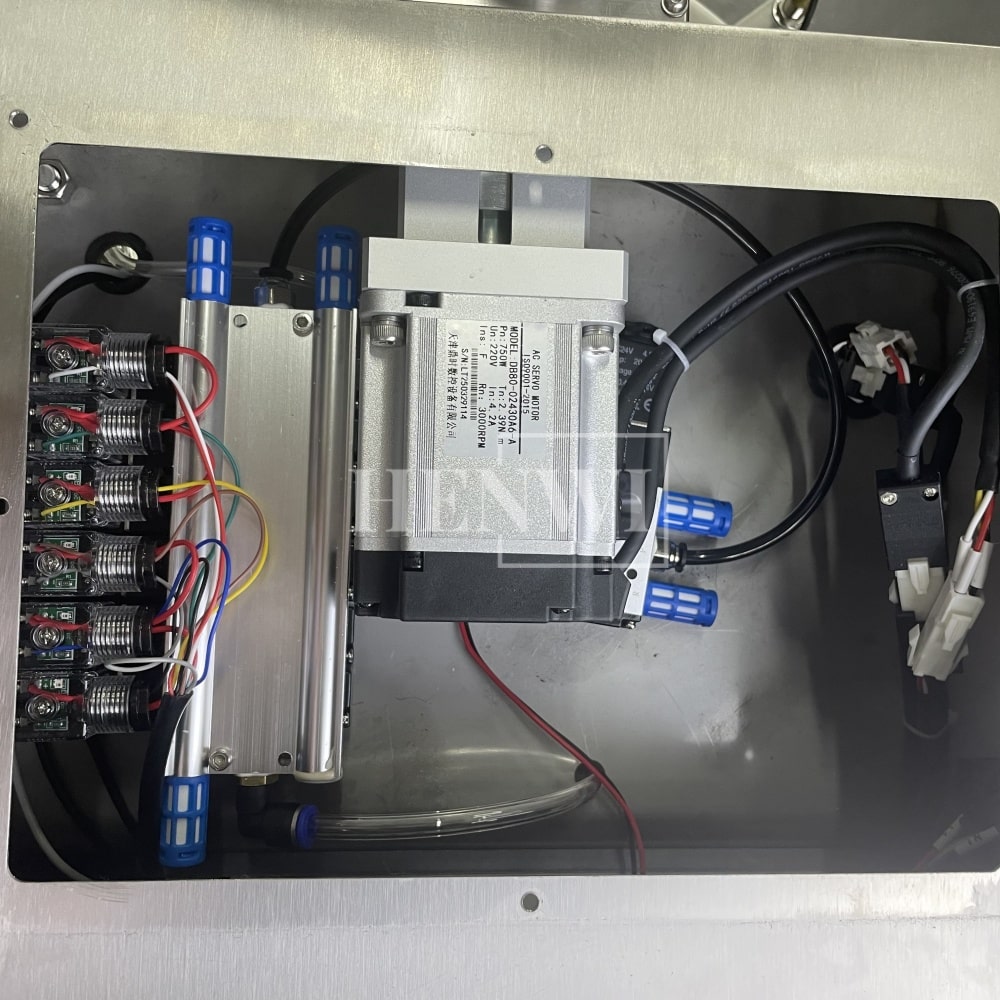

22 Filling Servo Motor Devison
23 Main Unit Servo Motor Devison
24 Capping Servo Motor Devison
25 High-Precision Planetary Reducer Times Chaoqun

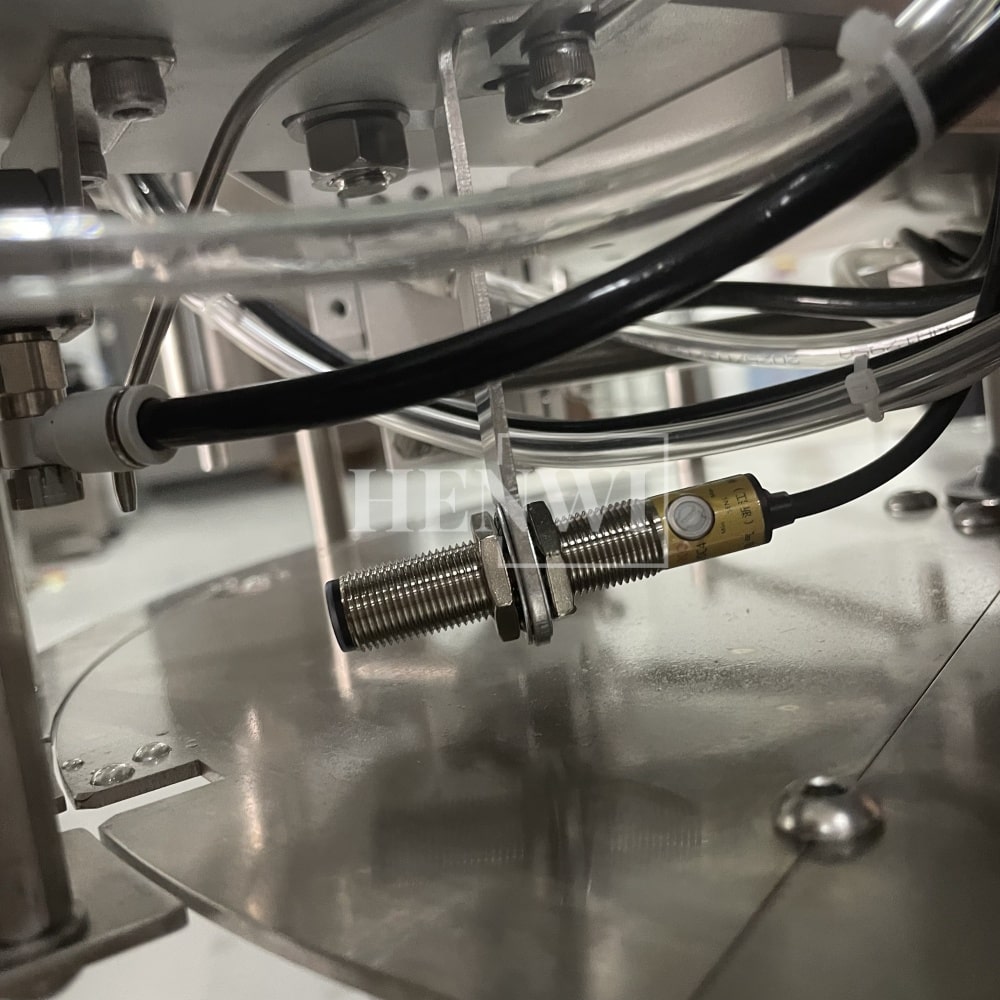

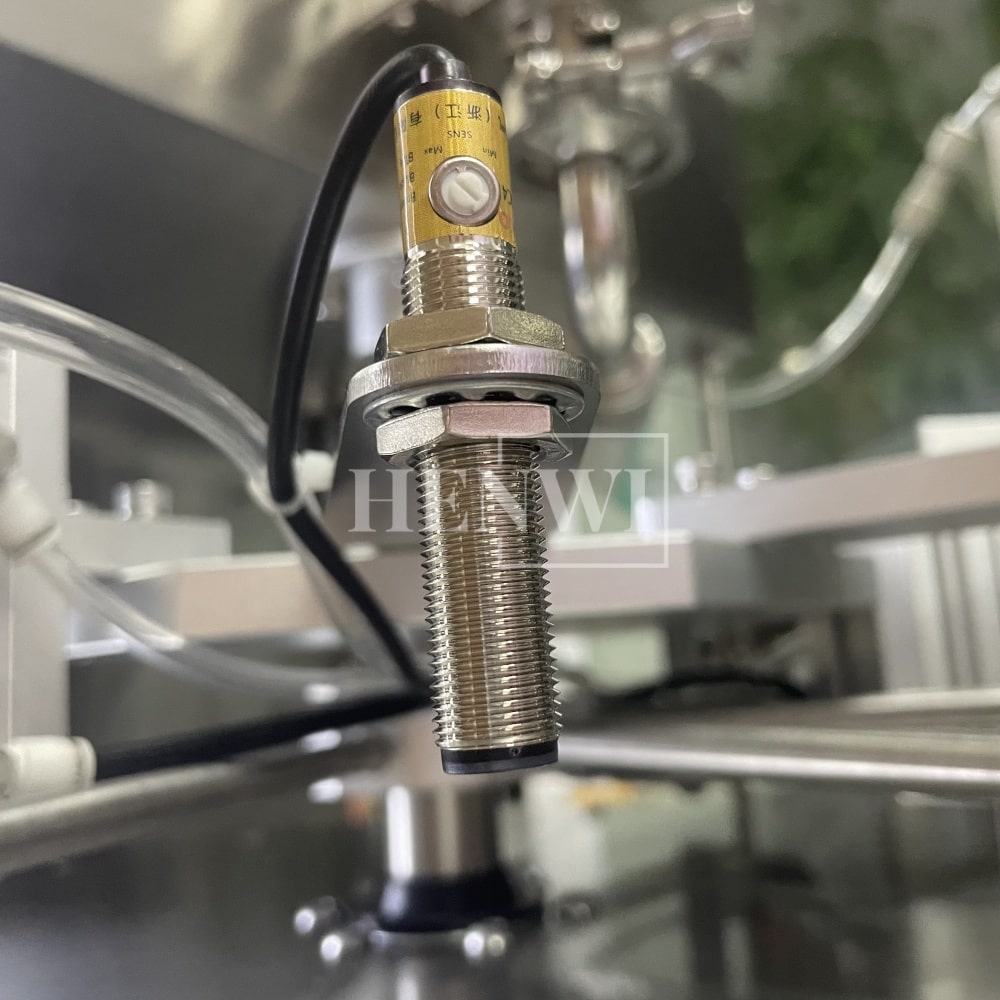

26 Detector Switch Hugong

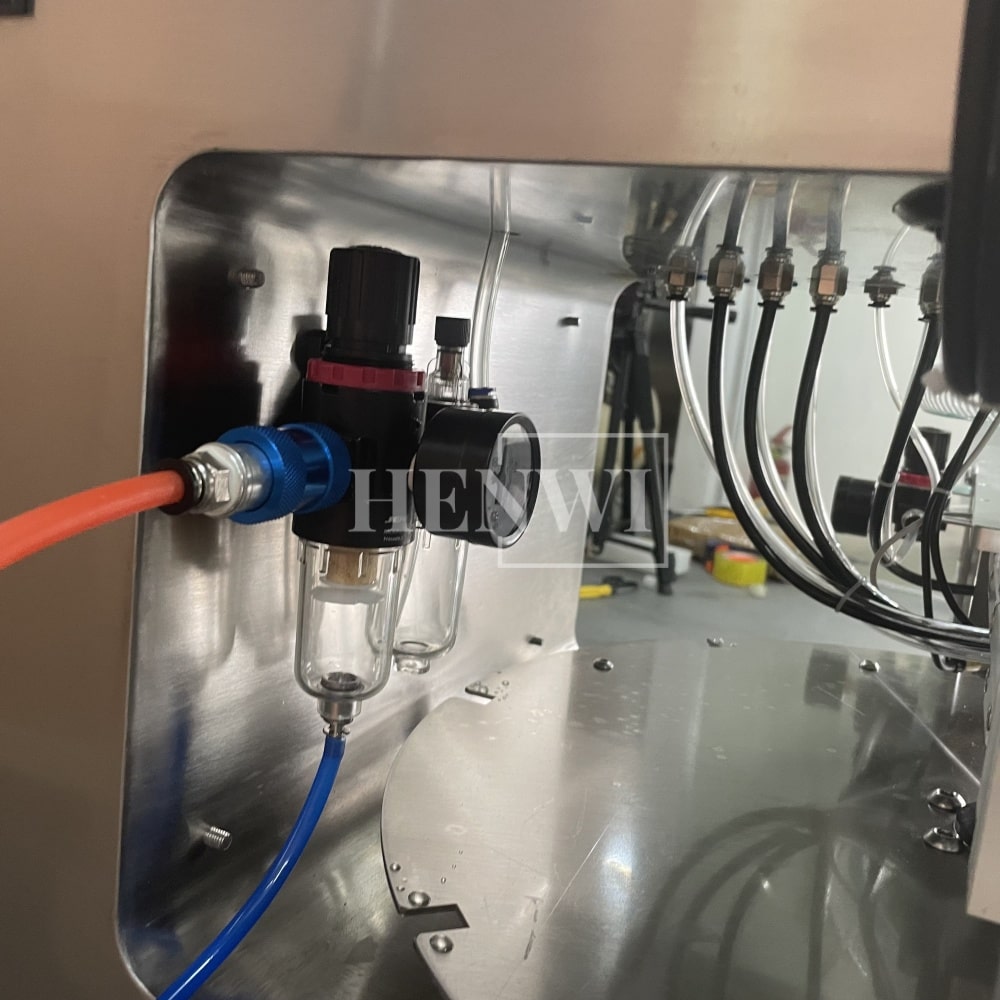

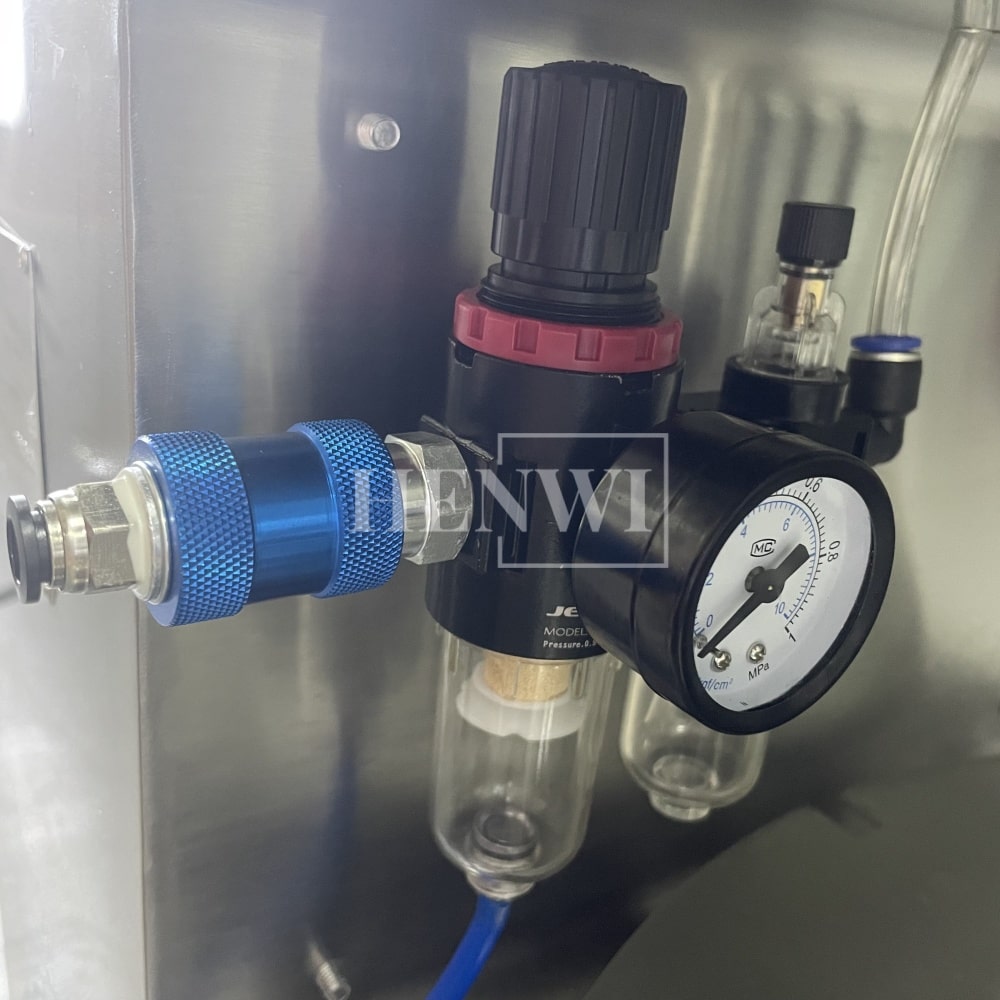

27 Pneumatic Components Jiede
28 4V DC Power Supply Box Taiwan MeanWell
29 Bearings Harbin
30 Frame Sheet Metal SUS304
31 Aluminum Parts National Standard 6061 + Sandblasting Anodizing
32 Plastic Parts PE, POM, or Plastic
33 Applicability Applicability: Suitable for bagged products in daily chemical, food and chemical industries: such as laundry detergent, shampoo, facial cream, jelly, juice, sauce, milk, granular fruit, and emulsion materials.
